Last Update: 05/19/11
Anson Brown
Model: 19th Century J.G. Staufer/Legnani model
Specifications:
|
|

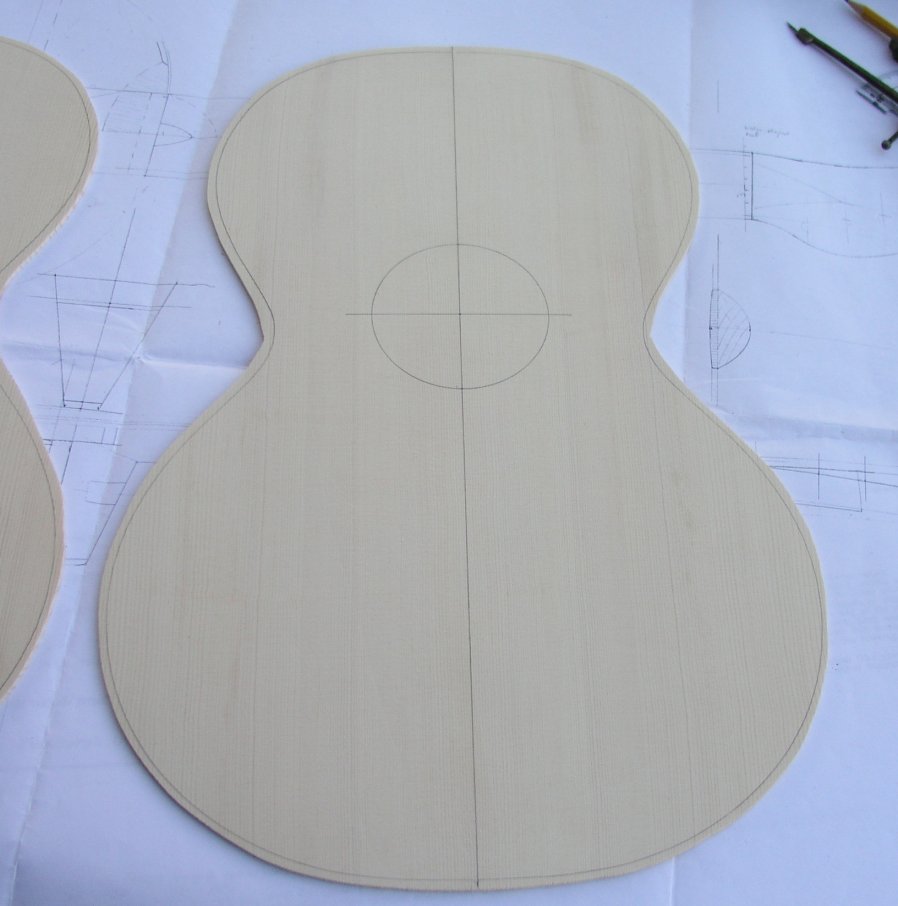

Soundboard. |
|
|

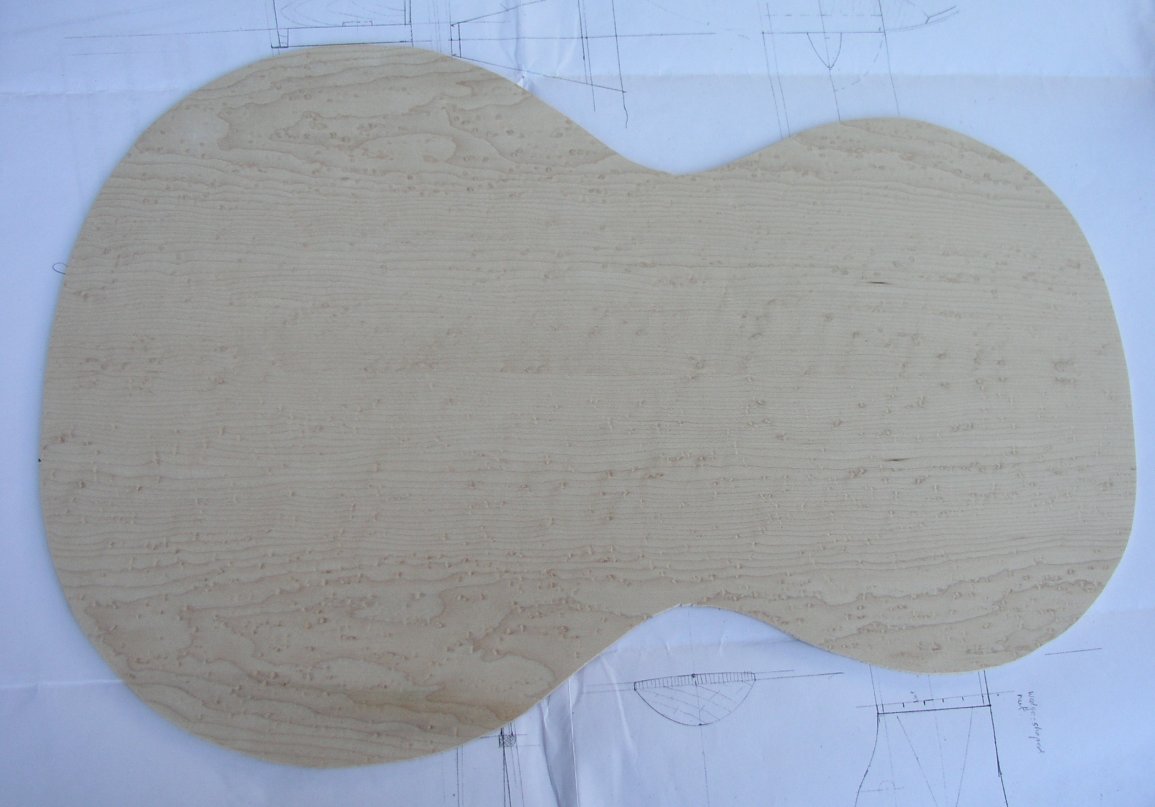

Birdseye maple back. |
|
|

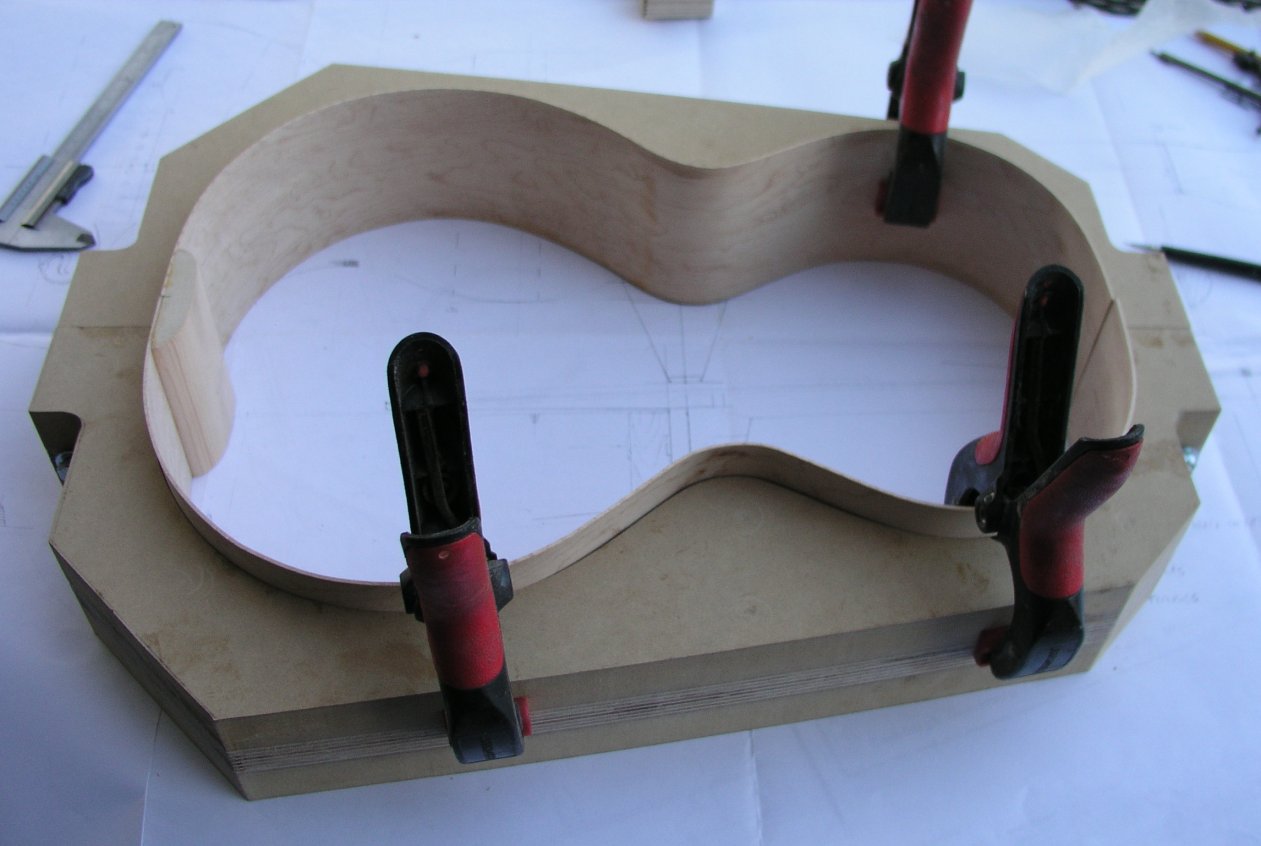

Sides bent and glued to tail block. |
|
|

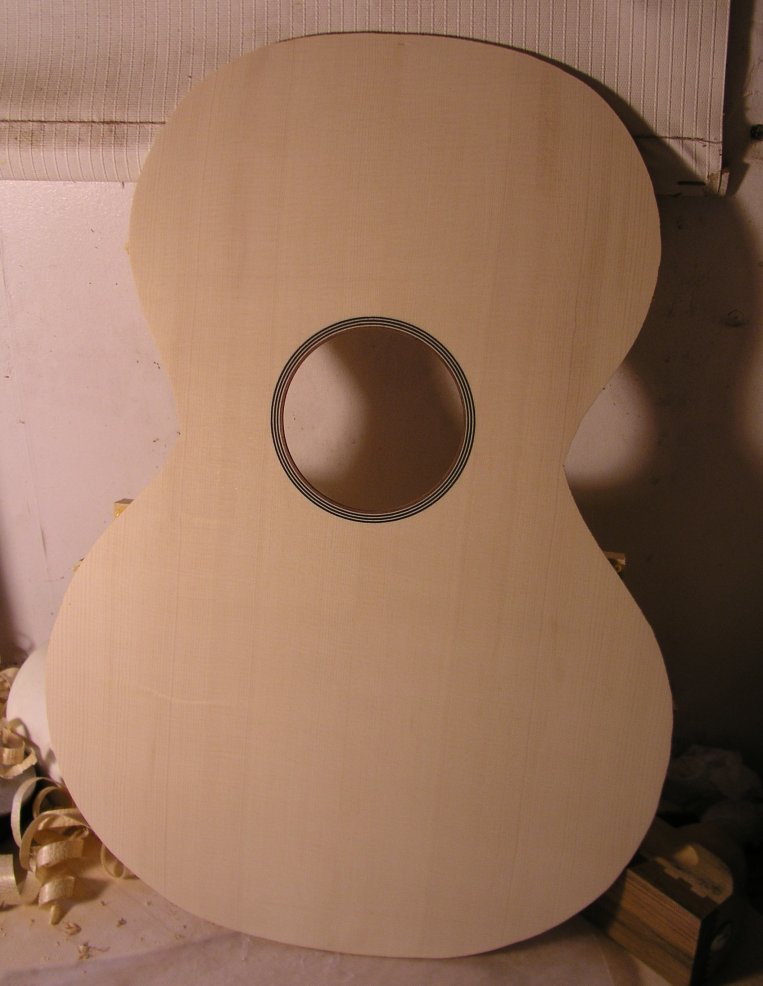

Rosette inlaid and soundhole cut out. |
|
|

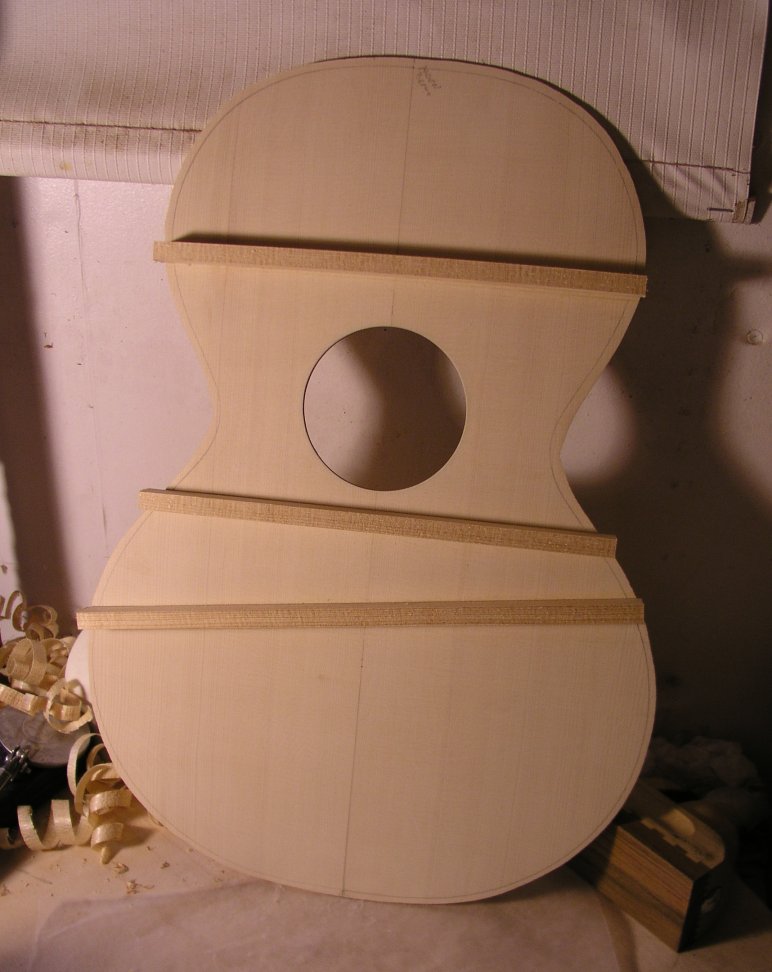

Soundboard braces glued on and ready for shaping and top voicing. |
|
|

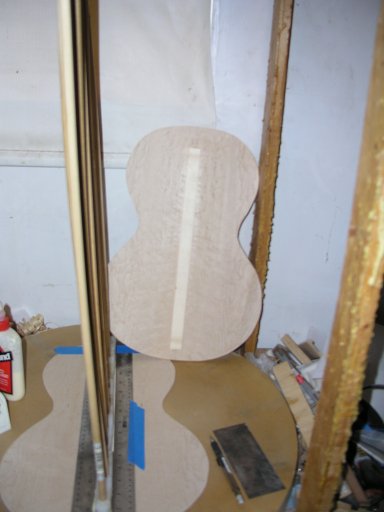

Back reinforcement strip being glued to backs. |
|
|

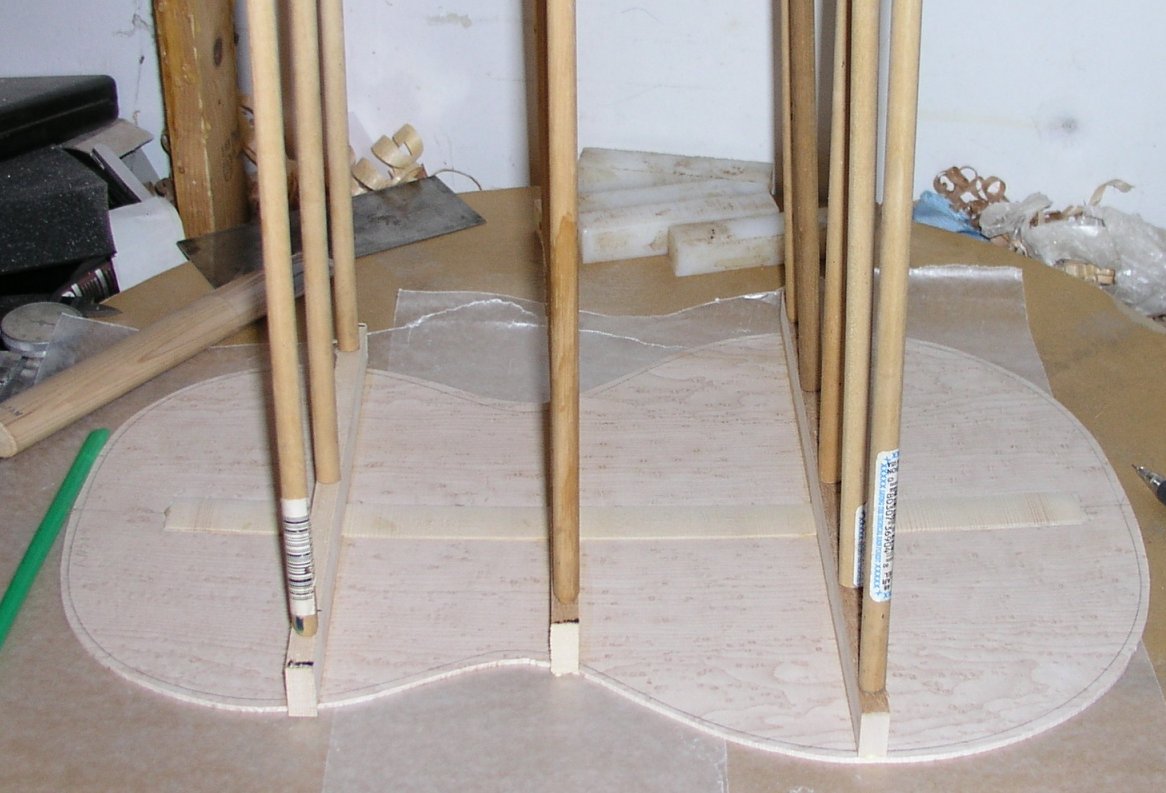

Back braces being glued. |
|
|

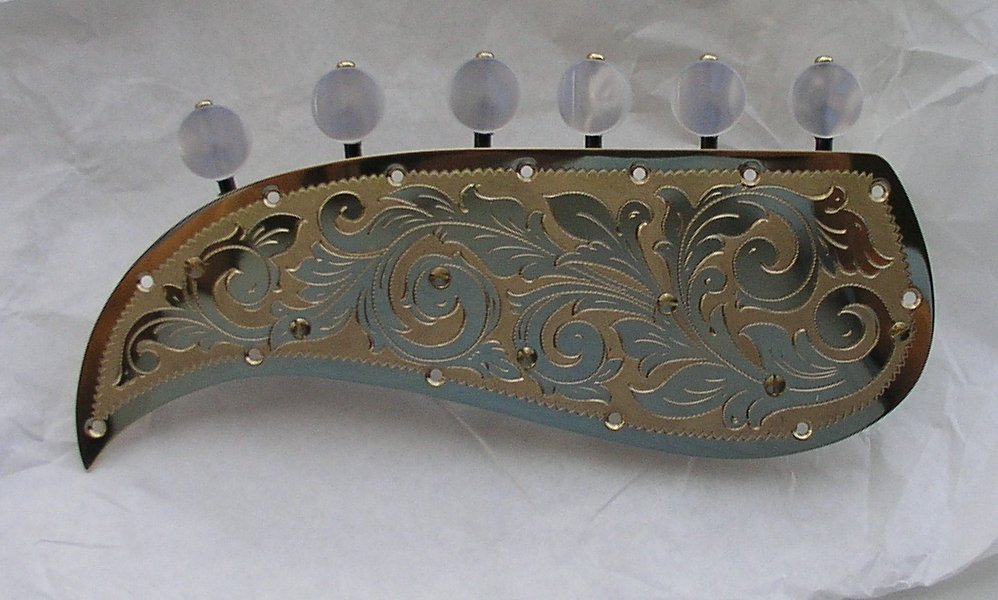

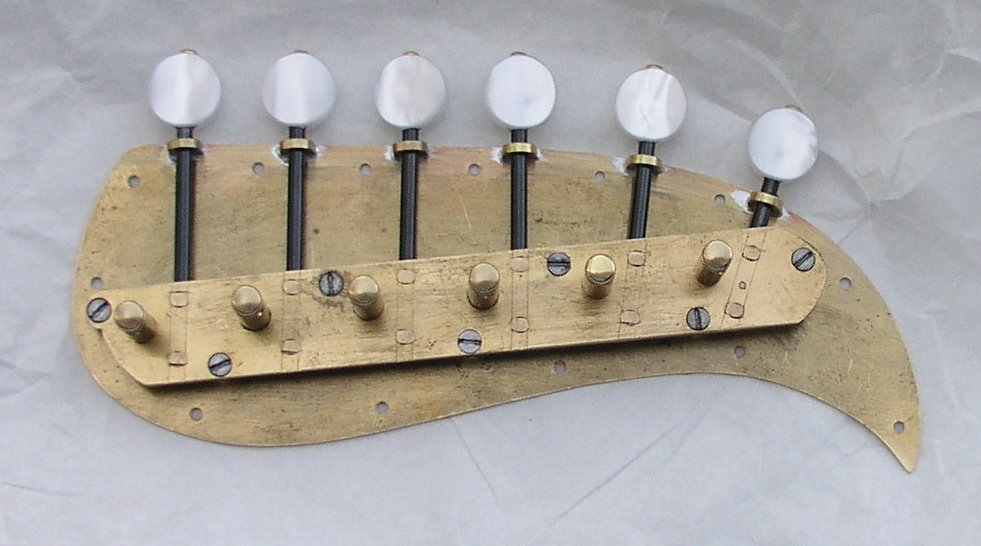

Rubner "Staufer" six-on-a-side tuning machines. Back view. |
|
|
Front view. |
|
|

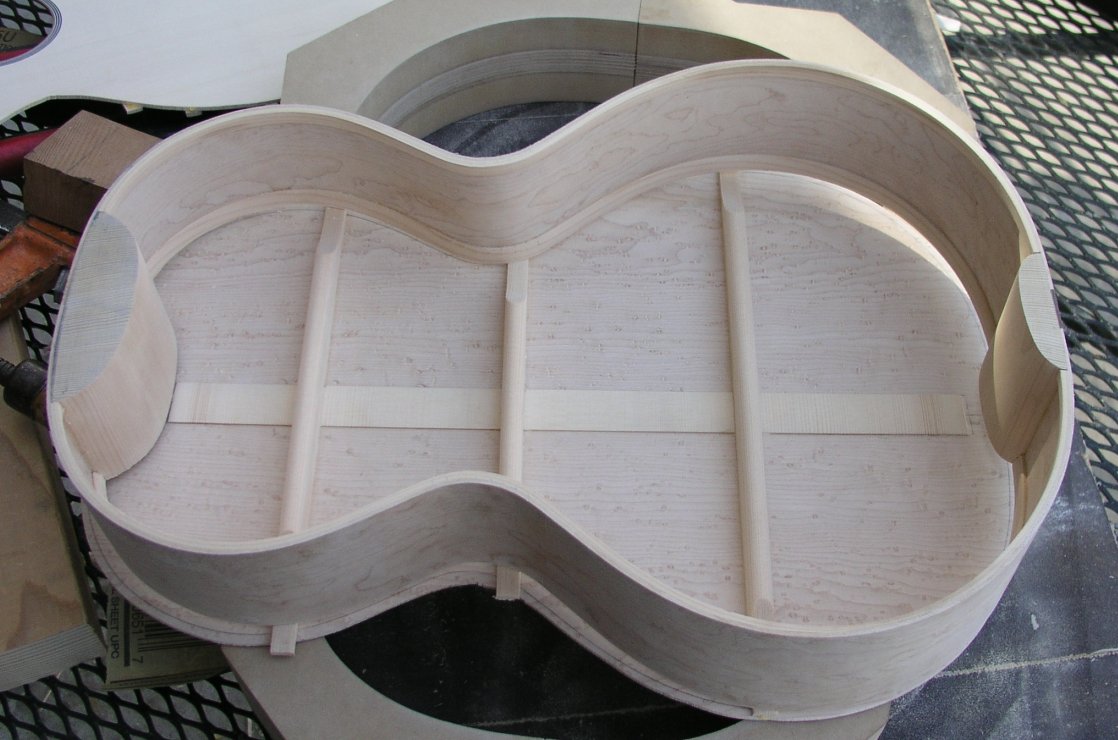

About to fit the back. |
|
|

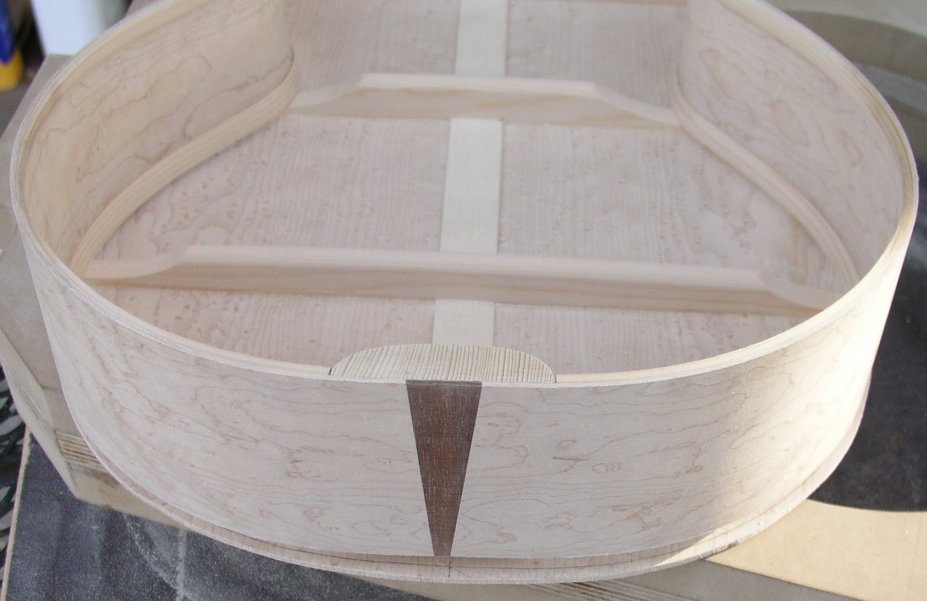

Walnut back graft. |
|
|

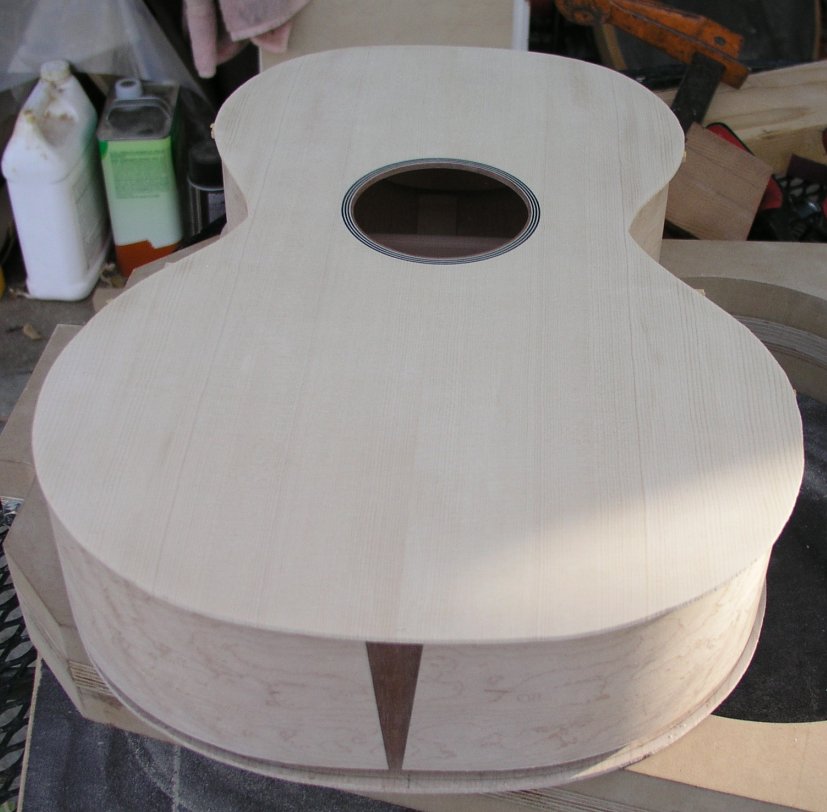

About to fit the soundboard. |
|
|
Another view of the back graft, soundboard, and back prior to fitting. |
|
|

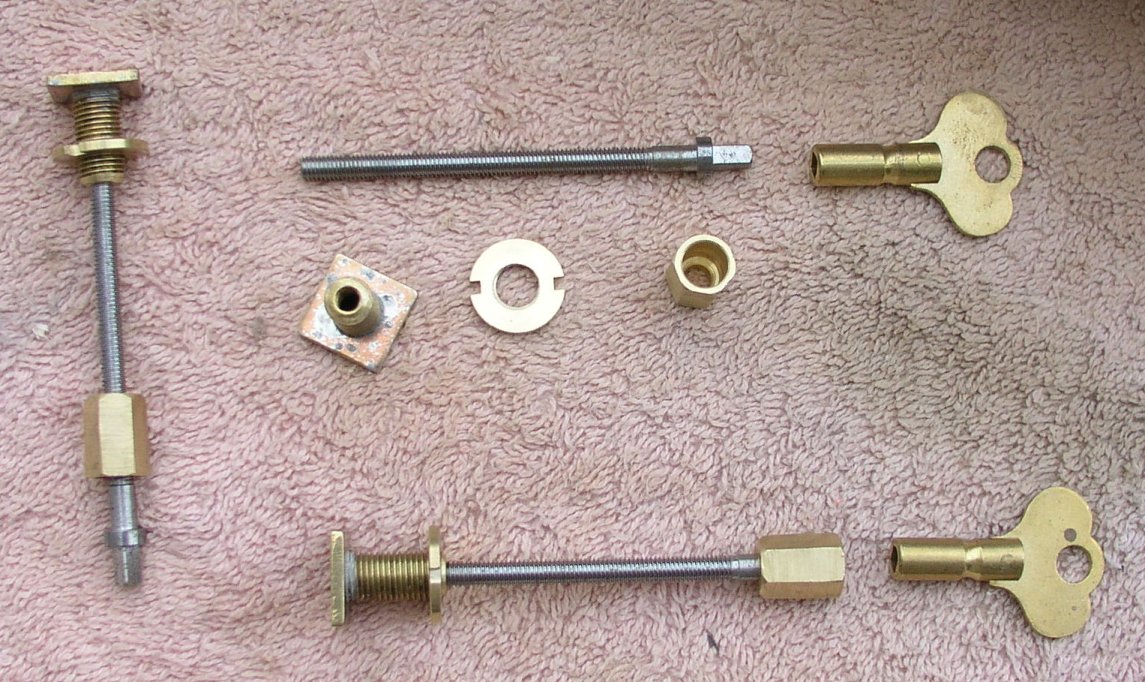

Rubner "Halsschraube" neck adjustment hardware. |
|
|
Internal hollow bolt for adjustable neck. |
|
|

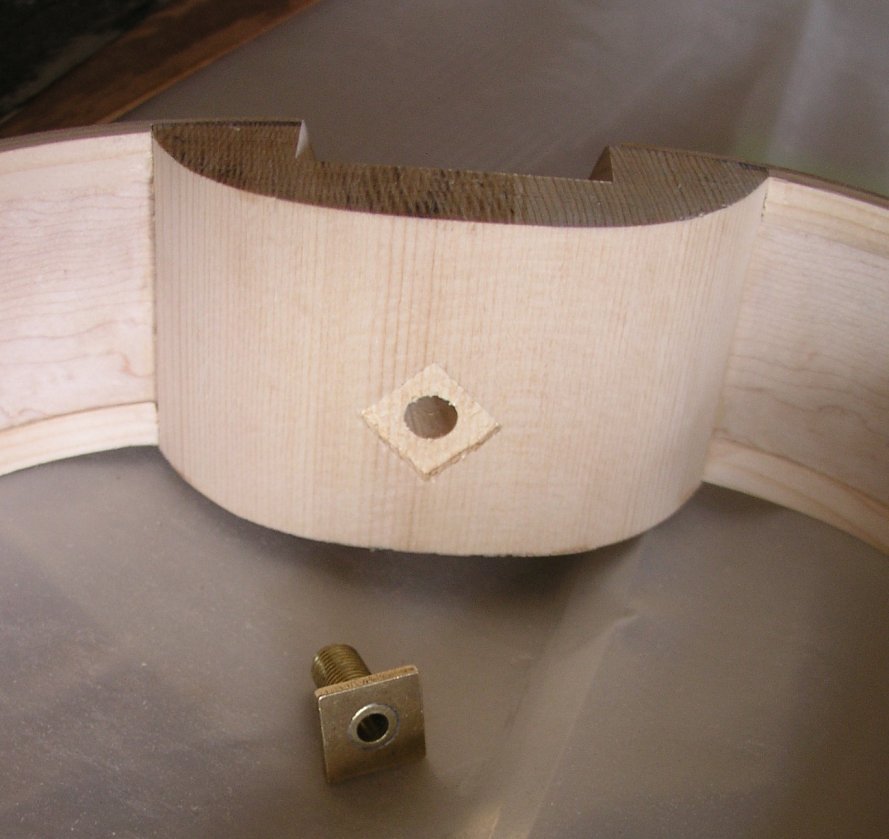

Hollow bolt installed |
|
|
Nut for hollow bolt. |
|
|

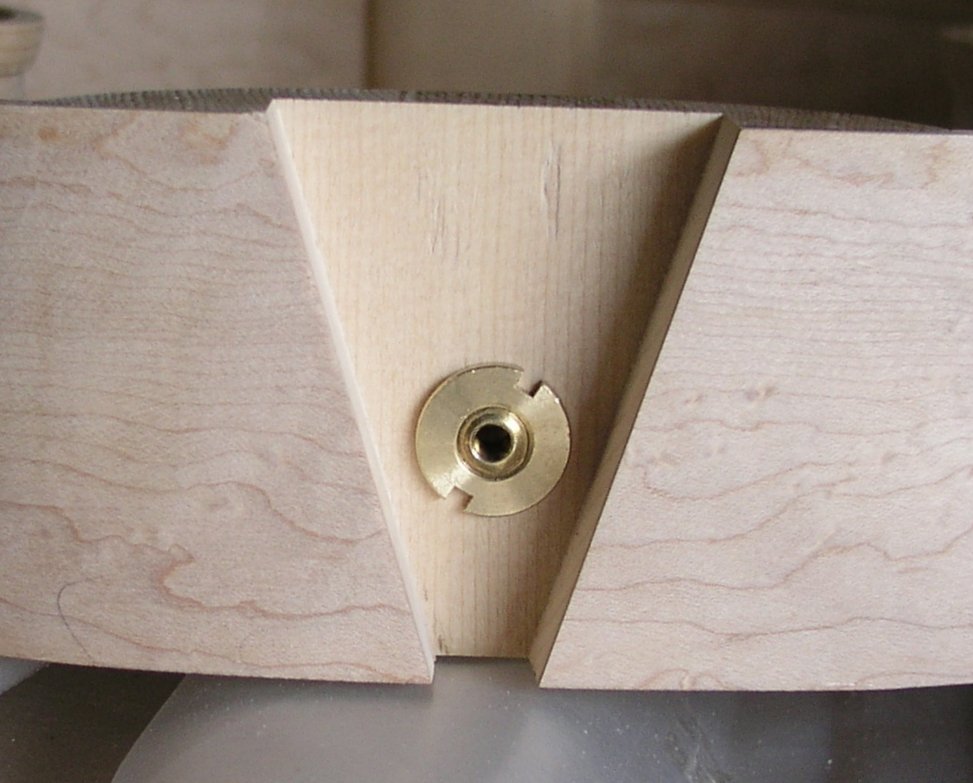

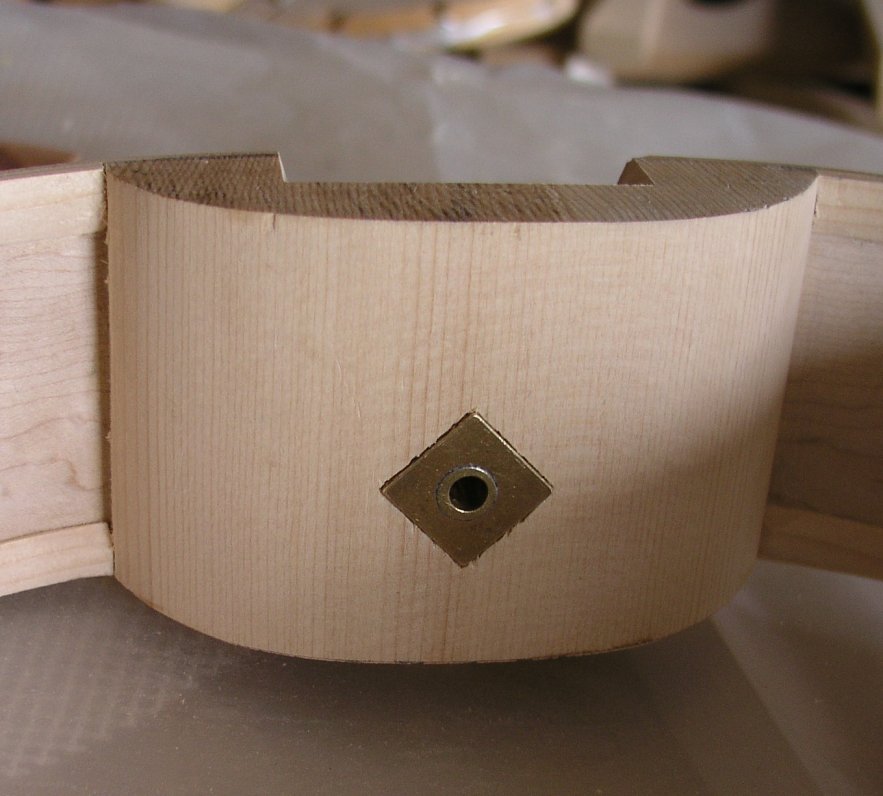

Nut installed. |
|
|

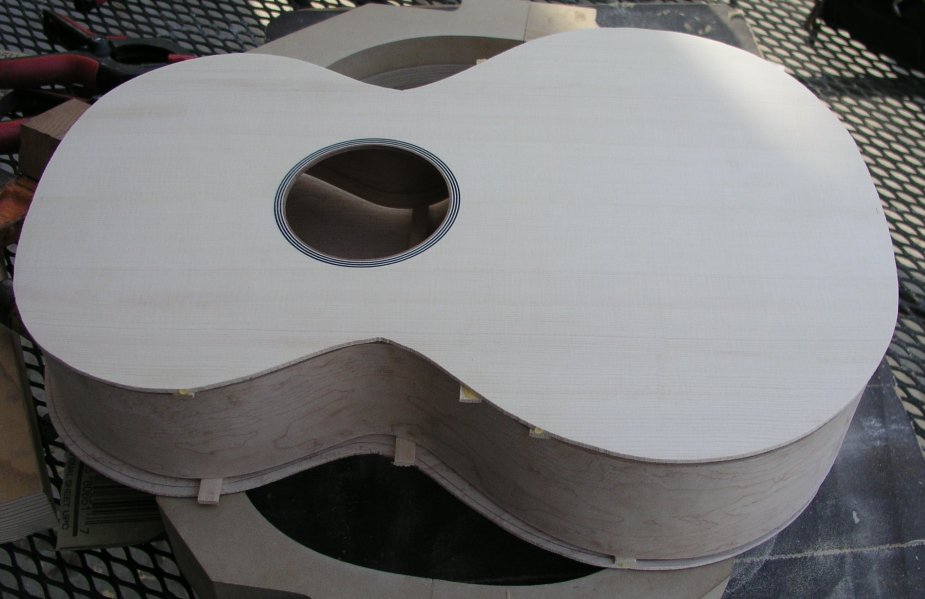

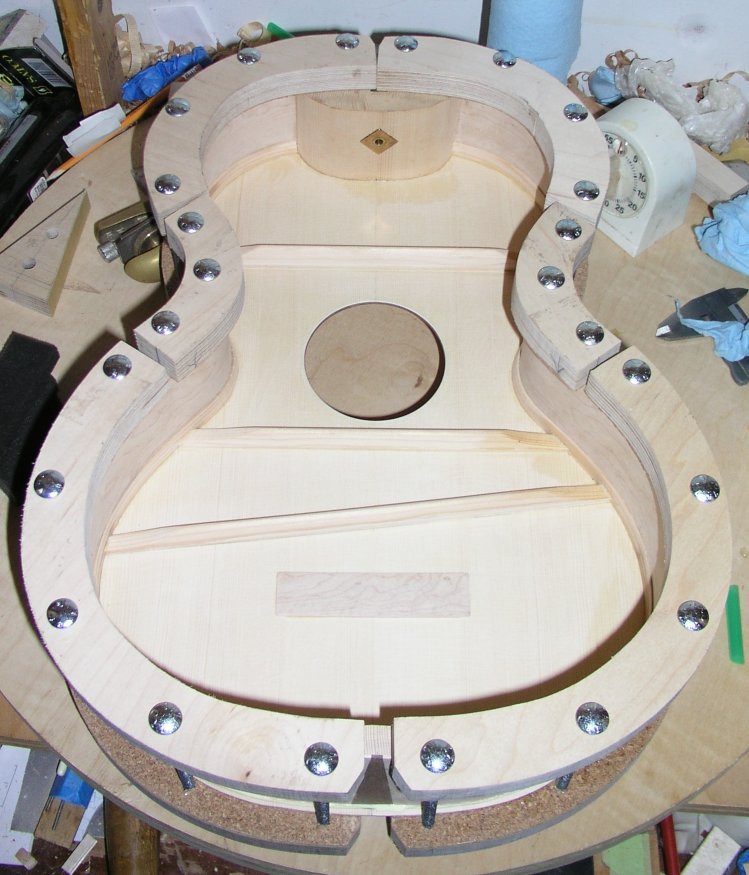

Attaching the top. |
|
|

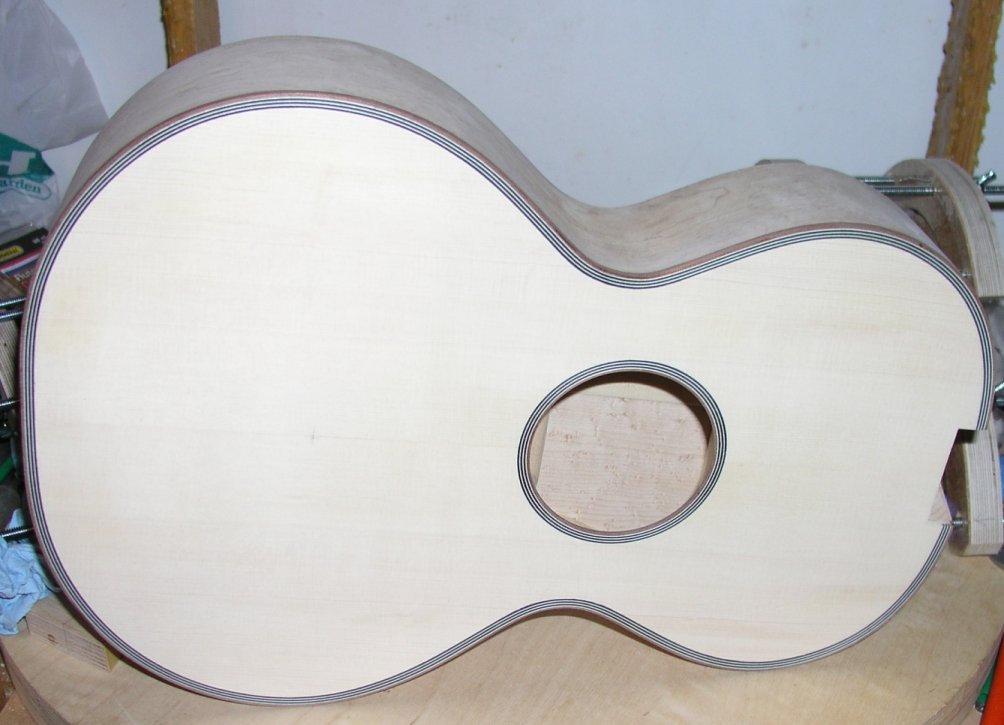

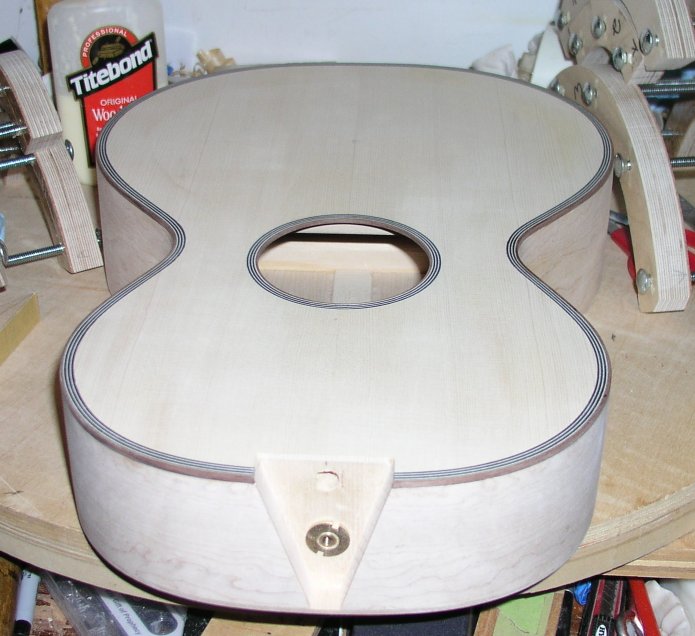

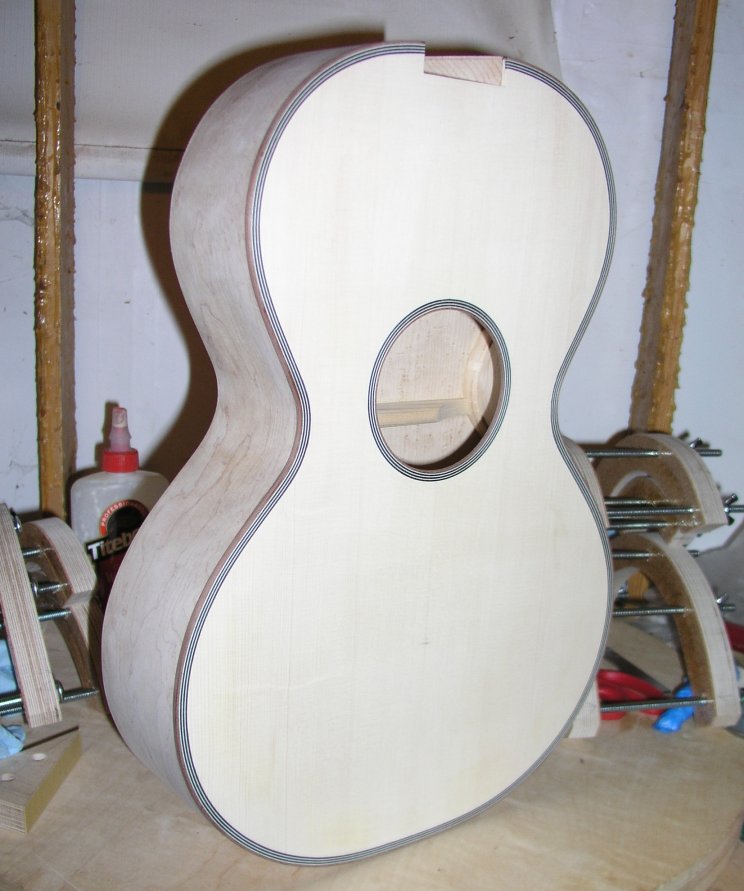

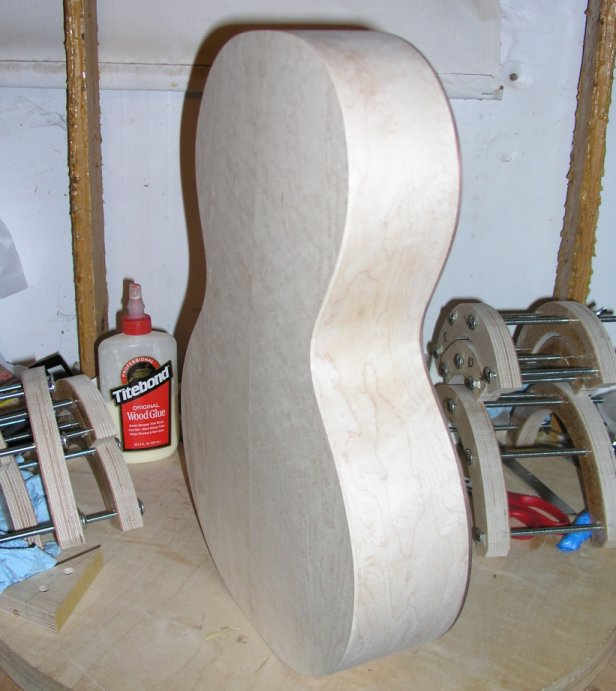

Body complete. Purfling and binding installed. |
|
|
Front and side view. |
|
|
Back and side view. |
|
|

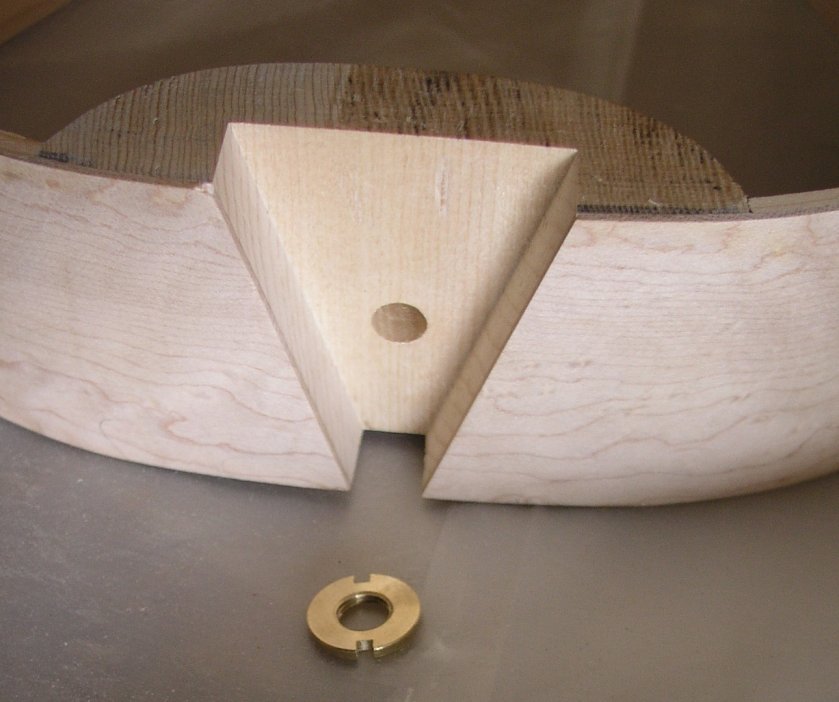

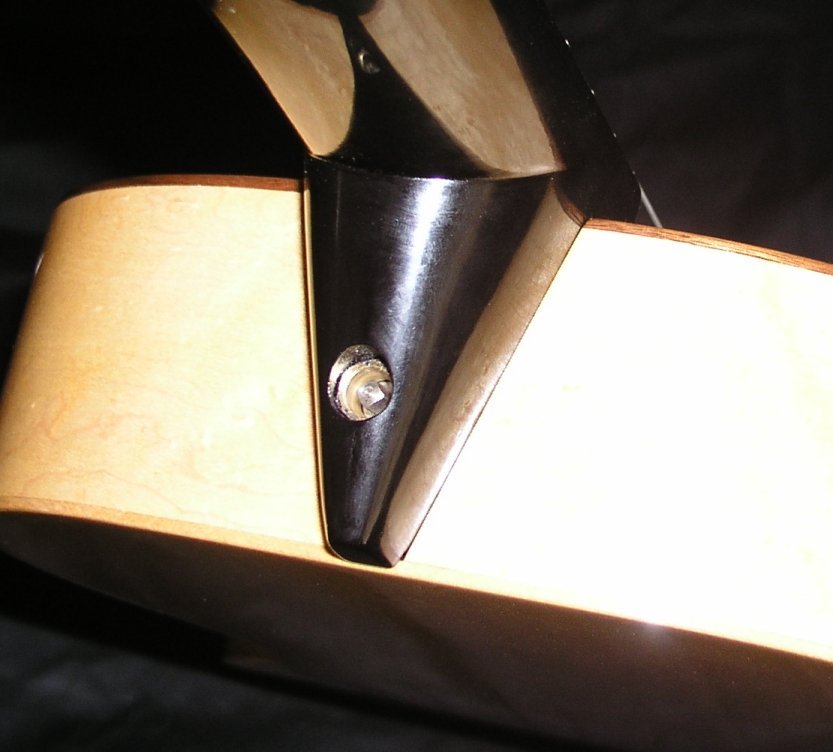

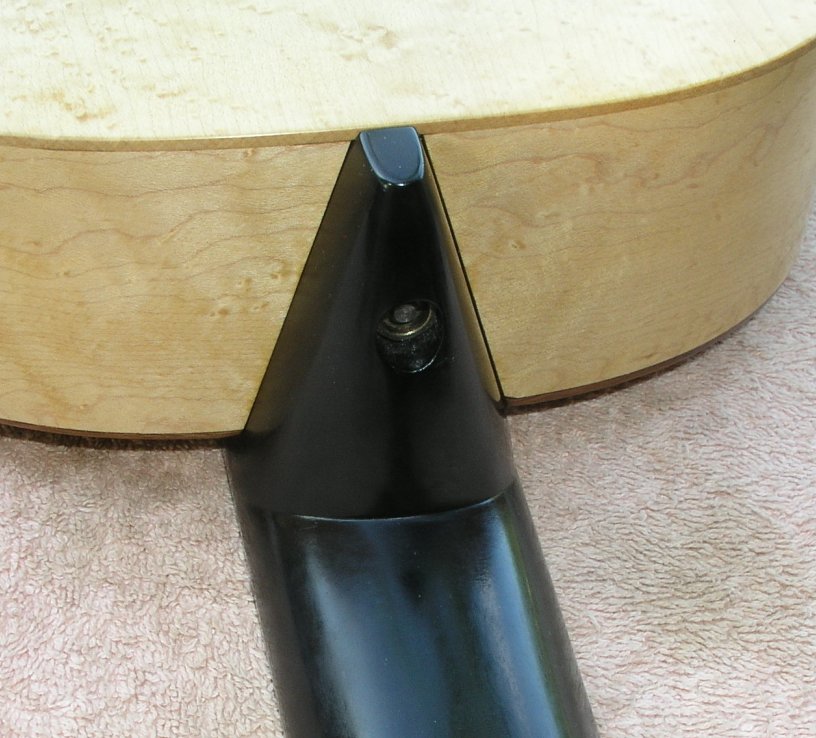

View of the adjustable neck pocket. |
|
|

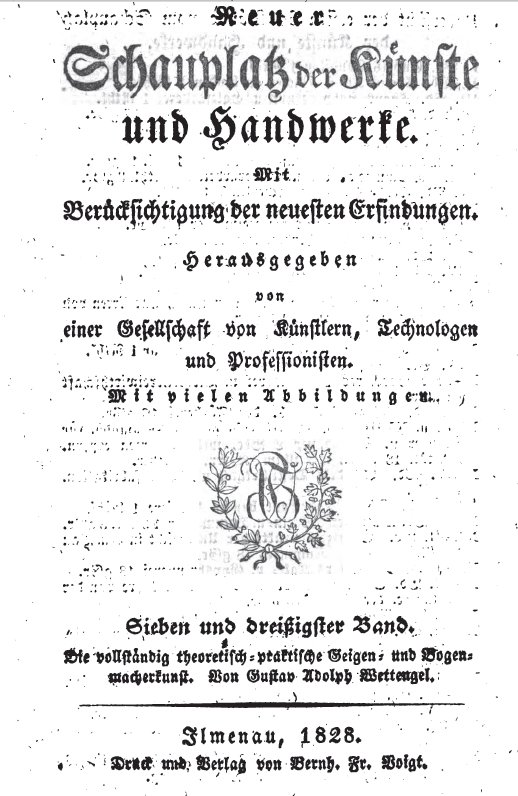

Here is the title page of a book from 1828 on instrument making:
Vollstandiges, theoretisches-praktisches Lehrbuch der Anfertigung und Reparatur aller noch jetzt gebrauchlichen Gattungen von italienischen und deutschen Geigen by G.A. Wettengel, 1828. |
|
|

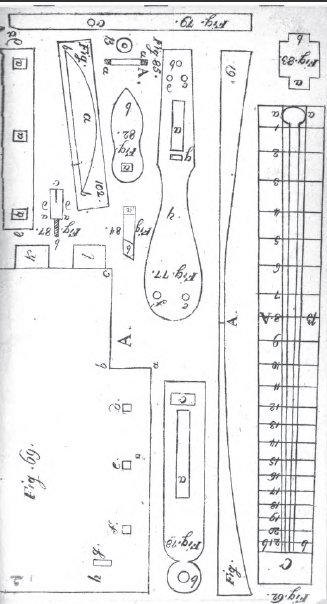

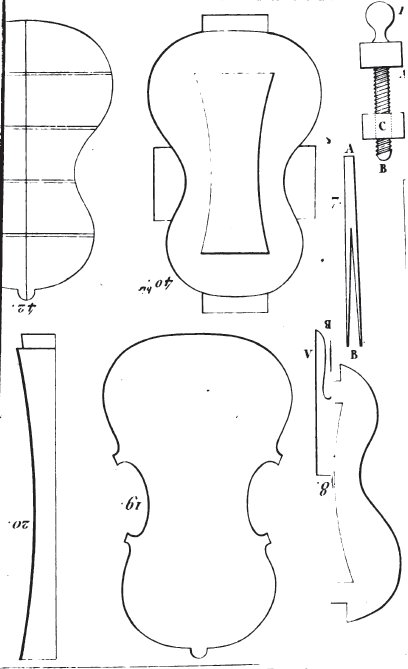

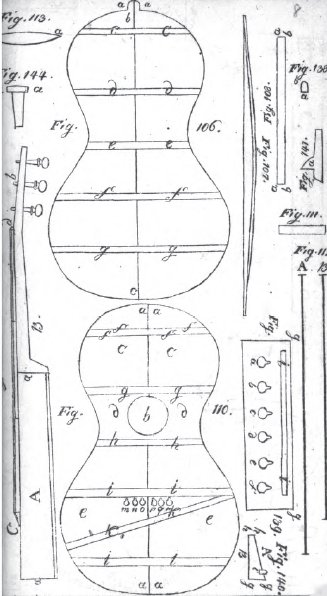

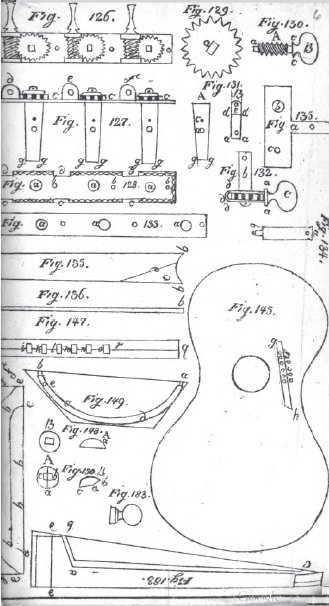

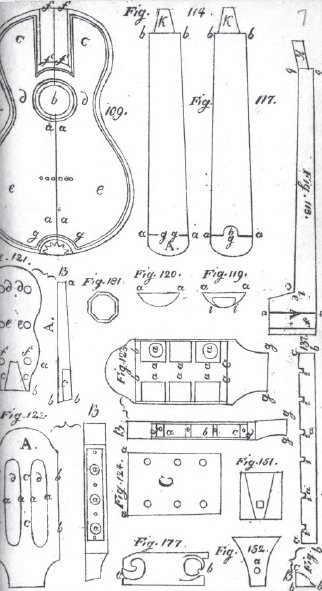

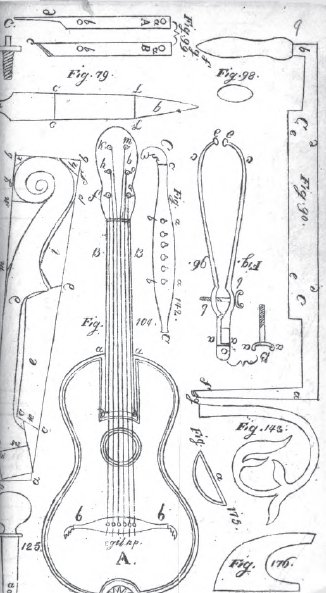

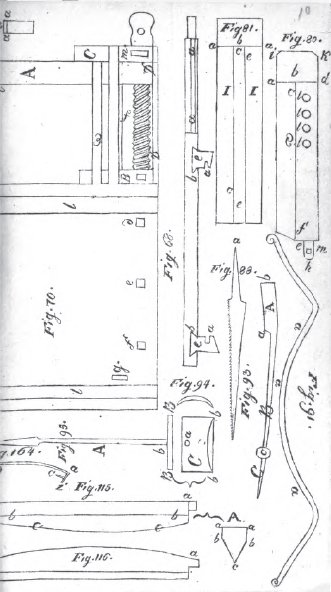

Illustration from the above book. |
|
|
Illustration from the above book. |
|
|
Illustration from the above book. |
|
|
Illustration from the above book. |
|
|
Illustration from the above book. |
|
|
Illustration from the above book. |
|
|

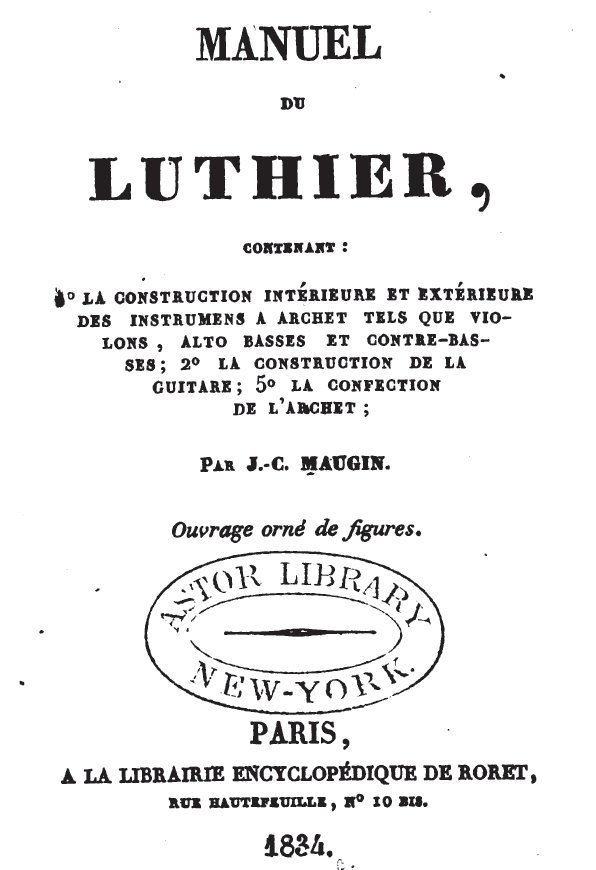

Manuel du luthier by J.C. Maugin. 1834 |
|
|

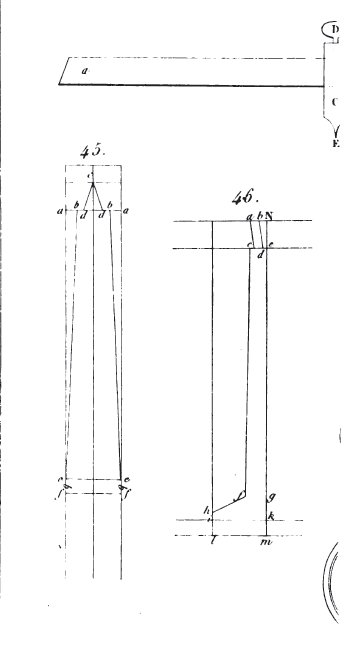

Illustration from the above book. |
|
|
Illustration from the above book. |
|
|

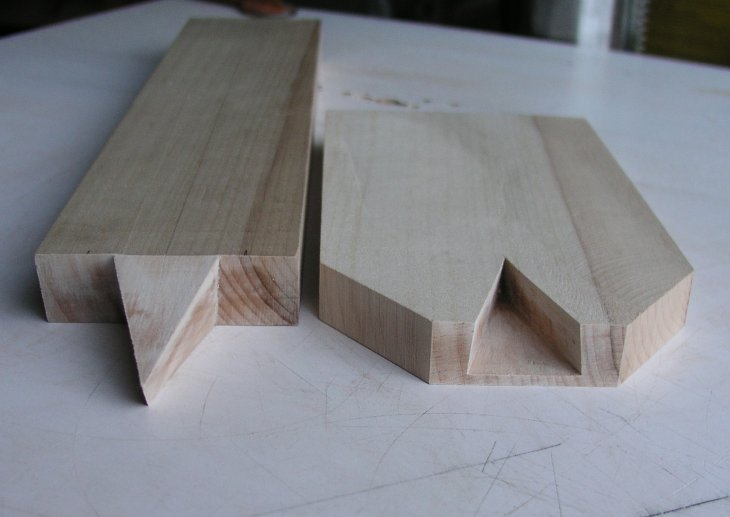

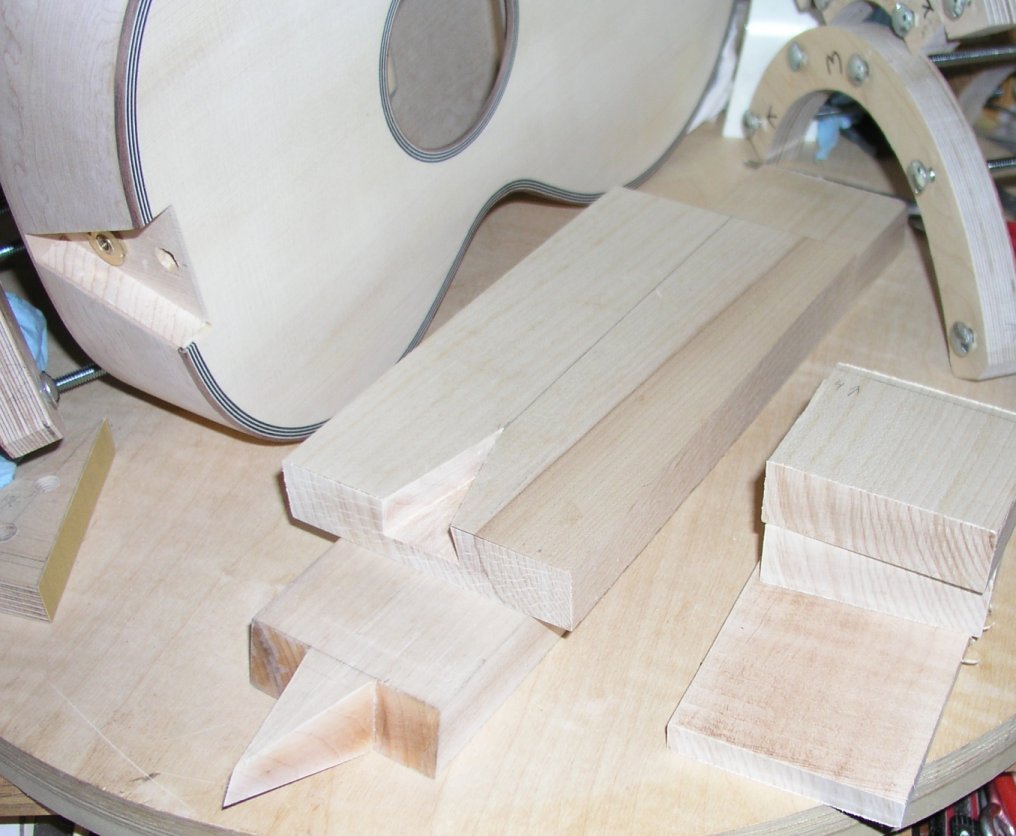

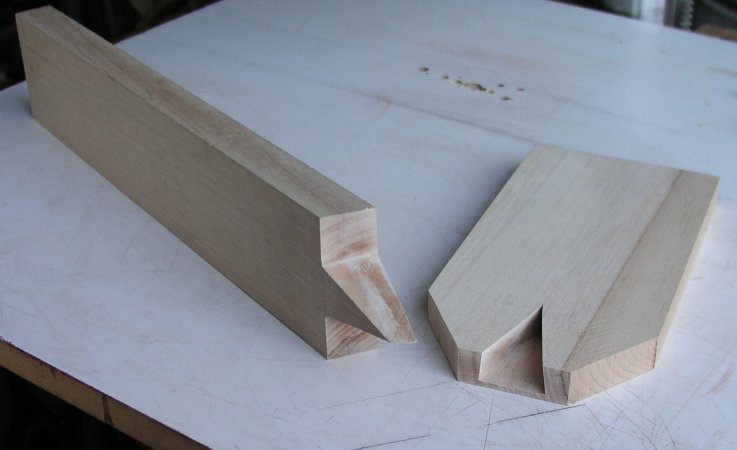

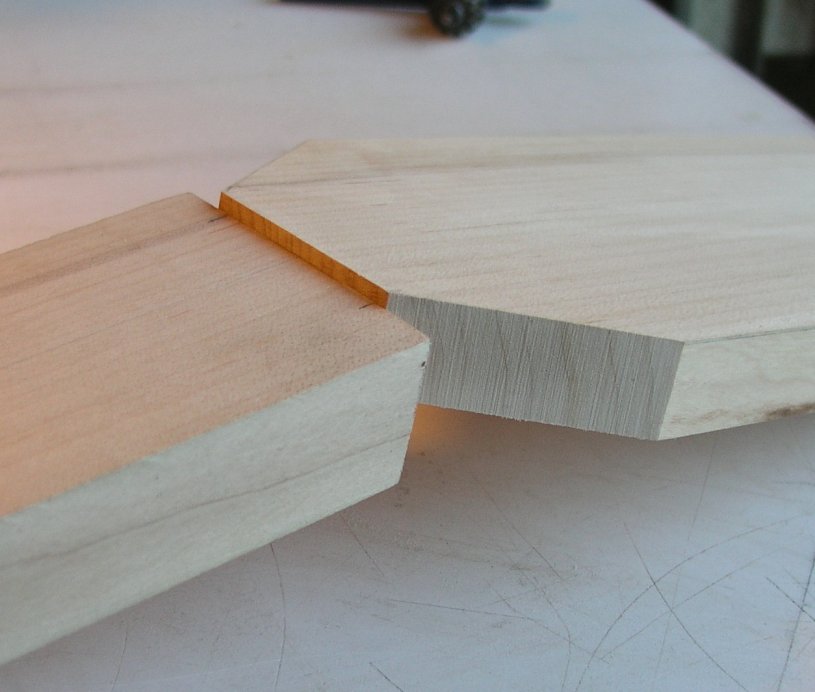

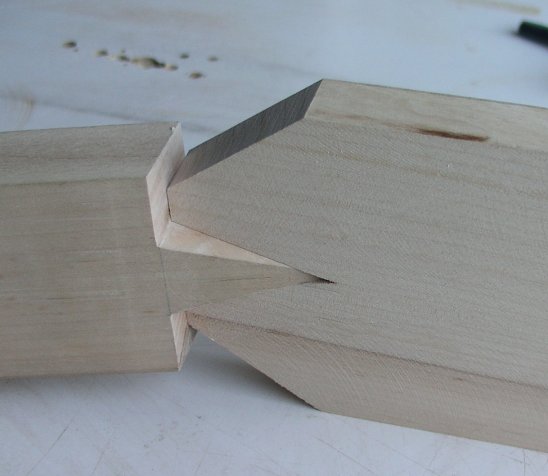

Rough cut of the covered vee head joint. |
|
|
Final fitting of covered vee head joint. |
|
|
Close up of covered vee joint. |
|
|
Test fit of the covered vee joint. |
|
|
The covered vee joint sits slightly above the neck shaft. |
|
|

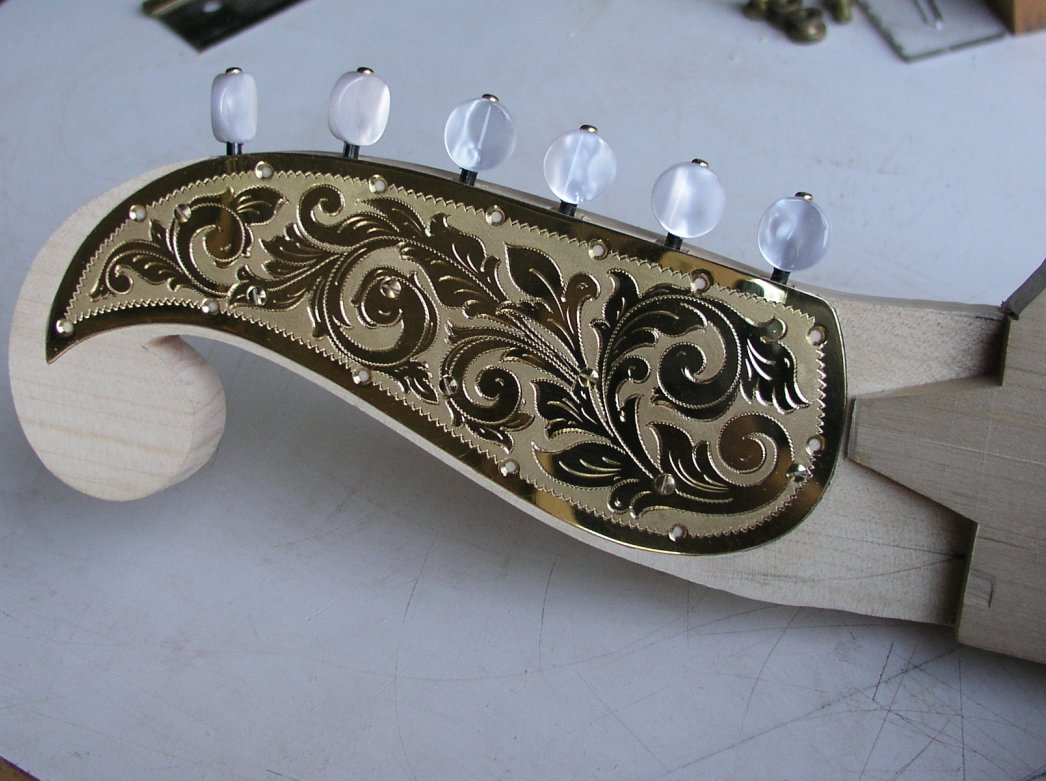

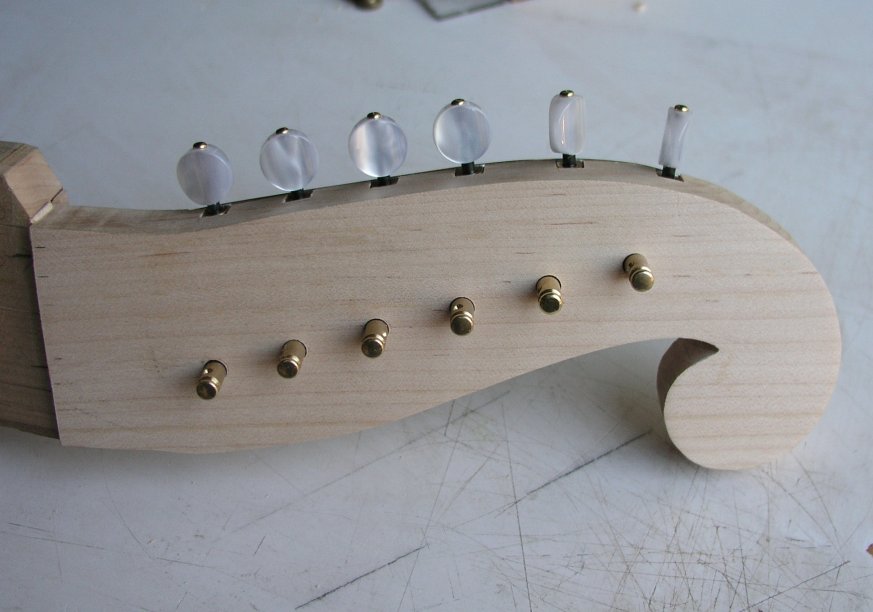

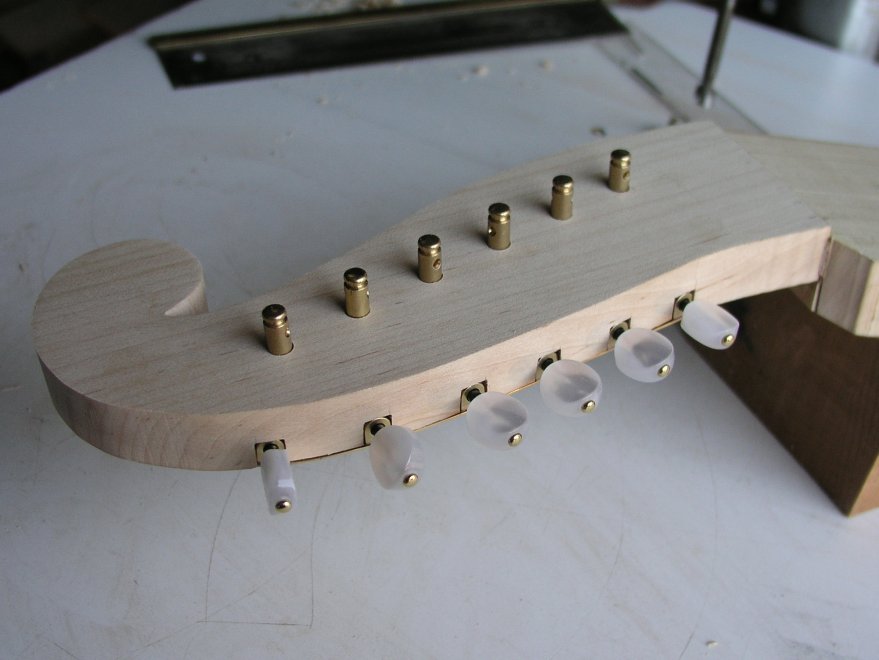

Fitting tuning machines. Very time consuming!!! |
|
|
Checking the fit. |
|
|
Front view. |
|
|

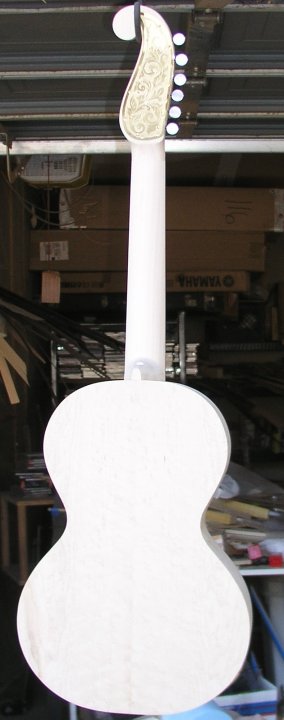

Back view. |
|
|

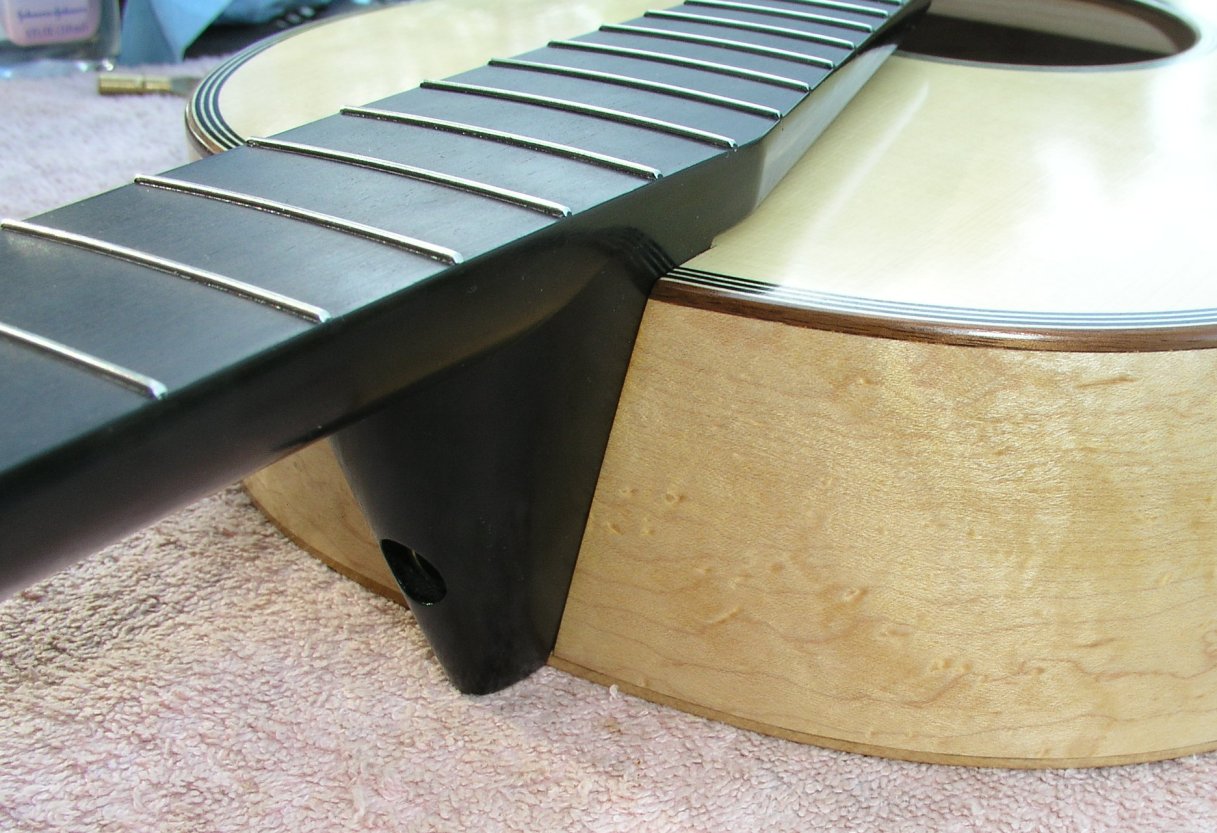

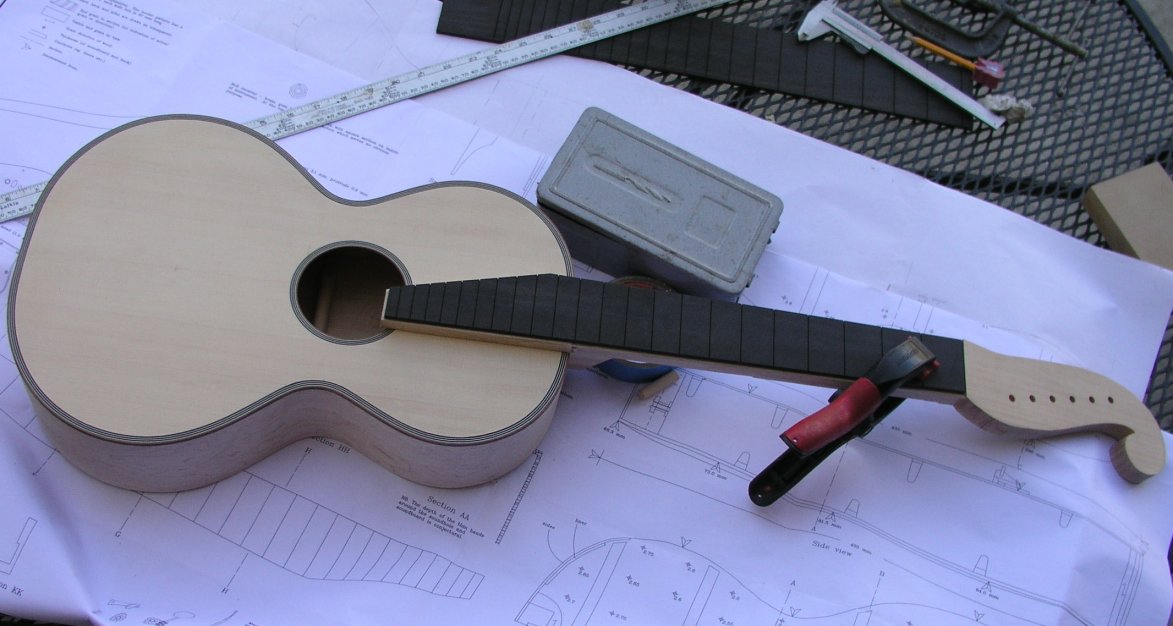

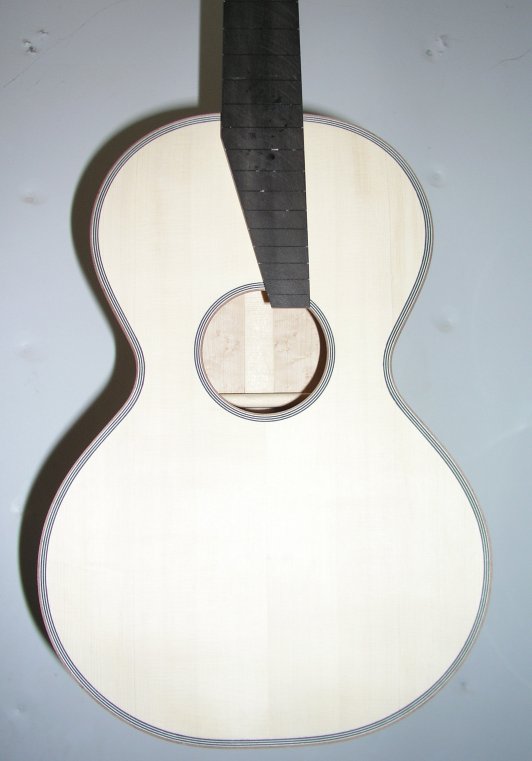

Fitting the neck and fingerboard. |
|
|
Attaching the neck and testing the fit. |
|
|
Back view. |
|
|

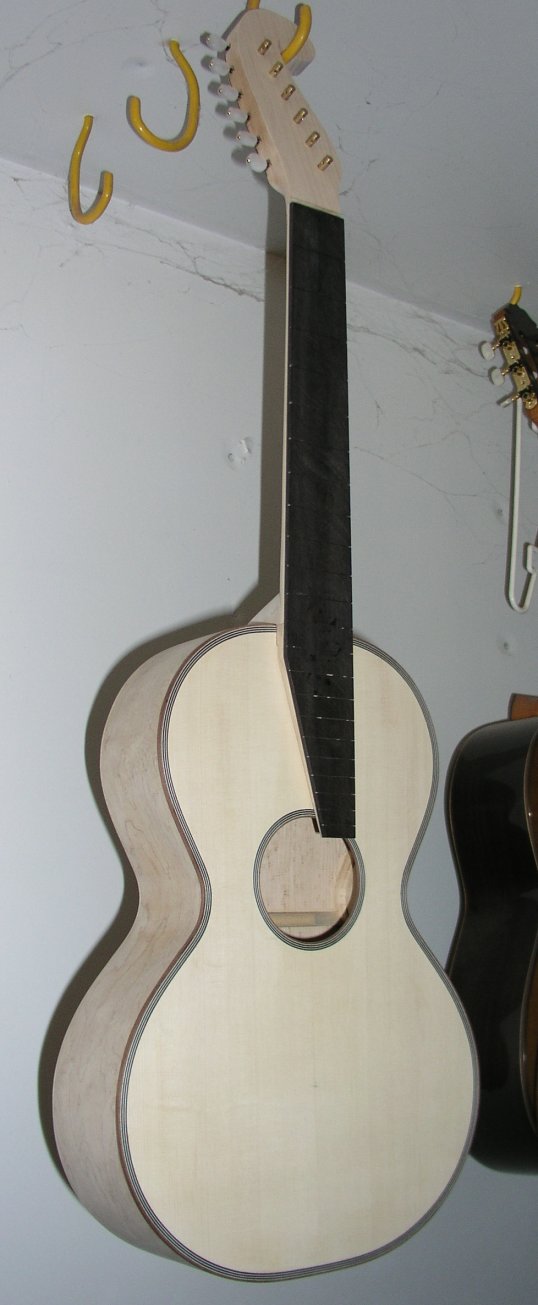

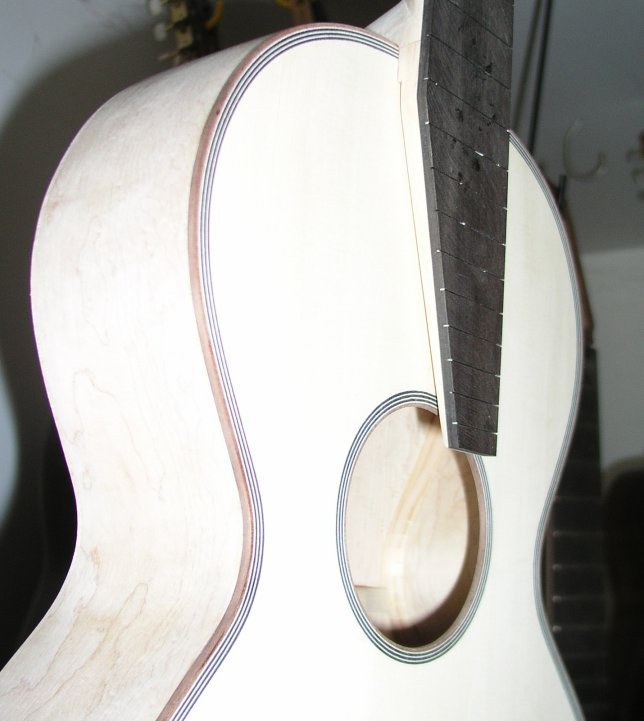

Angled front view. |
|
|

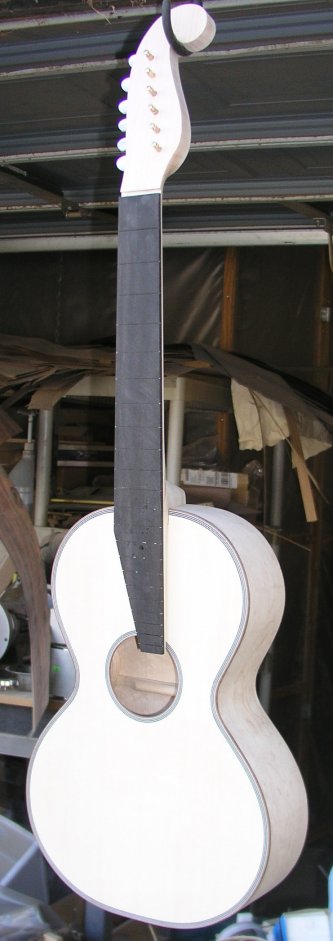

In the humidity control room. |
|
|
Close up of the rosette and fingerboard. |
|
|

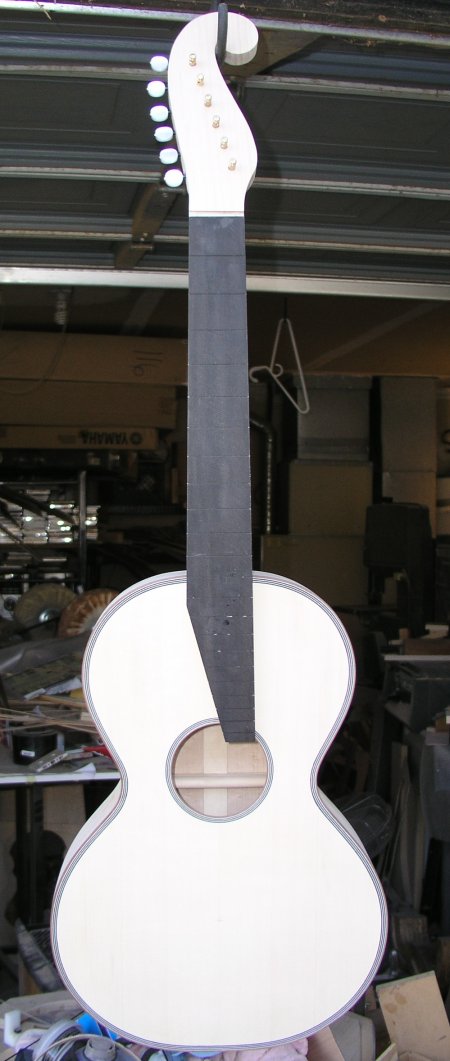

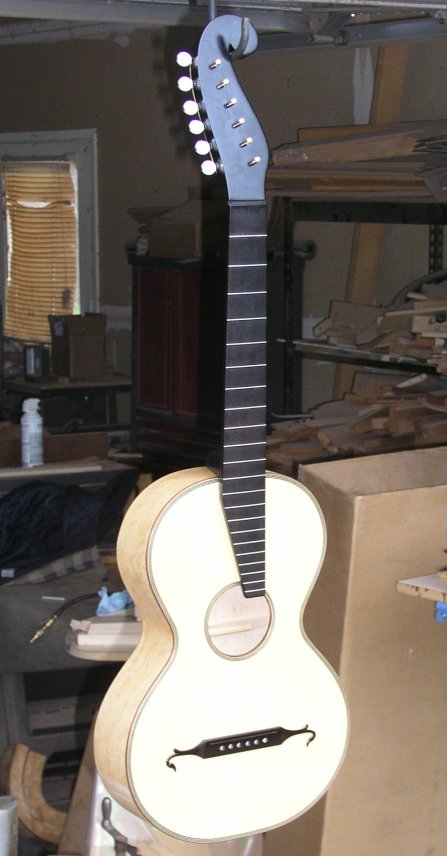

Front view. |
|
|

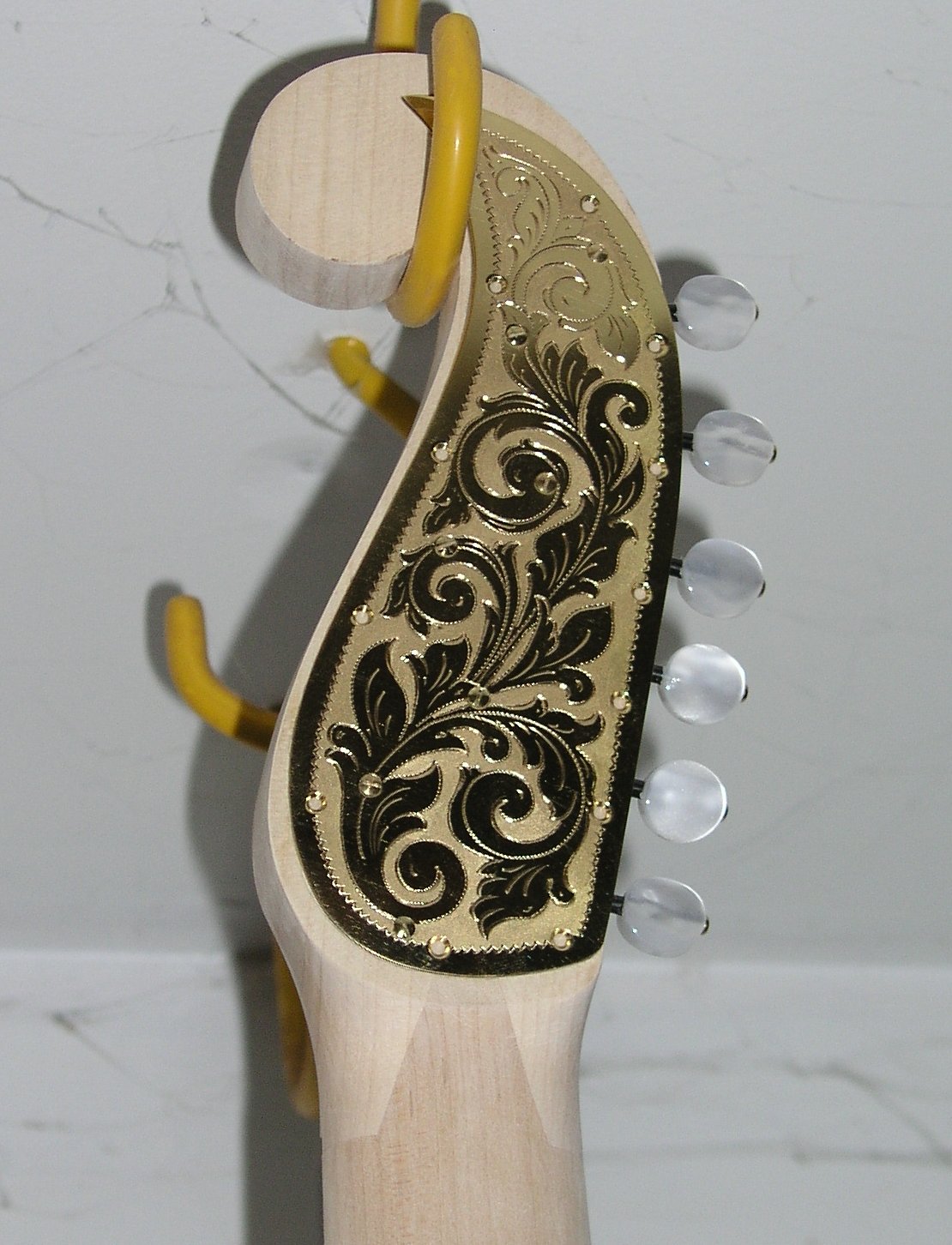

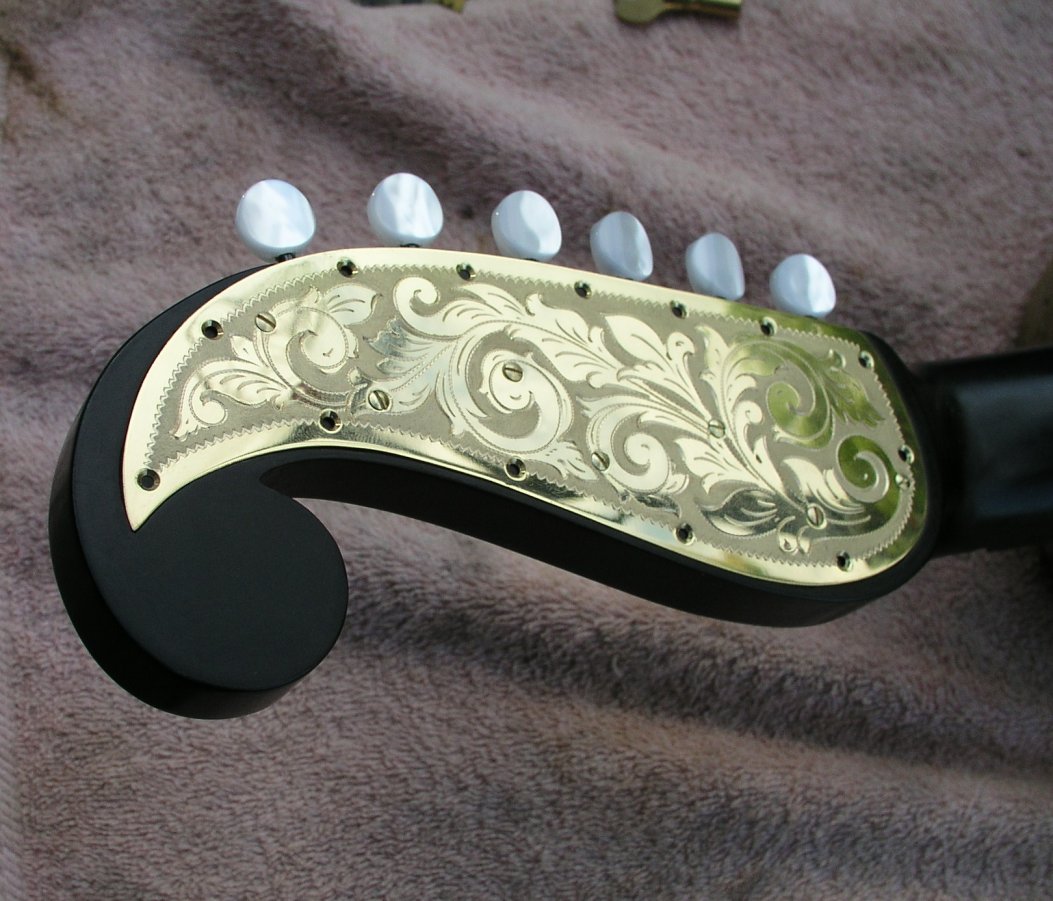

Head with Rubner tuning machines. |
|
|
Back view. |
|
|
Making the bridge. Pear is used which will be dyed black. |
|
|

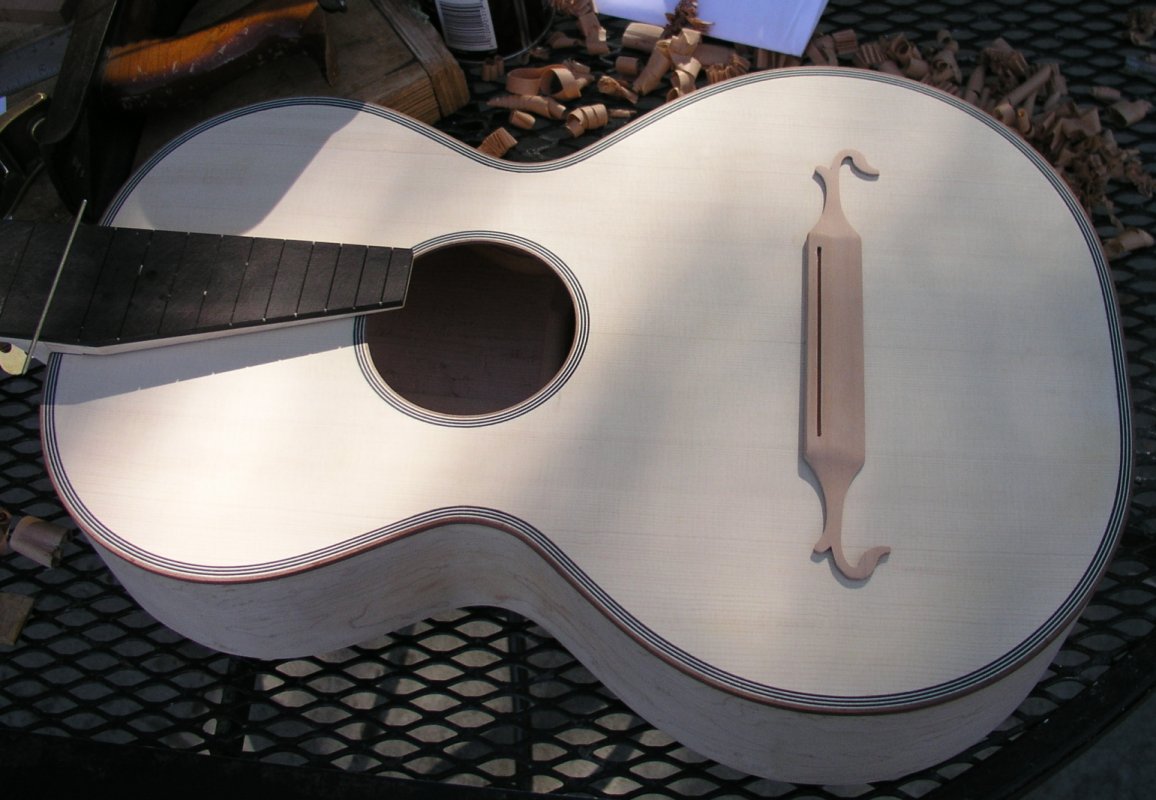

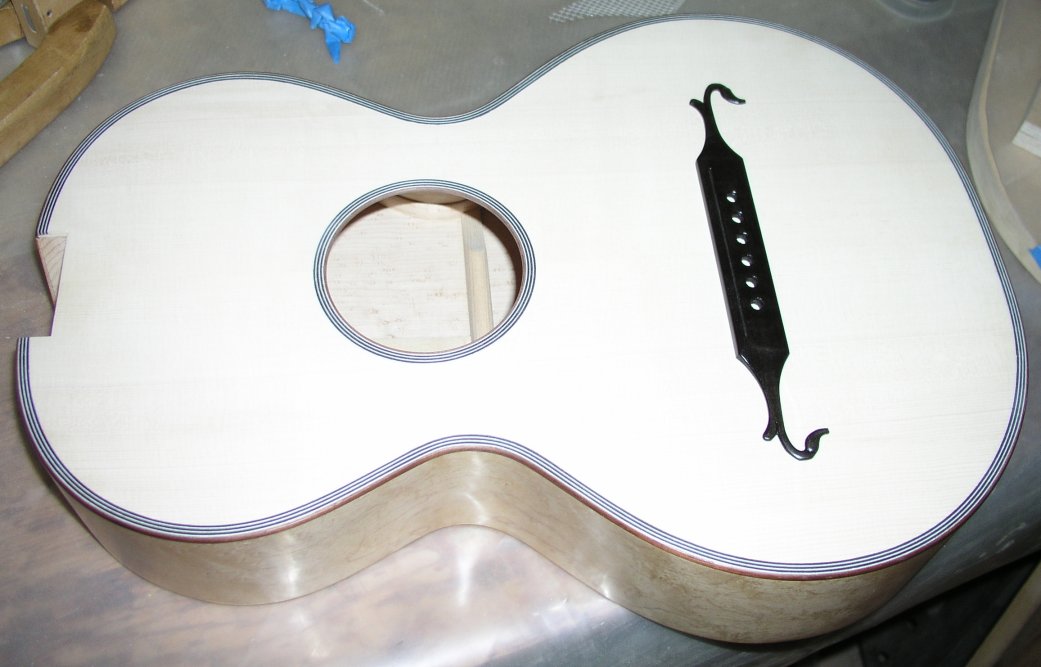

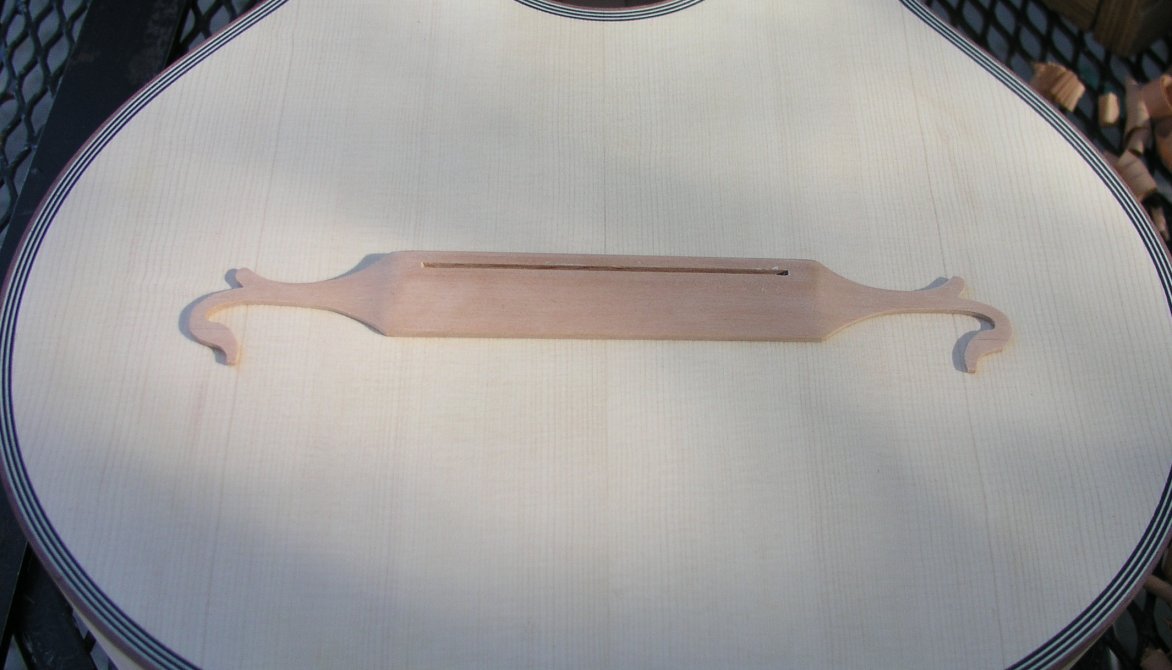

Soundboard with bridge ready to be detailed and drilled for bridge pins. |
|
|

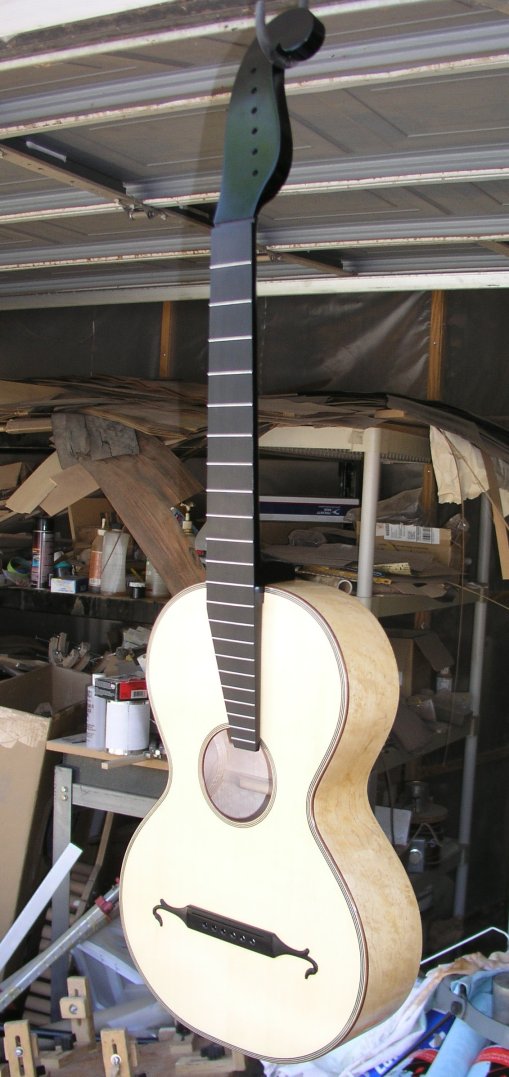

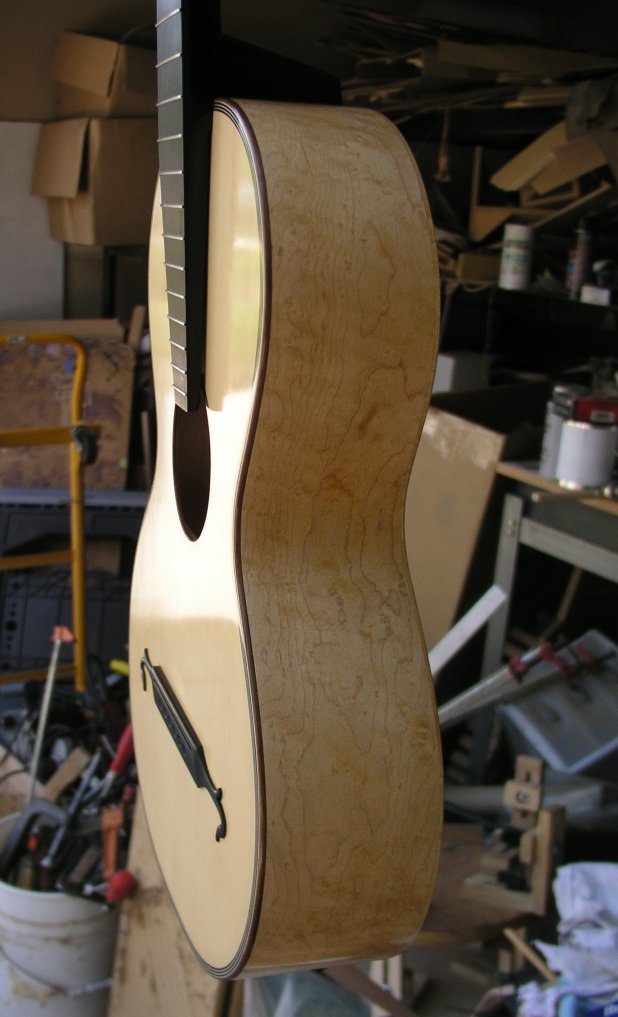

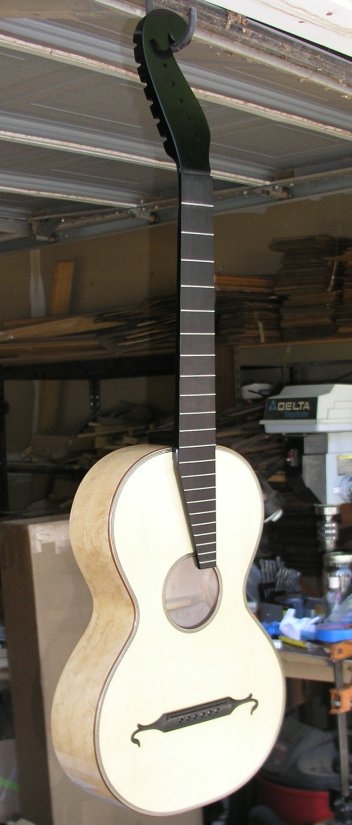

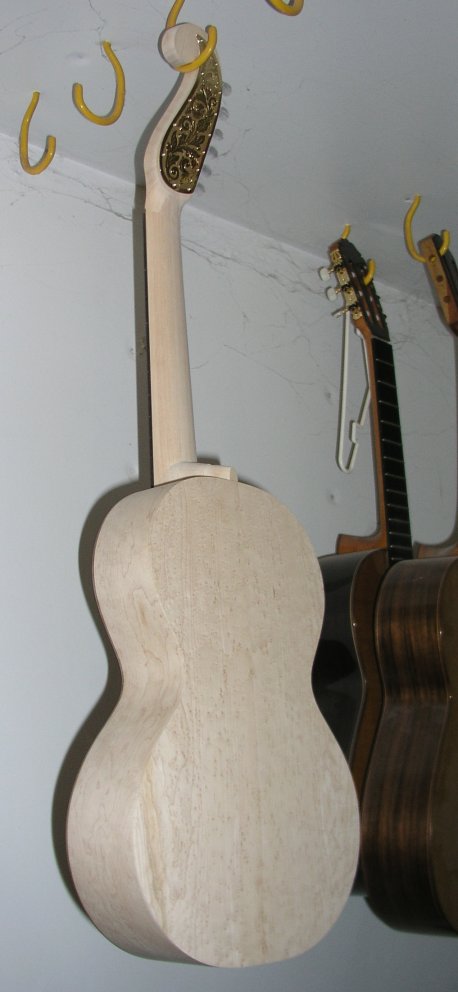

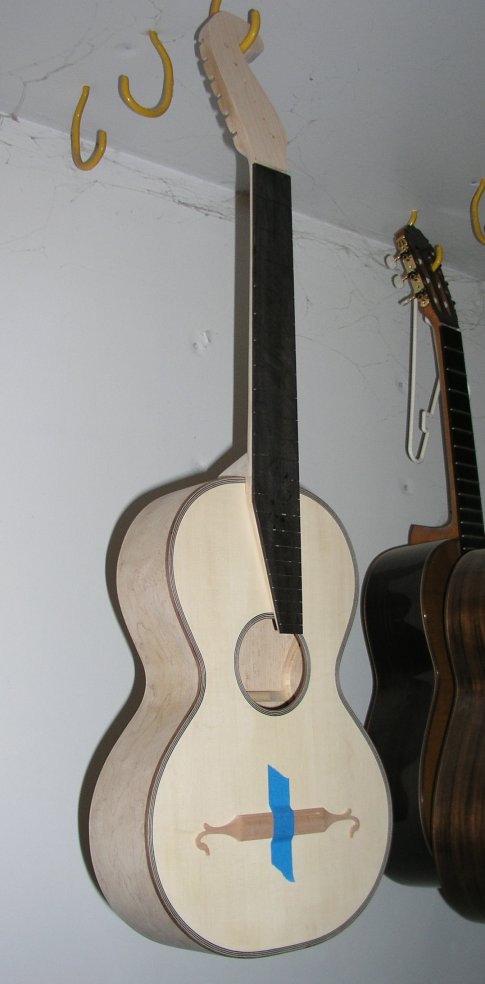

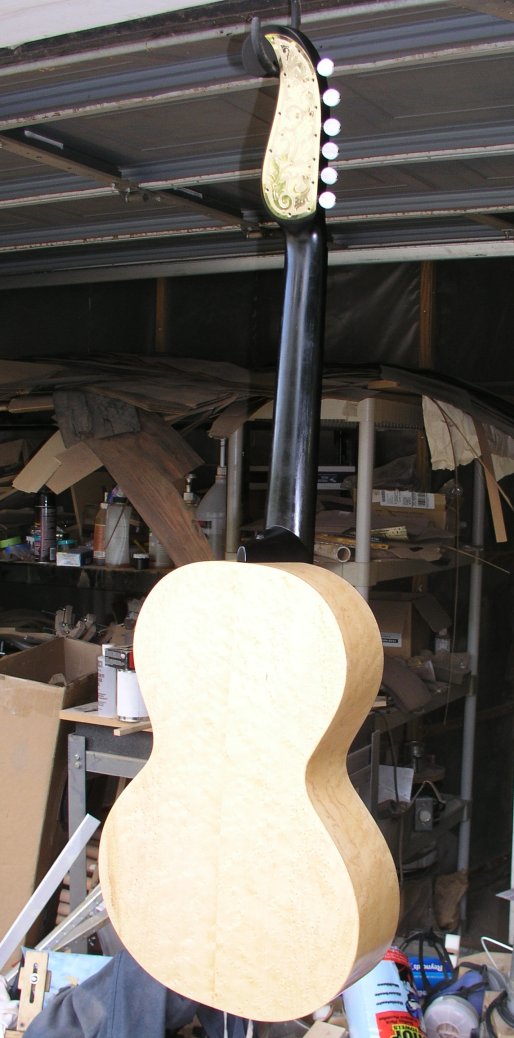

Hanging in the shop. |
|
|

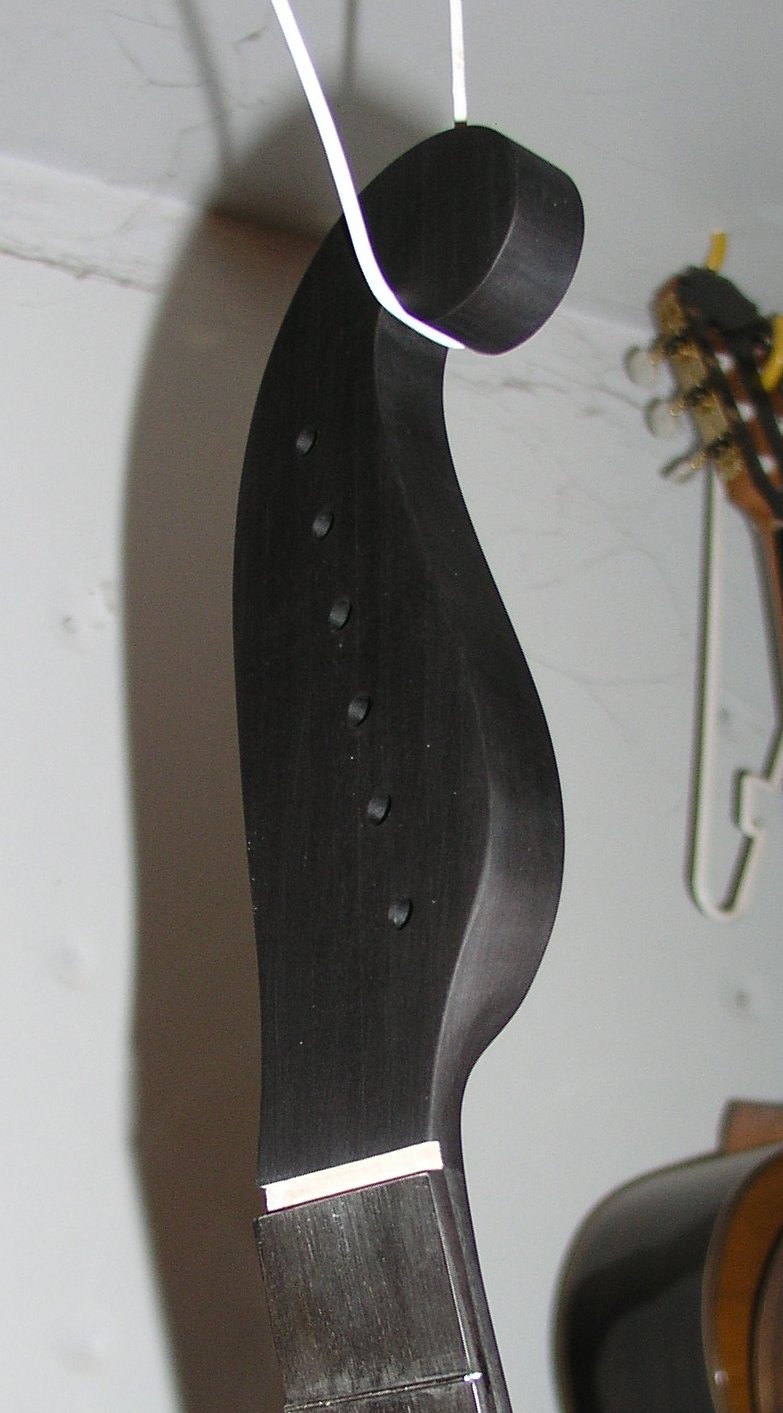

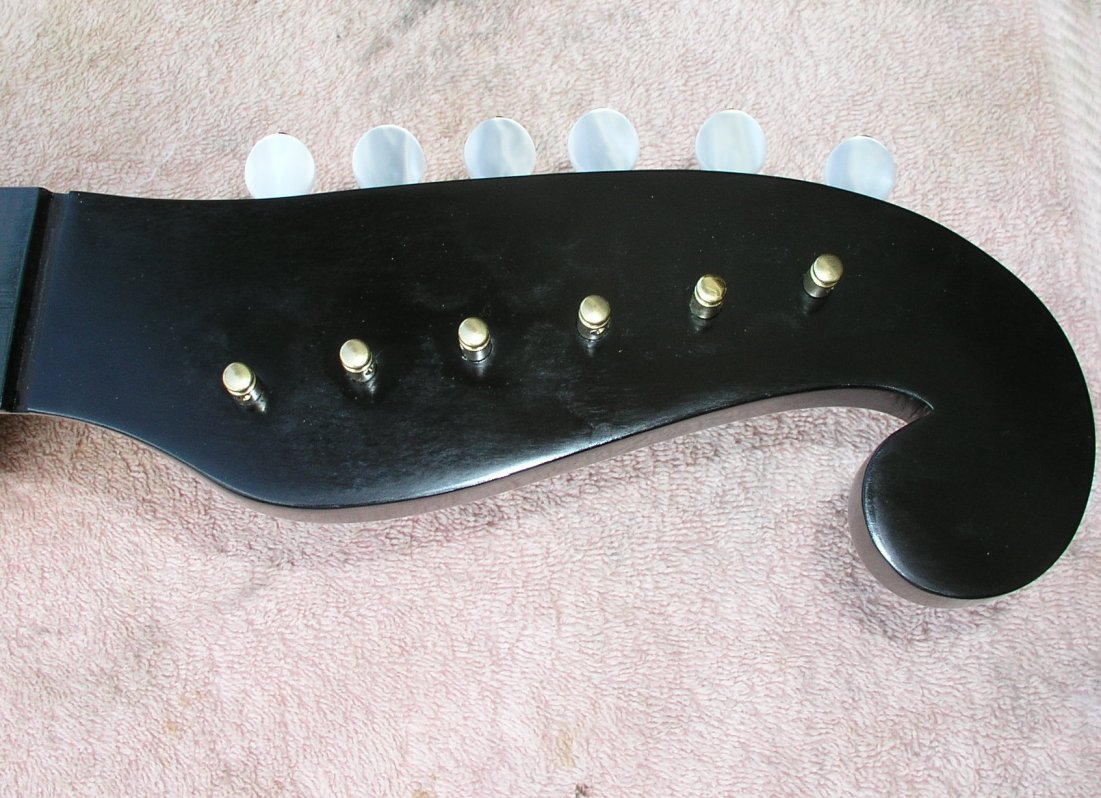

Staining the head. |
|
|

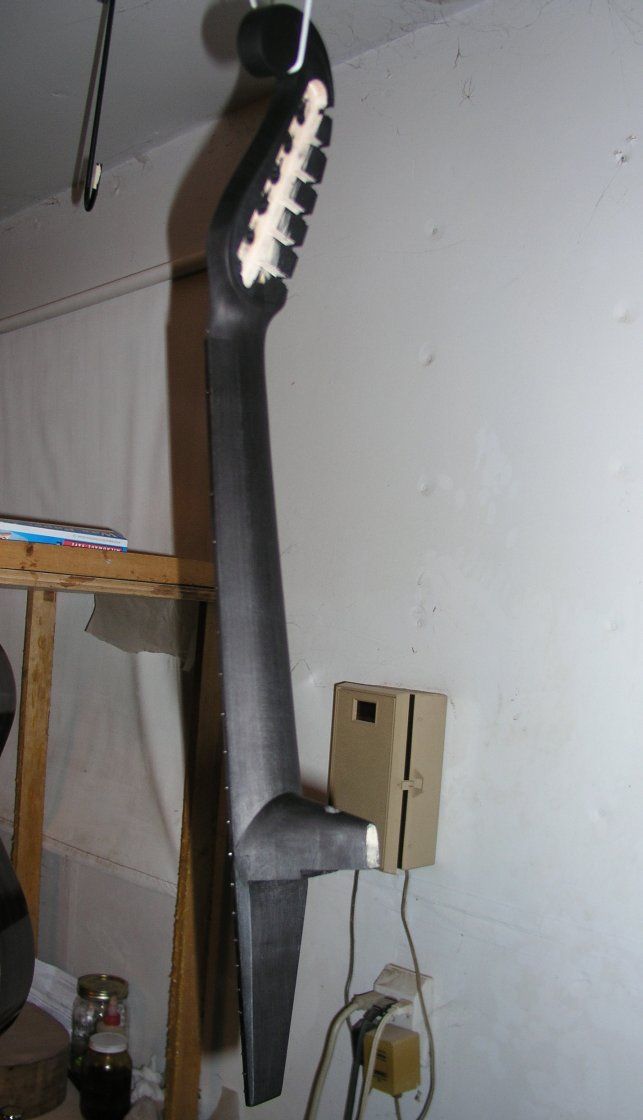

Staining the neck. |
|
|
Staining the bridge. |
|
|

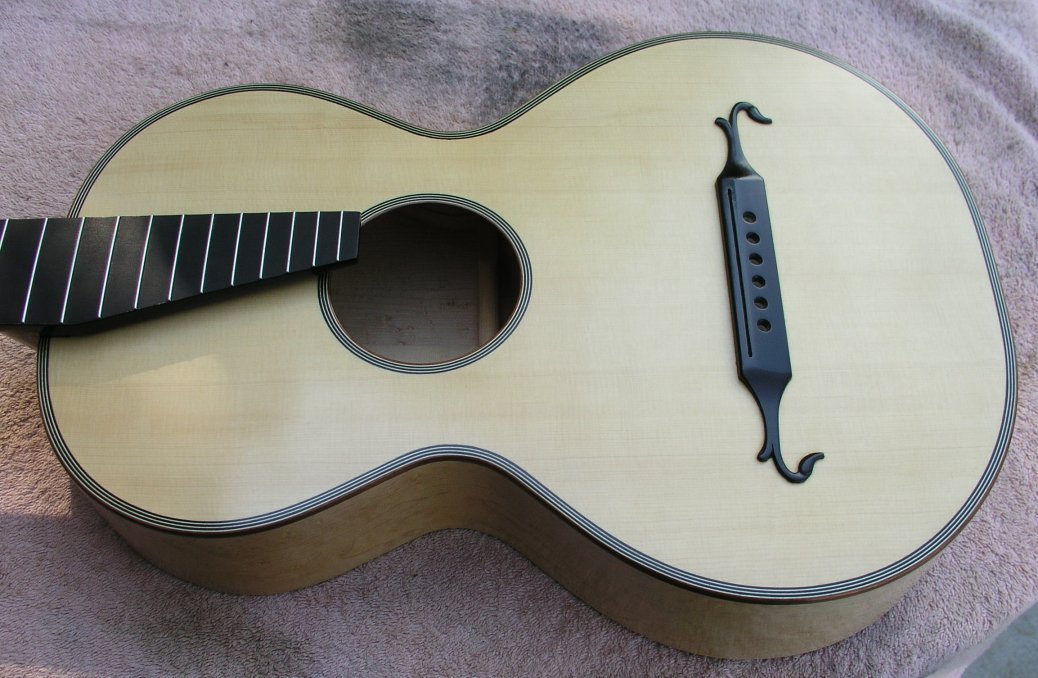

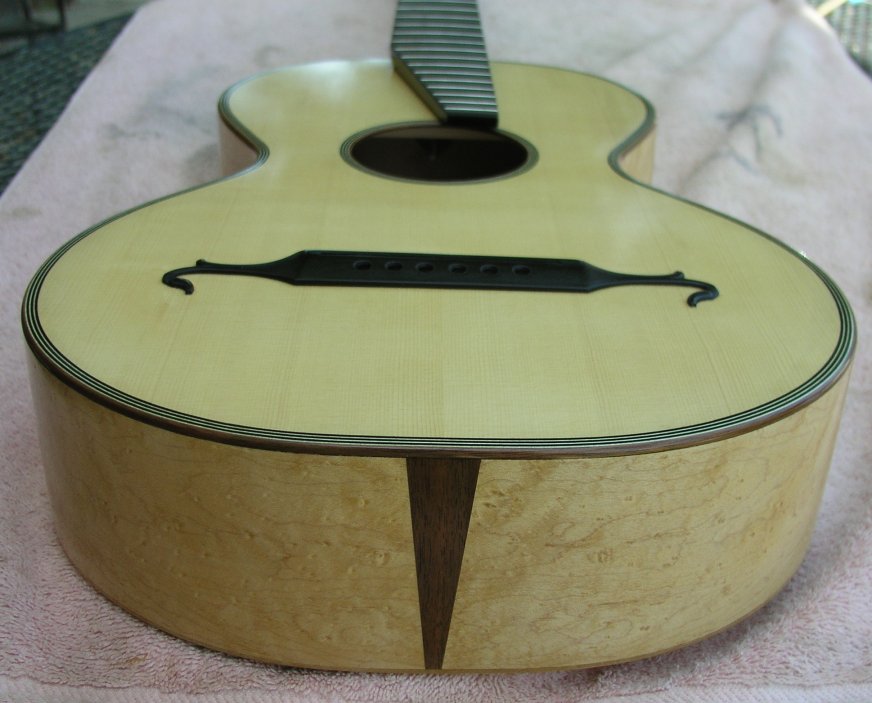

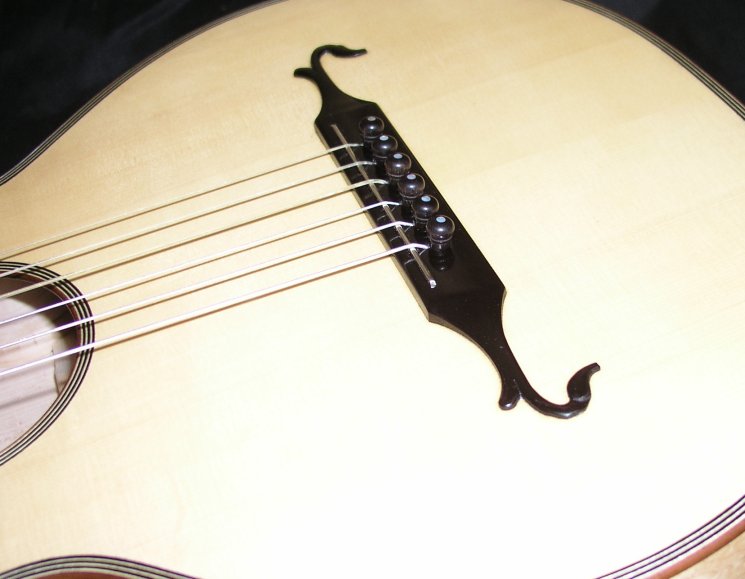

Bridge glued on and ready to buff the finish. |
|
|

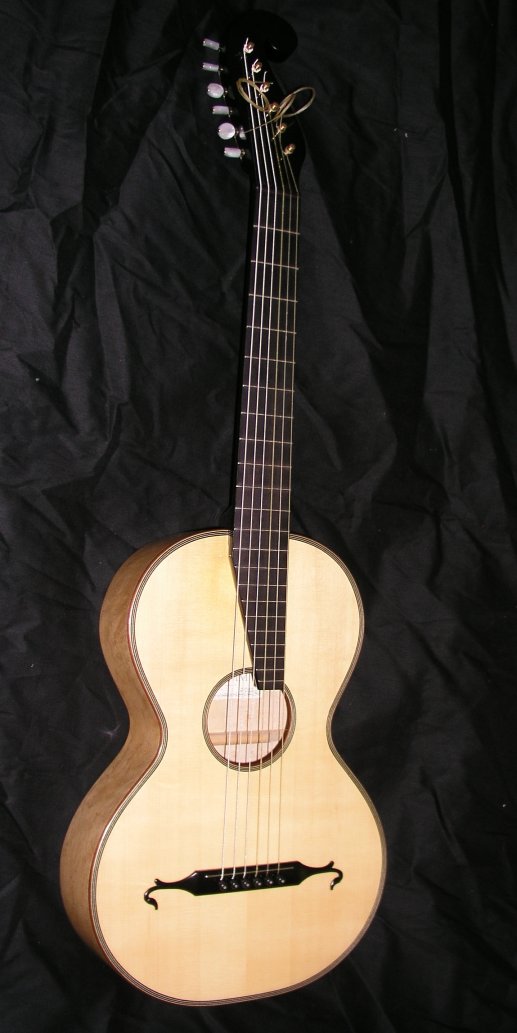

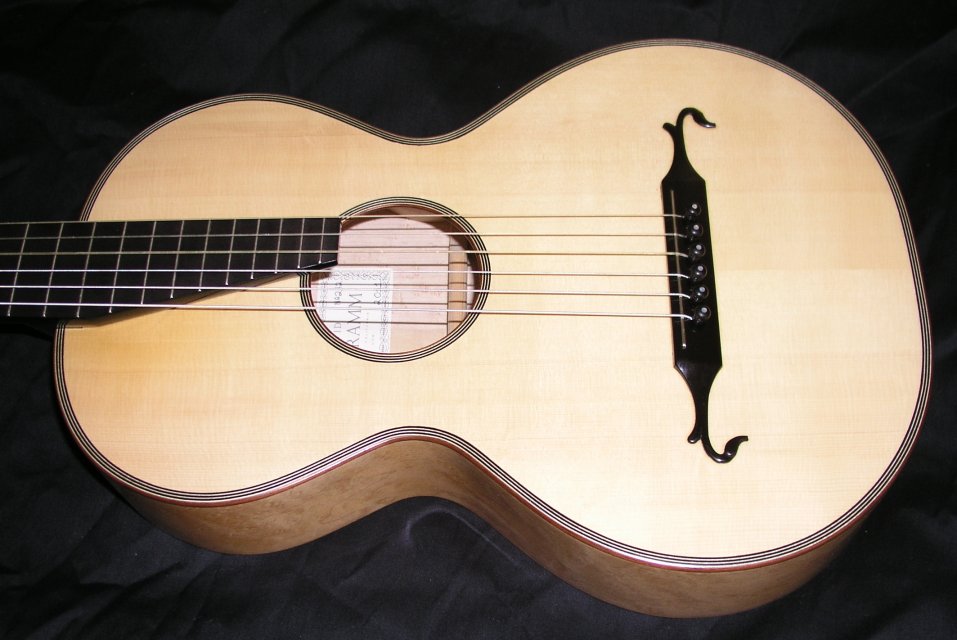

Ready for the set up and final polishing |
|
|

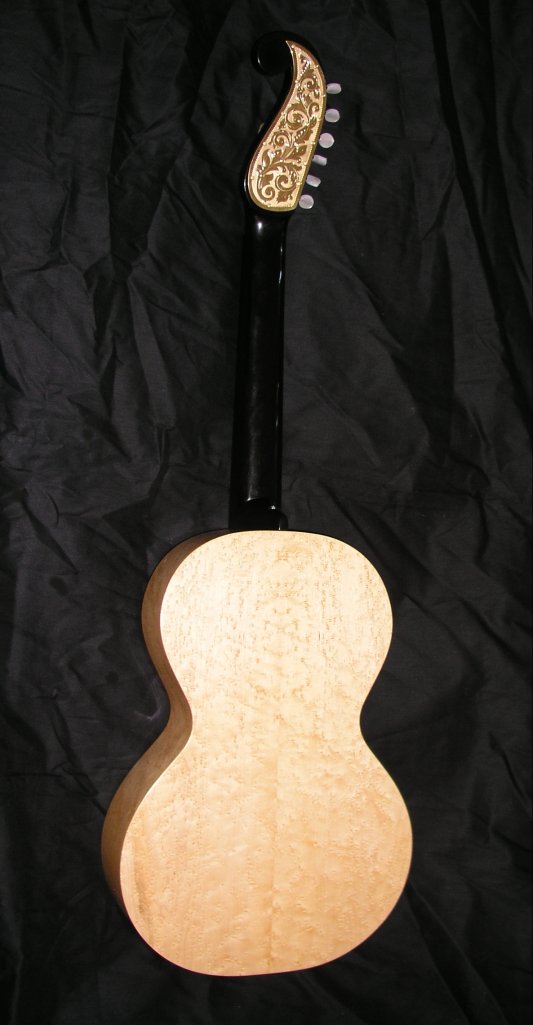

Another view. |
|
|

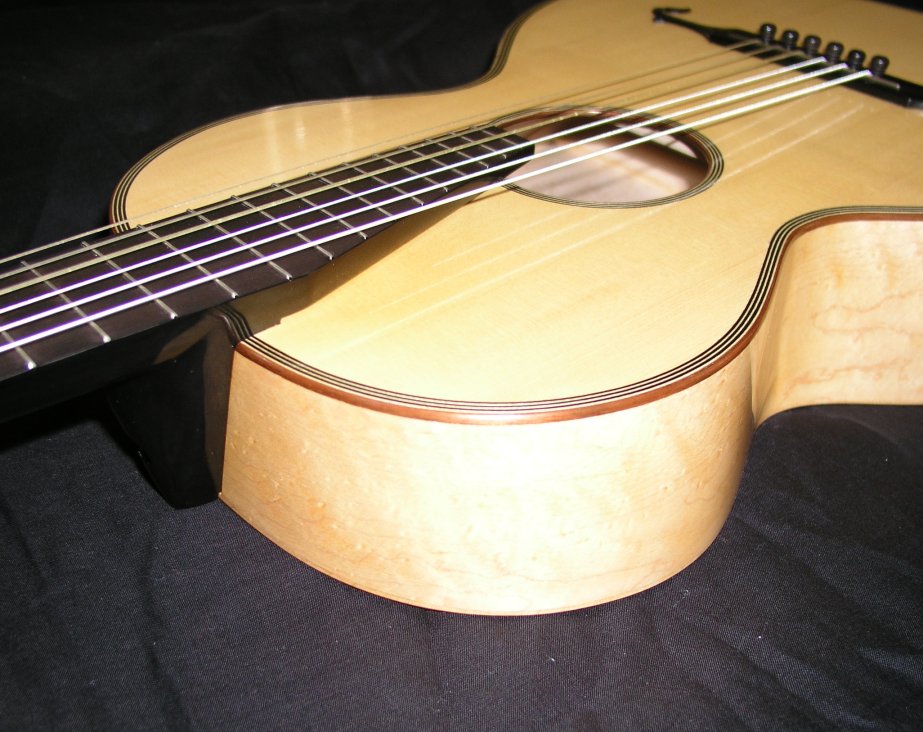

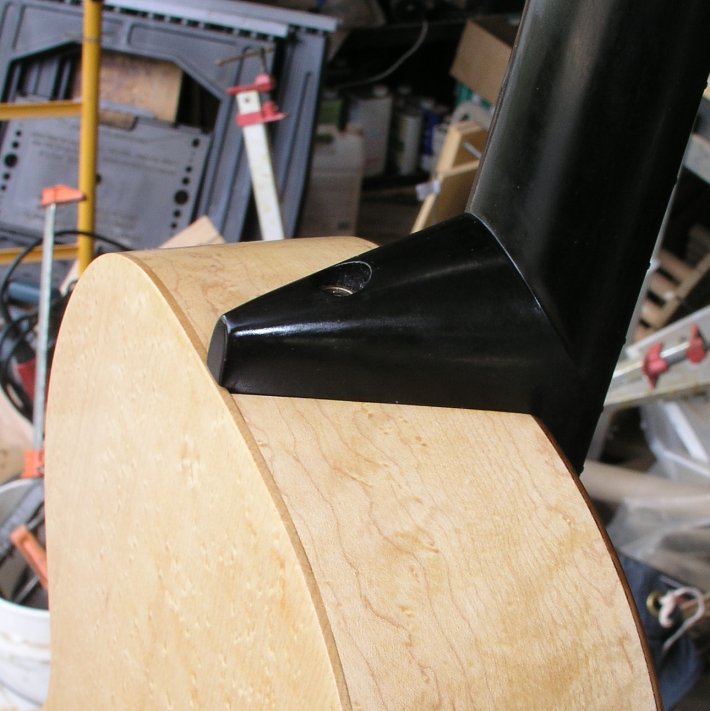

Close up. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
