Guitar for Brad Carlton
Model: H1a Guitar
Specifications:
|
|
Thicknessing back and sides. Preping for bending sides and joining the back. |
|
|

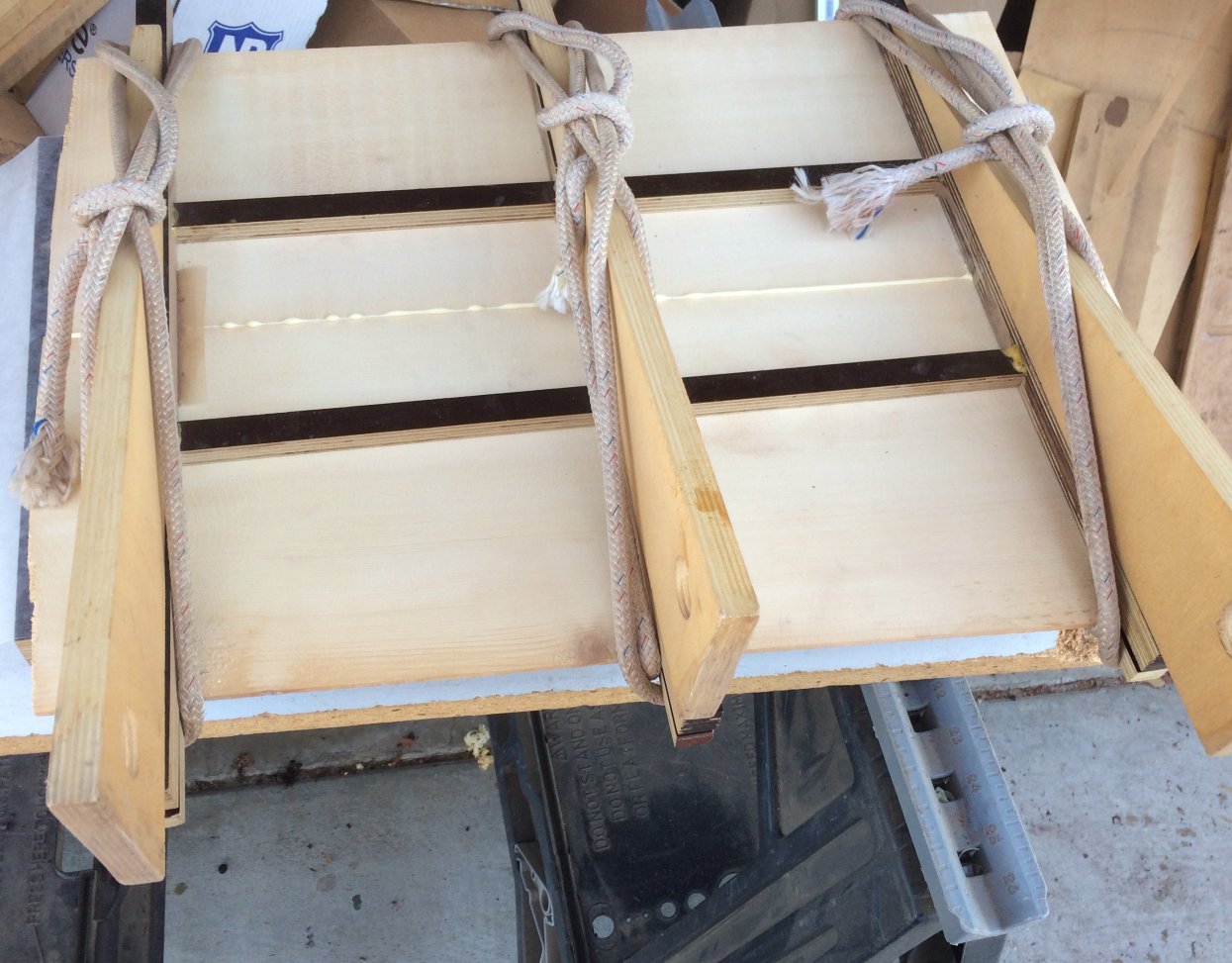

Joining the German Spruce top. |
|
|

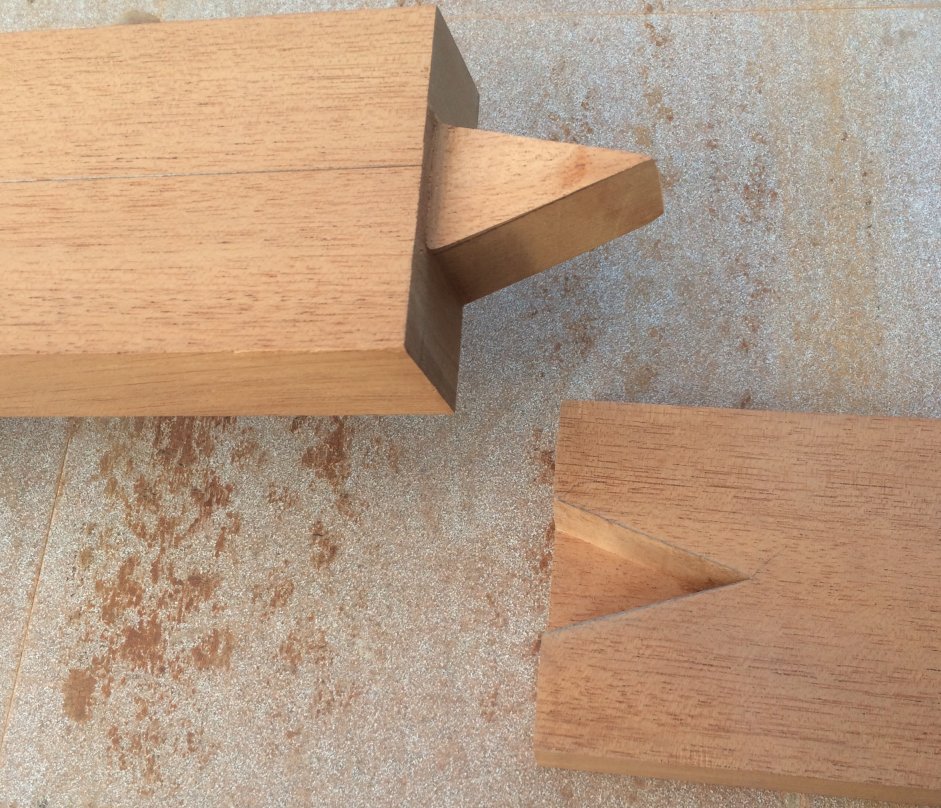

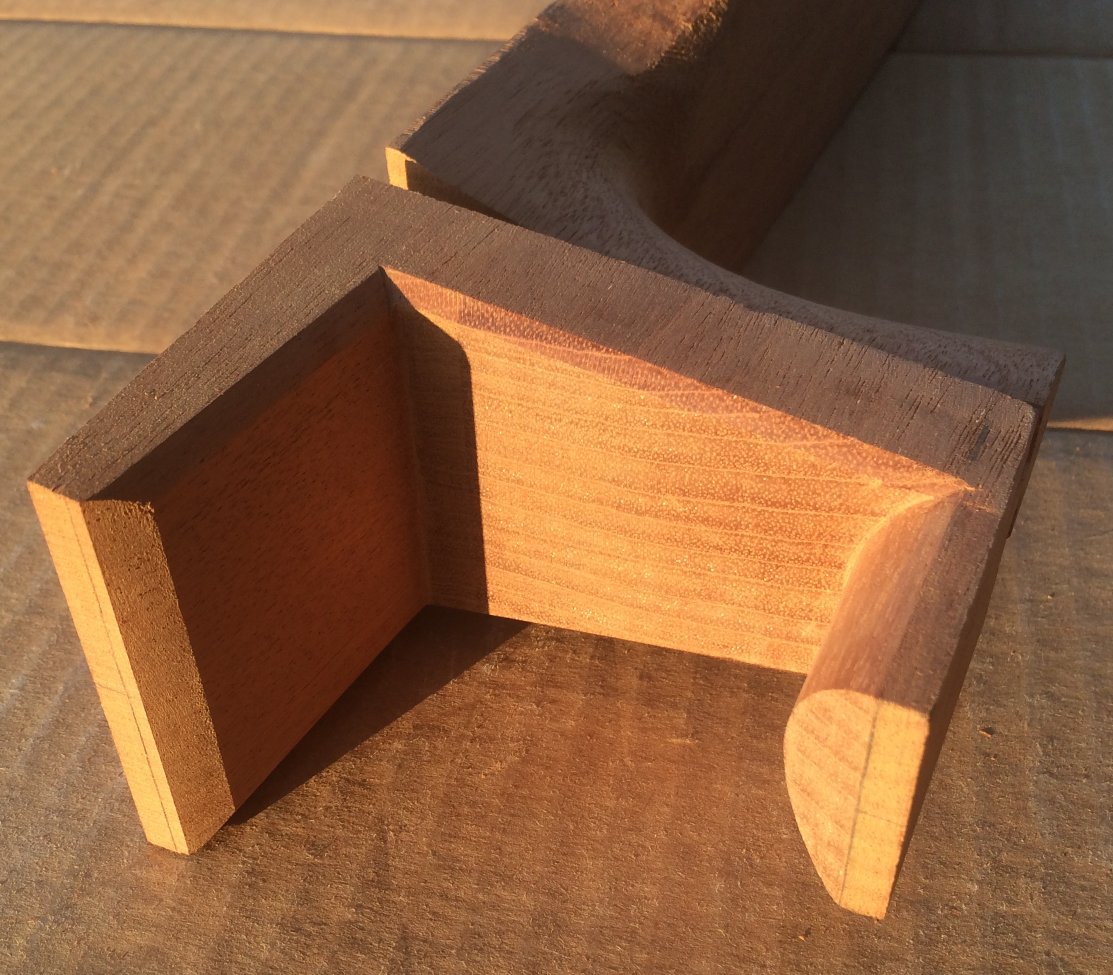

Carving the head covered vee joint. |
|
|
Preparing to glue the covered vee head joint. |
|
|

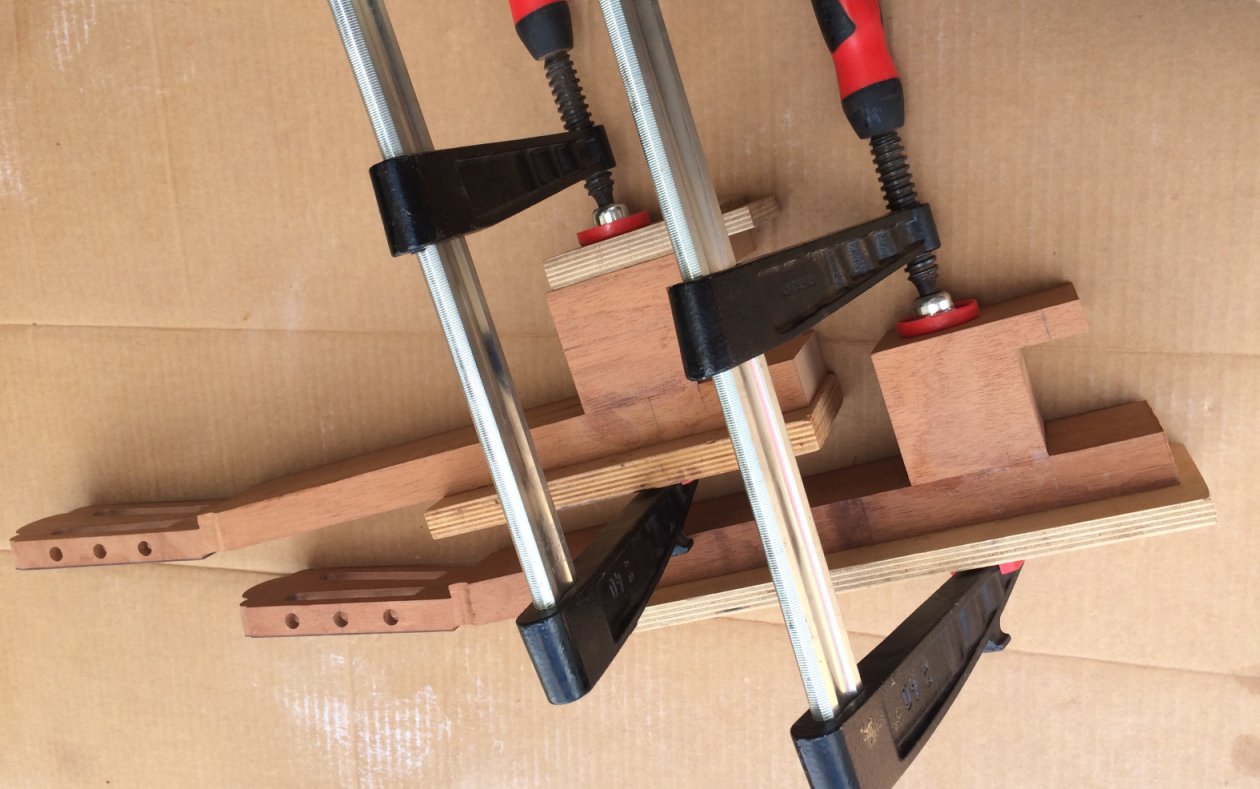

Gluing the head and neck shaft together. |
|
|
Thicknessing the back of the head vee joint flush. |
|
|
Top view. Covered vee head sticks up 2mm above the plane of the neck. |
|
|
Pinning the head plat in prep to glue it to the head. |
|
|

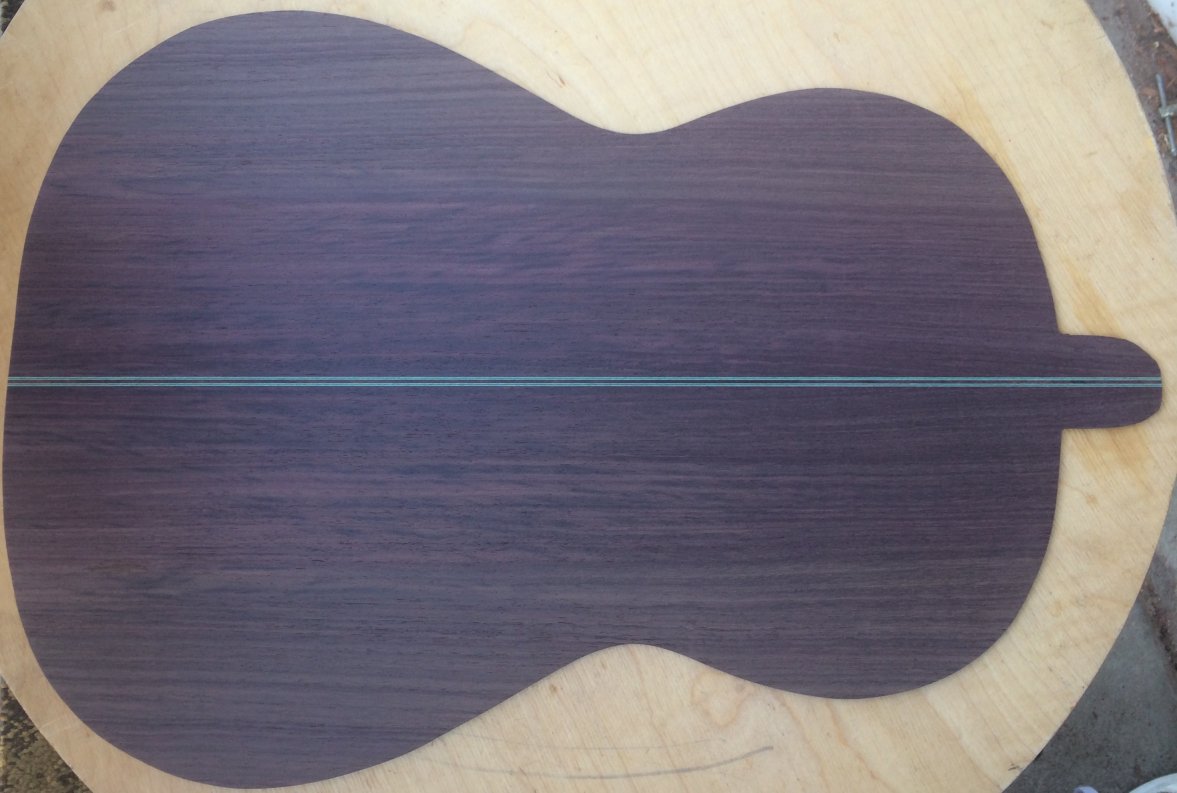

Back ready for bracing. |
|
|

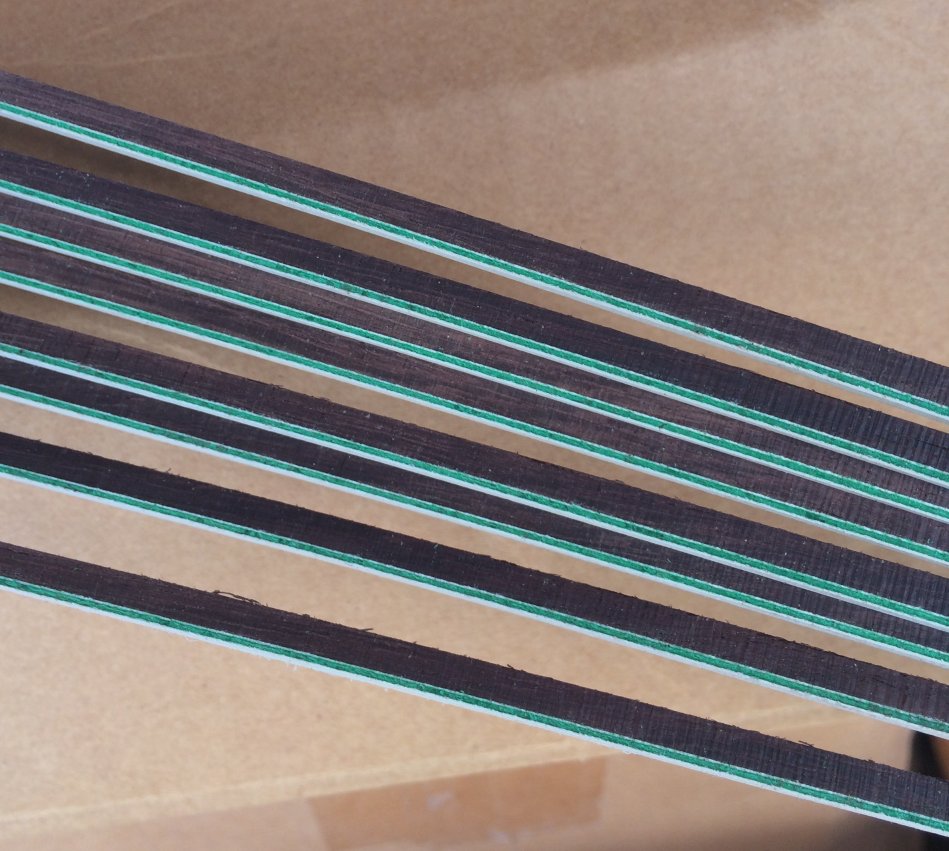

Binding being prepared. |
|
|

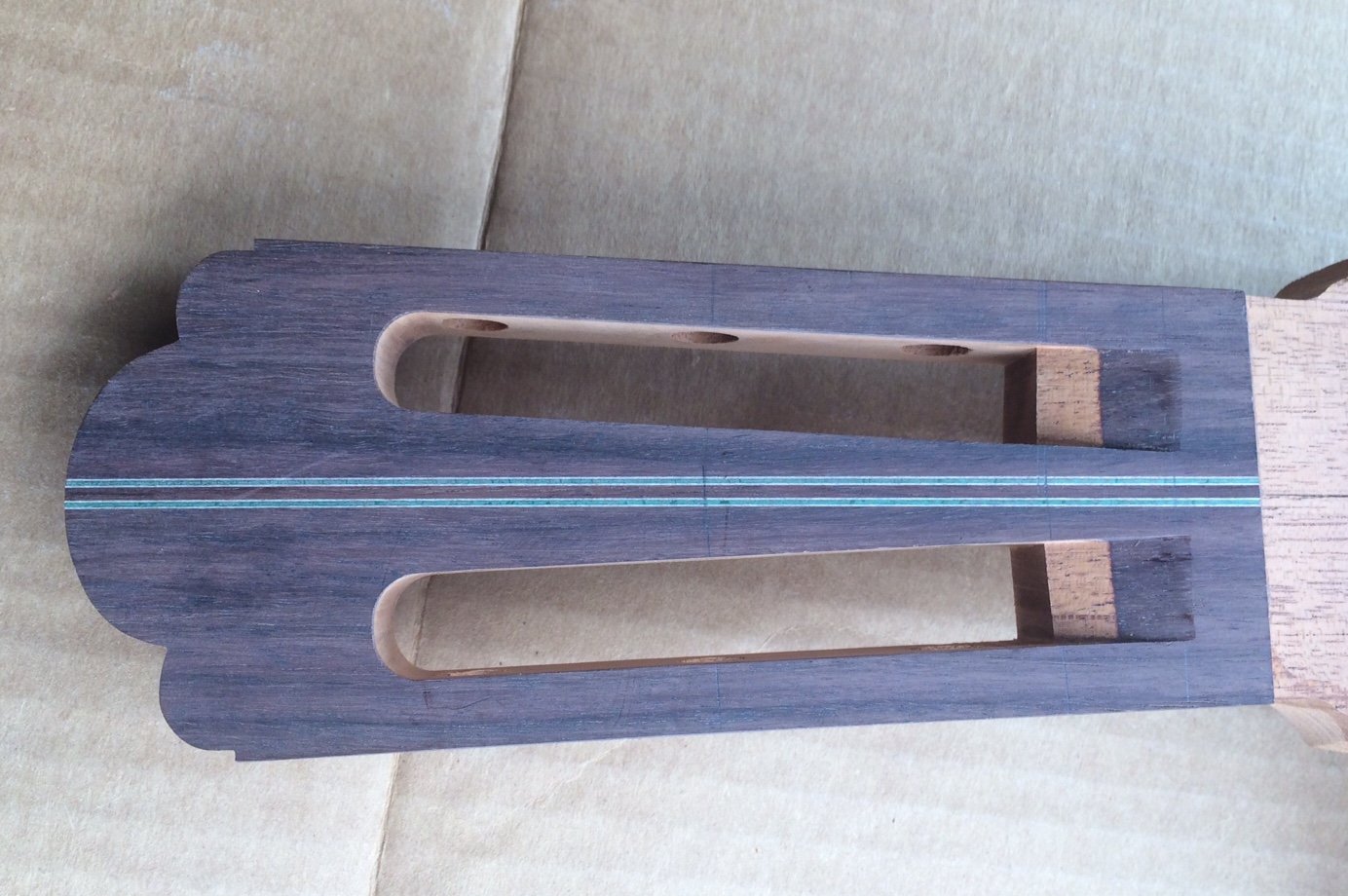

Template routing head shape. |
|
|

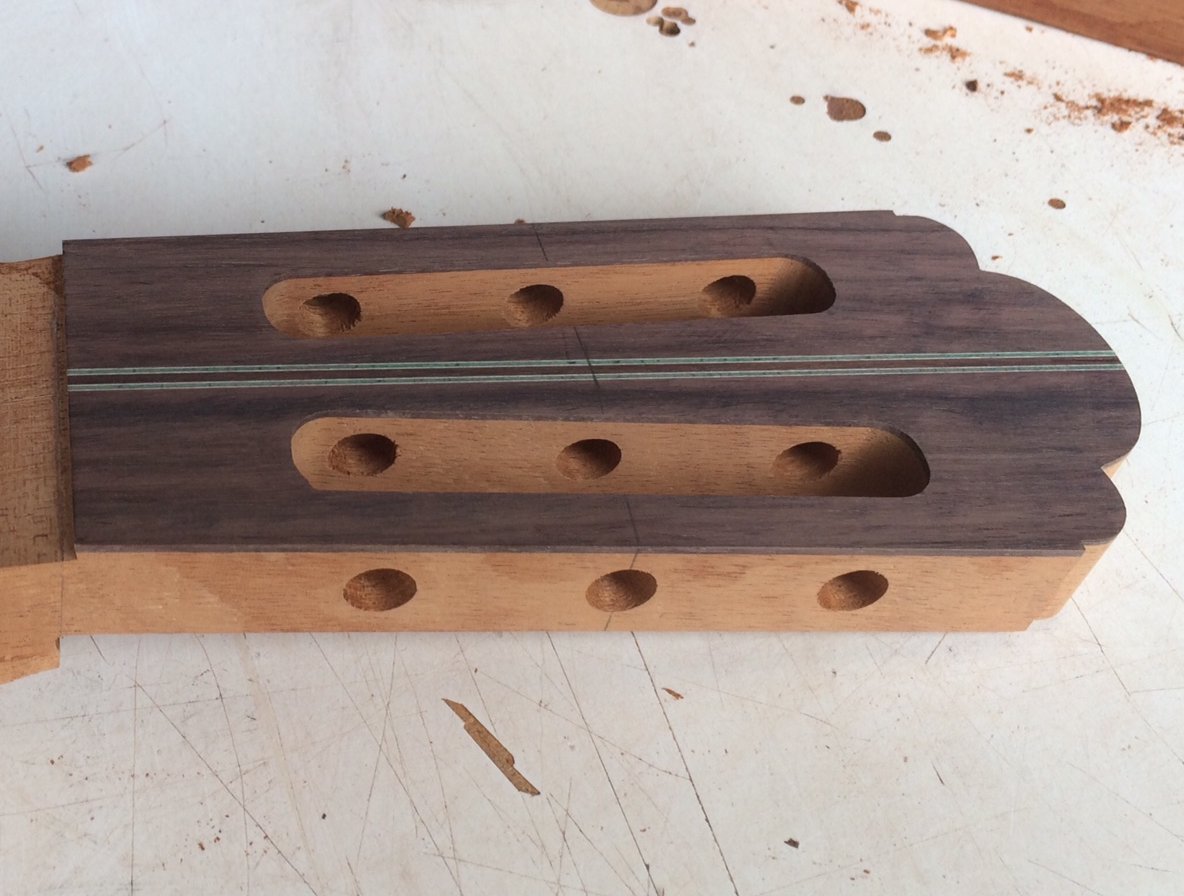

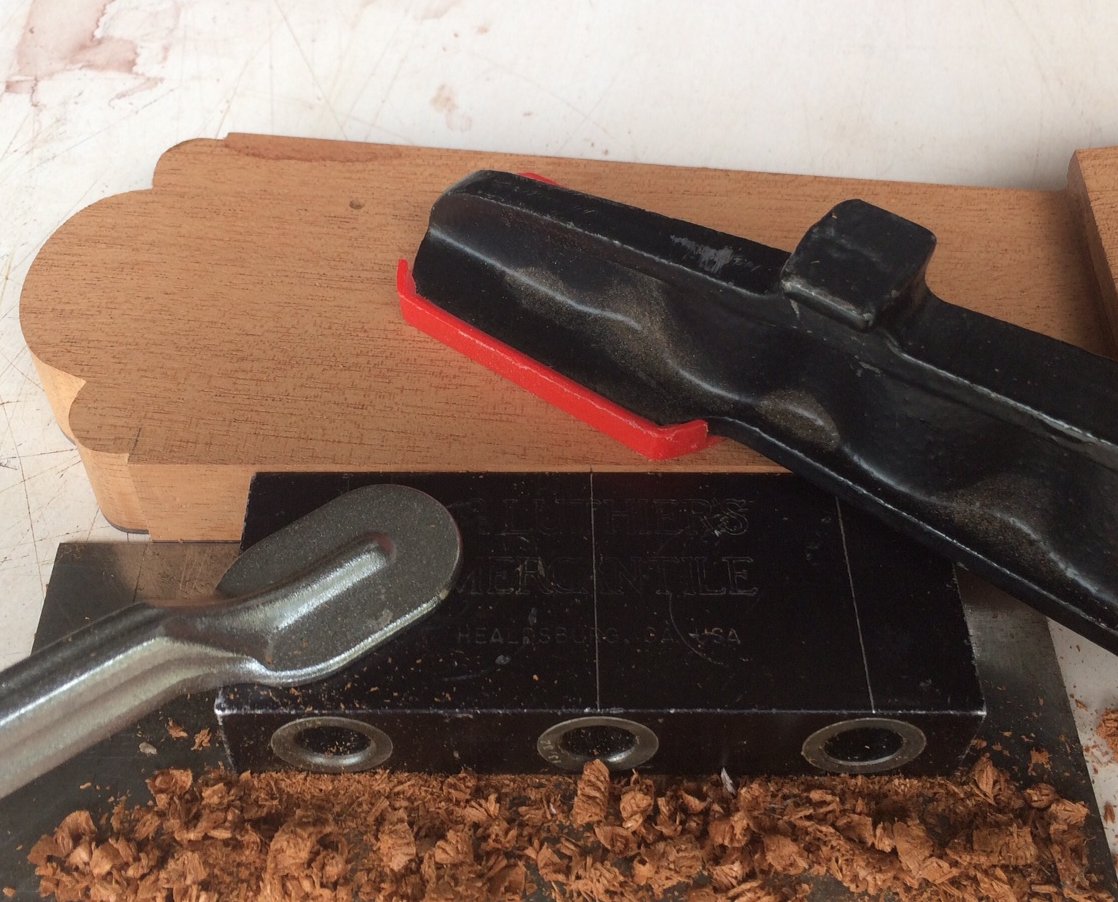

Drilling roller holes. |
|
|
String slots routed. |
|
|
Ramping string slots. |
|
|
Gluing the heel blocks. |
|
|
Side slot jig. |
|
|
Sawing side slots |
|
|
Side slot. |
|
|
Internal foot. |
|
|
Bracing the top. |
|
|
Shaping fan braces. |
|
|

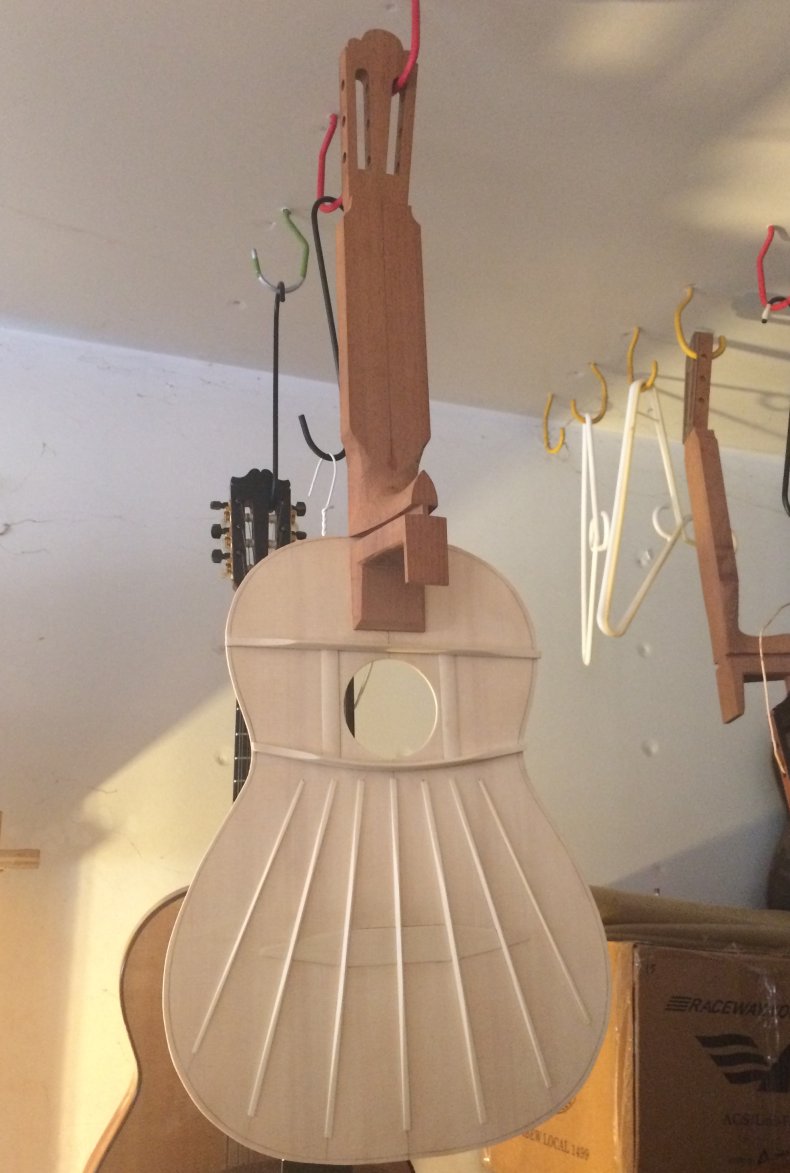

Fans shaped. |
|
|
Gluing transverse bars. |
|
|

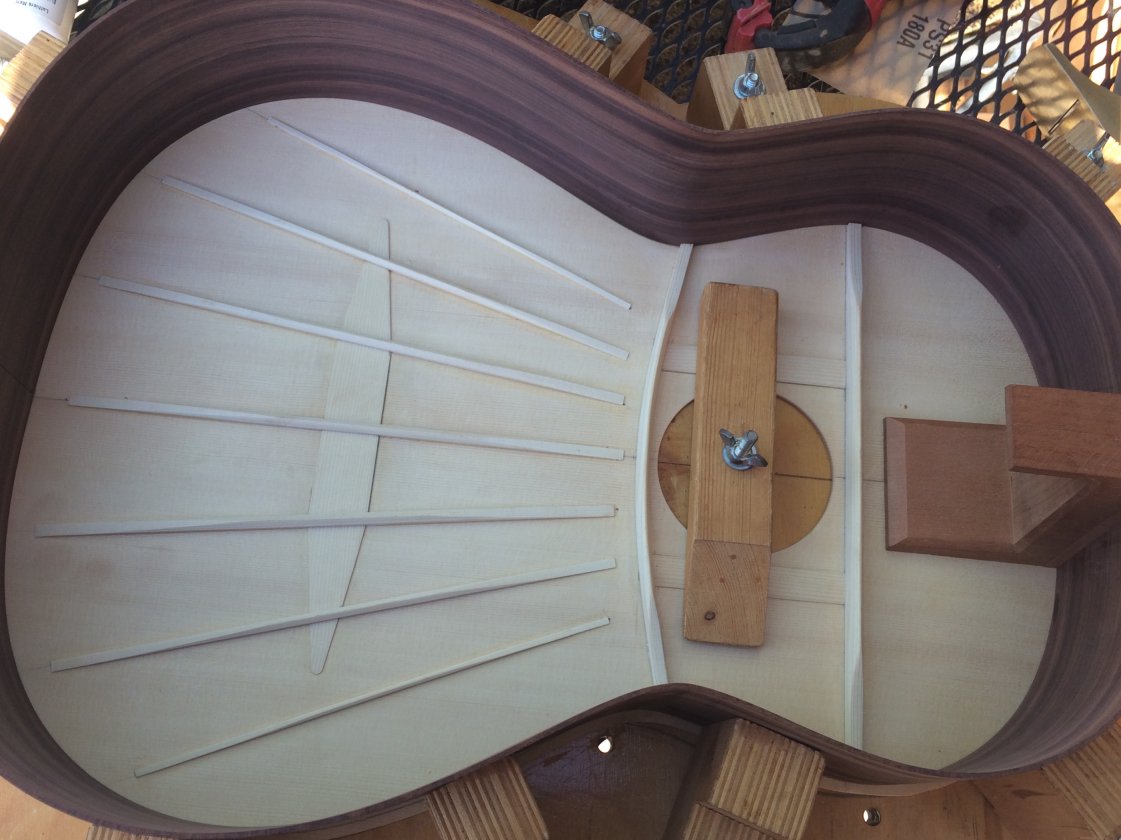

Top bracing complete. |
|
|
Soundboard face. |
|
|
Attaching the neck and soundboard. |
|
|

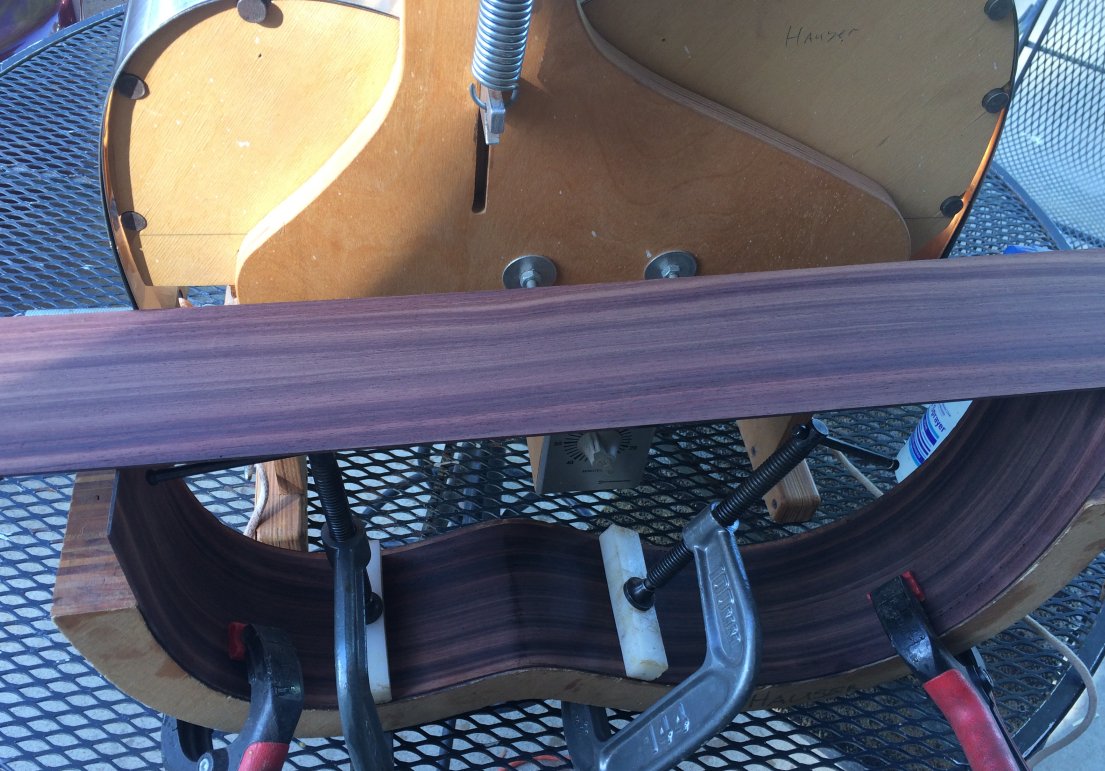

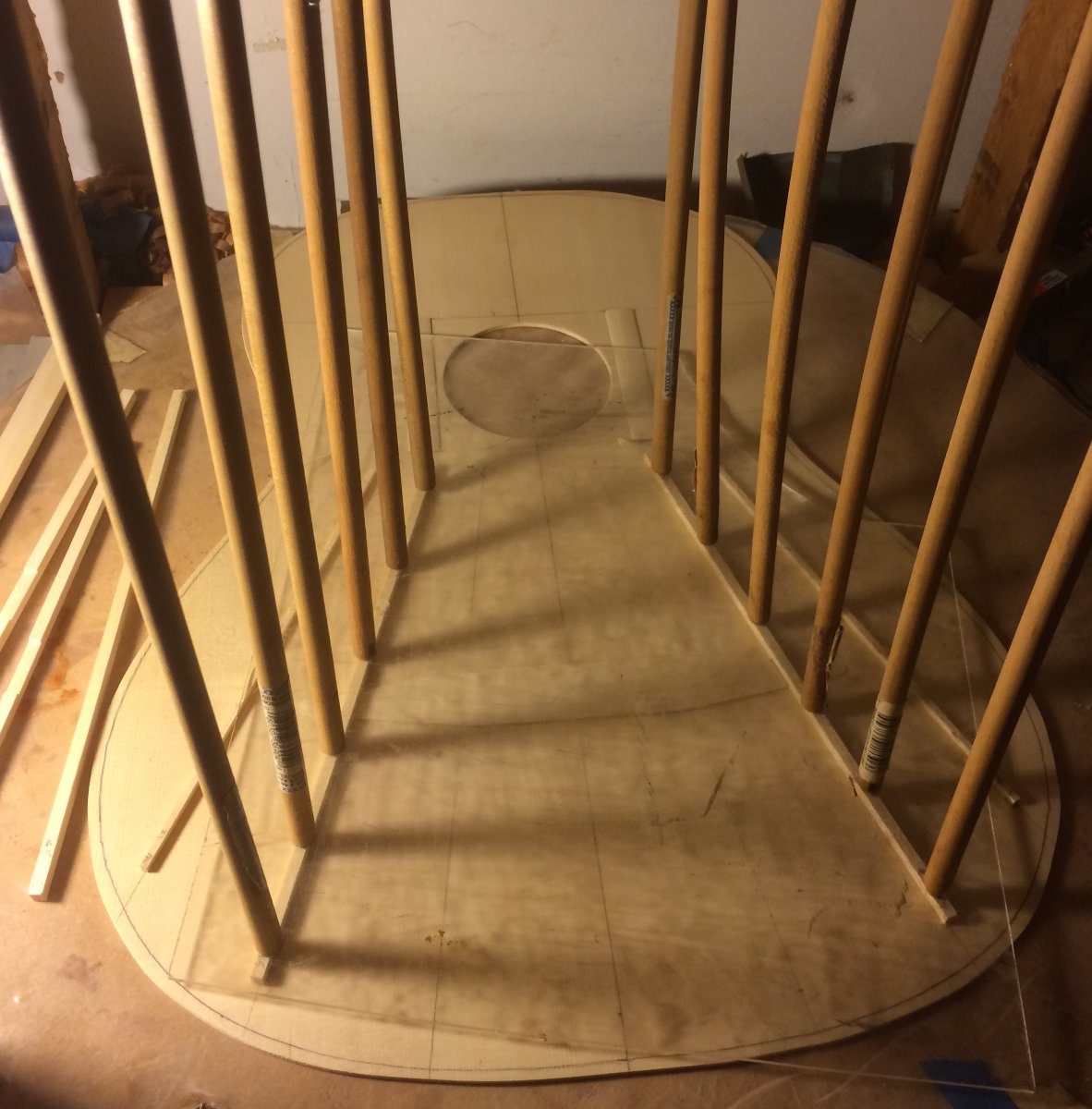

Bending the sides. |
|
|
Fitting the sides. |
|
|
Gluing back center reinforcement. |
|
|
Bindings and side purfling bent. |
|
|

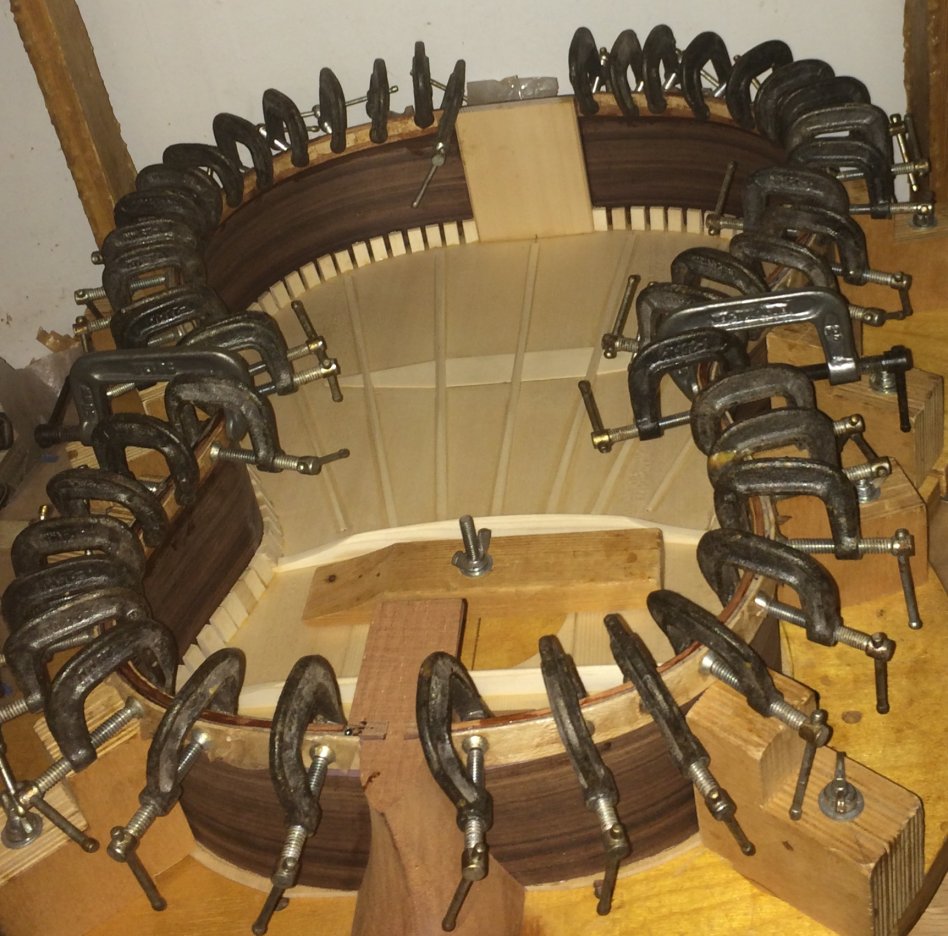

Gluing sides to the top. |
|
|
Gluing the back lining. |
|
|
Lining shaped. |
|
|
Waiting to fit the back. |
|
|

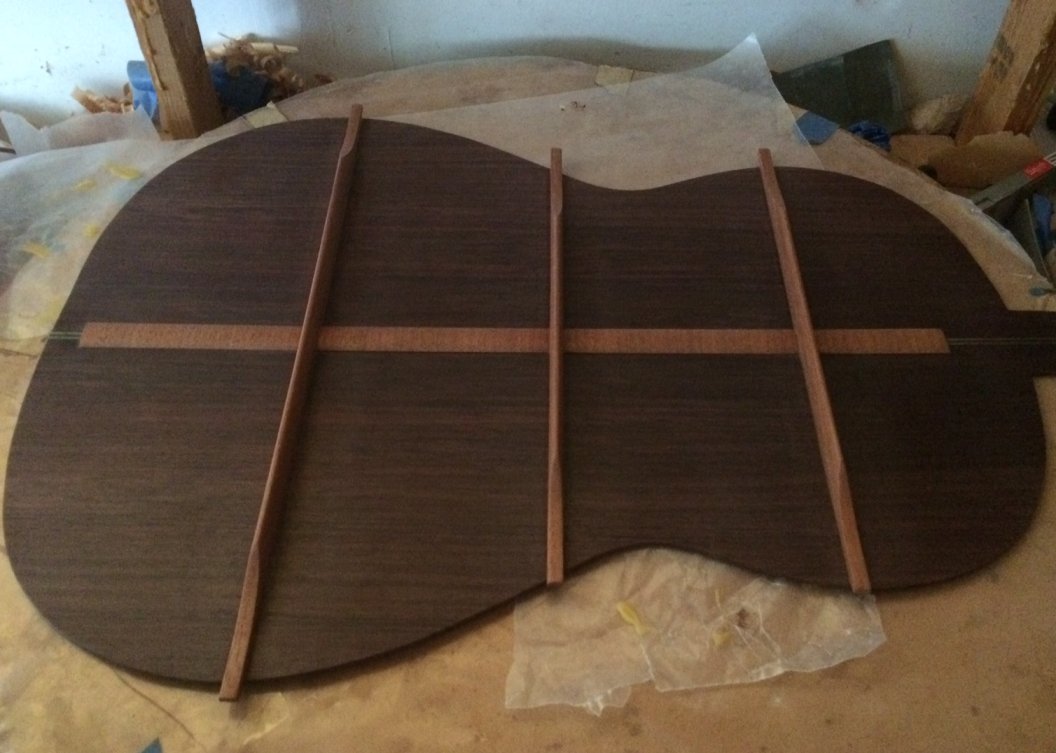

Bracing the back. |
|
|
Back braces shaped. Ready to fit the back to the body. |
|
|

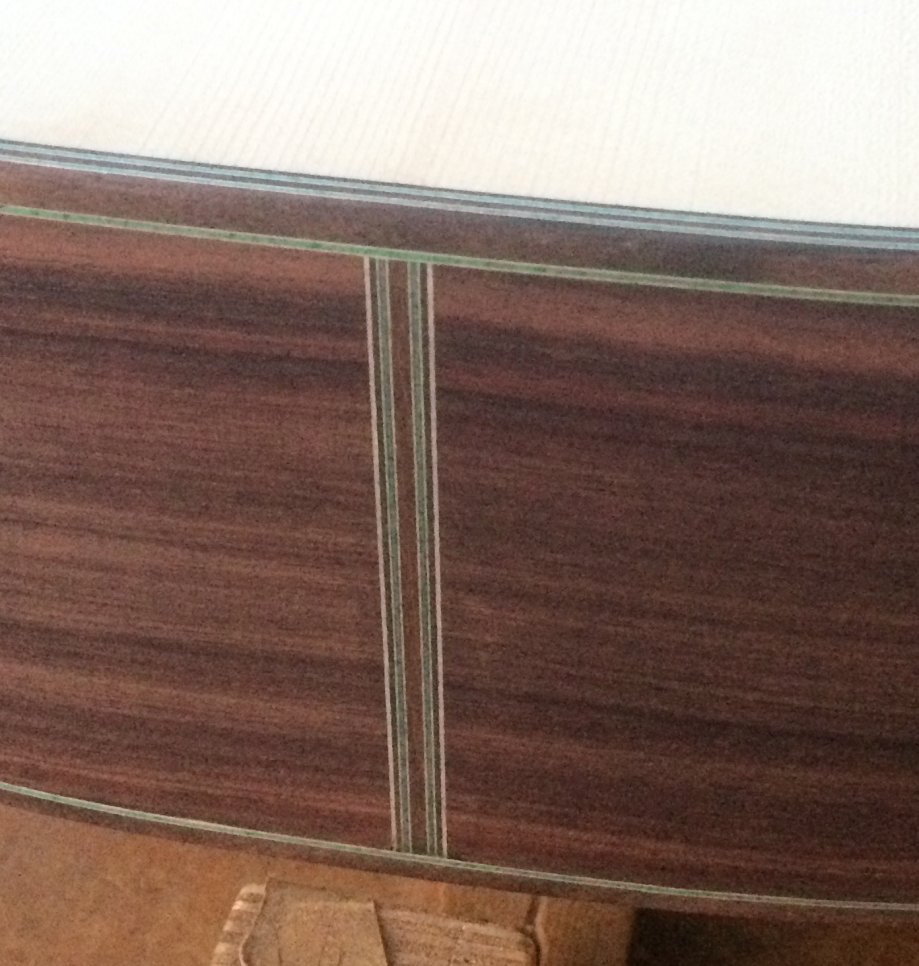

Tail purfling. |
|
|
Gluing the back on. |
|
|

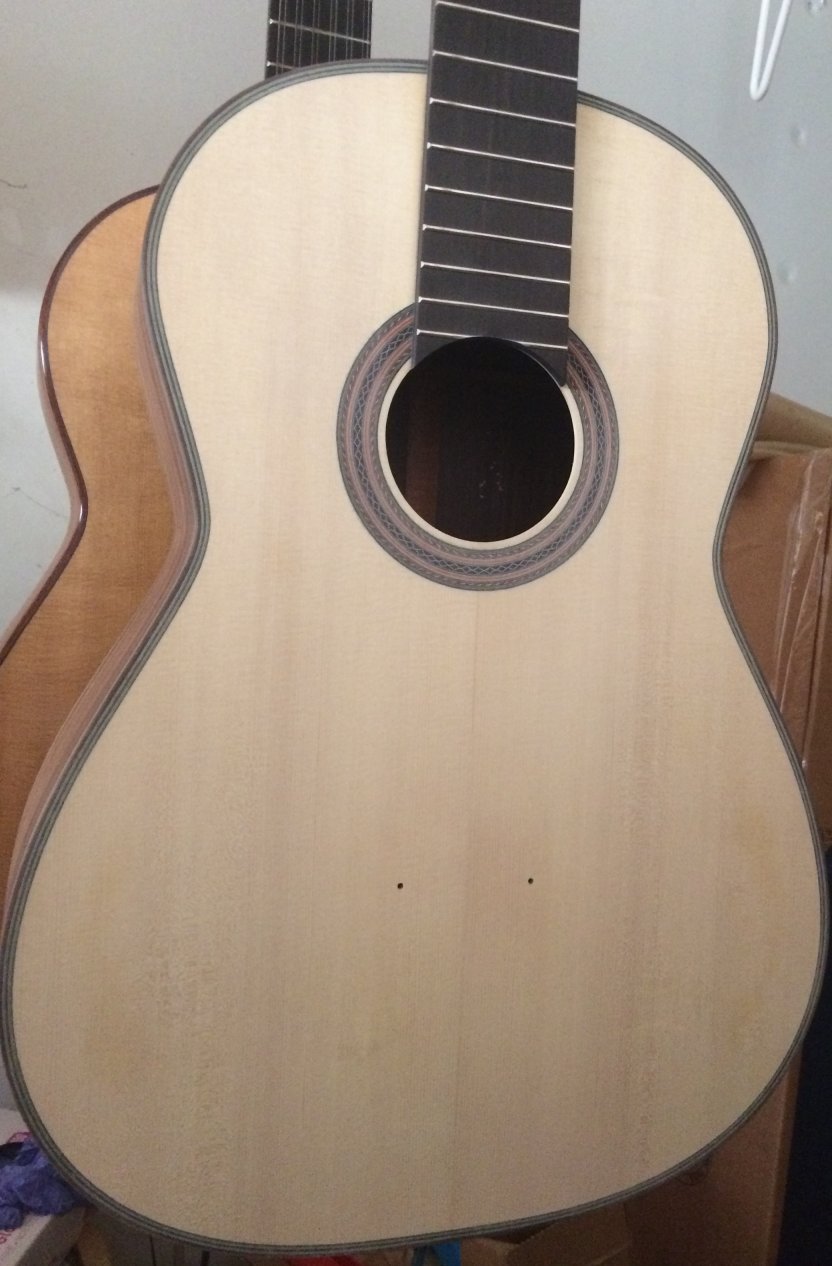

Top purfling and binding installed. |
|
|
Gluing back binding and purfling. |
|
|
Tail purfling. |
|
|
Back binding and purfling. |
|
|

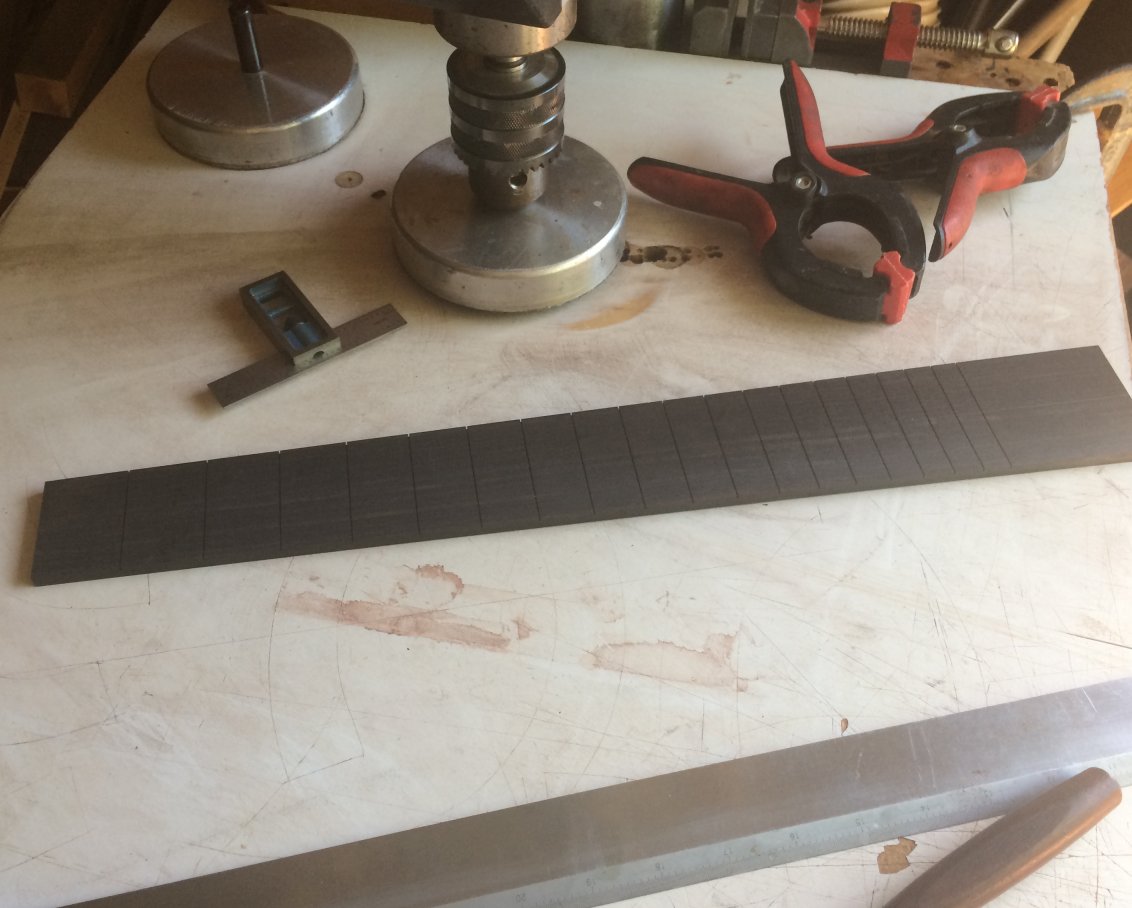

Making the fingerboard. |
|
|
Crossgrain ebony reinforcement under 12th fret to 19th fret. |
|
|
Side view of endgrain reinforcement. |
|
|
Gluing fingerboard onto the neck. |
|
|
Frets installed. |
|
|

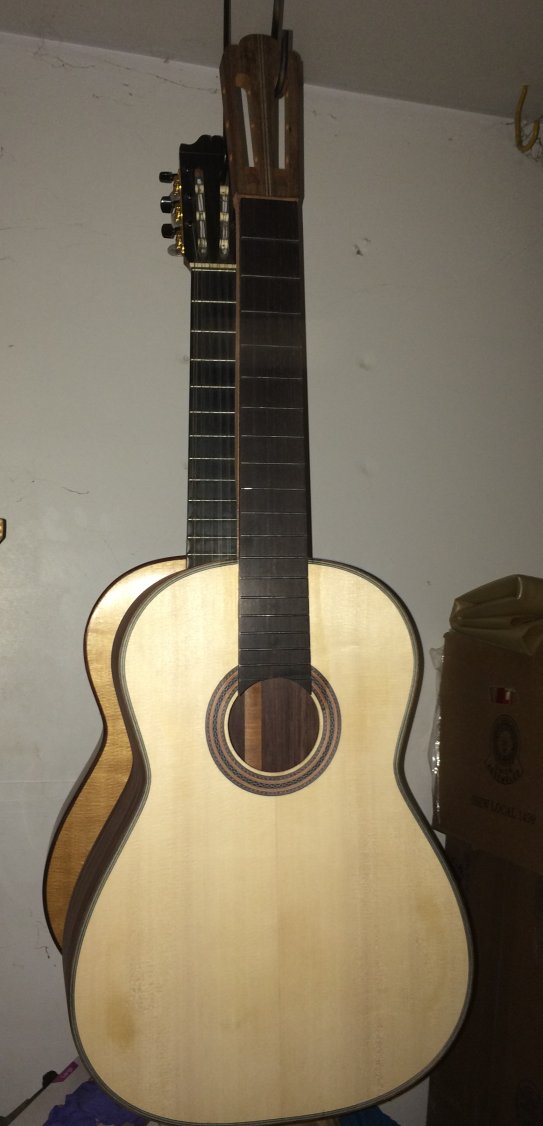

Ready for neck shaping and fret dressing. |
|
|
Neck shaped. Ready for final sanding prep for finish application. |
|
|

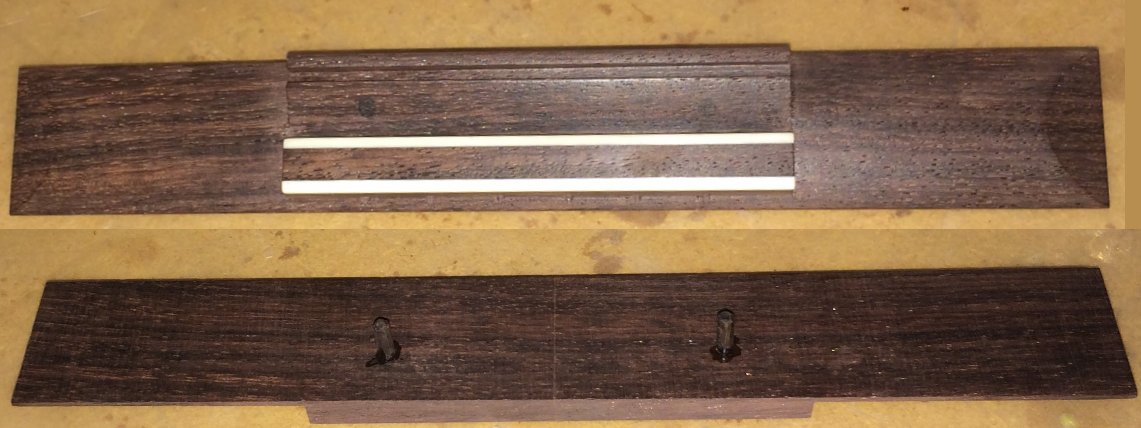

The bridge |
|
|
Locating the bridge and drilling locating holes. (The above photo of the bridge was taken after locating pins were glued into it) |
|
|
Bridge locating holes. Guitar ready for finish prep. |
|
|
Finishing stage. 2 coats of vinyl sealer prior to pore filler. |
|
|
Rosette. |
|
|
Head |
|
|
Vee joint. |
|
|

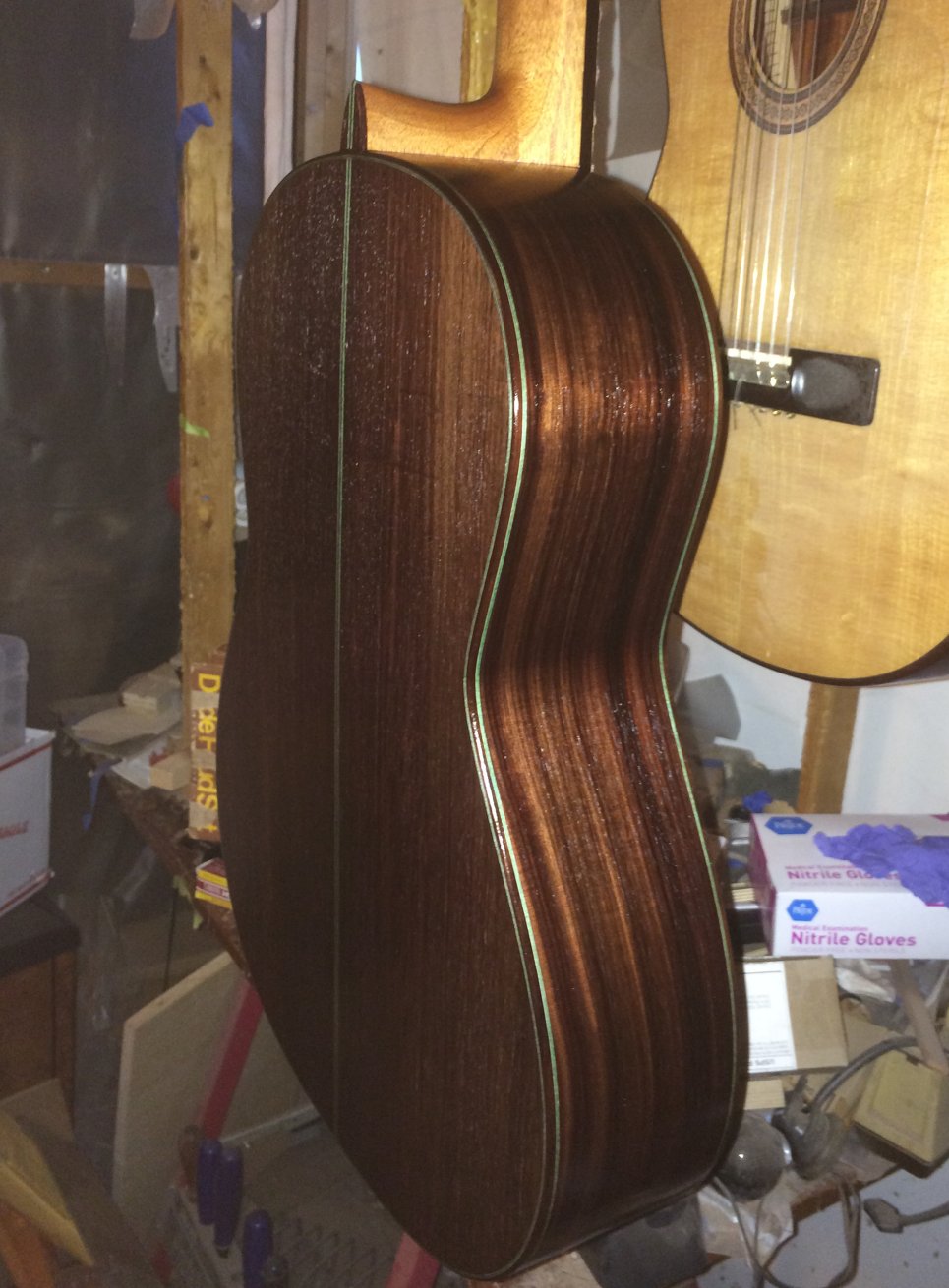

Sides |
|
|

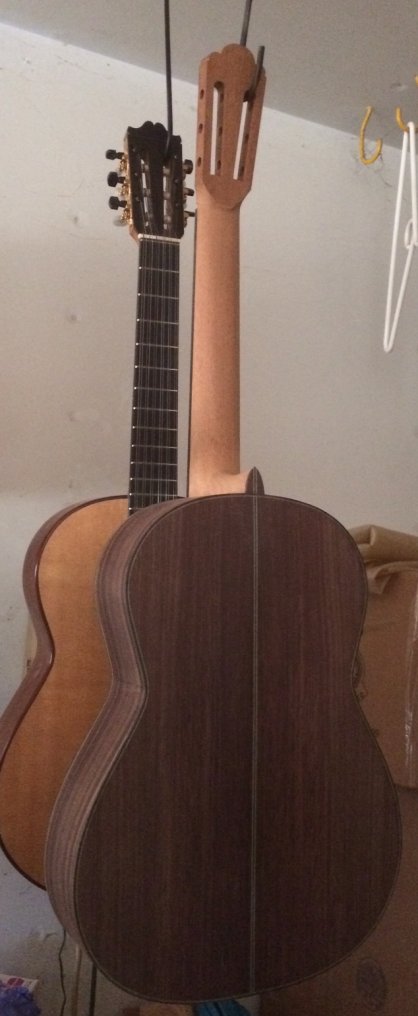

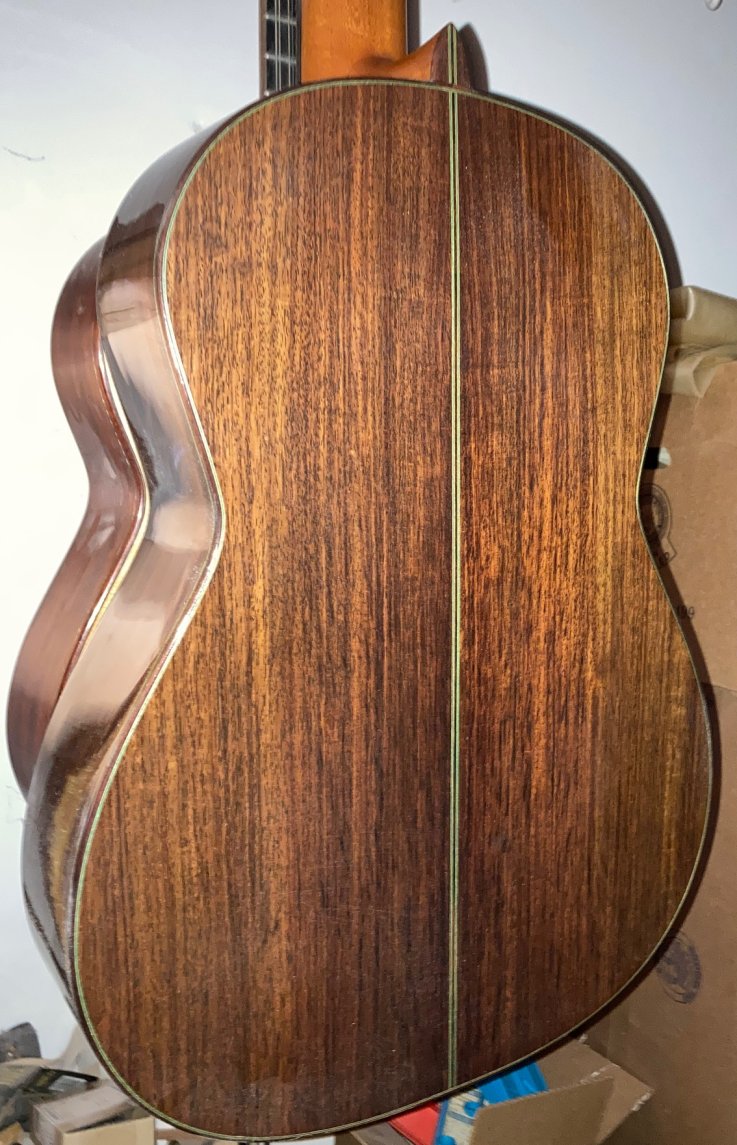

Back |
|
|

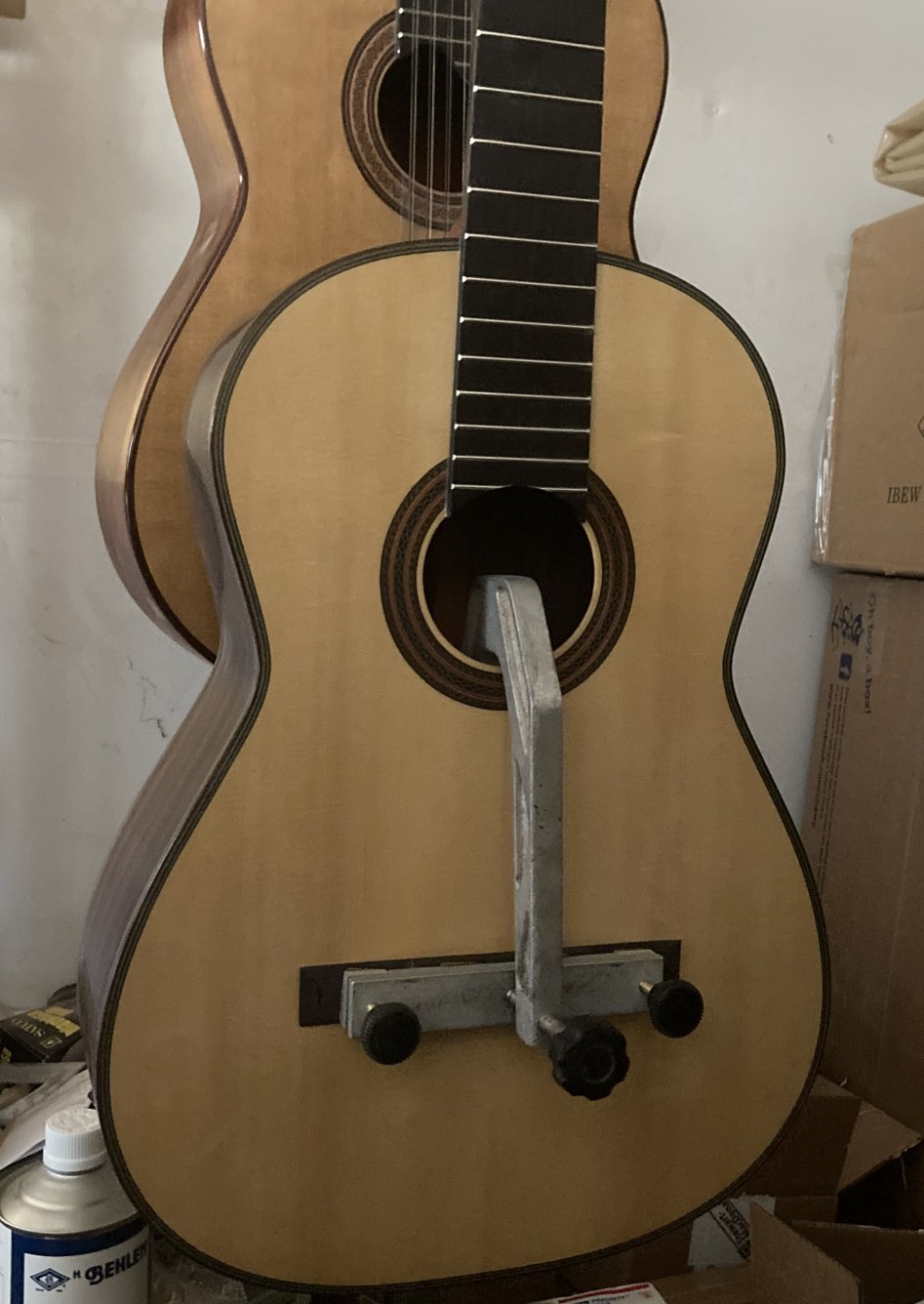

Finish cured and wet sanded.Gluing on the bridge, then ready to buff out the finish. |
|
|
Buffing out the finish. |
|
|
Back buffed out. |
|
|

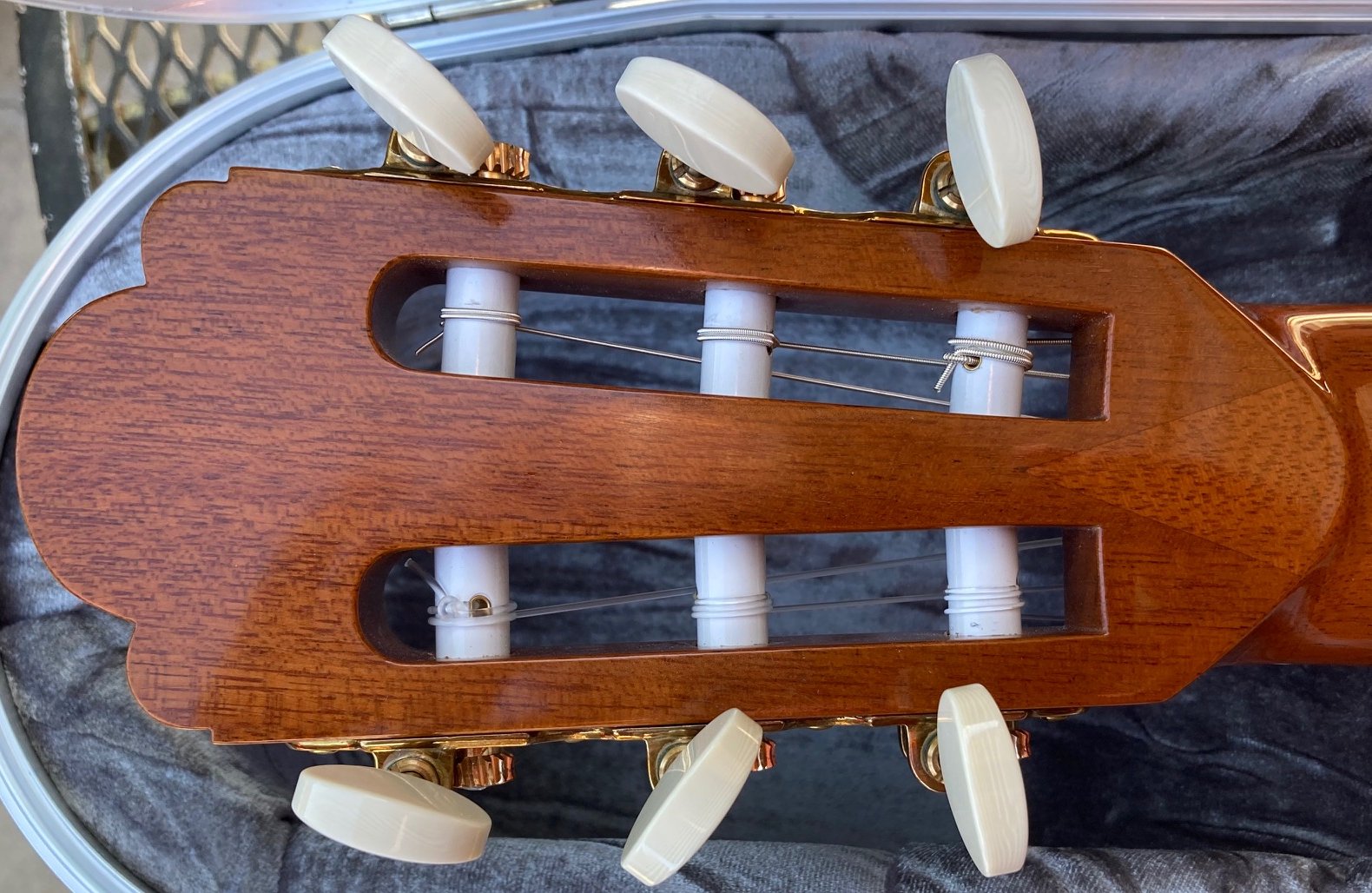

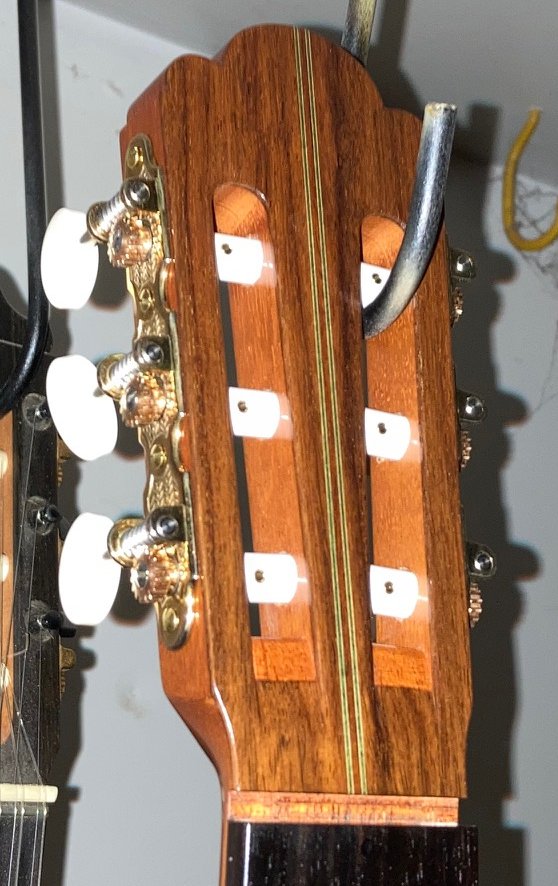

Head with Sloane tuners. |
|
|

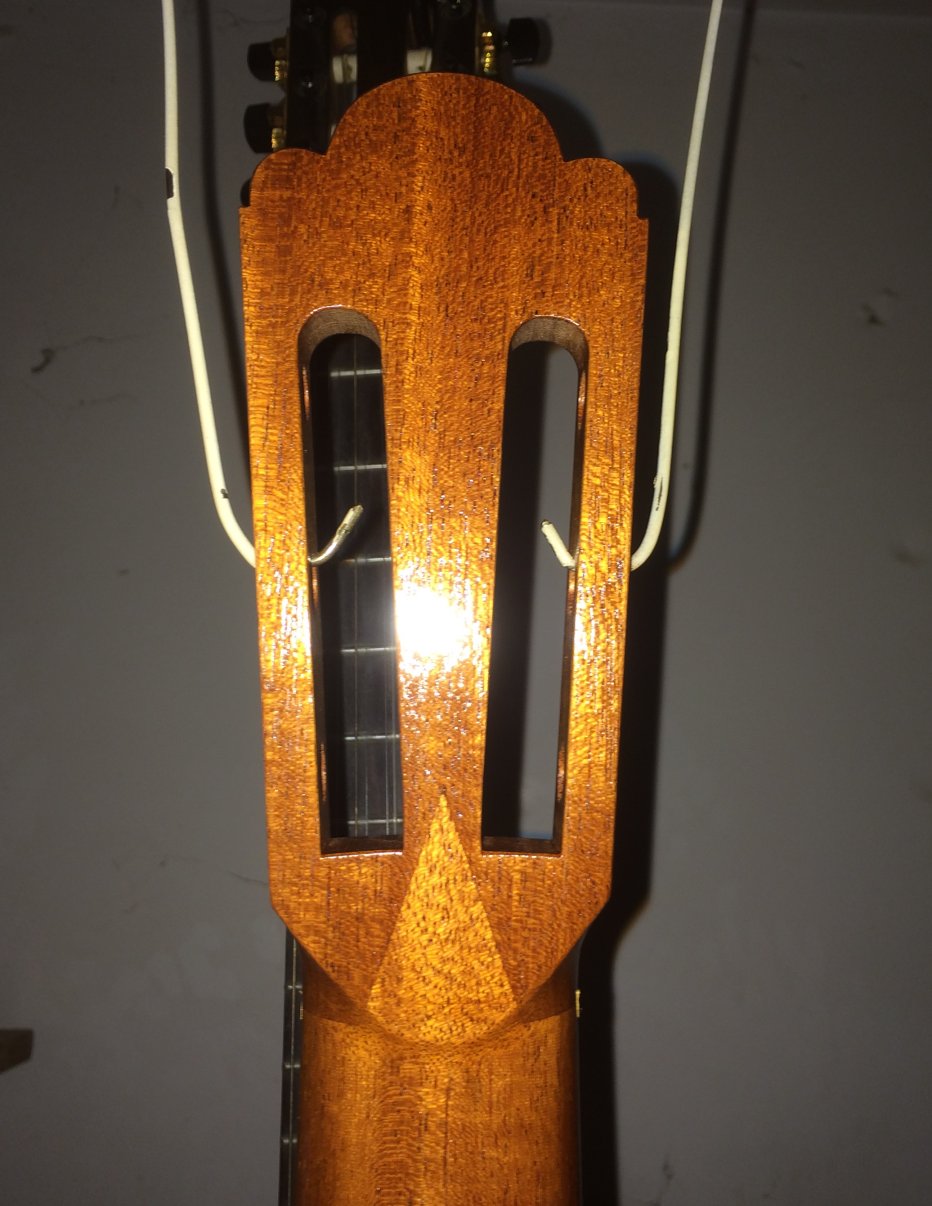

Vee head joint. |
|
|
Guitar ready for nut and saddle and set up. Closeup of rosette. |
|
|
Nut and saddle fitted ready for strings. |
|
|

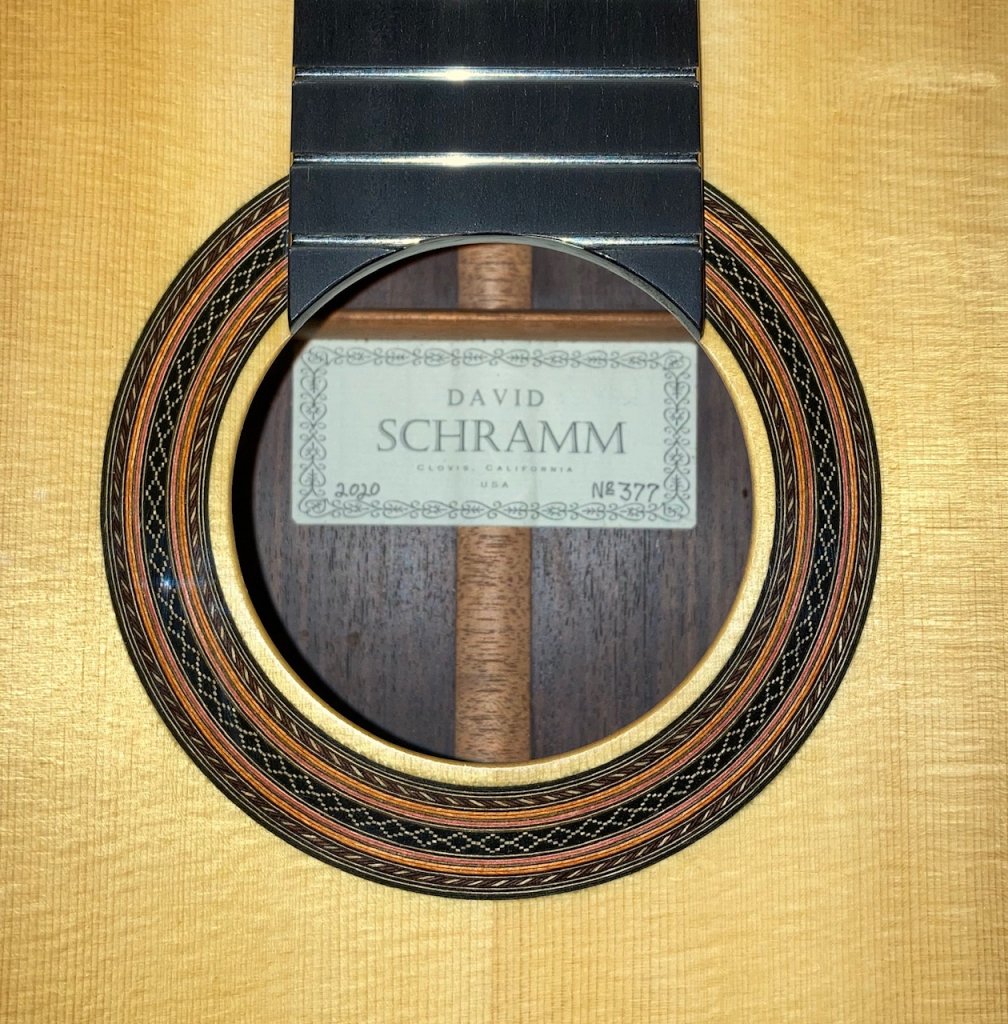

Rosette and Label No.377 |
|
|
Guitar ready for shipping! Head shot. |
|
|

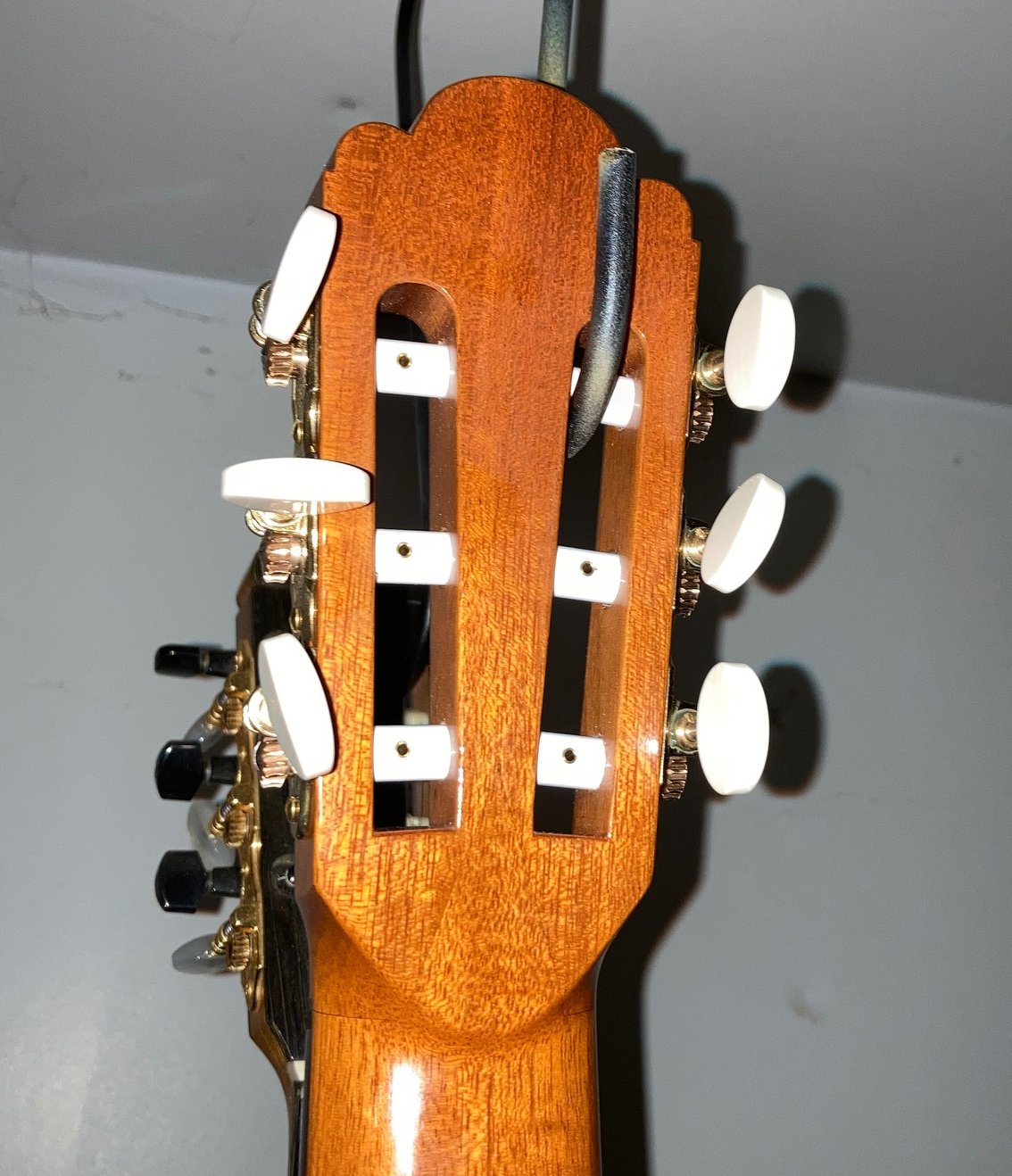

Back view of covered vee head joint. |
|
|
Rosette |
|
|

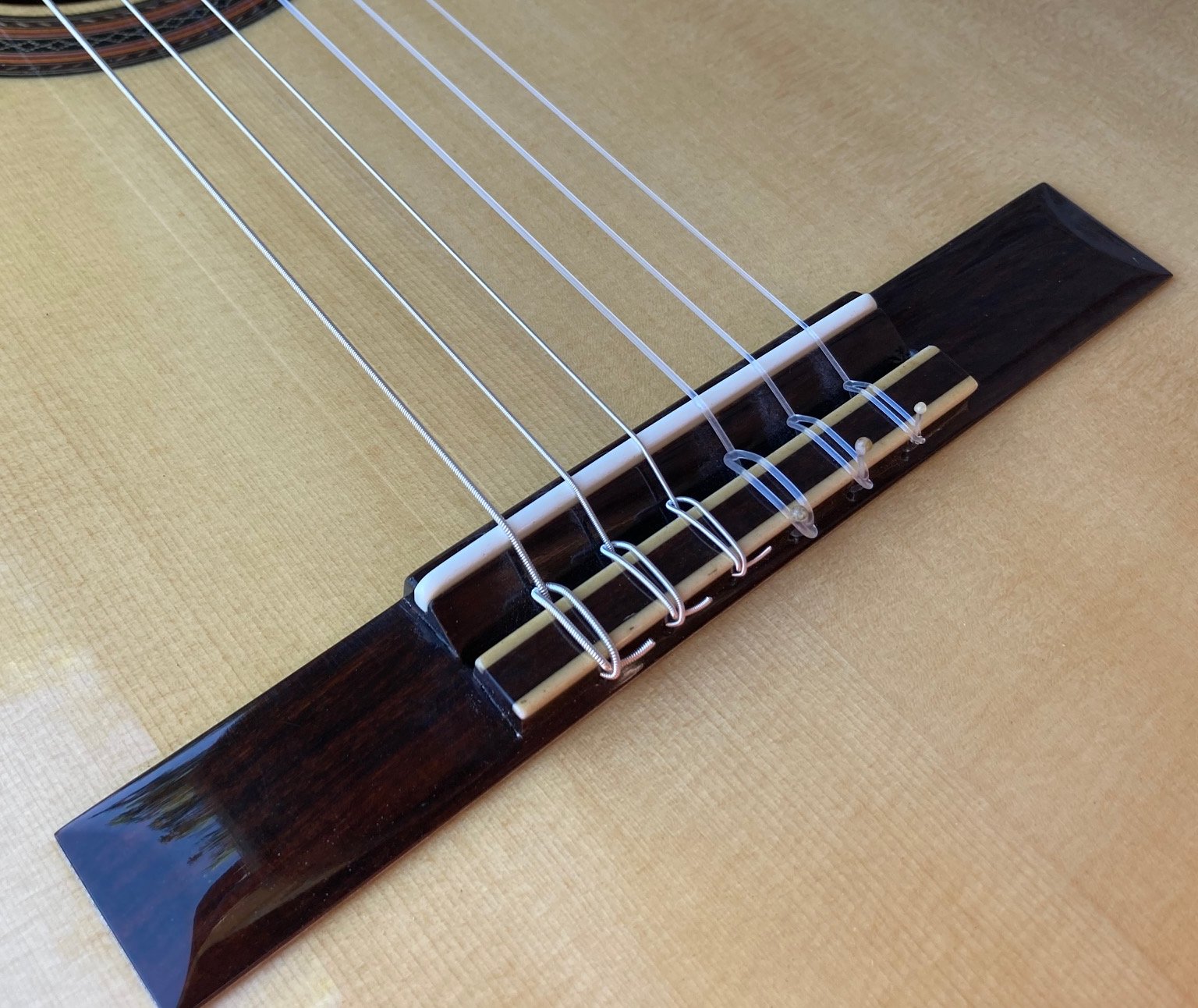

Bridge |
|
|
Back |
|
|
Top |
|
|
|
|
|
|
|
|
|
|
|
