Last Update: 12/18/11
Guitar for Jason Grossi
Model: 8-string Lattice Model
Specifications:
|
|

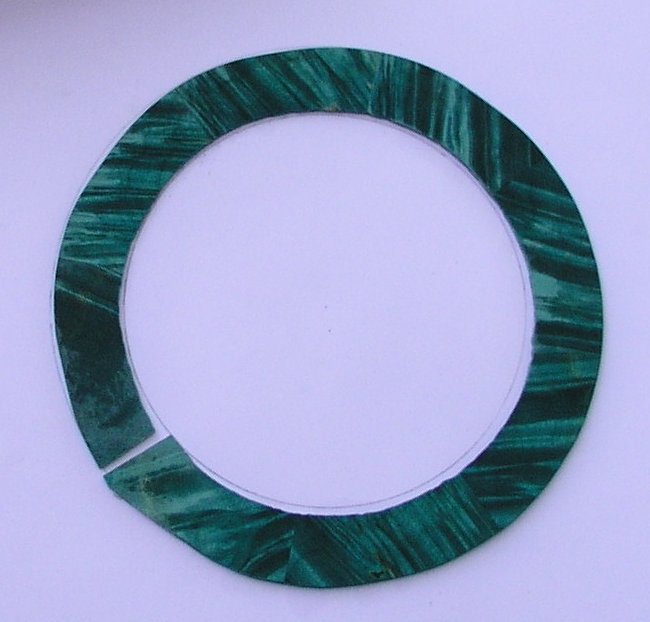

Prospective rosette inner ring. |
|
|

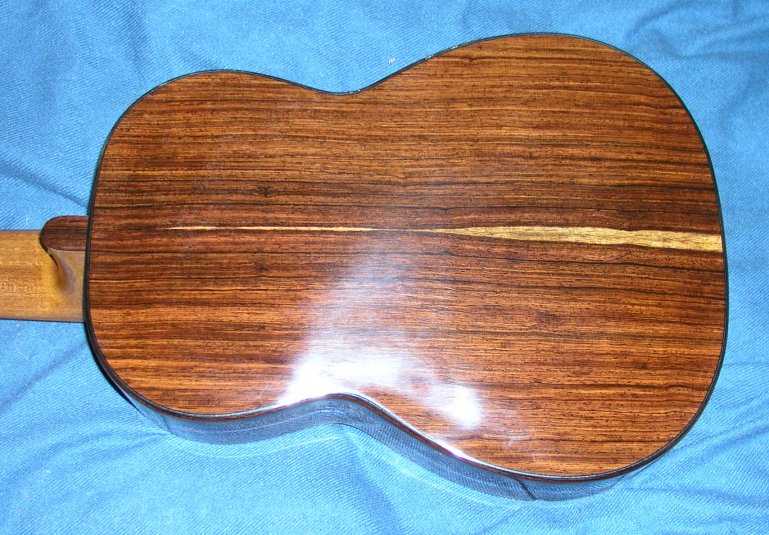

Chassis and cocobolo back. |
|
|
The chassis. |
|
|
View of the "A" frame support. |
|
|
Body ready for soundboard and back. |
|
|

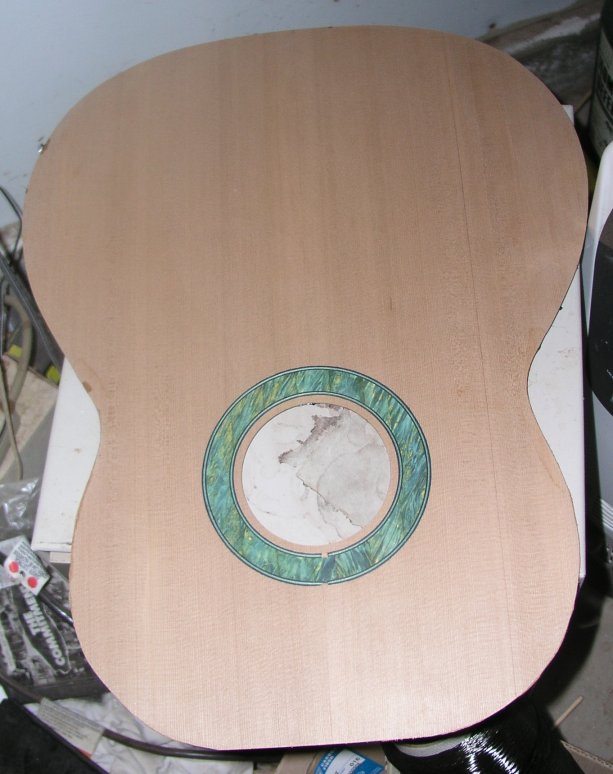

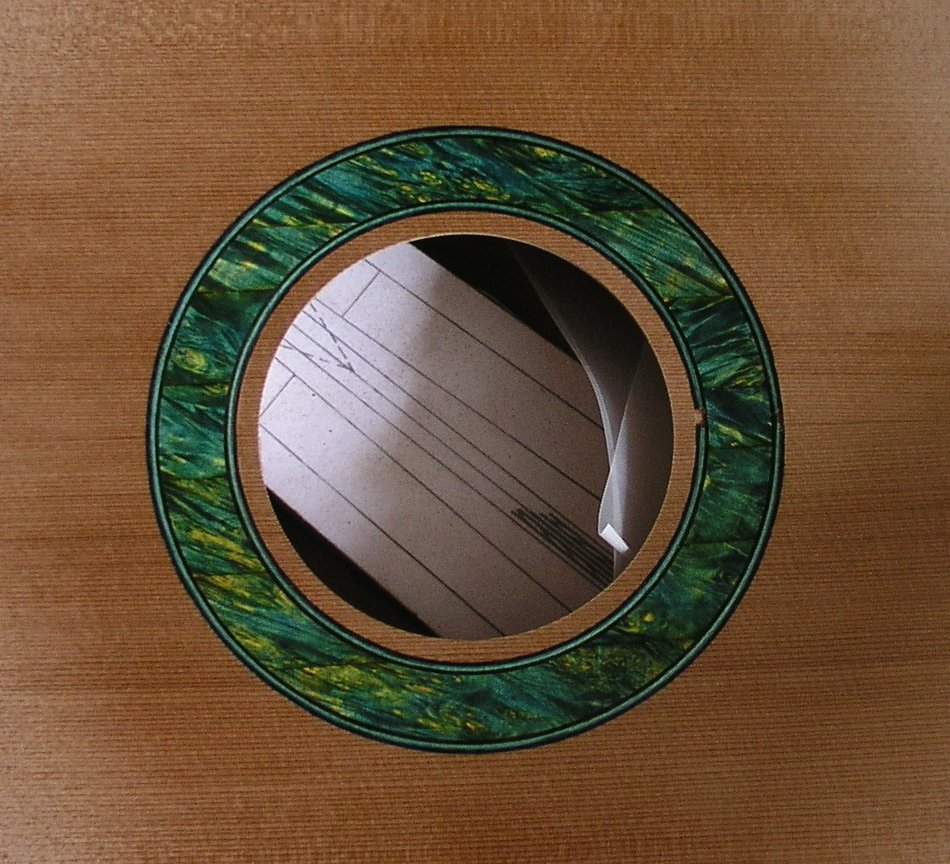

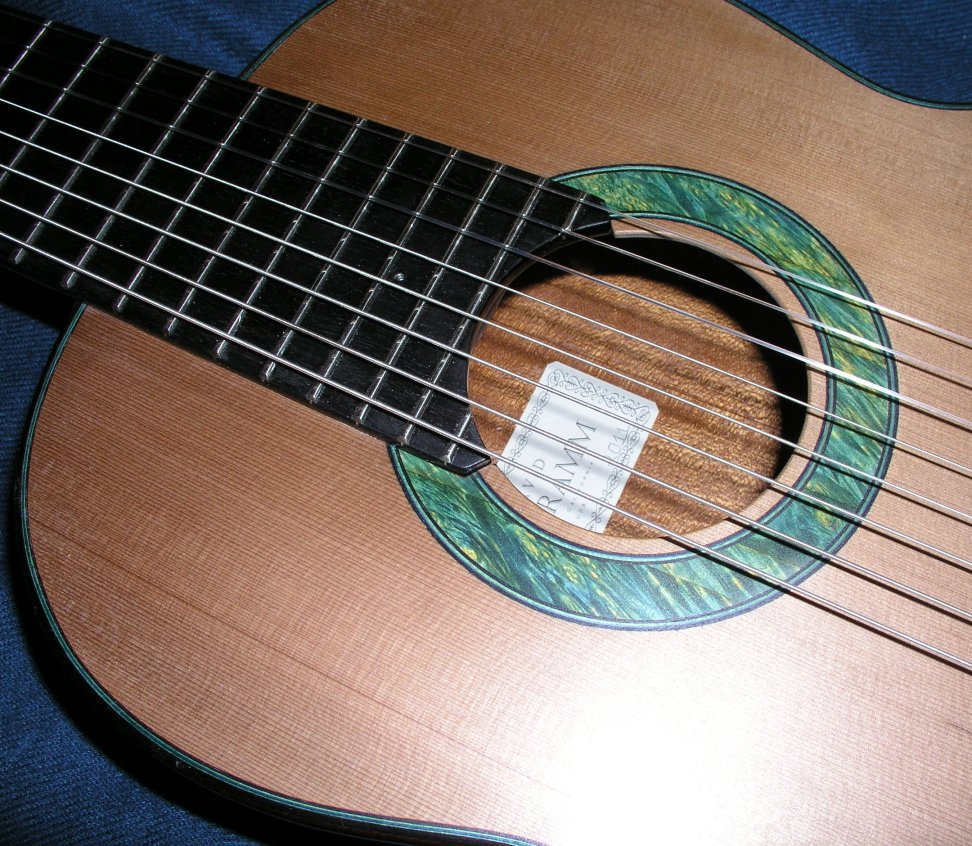

Inlaid rosette. |
|
|

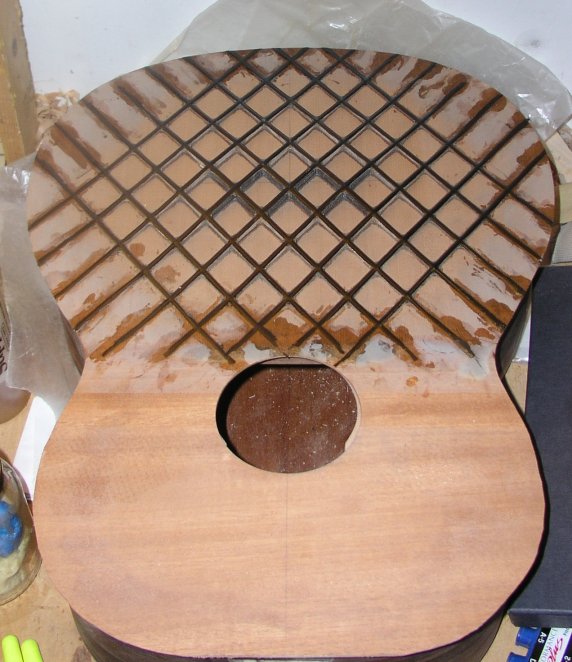

Lattice bracing. |
|
|
Rosette |
|
|

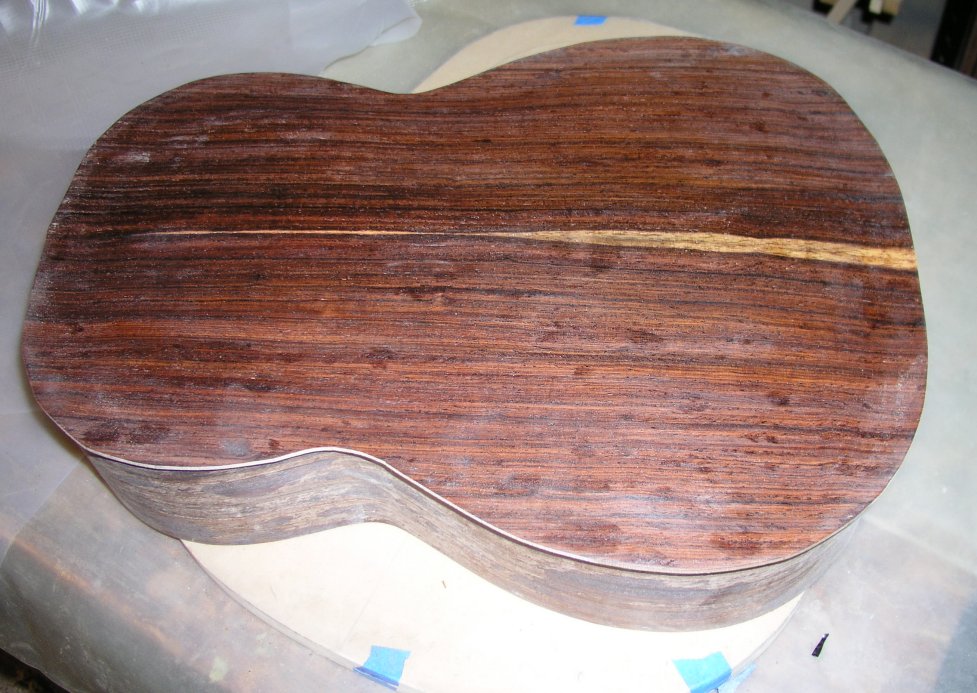

Back and sides prior to gluing. |
|
|

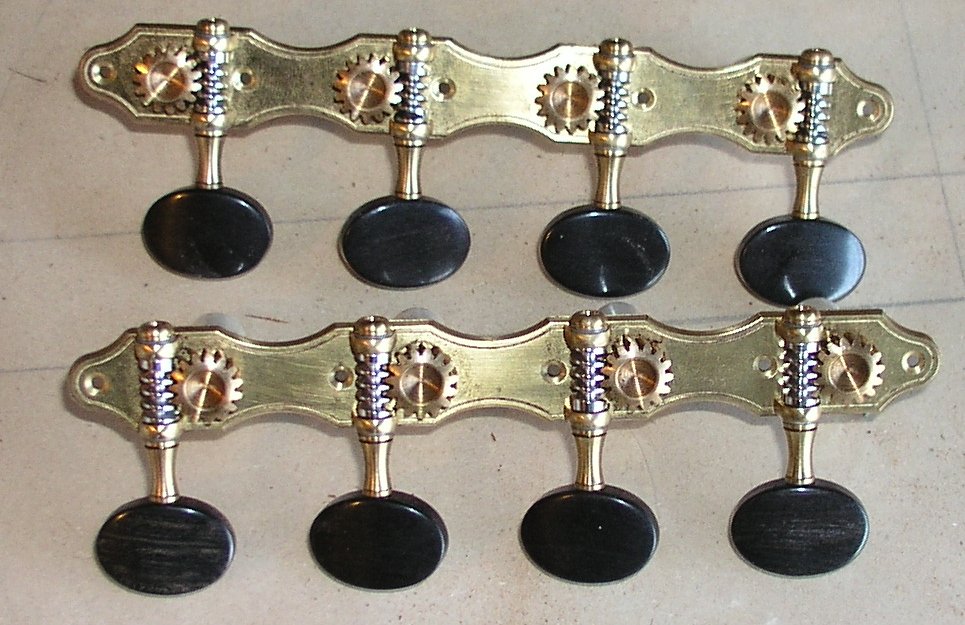

Alessi tuners. |
|
|

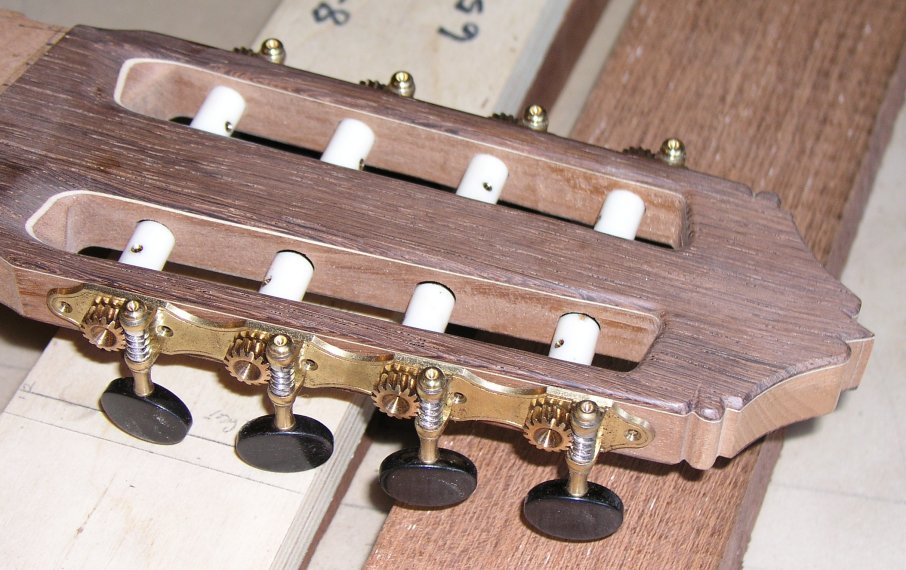

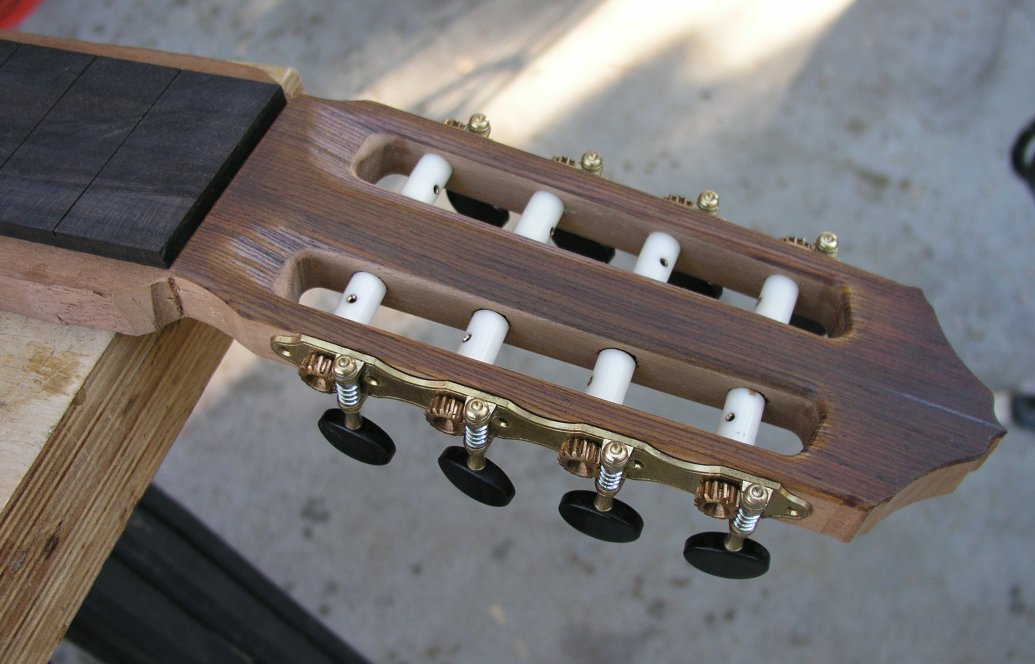

Alessi tuners on a 8-string head. |
|
|

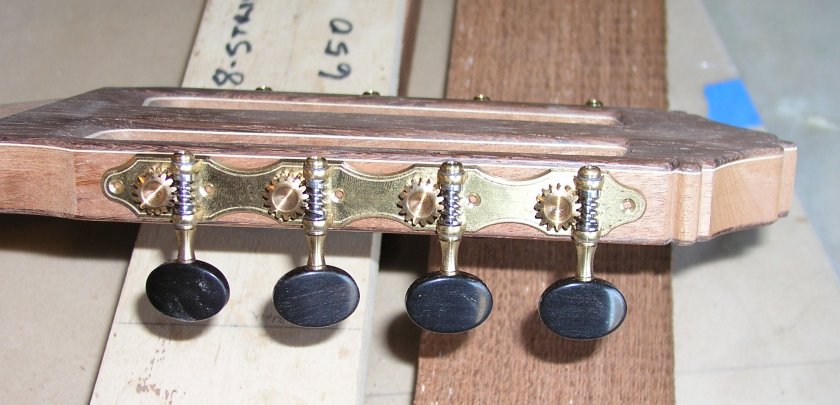

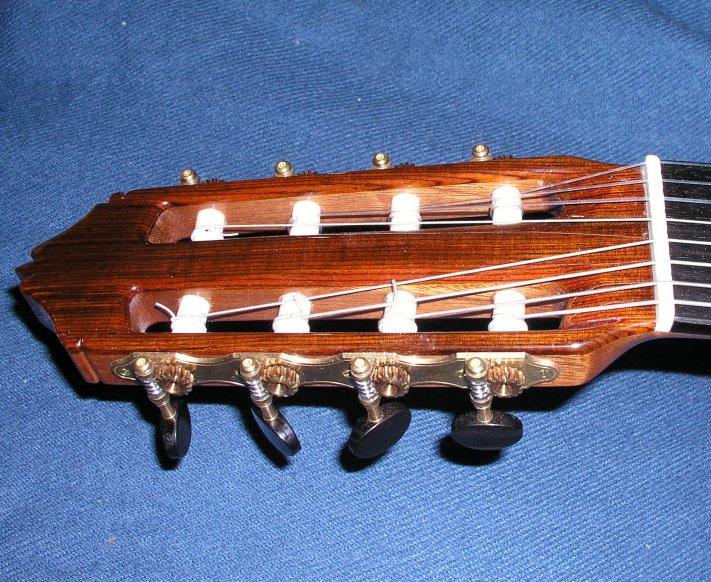

Alessi tuners and a Brahms guitar head, top view. |
|
|

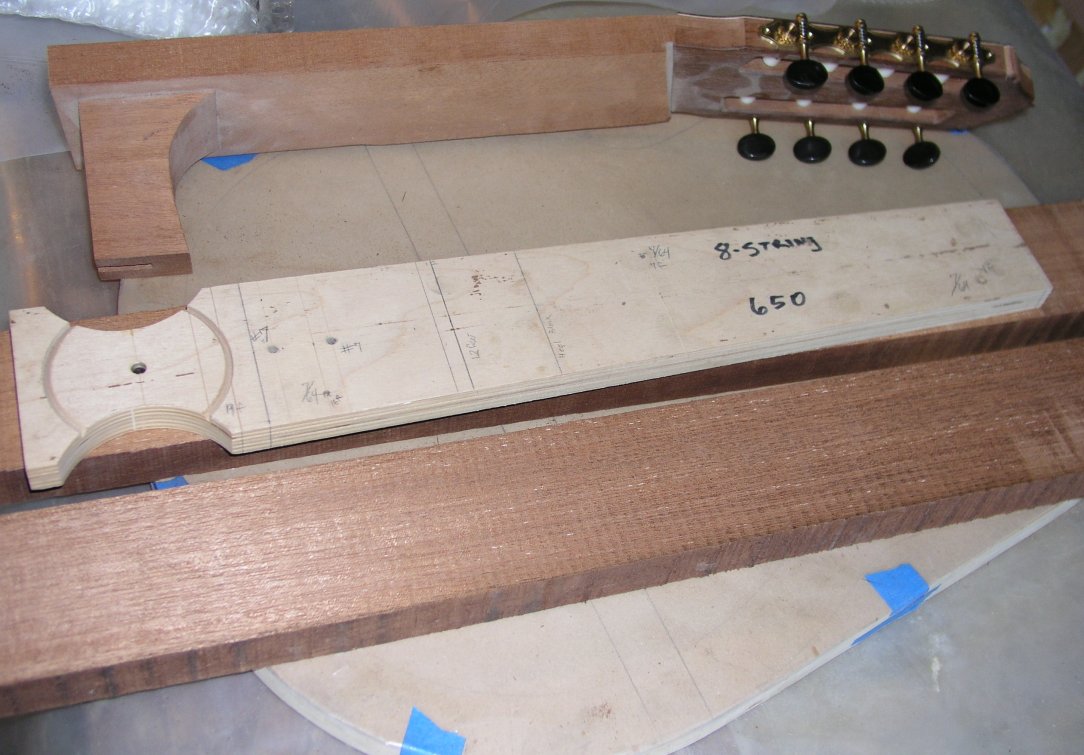

Adjustable neck template for 8-string with neck blank and Brahms guitar neck in the back. The adjustable neck is quite different than the solid neck so a new neck is being built. |
|
|

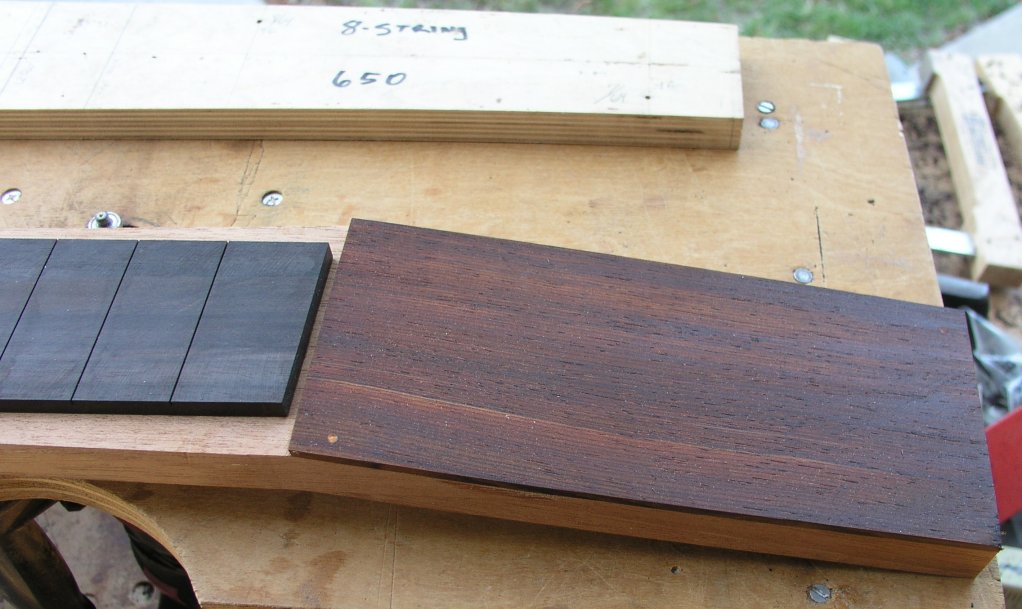

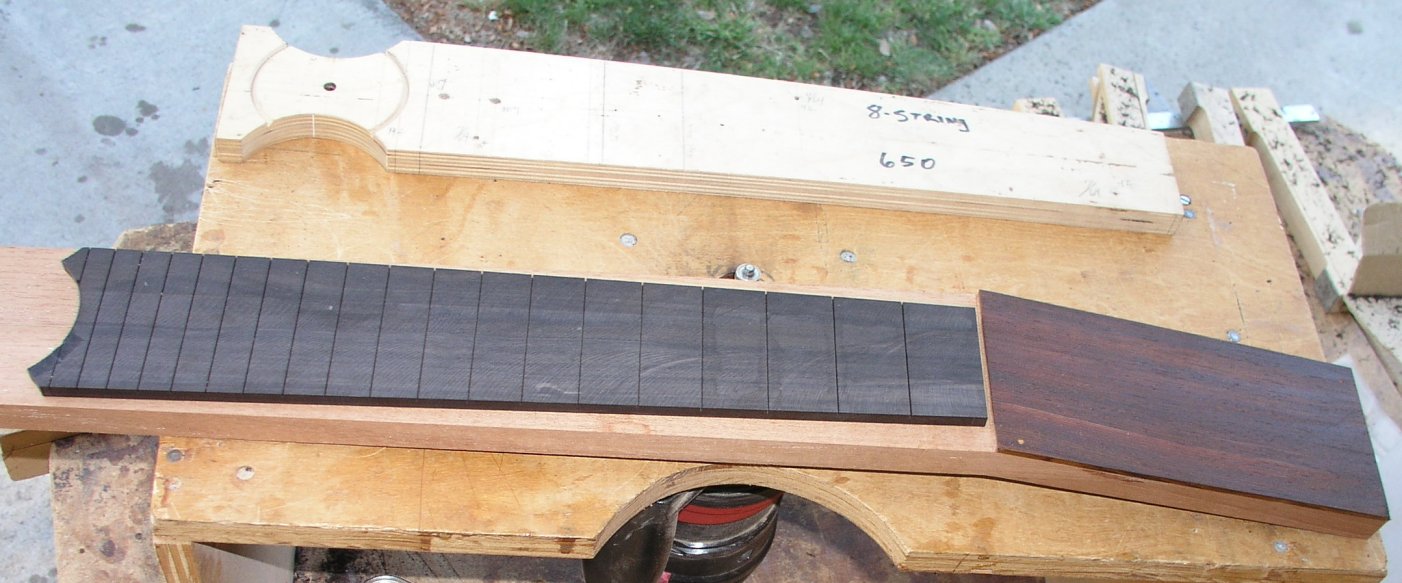

8-string fingerboard and neck blank. |
|
|
Cocobolo headplate. |
|
|
Head slotted and detailed. |
|
|

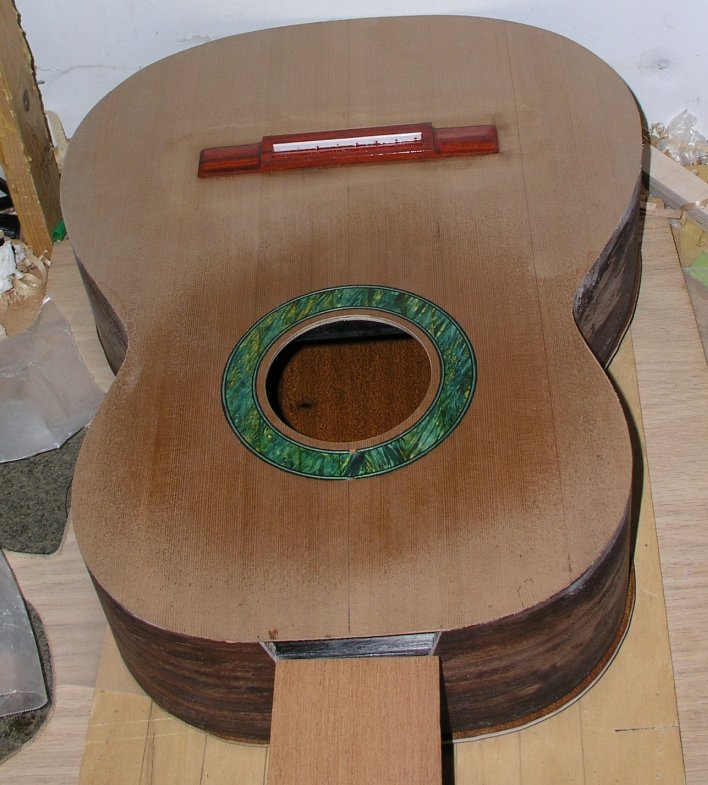

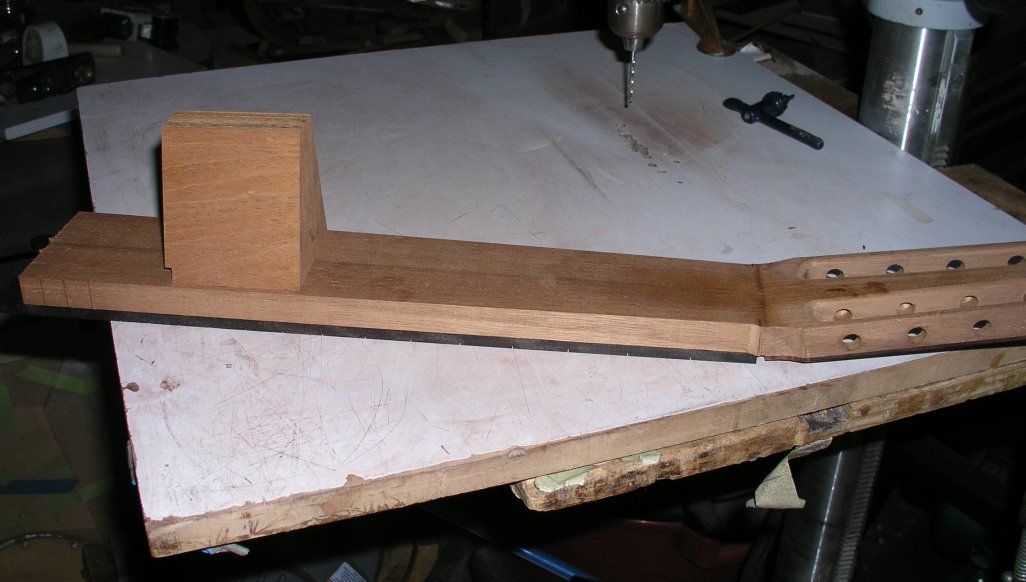

Fitting the adjustable neck heel to the body. |
|
|

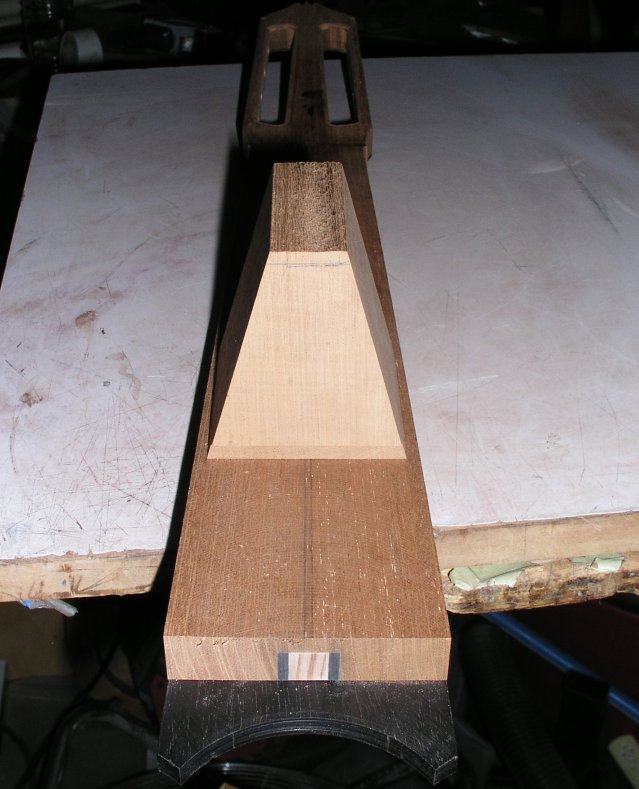

Neck construction. |
|
|
End view of neck. |
|
|

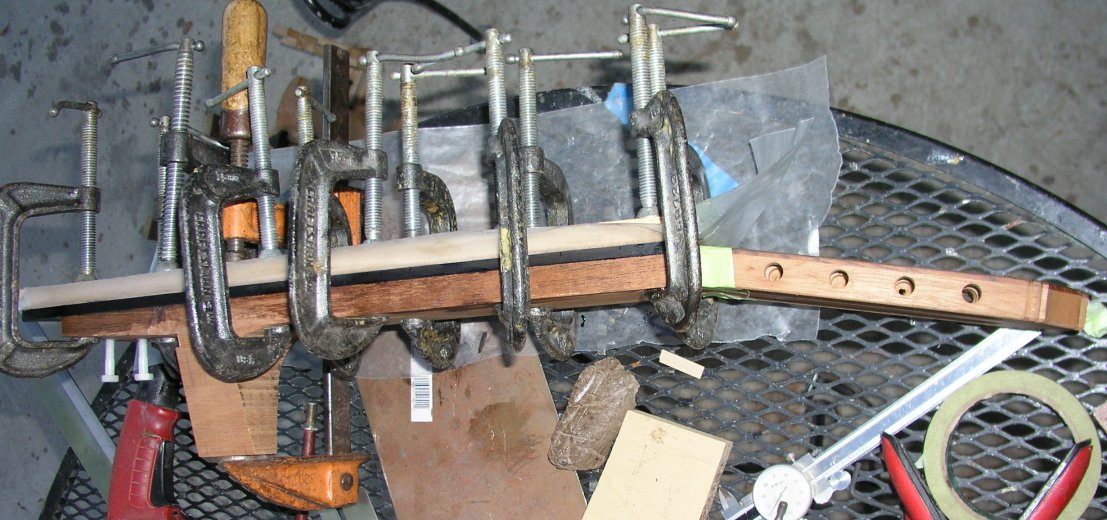

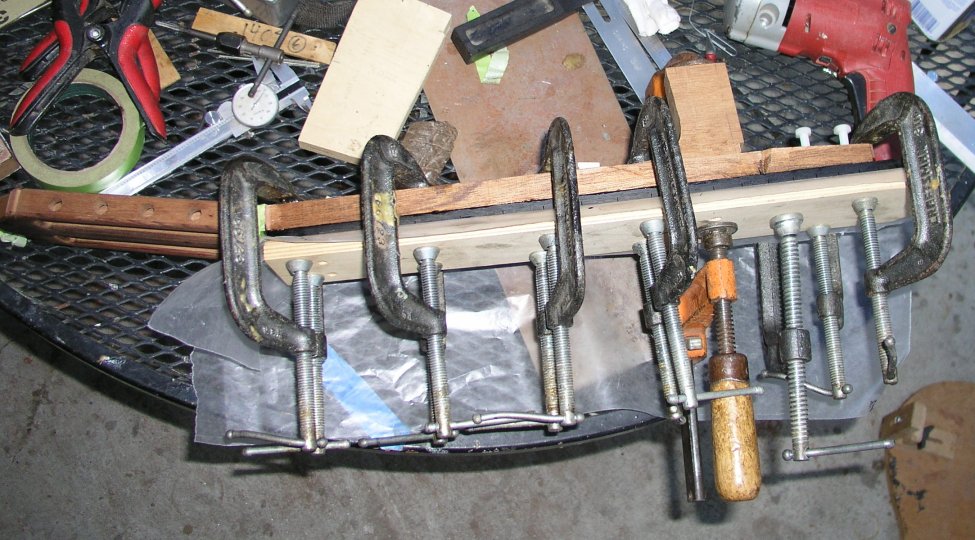

Gluing fingerboard to neck. |
|
|
Gluing fingerboard. |
|
|

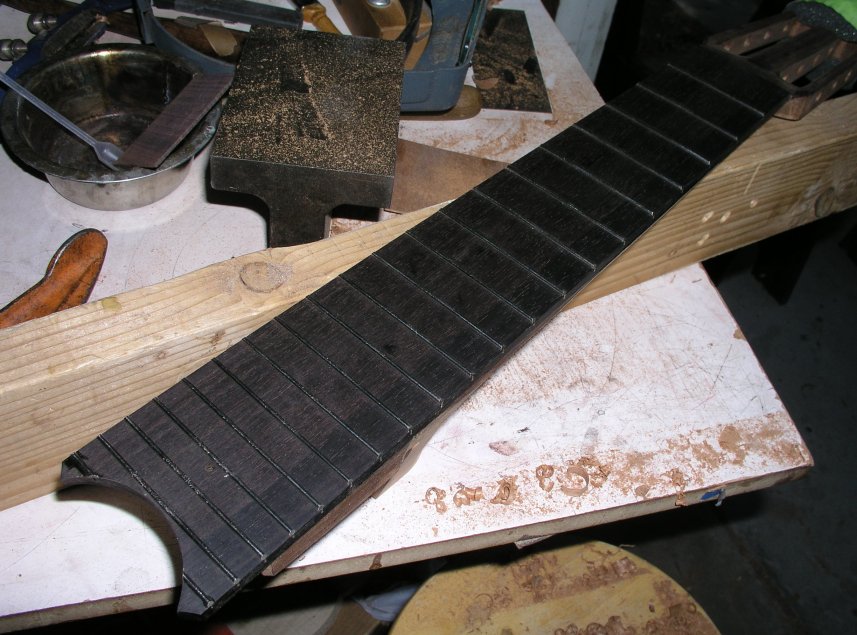

Fingerboard fretted. |
|
|
Solid 19th fret with split 20th which gives a high "C" on the first string. |
|
|

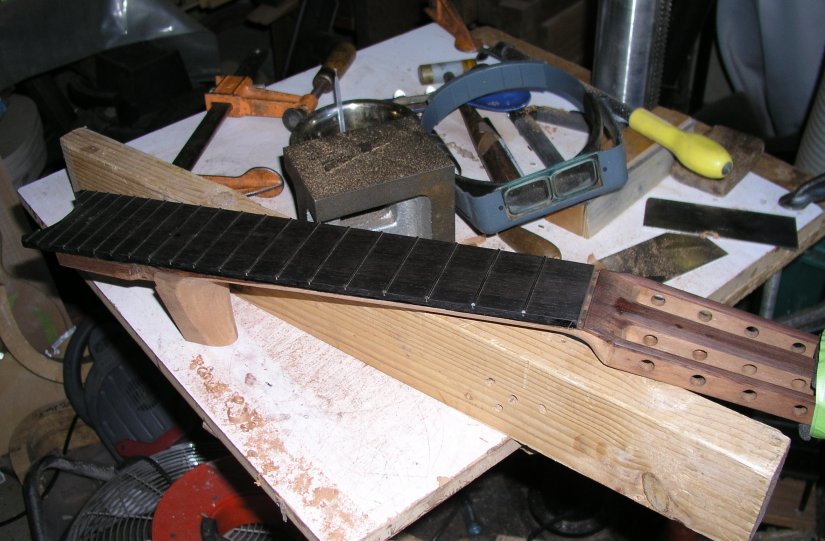

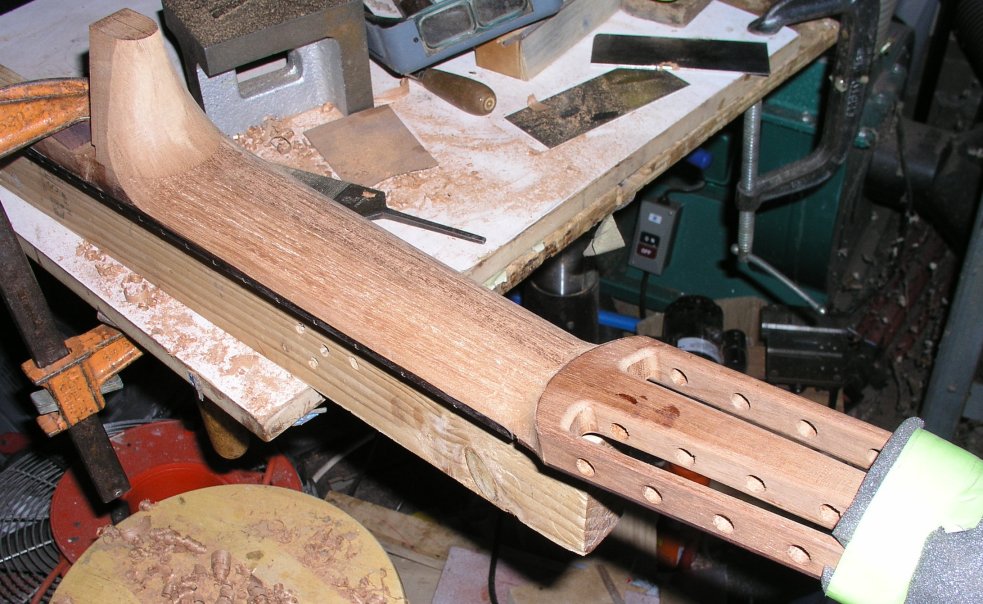

Carving the neck. |
|
|

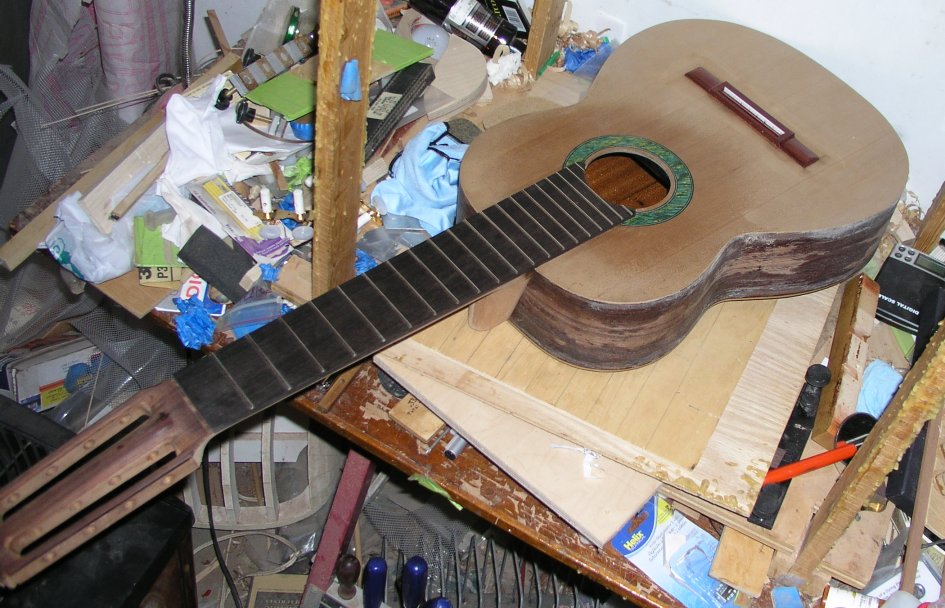

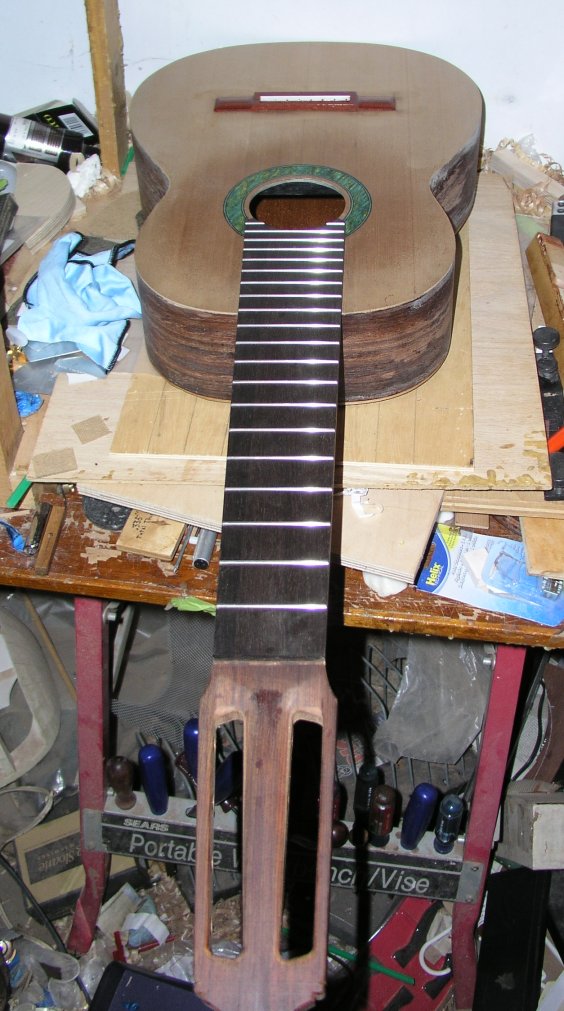

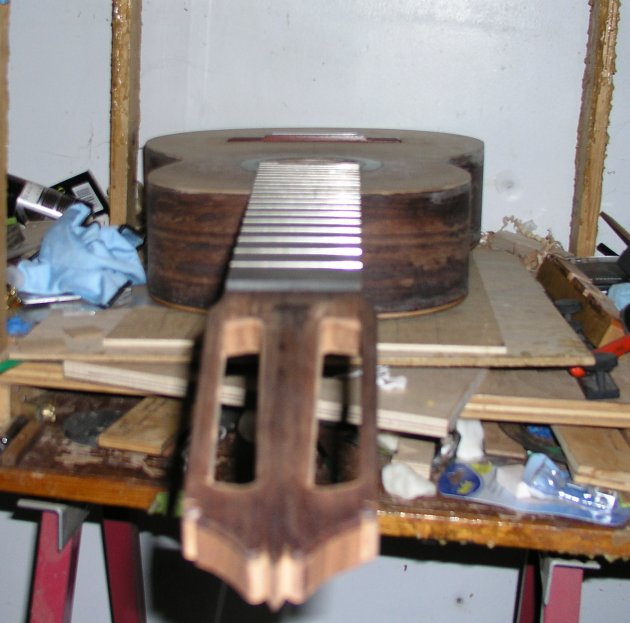

Test fitting neck. |
|
|
Neck from head view. |
|
|
Ready for purfling and binding. |
|
|

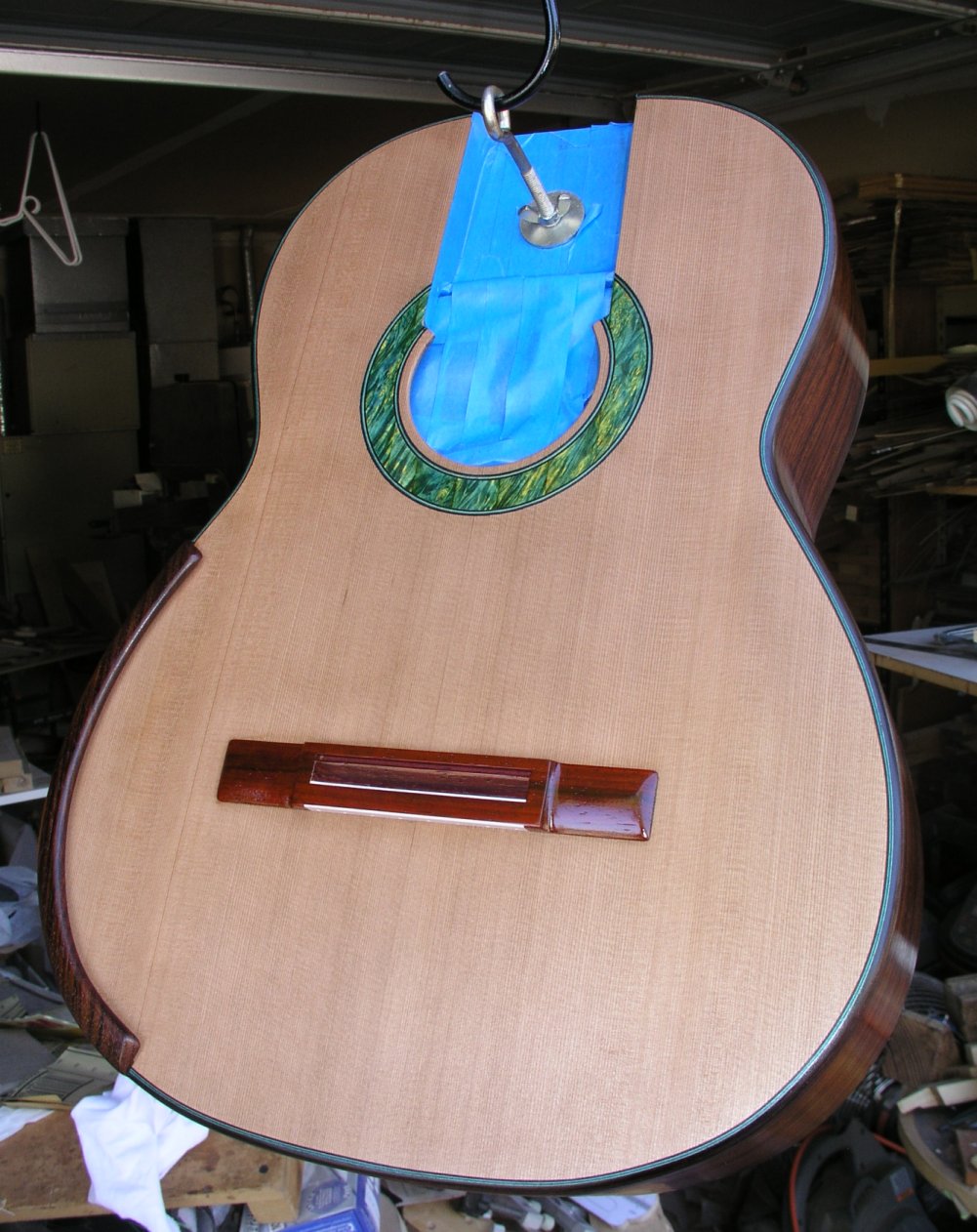

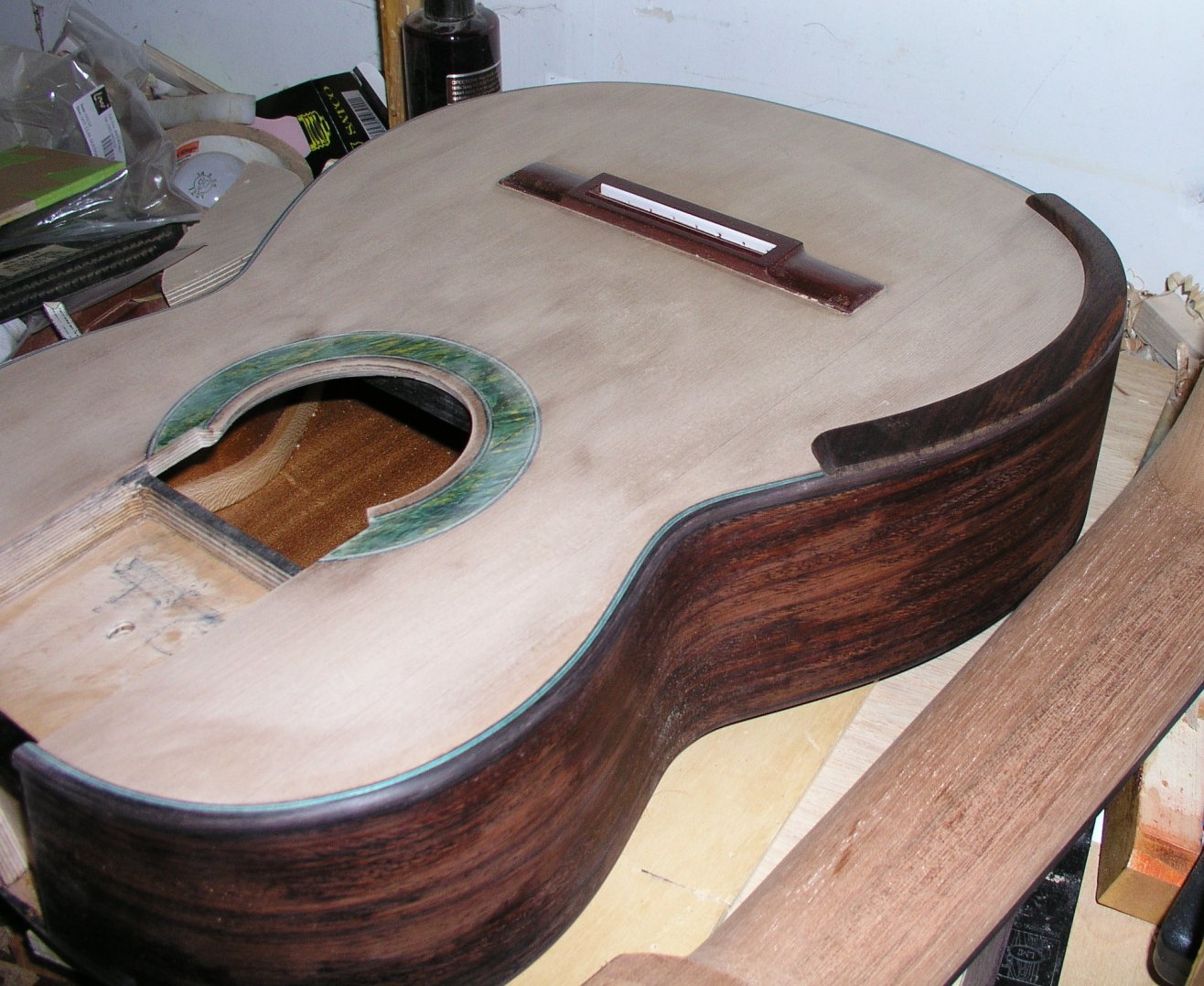

Binding and purfling installed along with arm rest. |
|
|

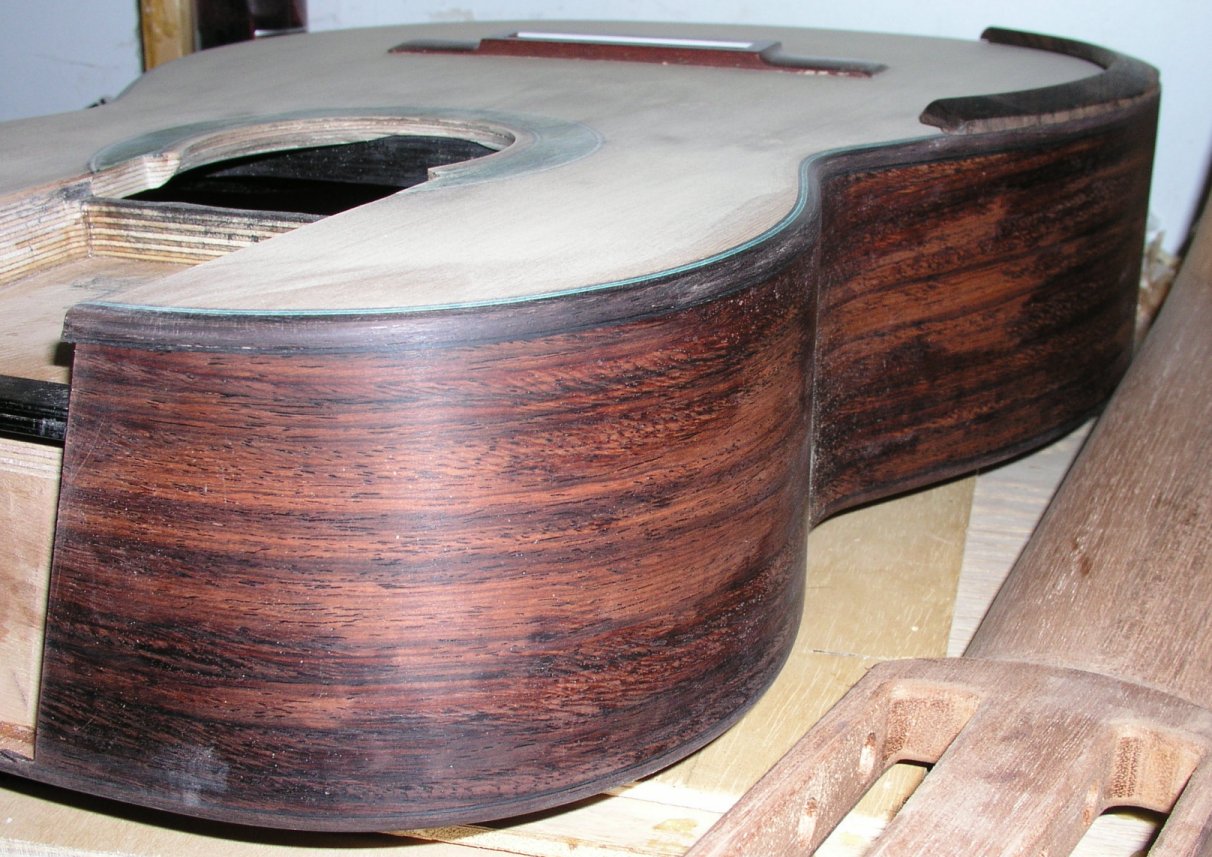

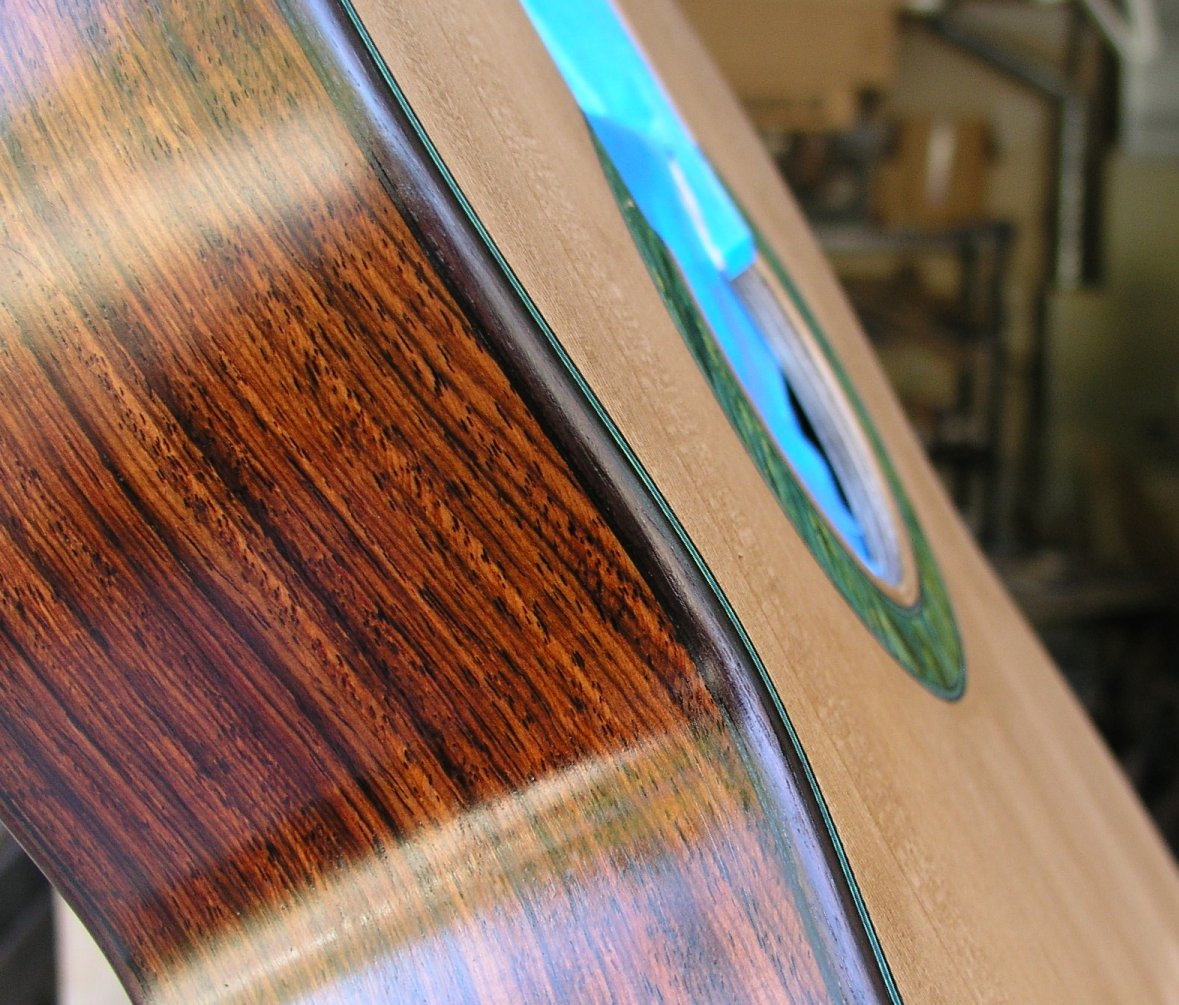

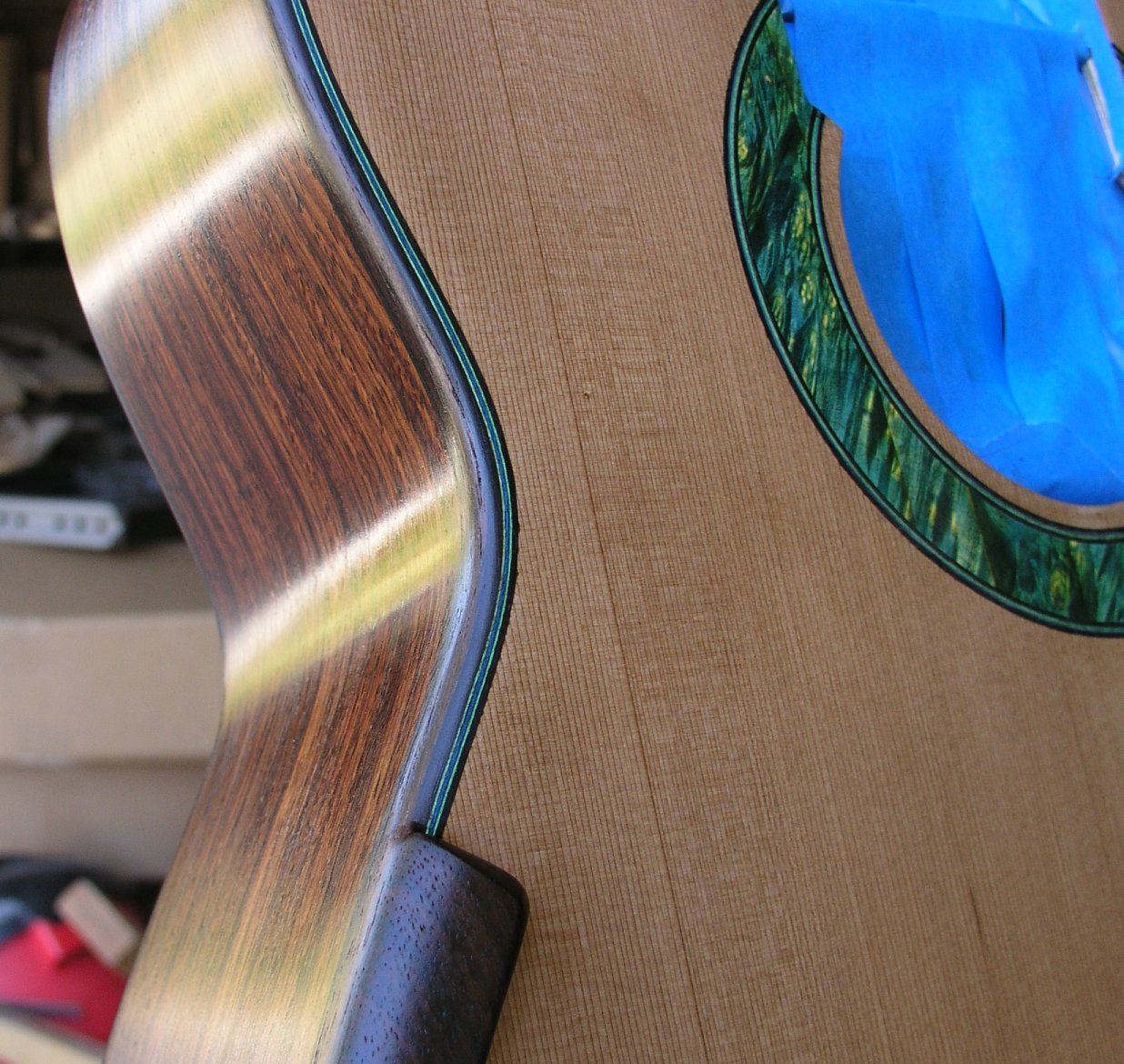

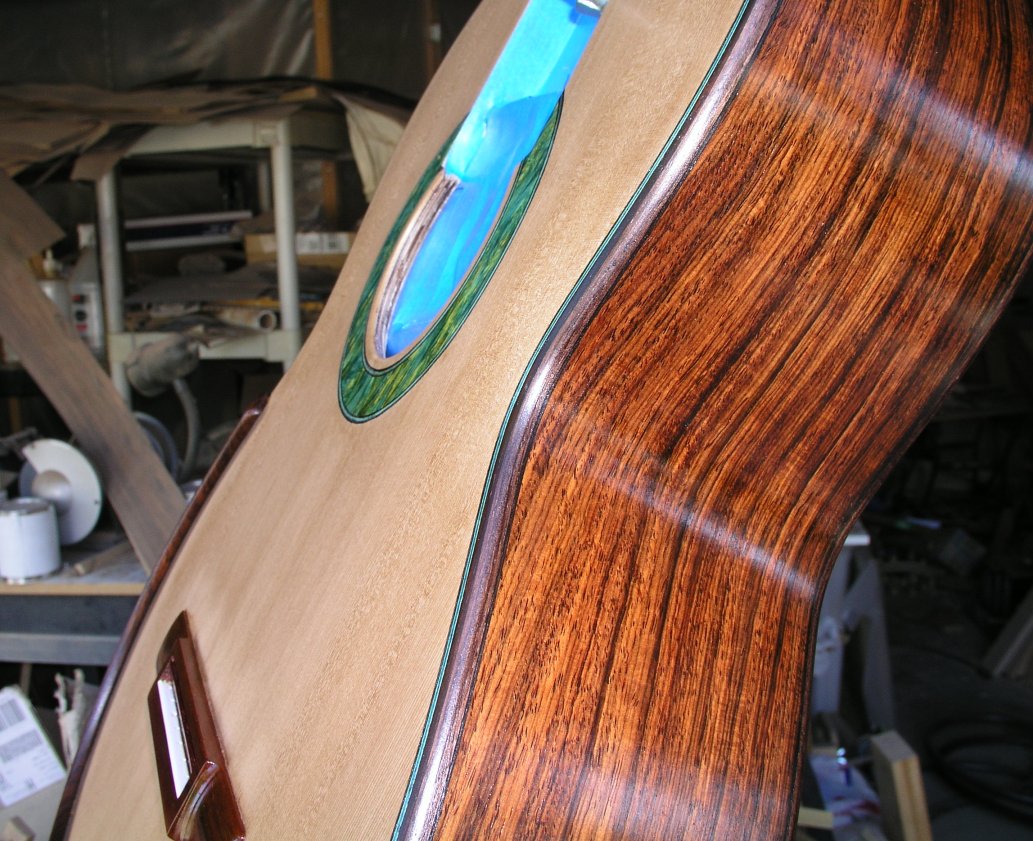

Black side purfling. |
|
|

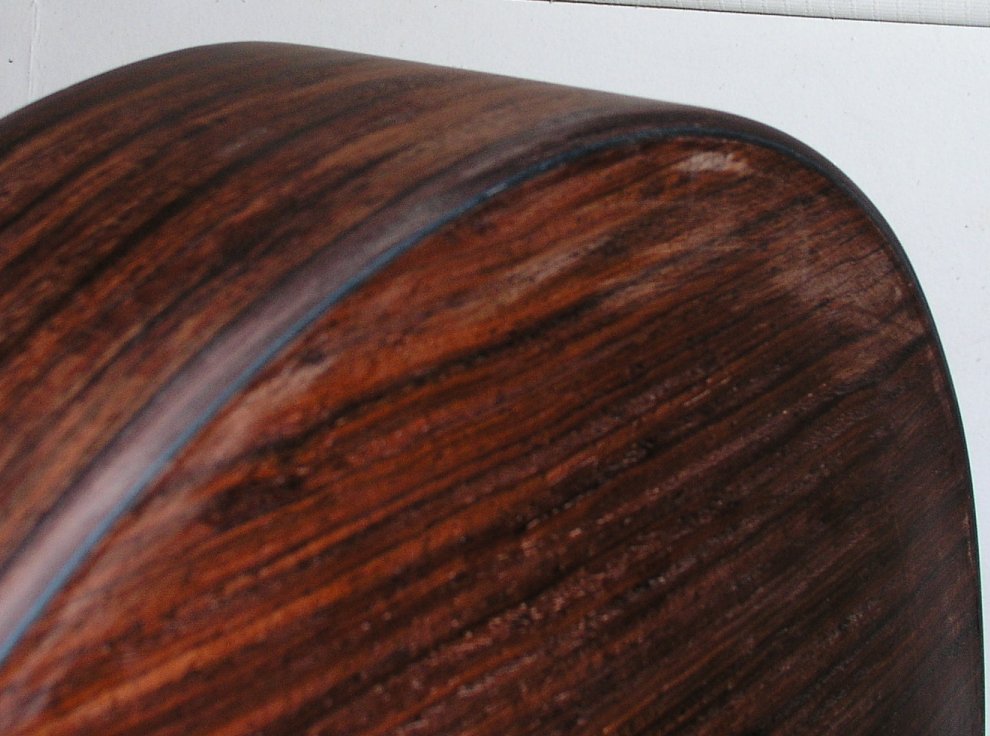

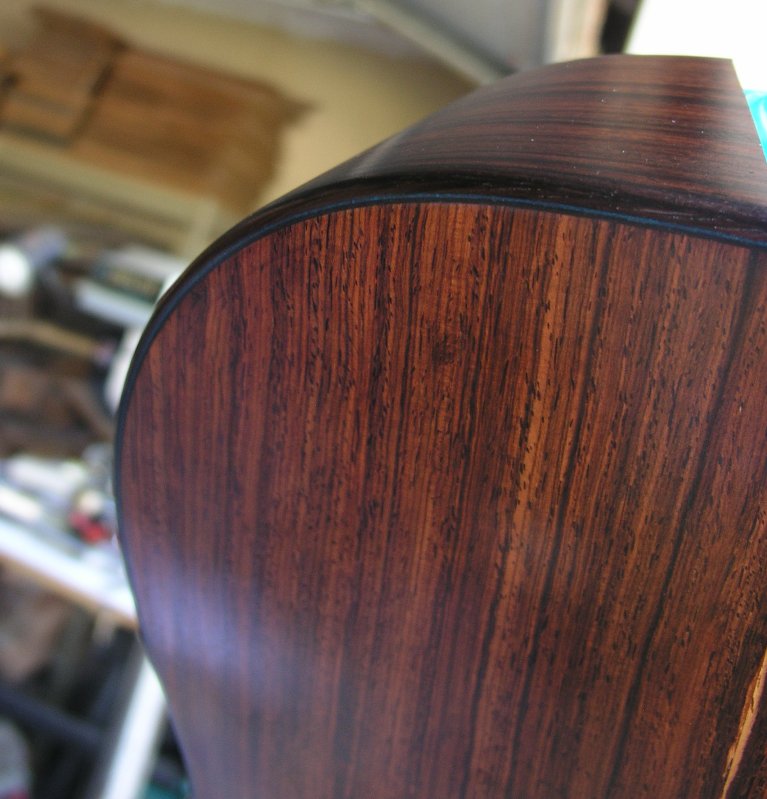

Black and blue back purfling. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

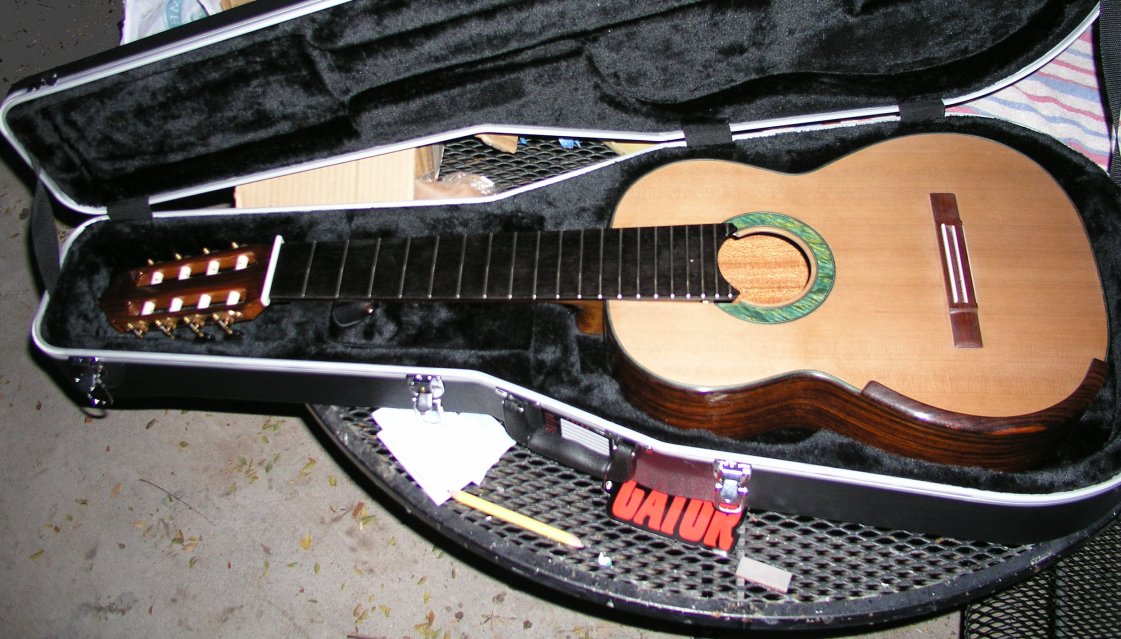

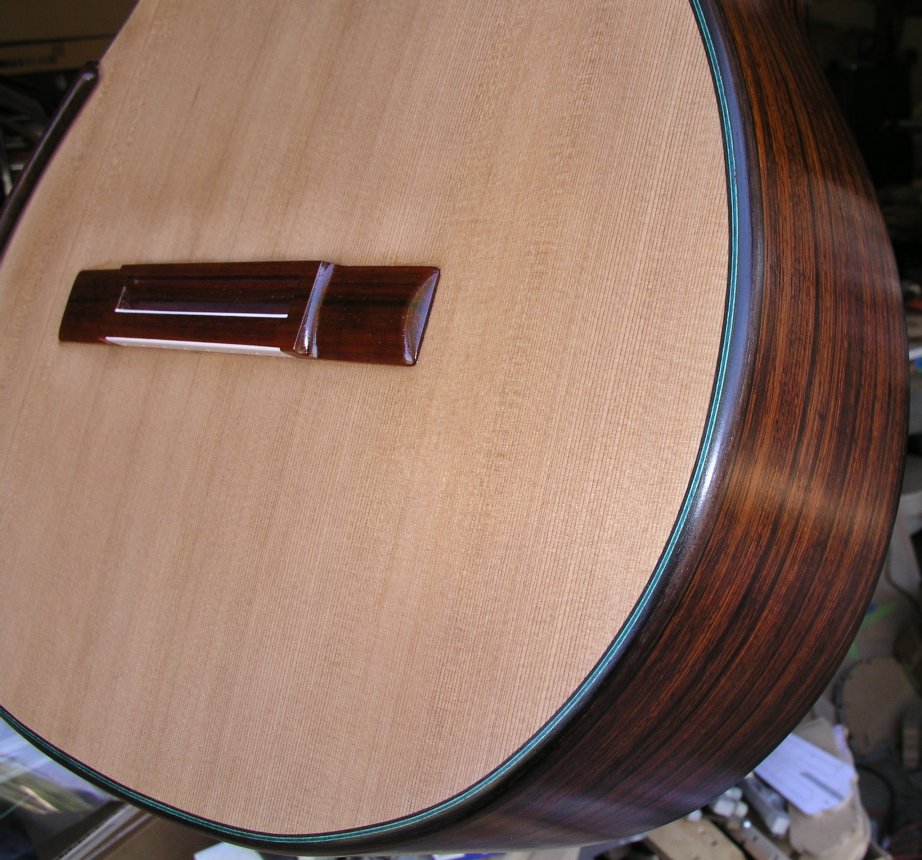

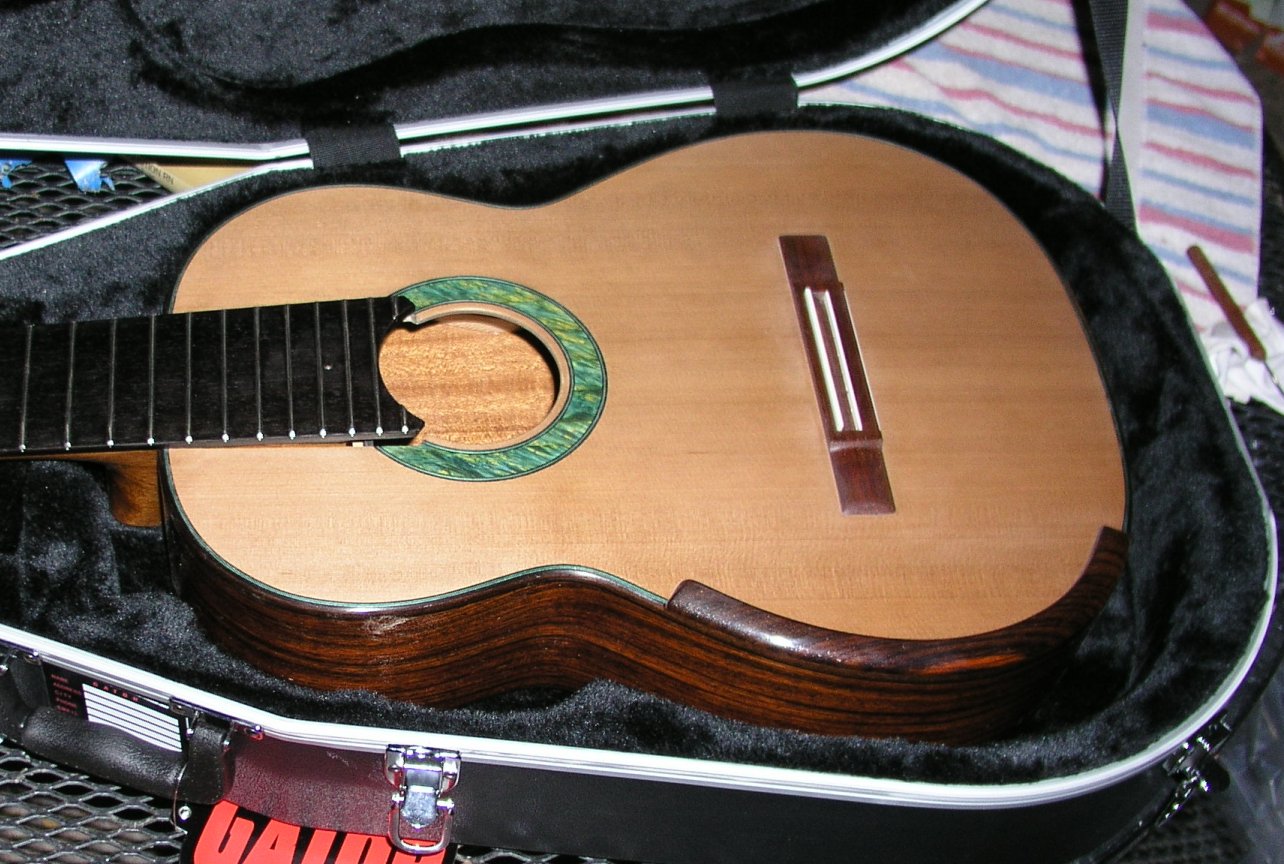

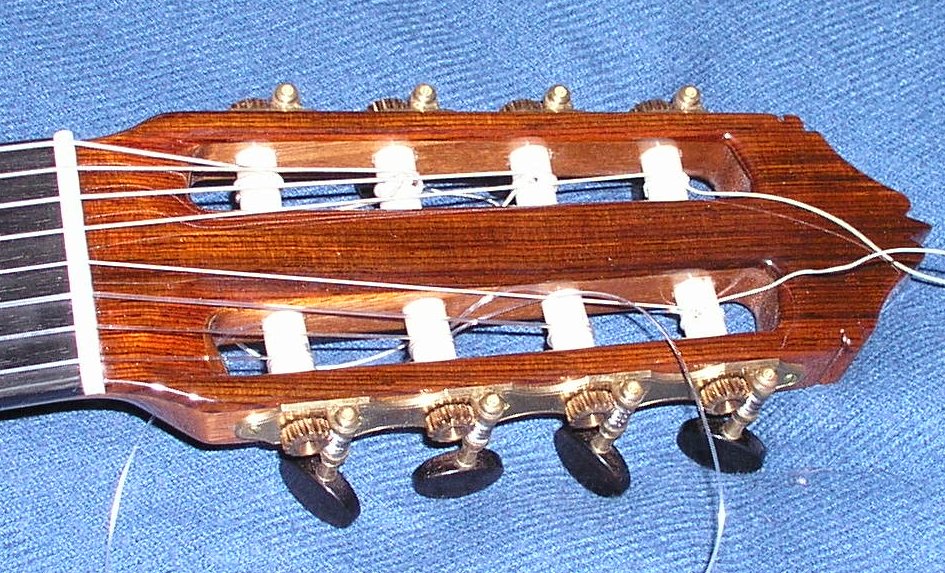

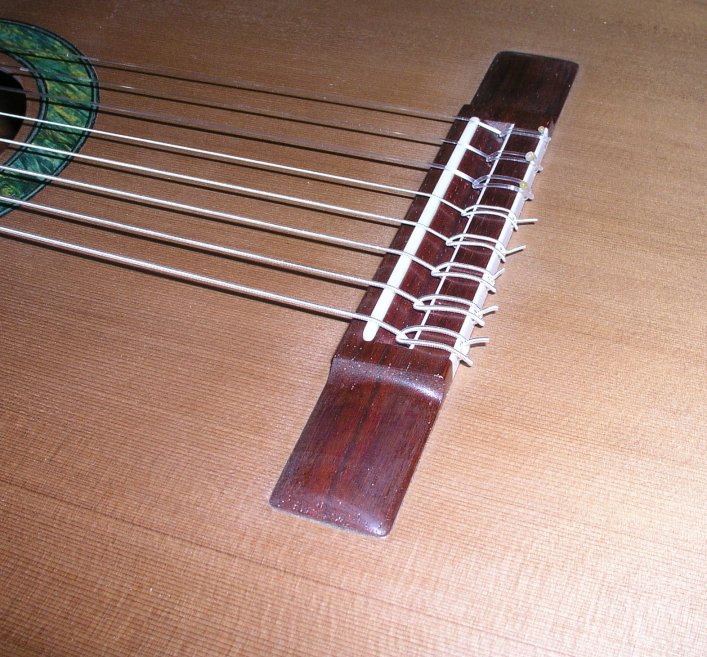

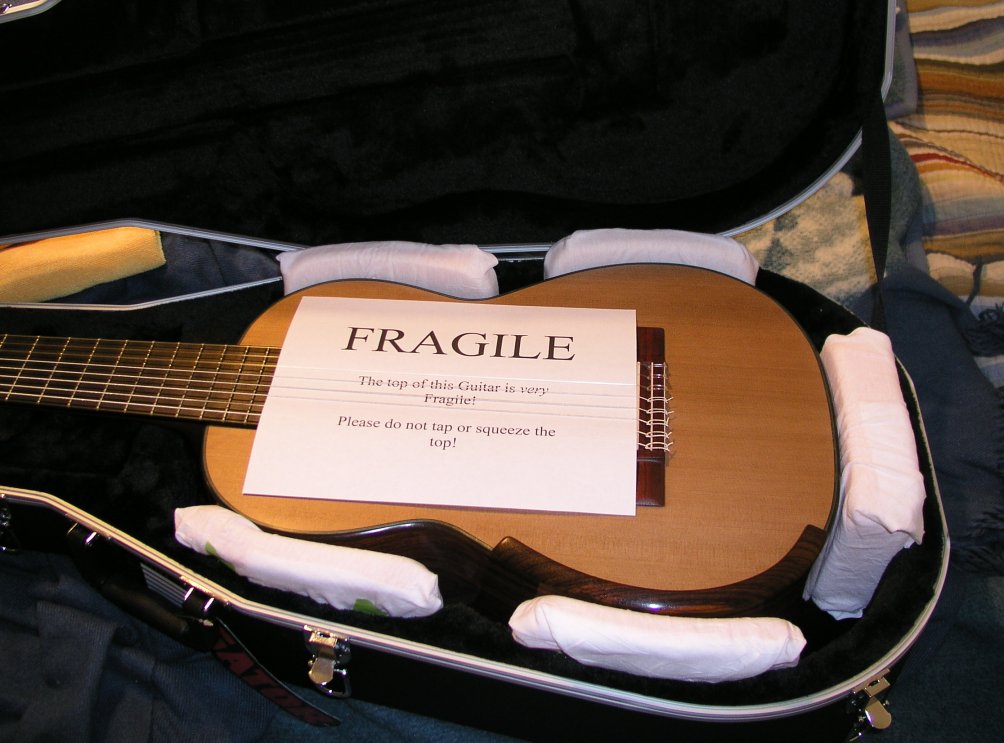

Fitting the nut and saddle. Test fit in 12-string case. |
|
|
Fit is loose around the body. Padding will be cut to fit the gap for a snug fit. |
|
|

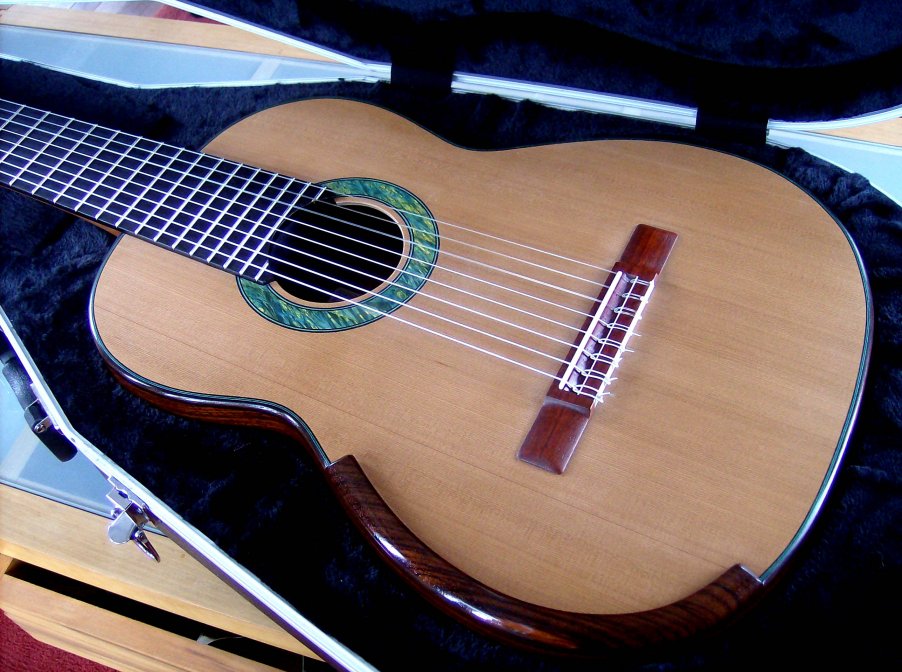

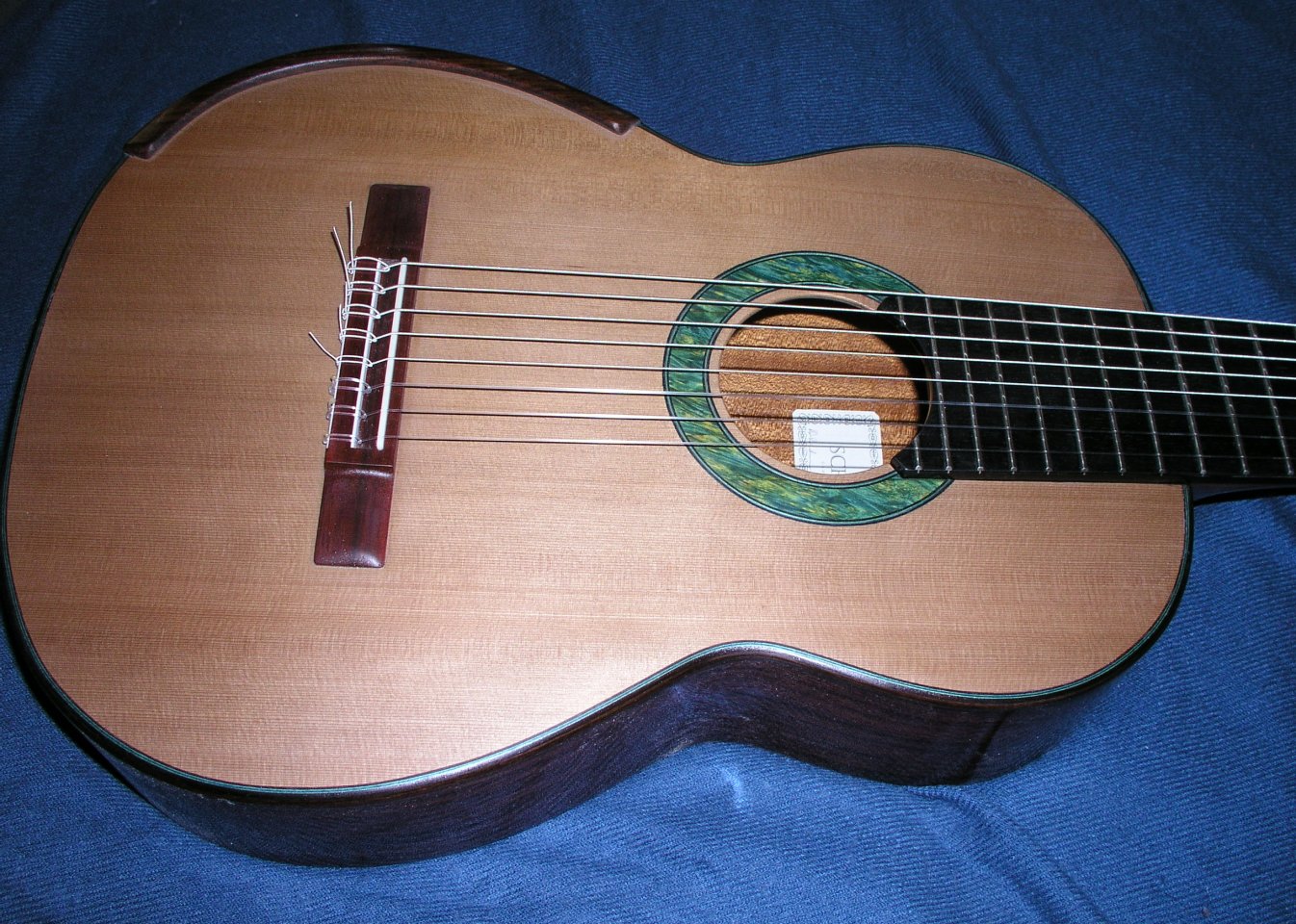

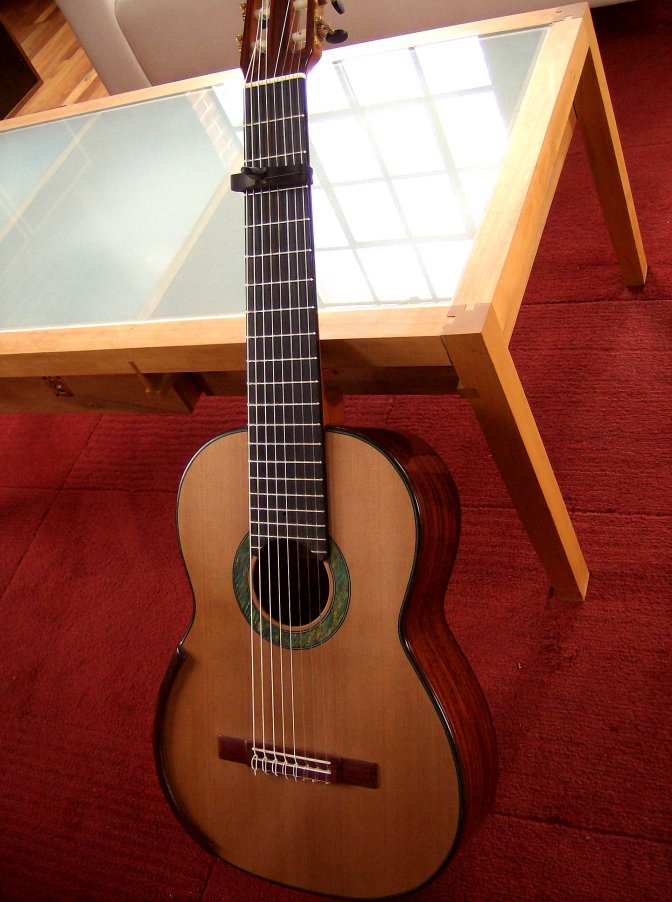

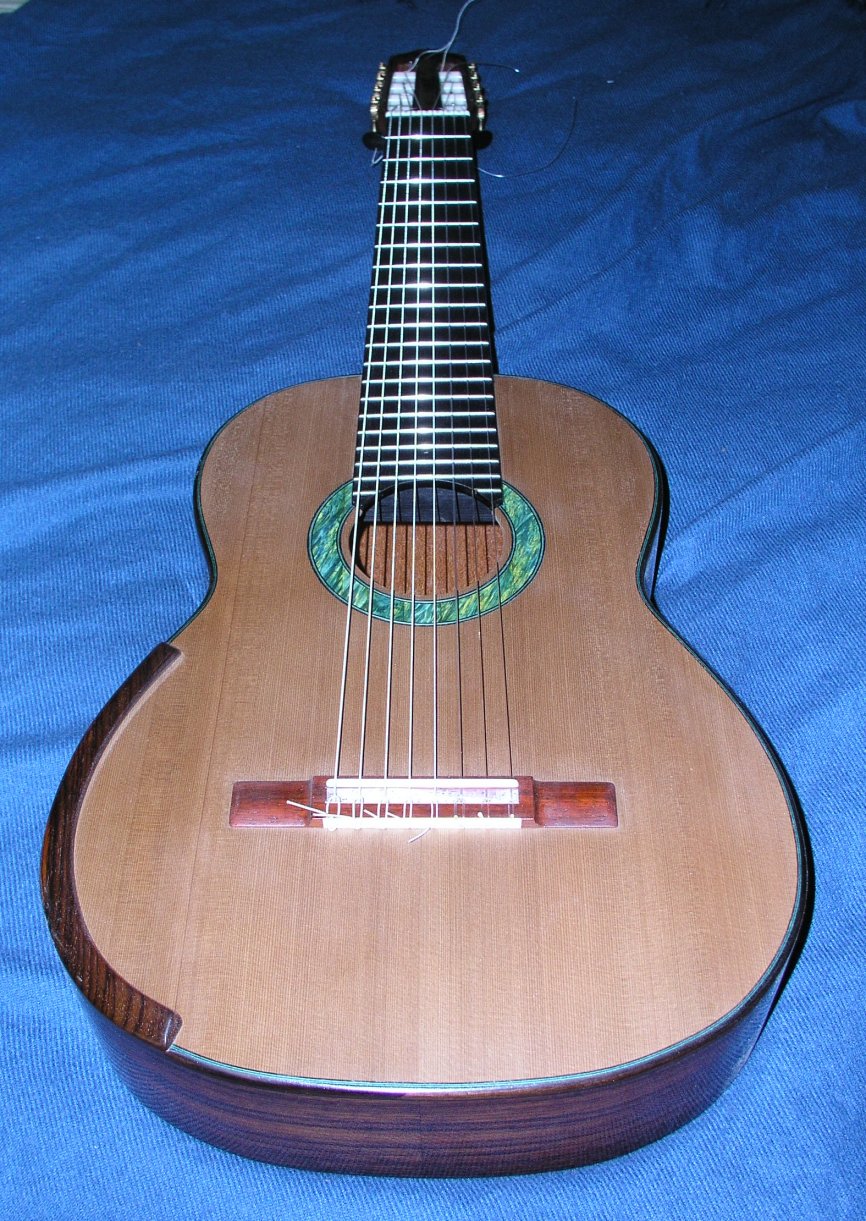

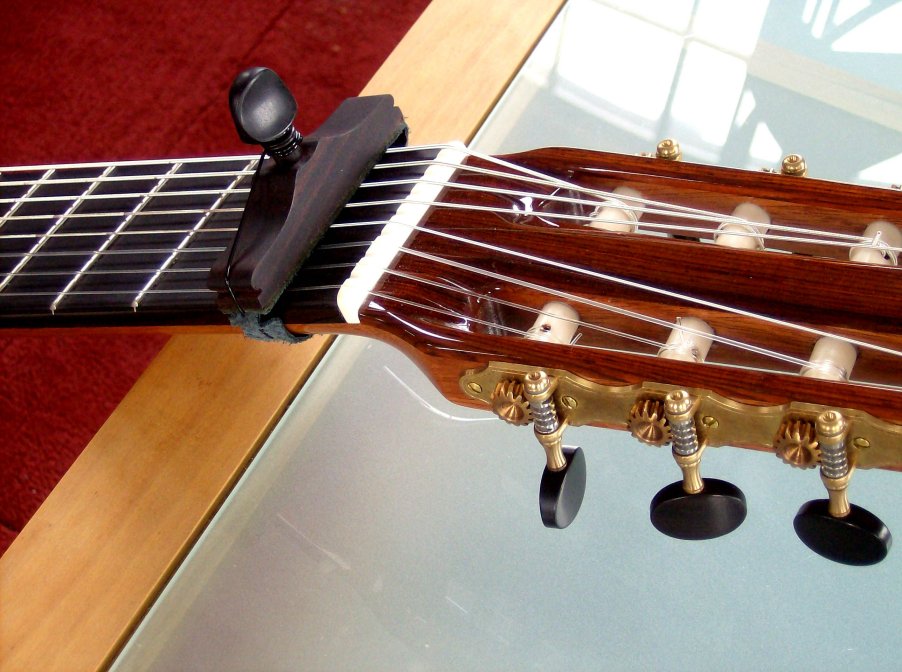

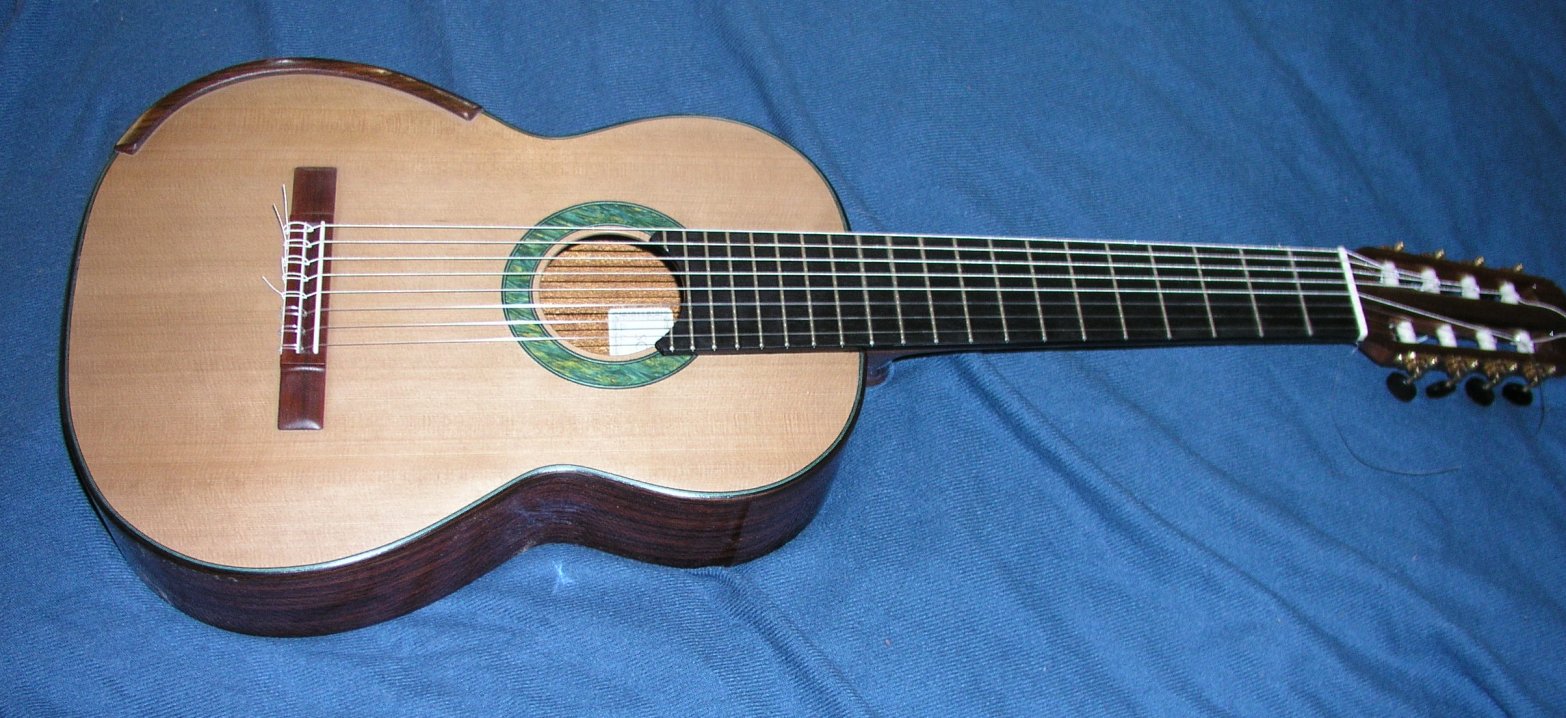

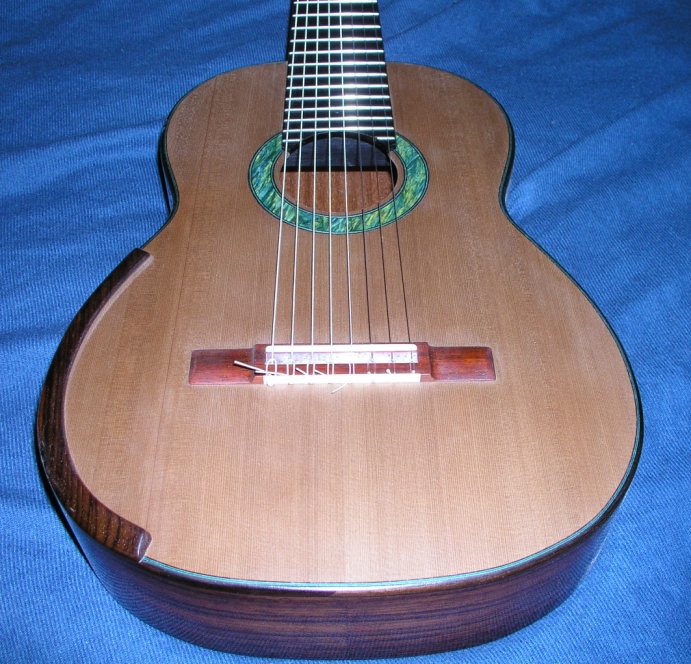

Guitar set-up and complete! |
|
|
7th string = 0.048"/D 8th string= 0.050" A |
|
|

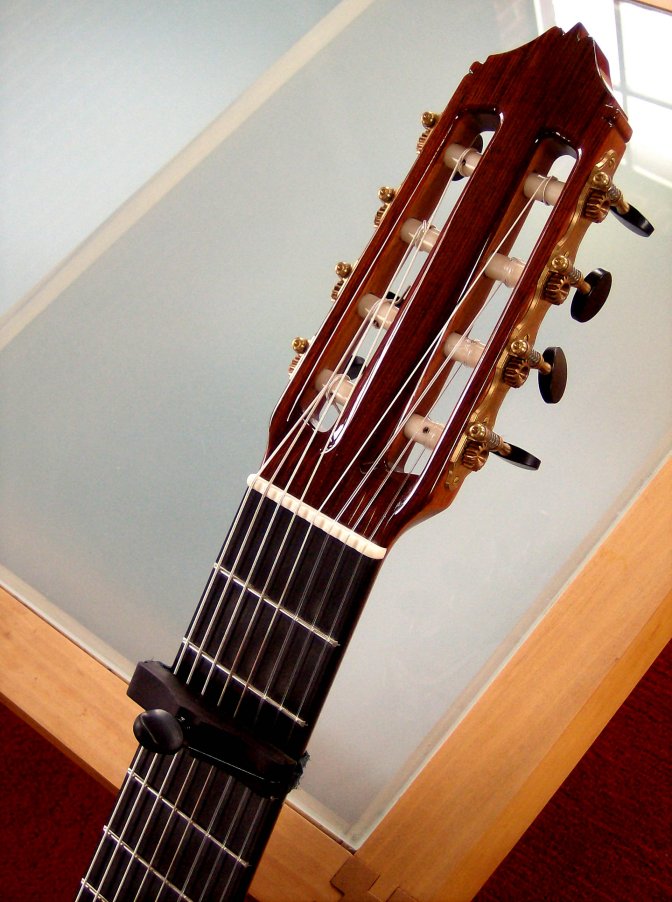

Head |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
