Last Update: 06/15/09

Guitar for Tom Harman

  • Model = Standard Lattice Style with elevated neck
  • Back and Sides = Brazilian Rosewood
  • Soundboard = Cedar
  • Rosette = Luthier choice
  • Neck = Spanish Cedar w/CF reinforcement. Elevated style.
  • Neck Width @ Nut = 54mm with 8.75mm string to string spacing
  • Saddle string spacing = 59mm
  • Neck Width @ 12th fret = 63.5mm
  • Fingerboard = Ebony
  • Fingerboard Dots = MOP dot at VII fret
  • Frets = Jumbo
  • Scale = 650mm
  • Bridge = Padauk
  • Tuning Machines = Gotoh Classical Premiums. White rollers and knobs.
  • Finish = French Polish
  • Options = Tail purfling
  • Case = Humicase Metro White

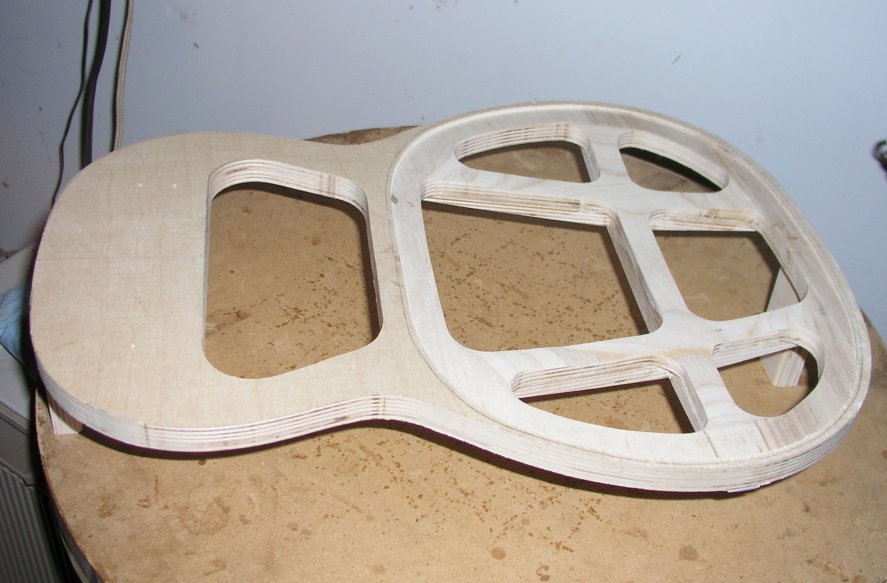

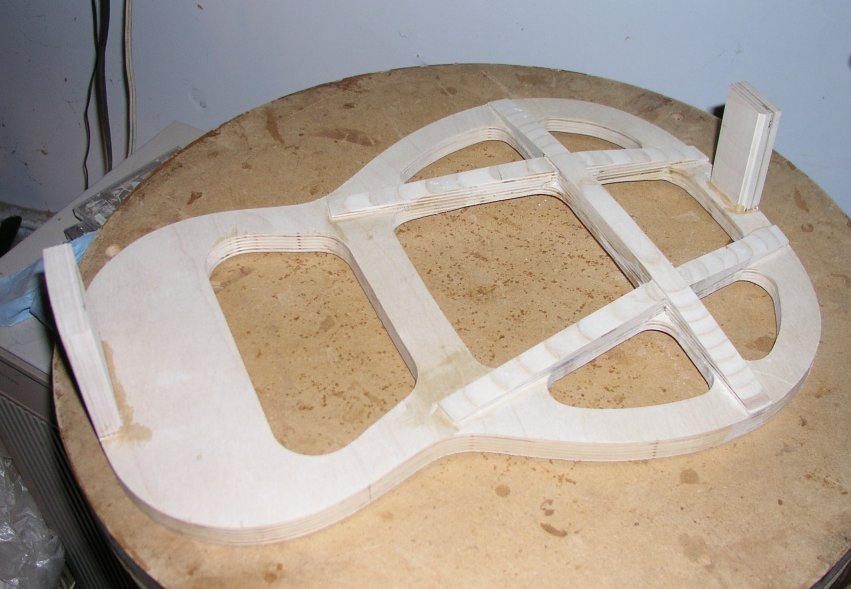

    		Lattice guitar "chassis" top view.

    		Lattice guitar "chassis" bottom view.

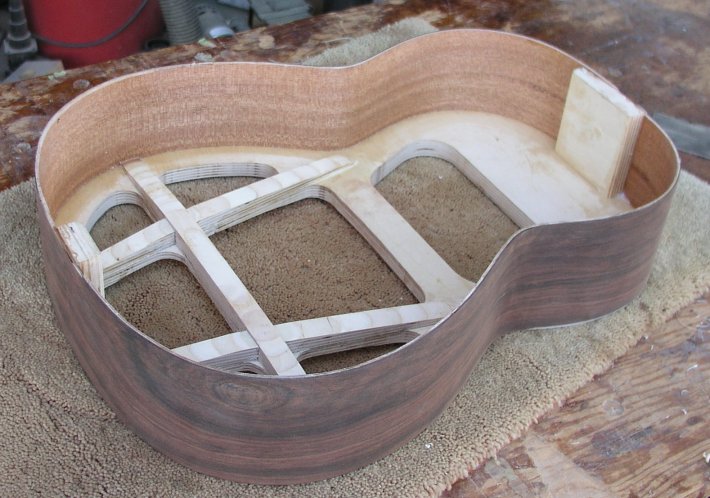

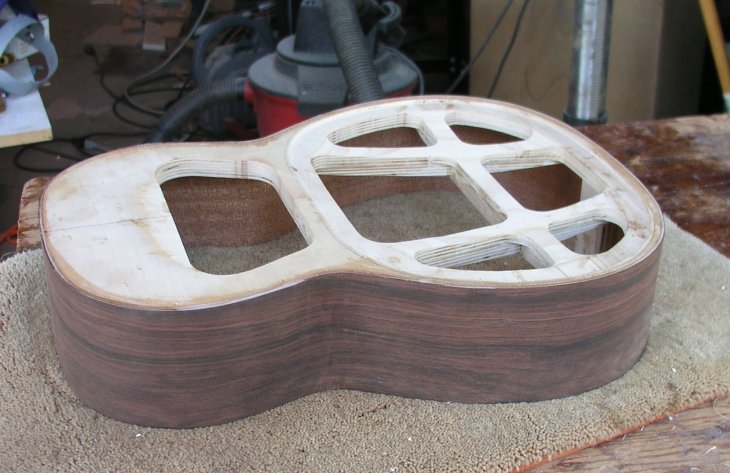

    		Sides attached to Chassis top view.

    		Sides attached to Chassis bottom view.

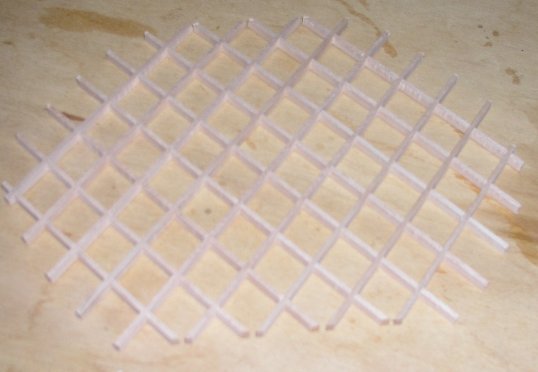

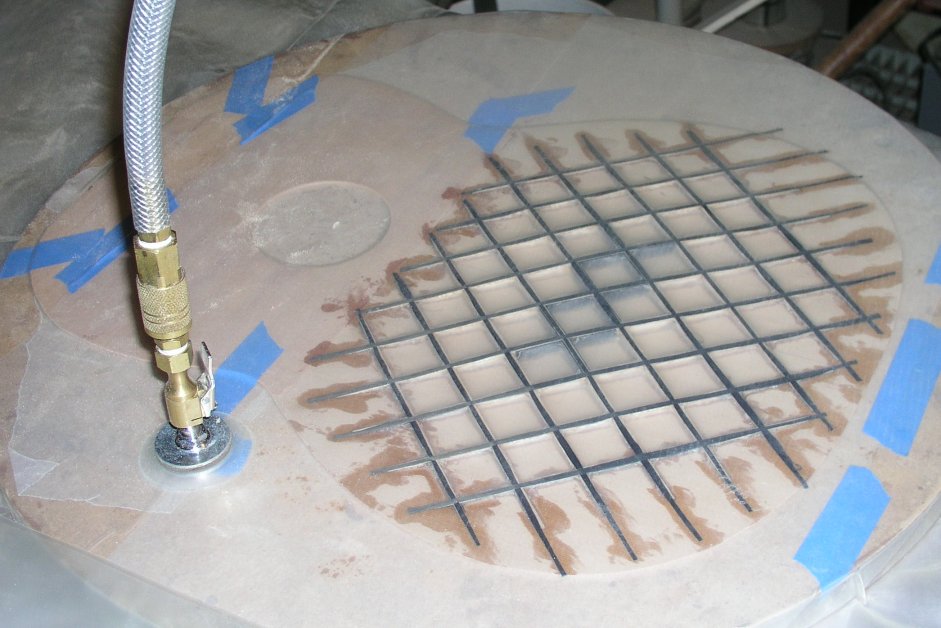

    		Lattice bracing ready for carbon fiber.

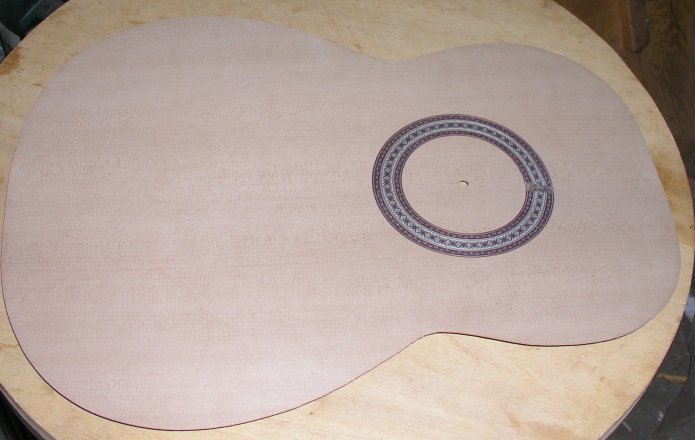

    		Soundboard thinned to 1.2mm ready for lattice and upper bout reinforcement veneer.

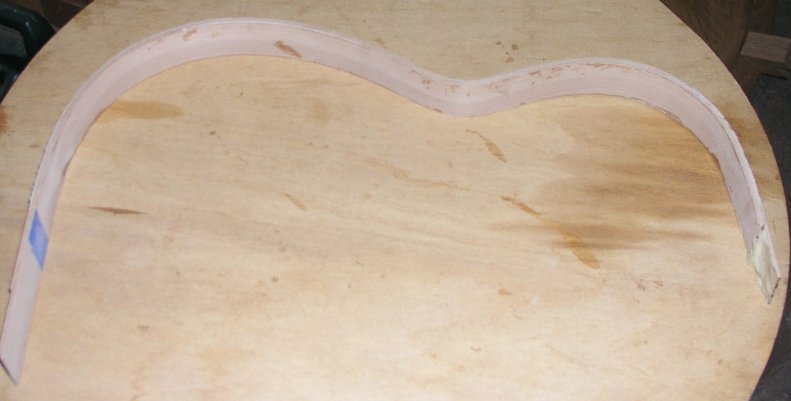

    		Back linings ready to be radiused and cut.

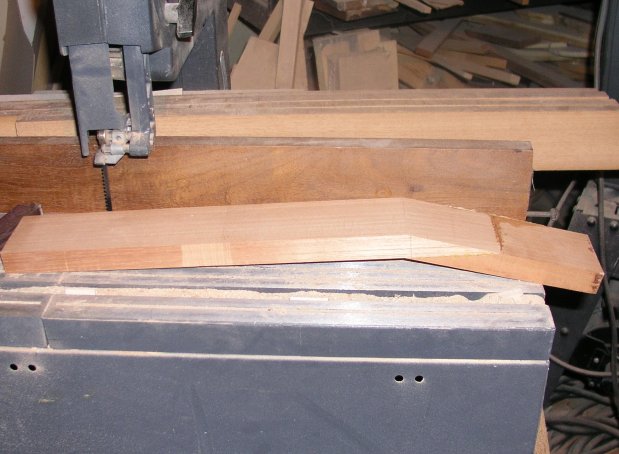

    		Spanish cedar neck.

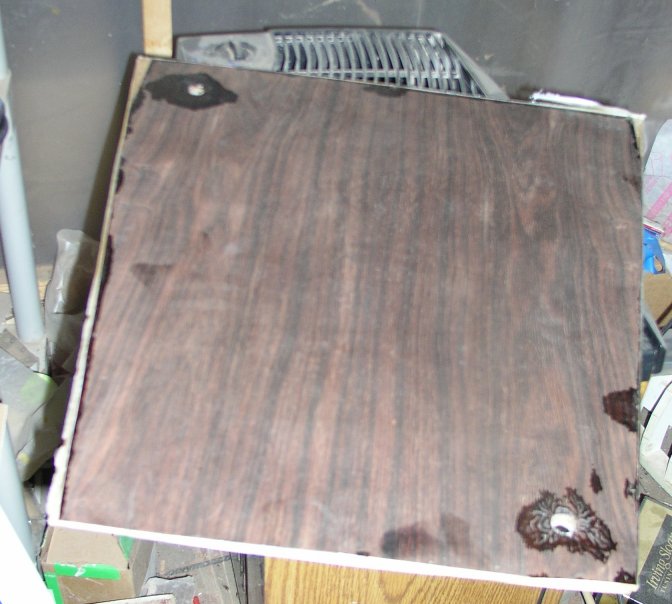

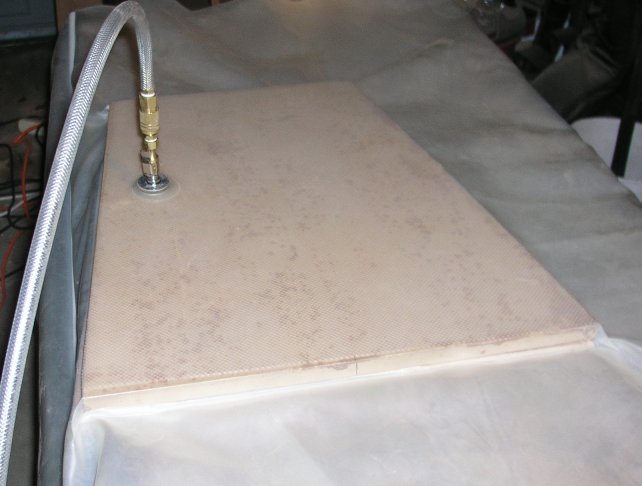

    		Back inner and outer face veneers being laminated in vacuum press.

    		Fitting the top.

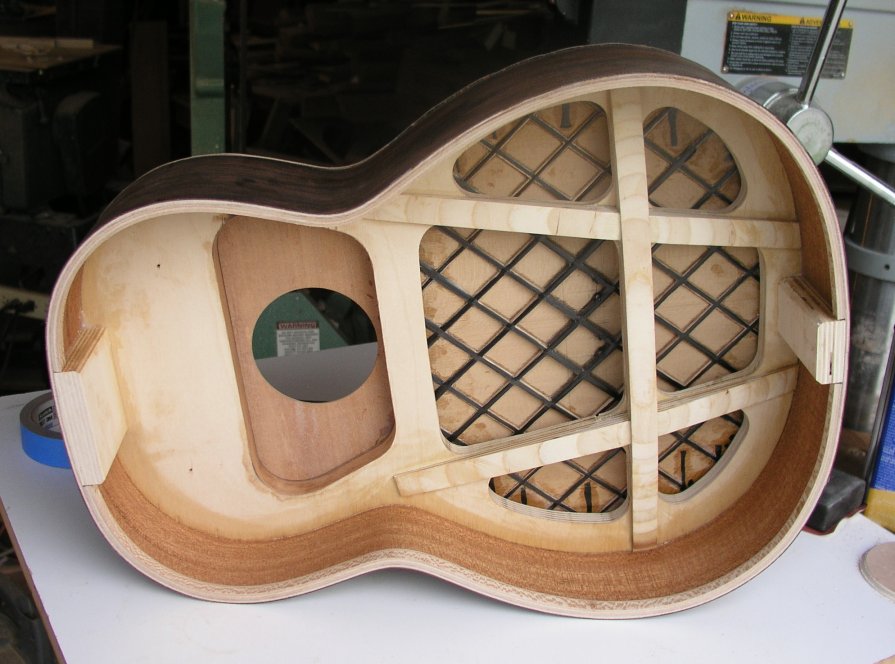

    		Inside the box.

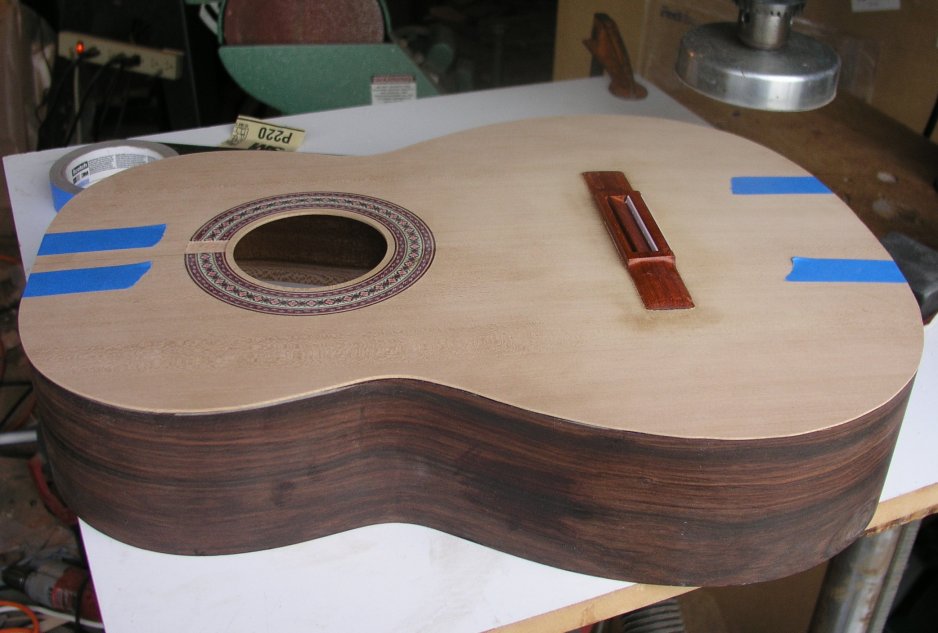

    		Back and top glued on. Ready for purfling.

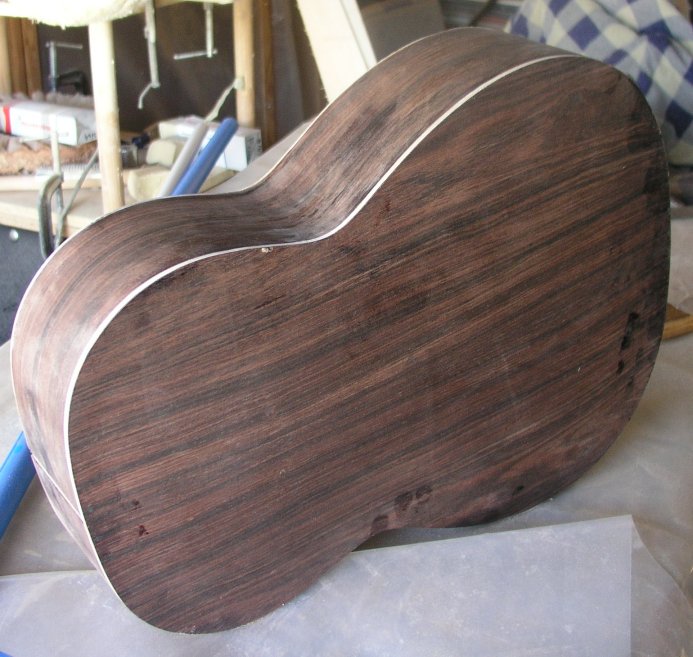

    		Back view.

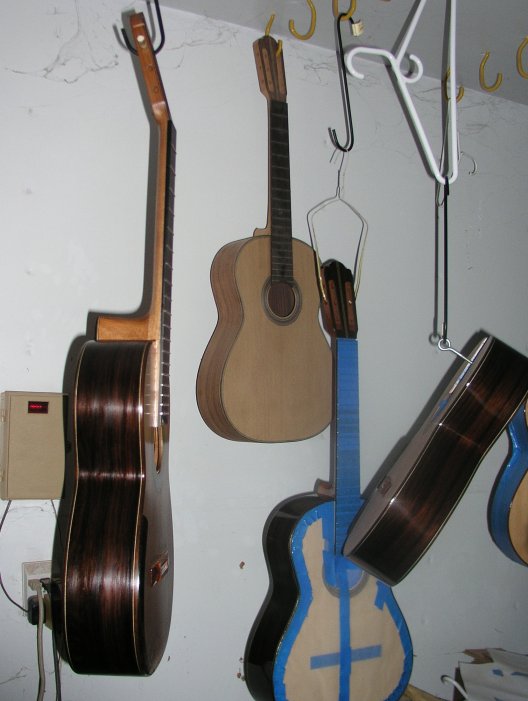

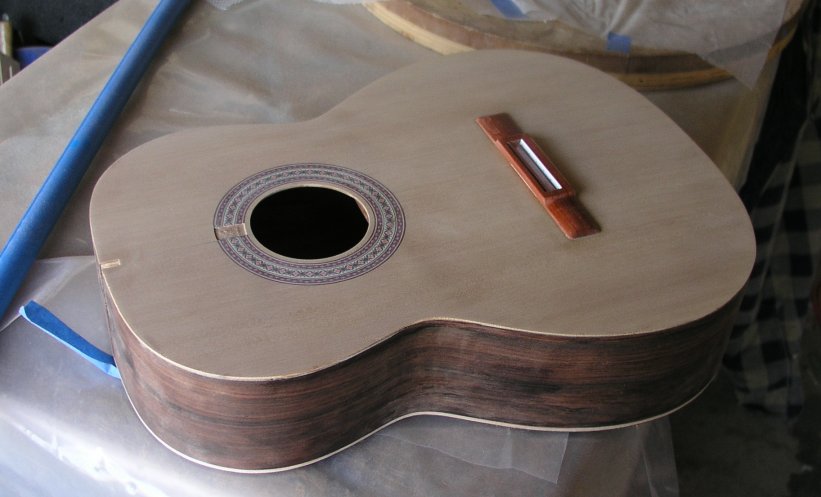

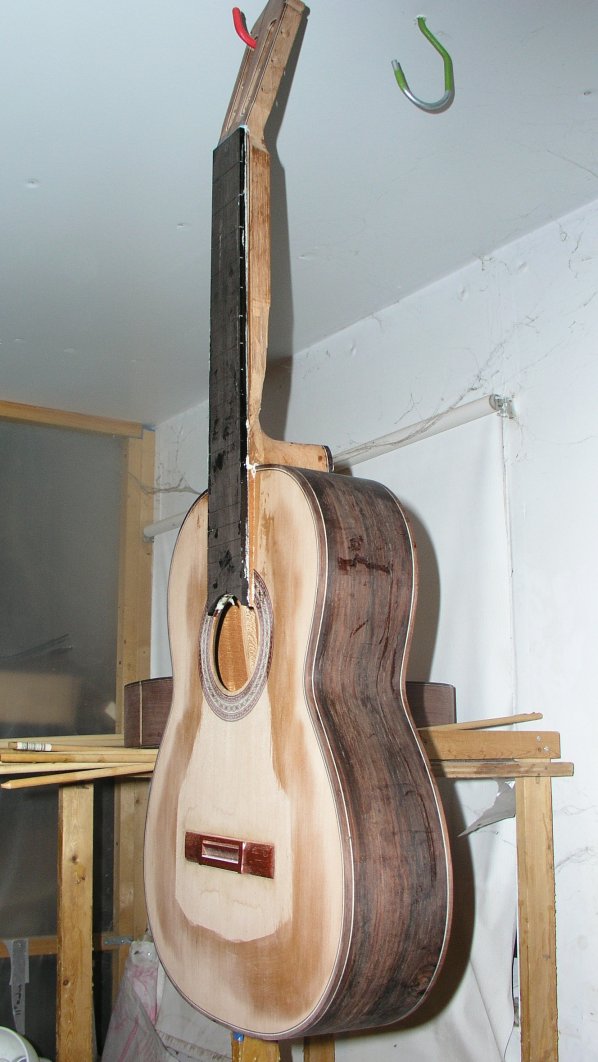

    		Finishing stage.

    		Lacquer soundboard with French polish back and sides. Two light coats of lacquer are used on the top since the French polish process could crack the soundboard.

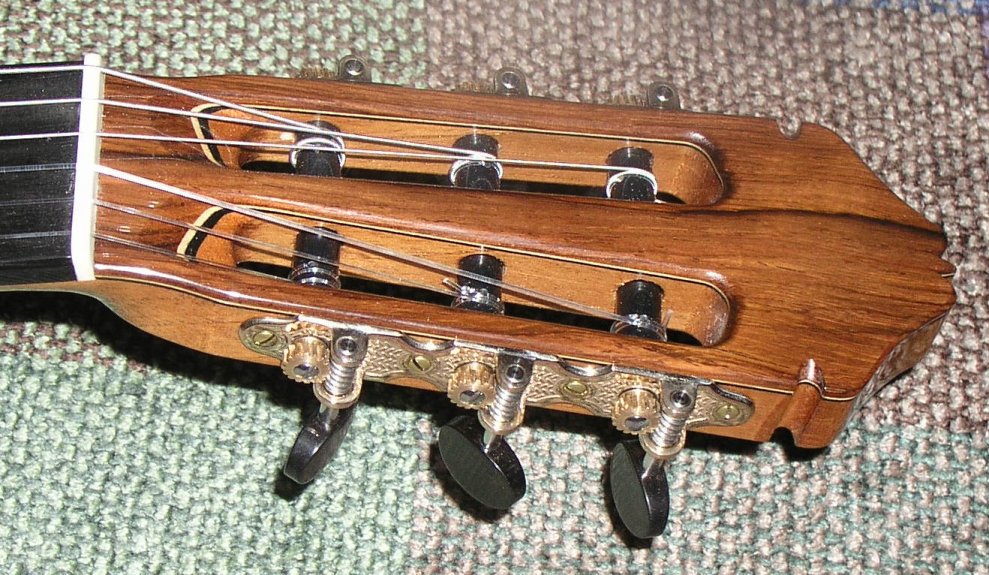

    		Finished view of head.

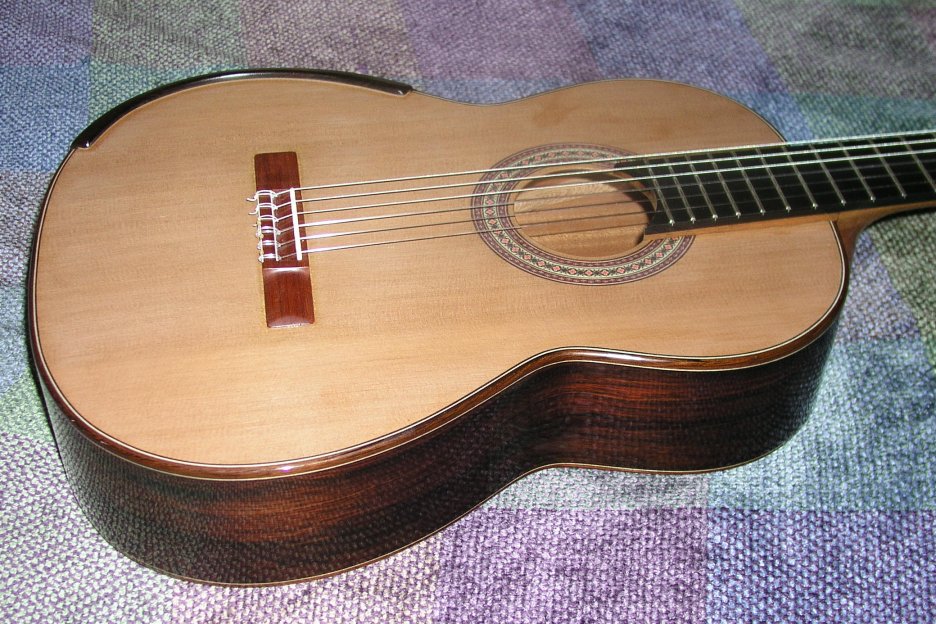

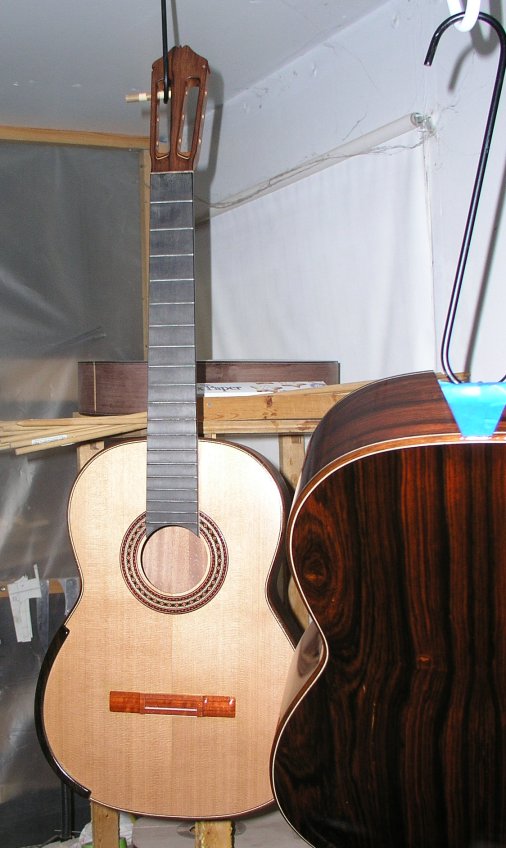

    		Finished view of soundboard.

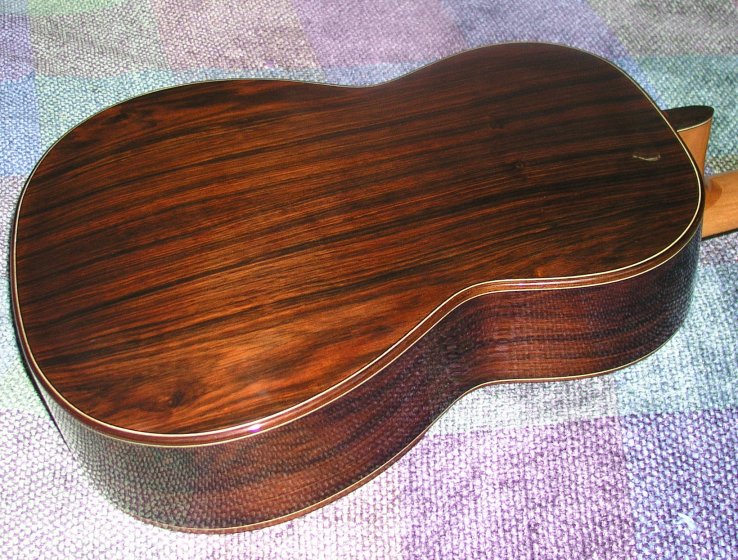

    		Finished view of back.

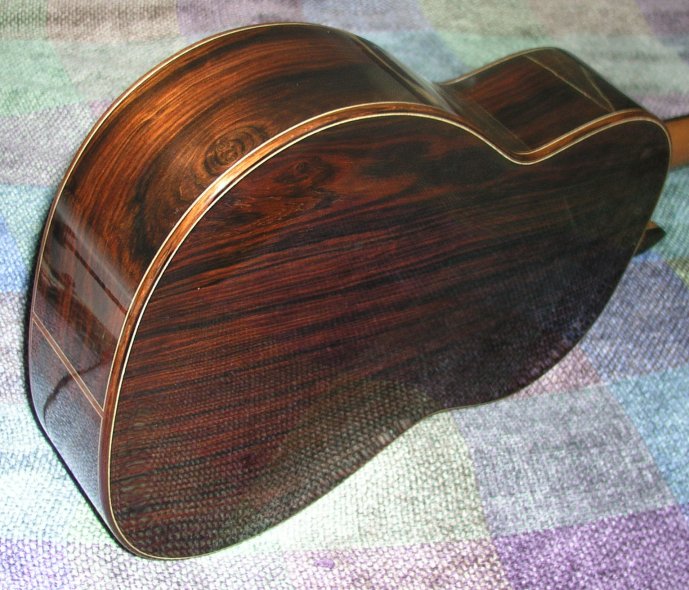

    		Back and sides.
