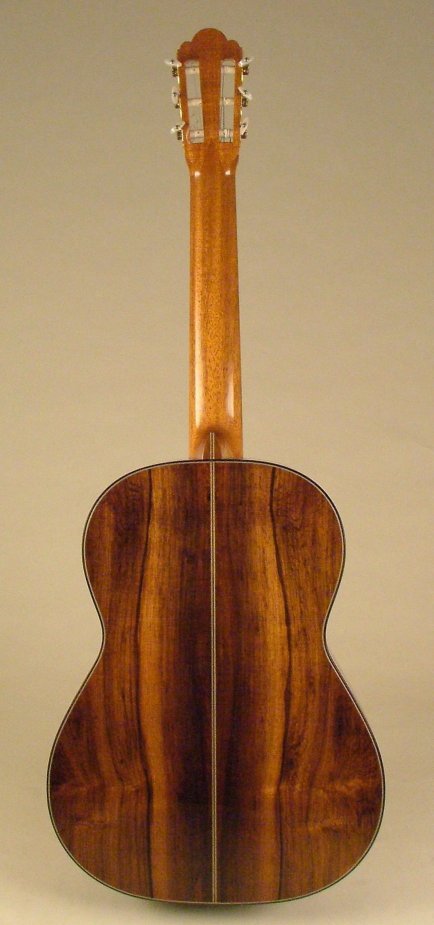

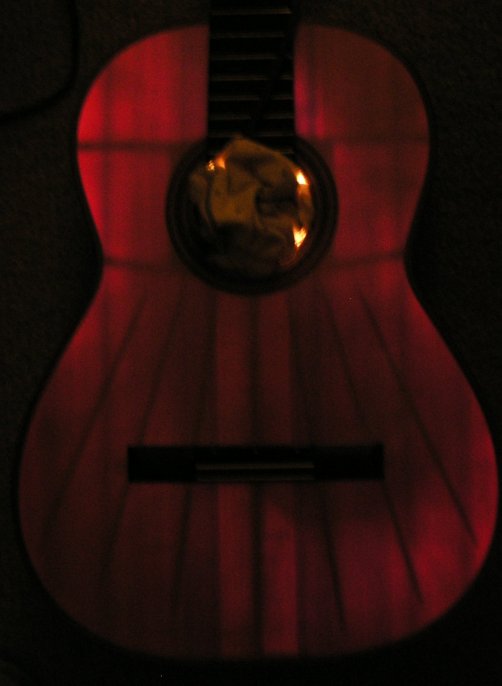

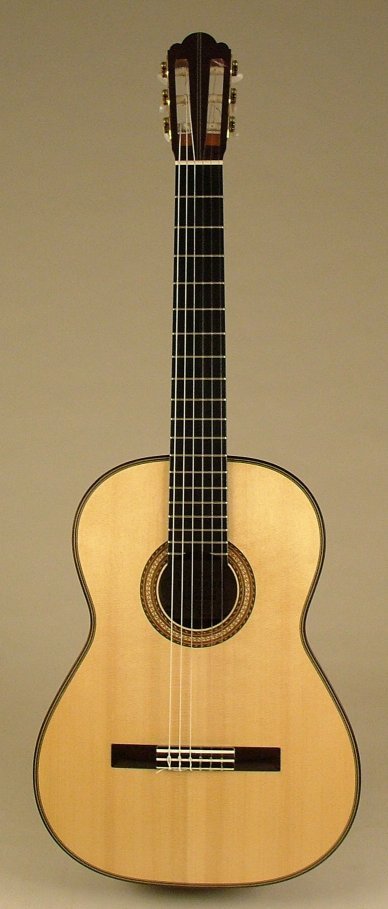

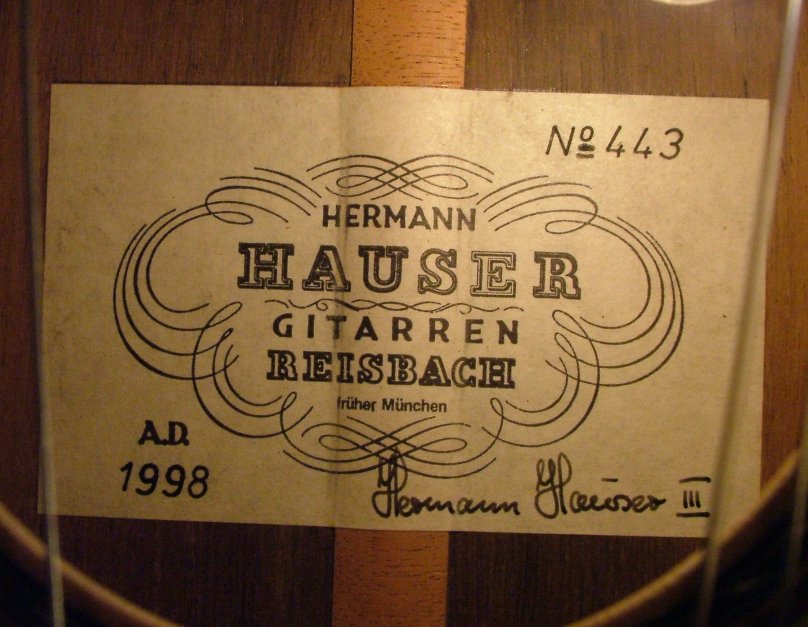

1998 Hermann Hauser "Segovia" model |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

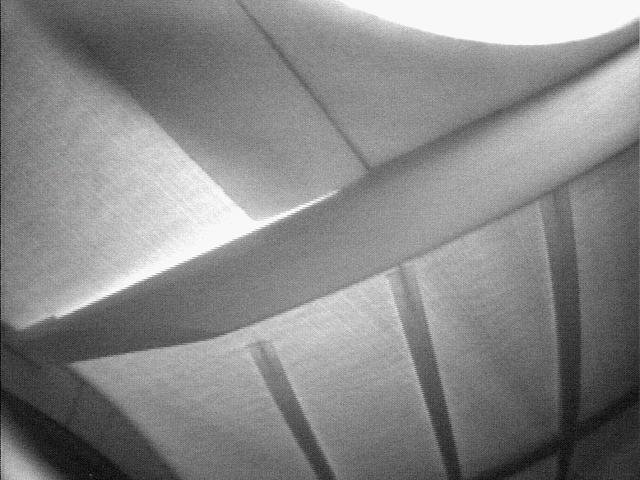

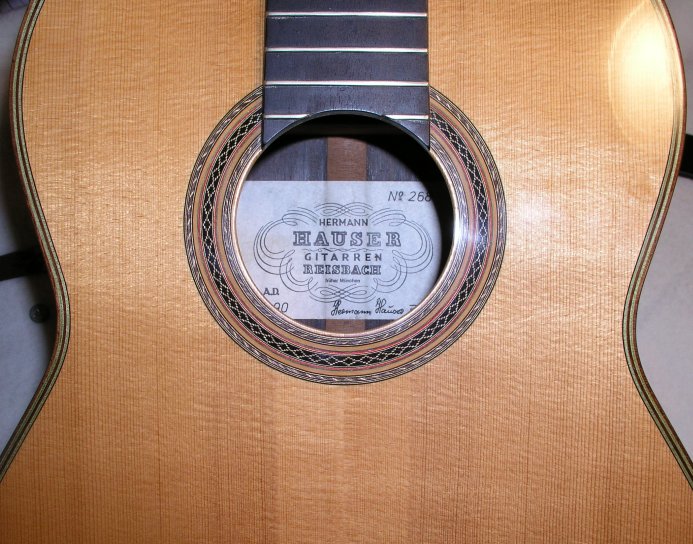

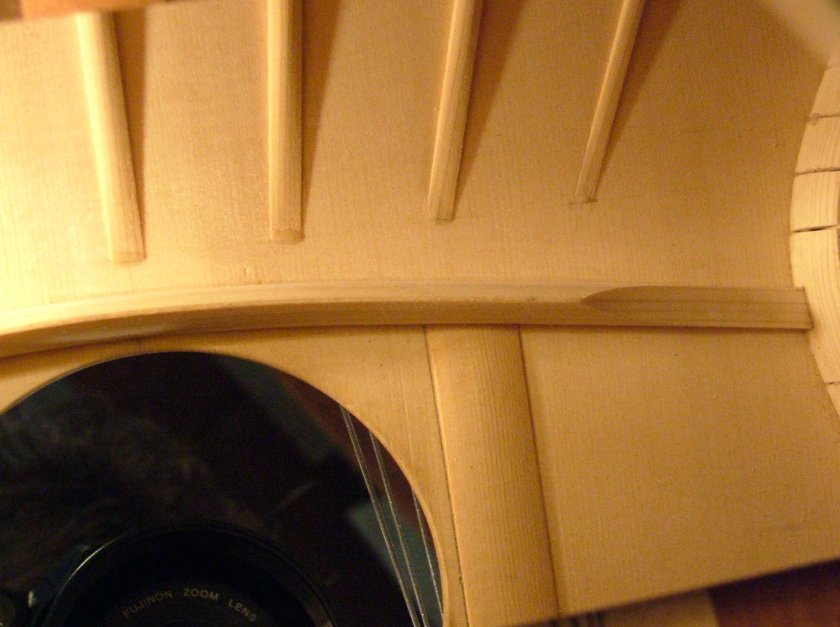

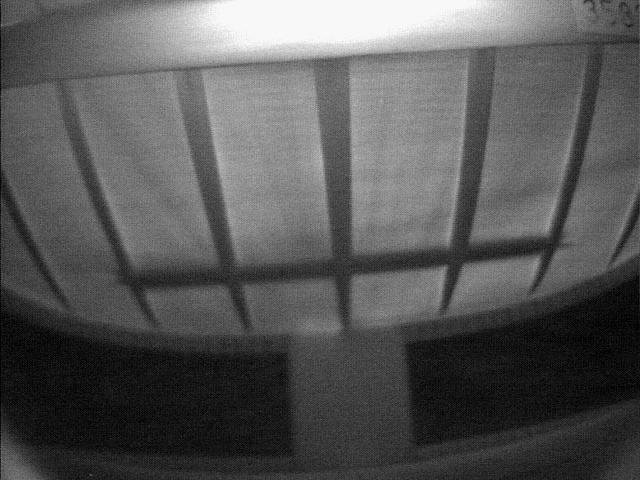

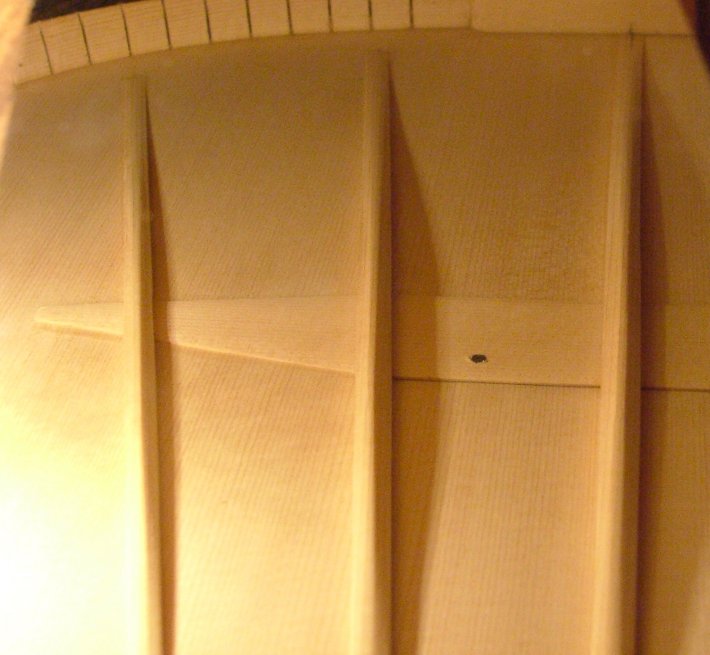

1990 Hermann Hauser "Segovia" model. The lower transverse bar has a 0.016" gap as part of its design. |
|
|
|
|
|

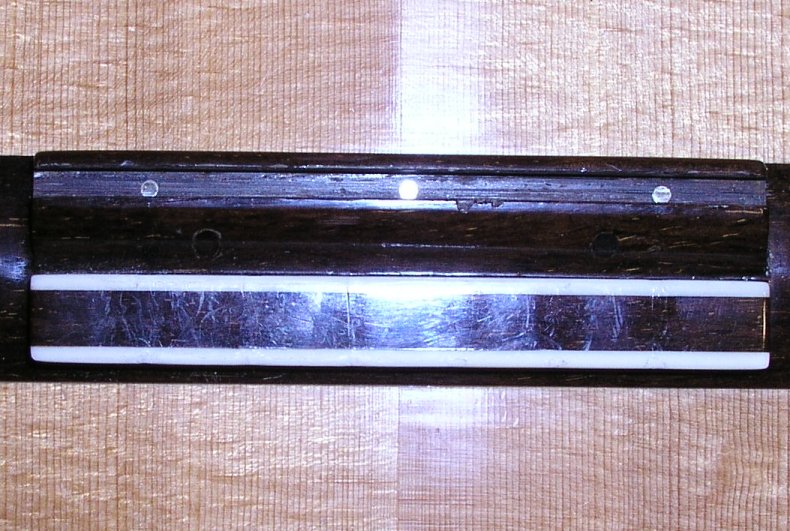

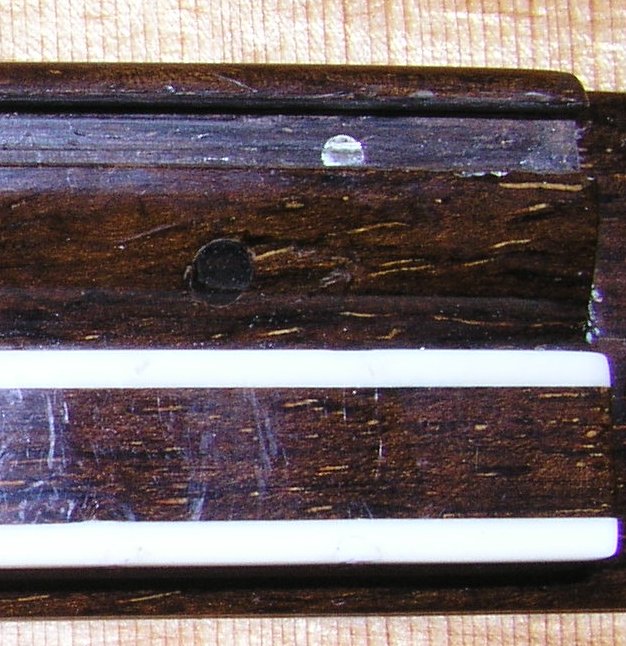

Here is an interesting feature. There are three metal pins in the saddle slot. I do not know if they go all the way through. This is a feature of Hauser II guitars. I haven't found any in the Hauser Sr. guitars. |
|
|

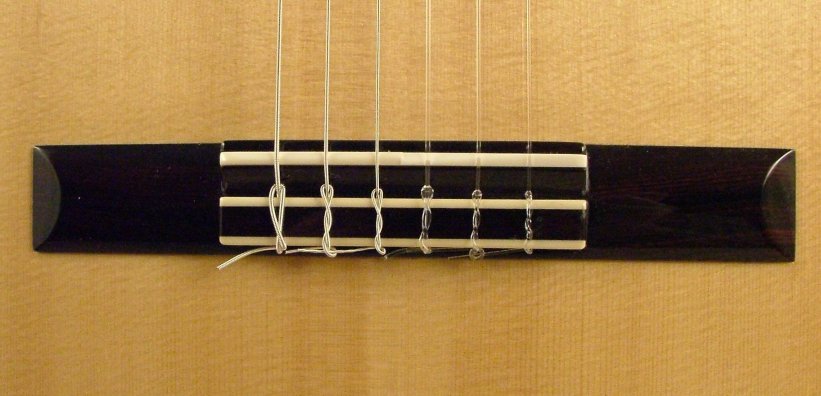

Here you can see the typical 3mm wooden locating pin between the saddle and the tie block. |
|
|
|
|
|
Look carefully in the nut slot and you will see the glue line for the upper part of the "V" joint. |
|
|

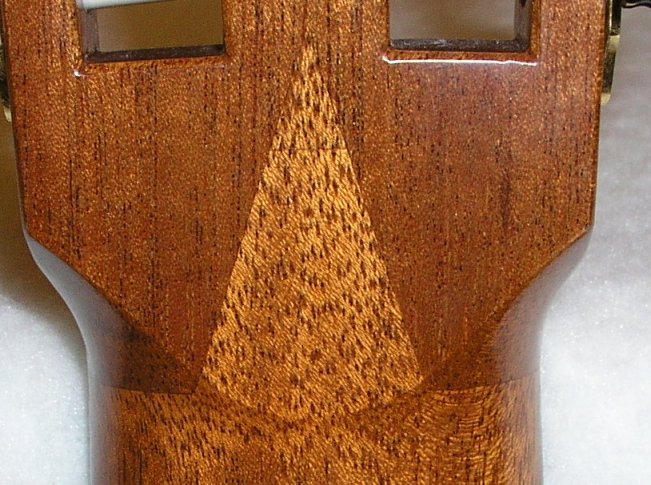

The tip of the "V" joint male end has the typical splice. See if you can find the glue line. |
|
|

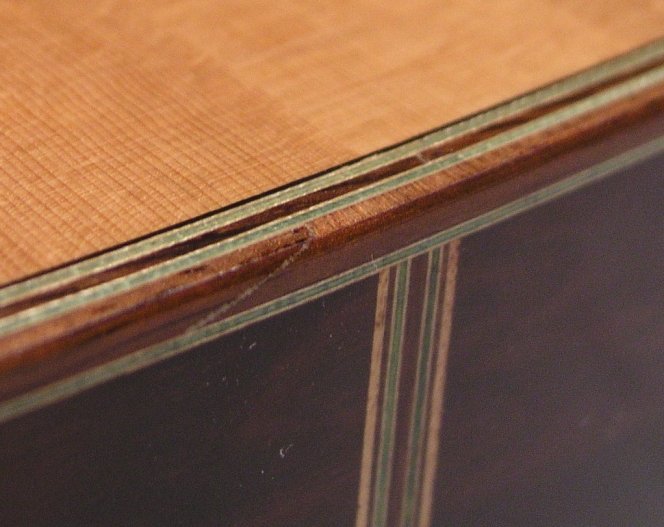

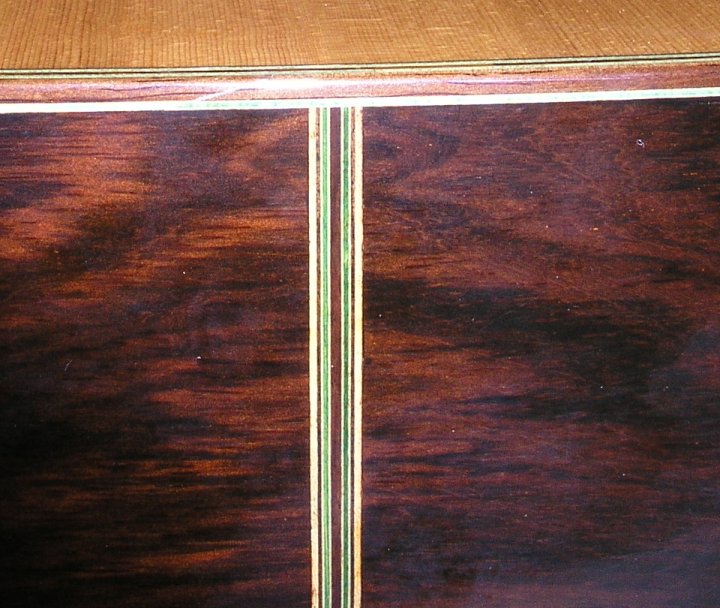

Interesting top binding joinery |
|
|
|
|
|

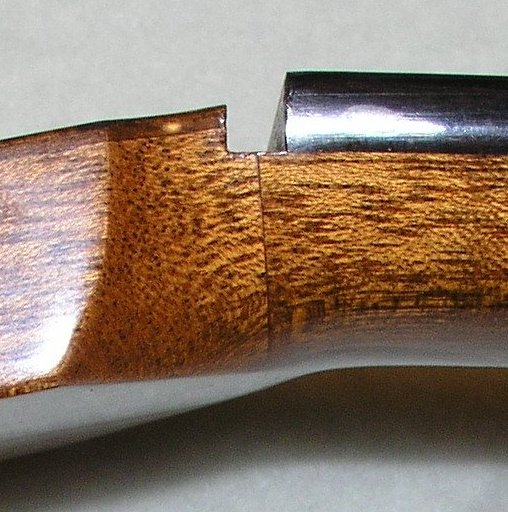

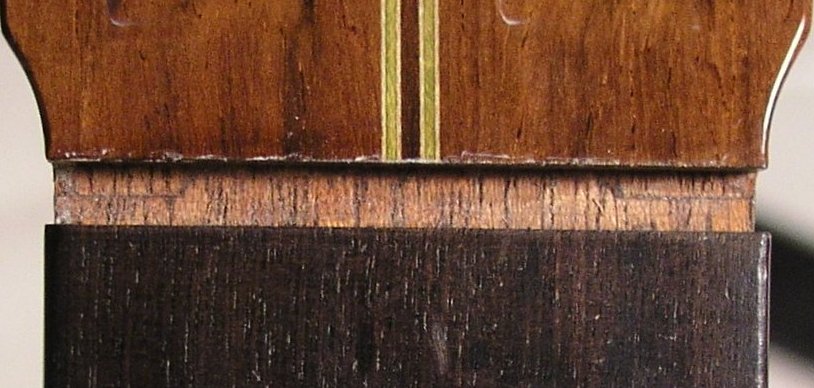

The head joint usually meets in the middle of the nut slot. Notice how the head sits about 2-3mm above the neck instead of flush. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
