Guitar for William Shek
|
|

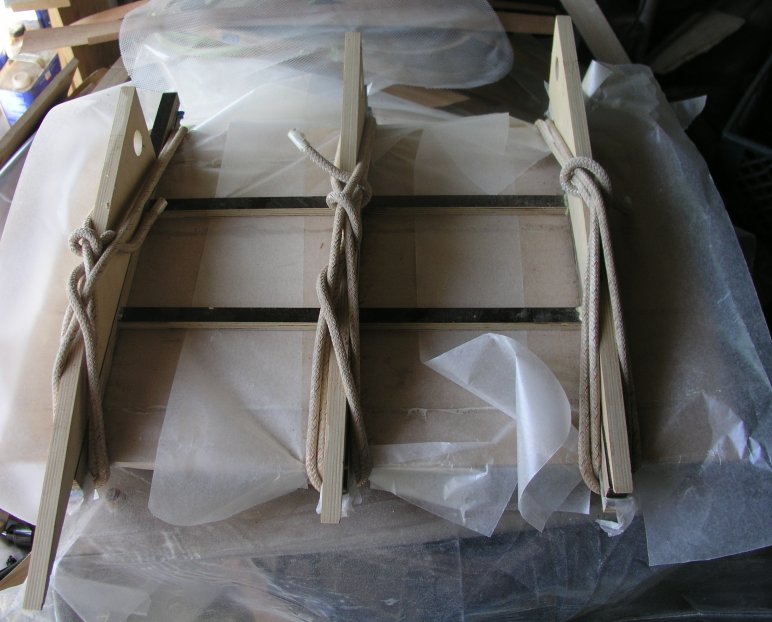

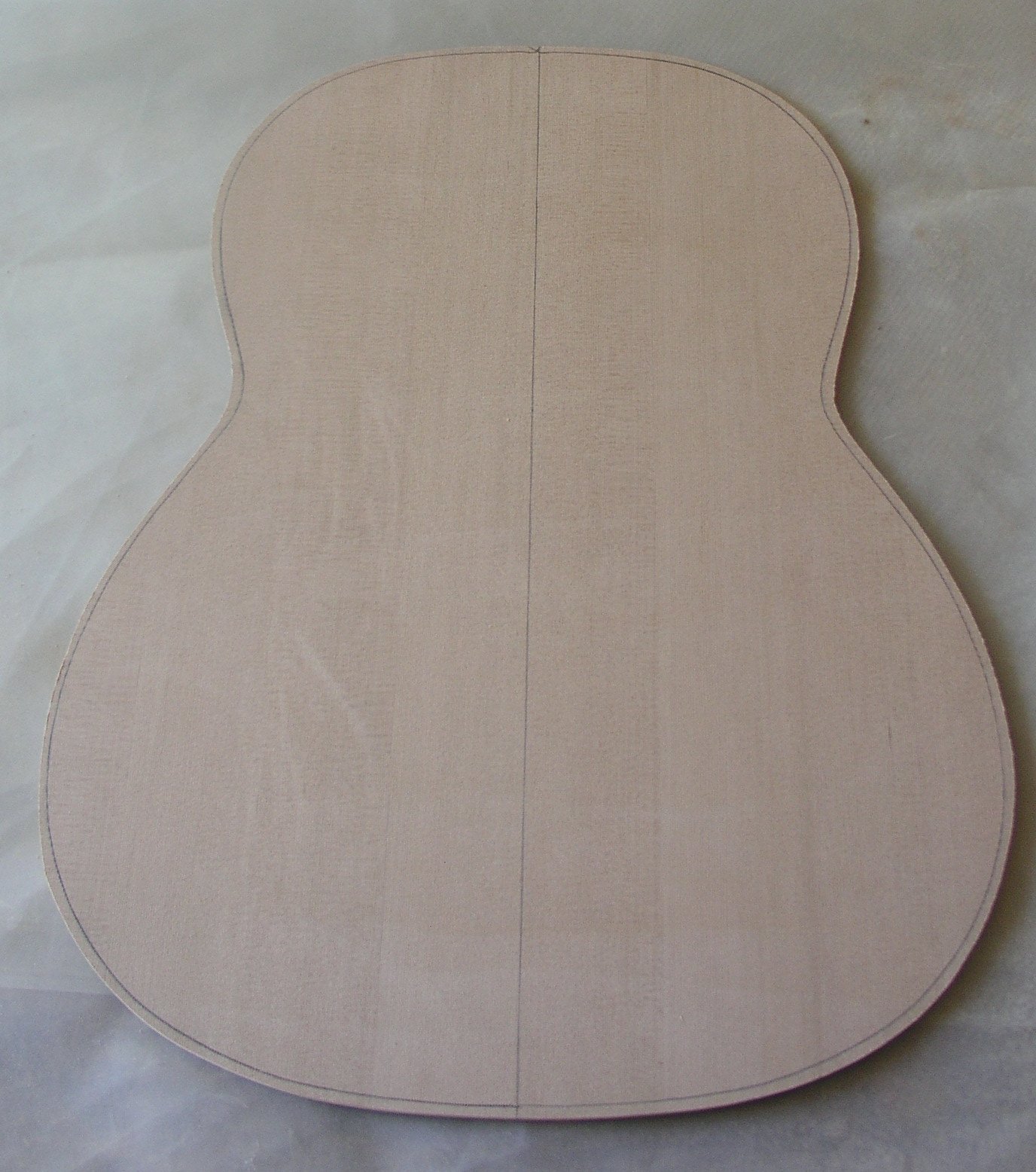

Soundboard being joined. |
|
|

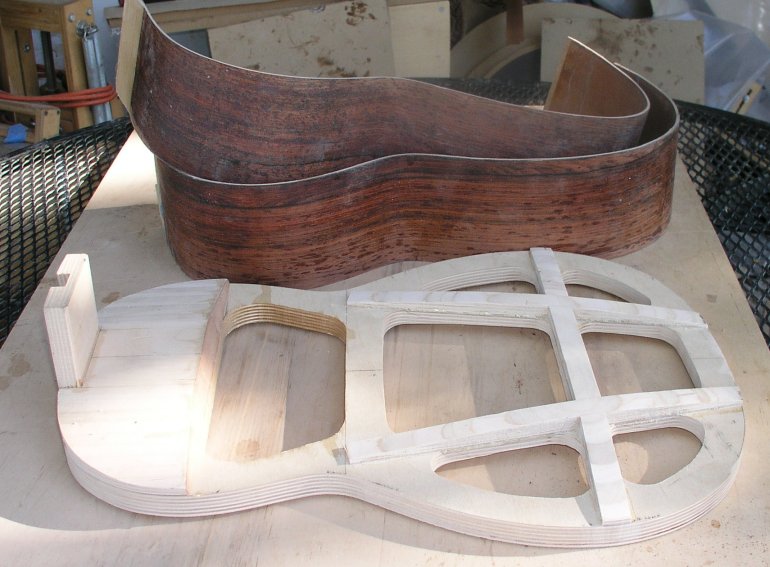

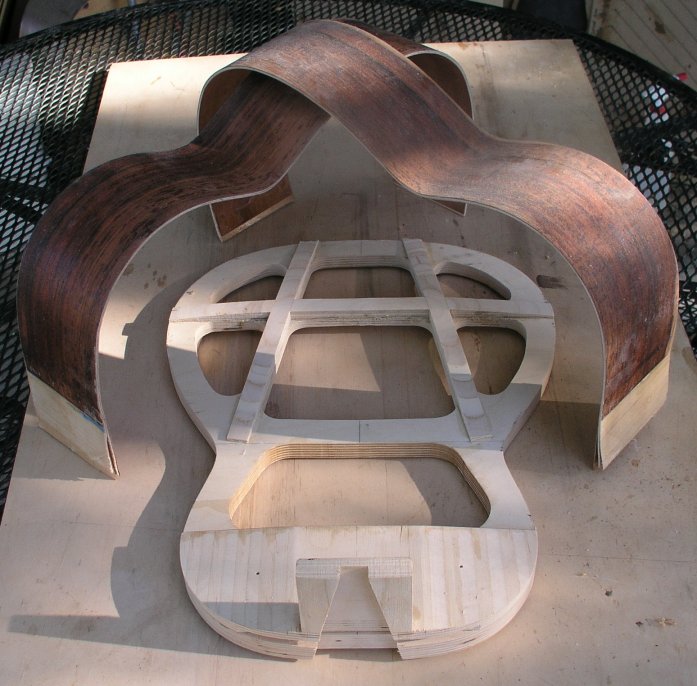

Chassis and sides. |
|
|
Chassis and sides. |
|
|
5-piece top. |
|
|

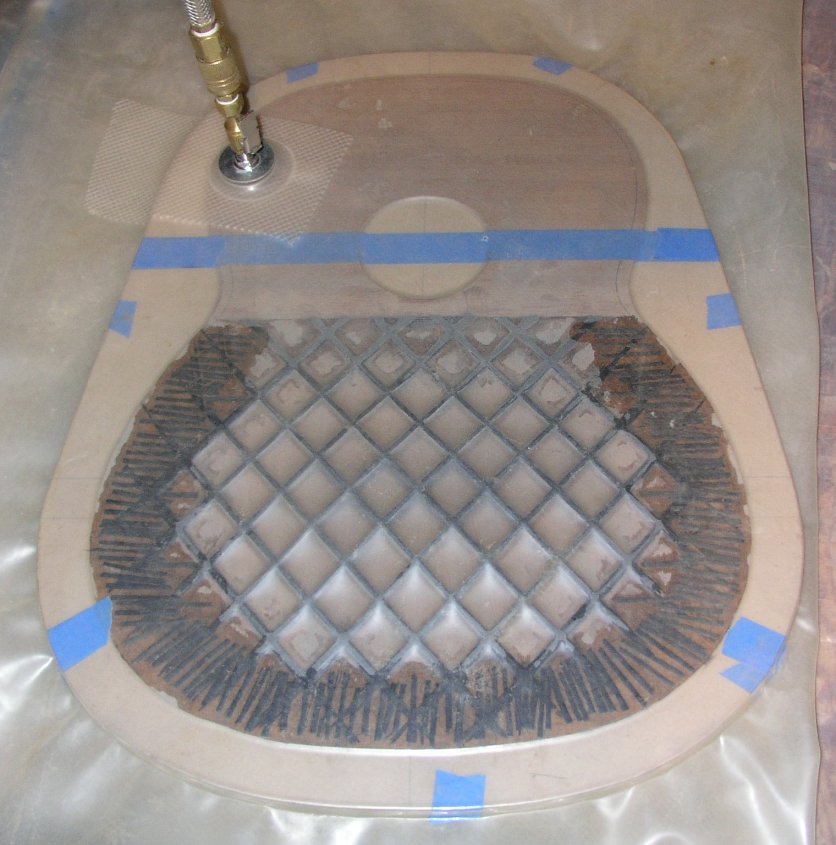

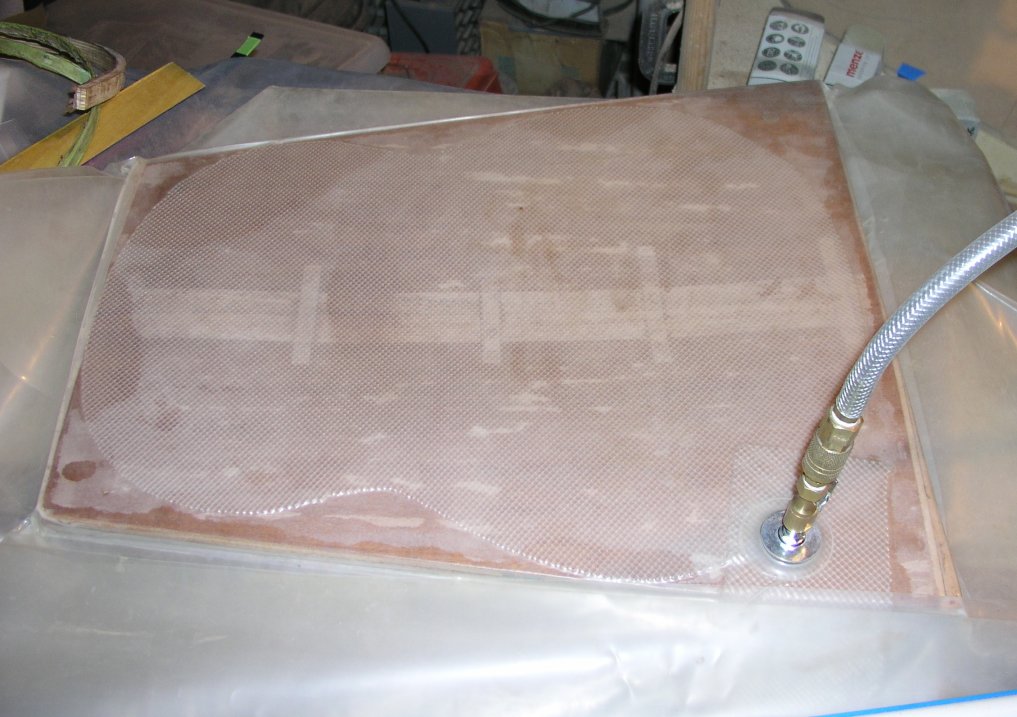

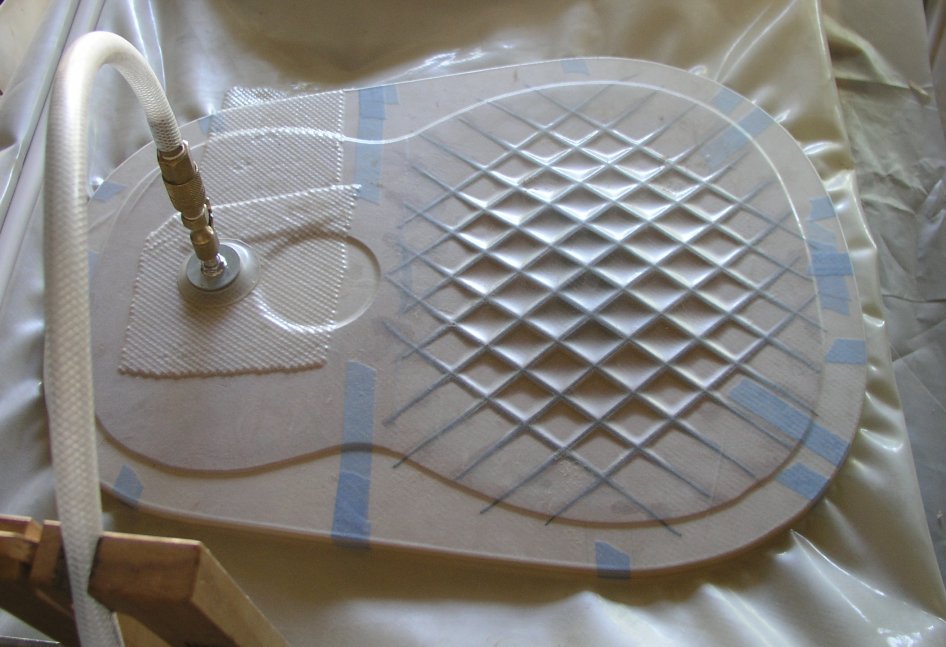

Carbon fiber vacuum clamped to lattice. |
|
|
Carbon fiber being vacuum clamped around the edges of soundboard. |
|
|

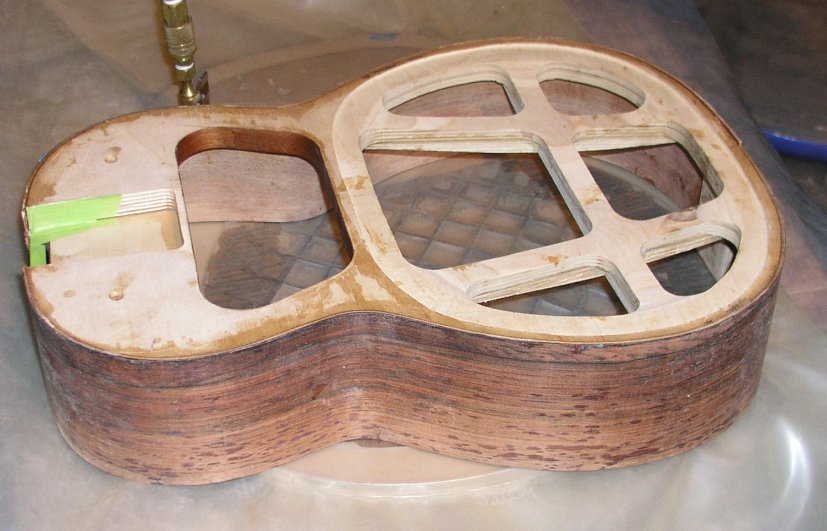

Sides glued to the frame. |
|
|

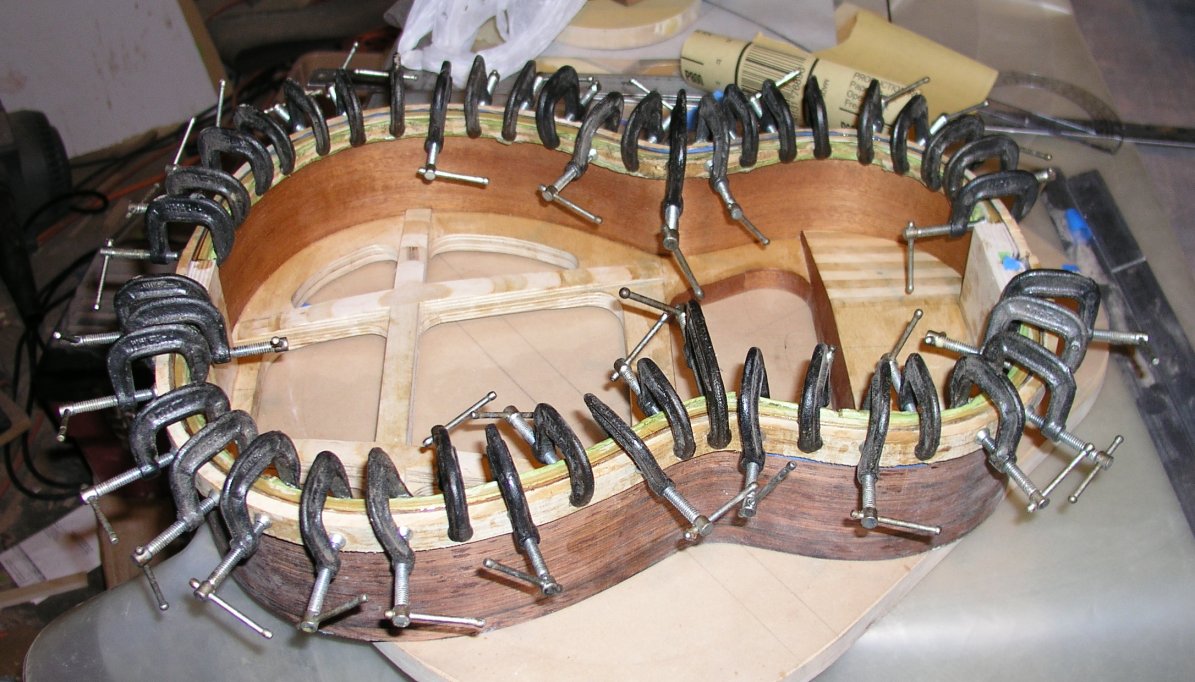

Gluing lining onto the sides. |
|
|
Vacuum clamping the laminated back veneers to form the molded arched braceless back. |
|
|
Inside view of molded back. |
|
|

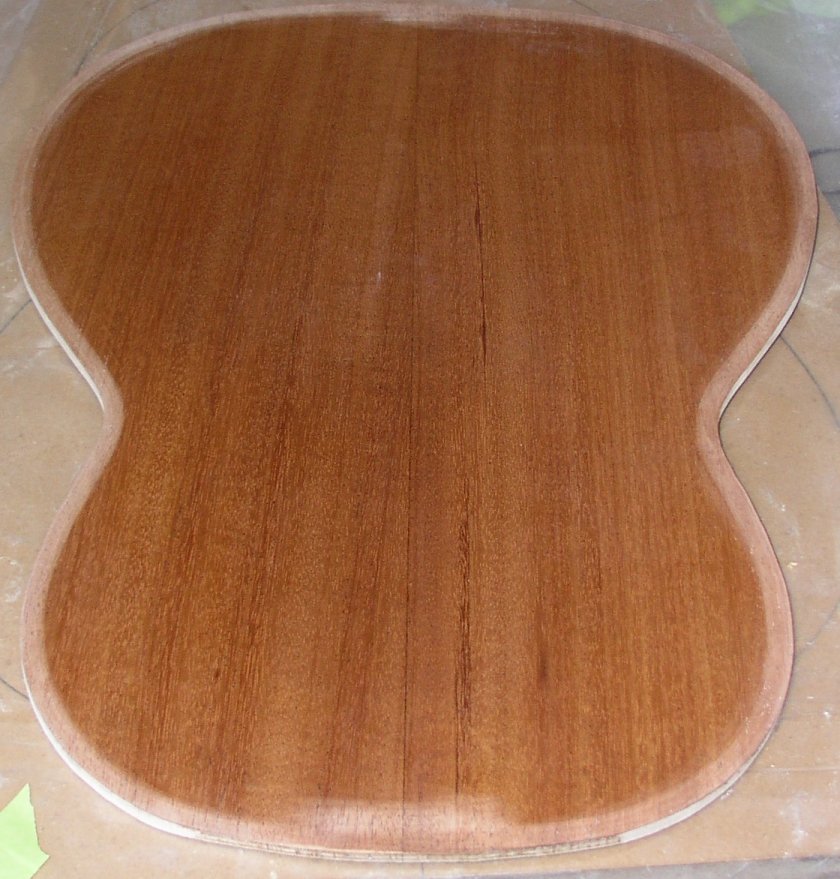

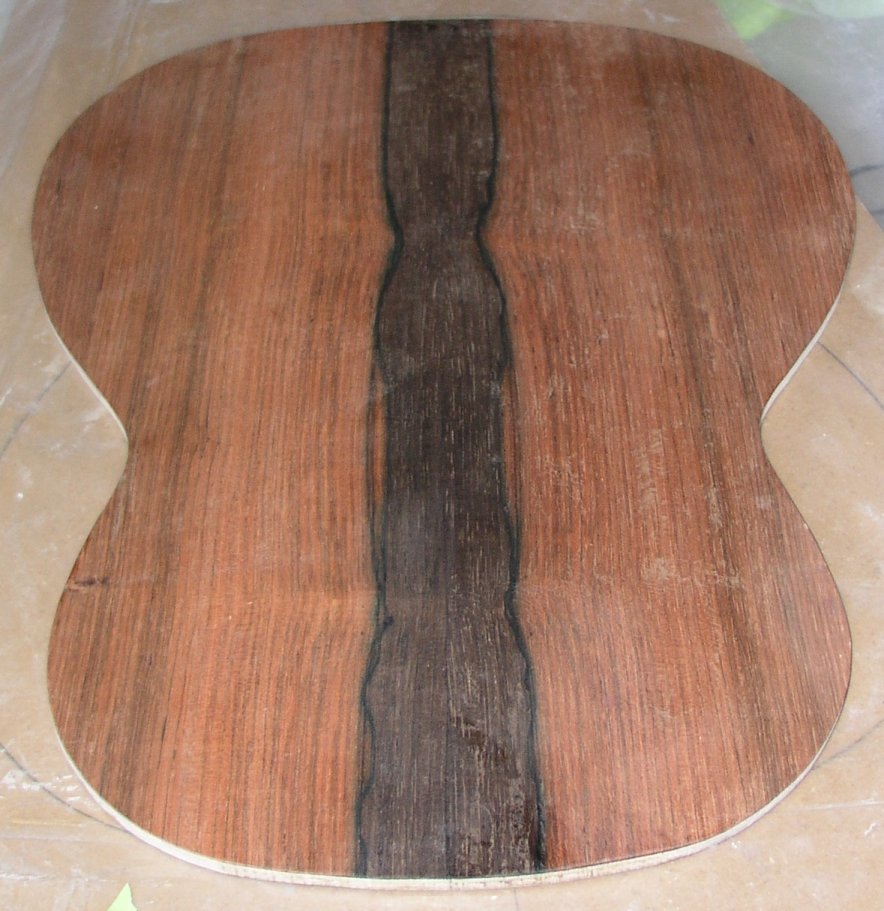

Outside view of molded back. |
|
|

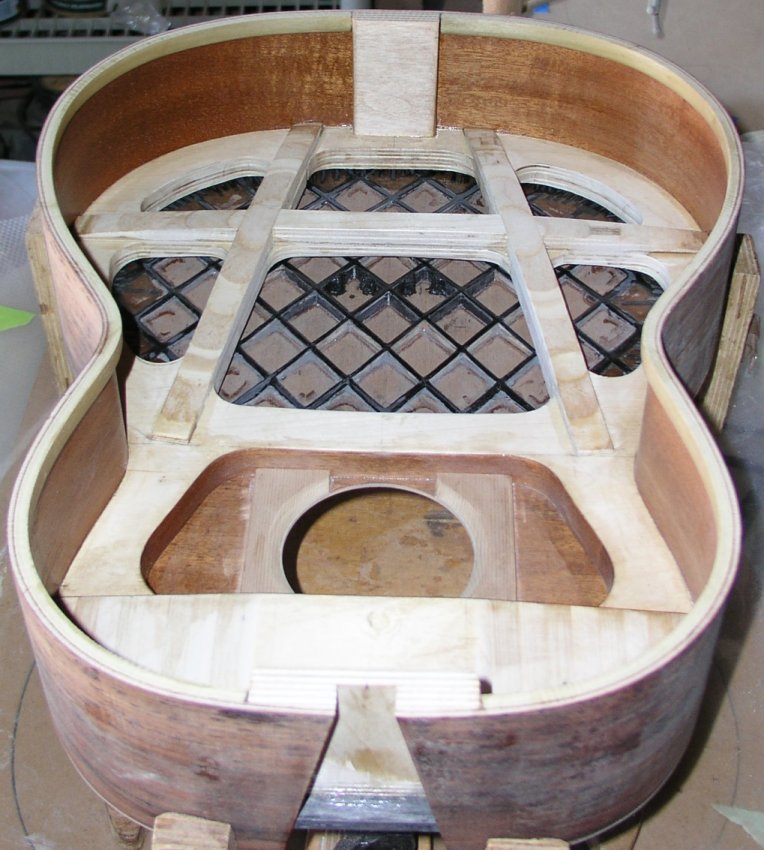

Ready to attach the back. |
|
|

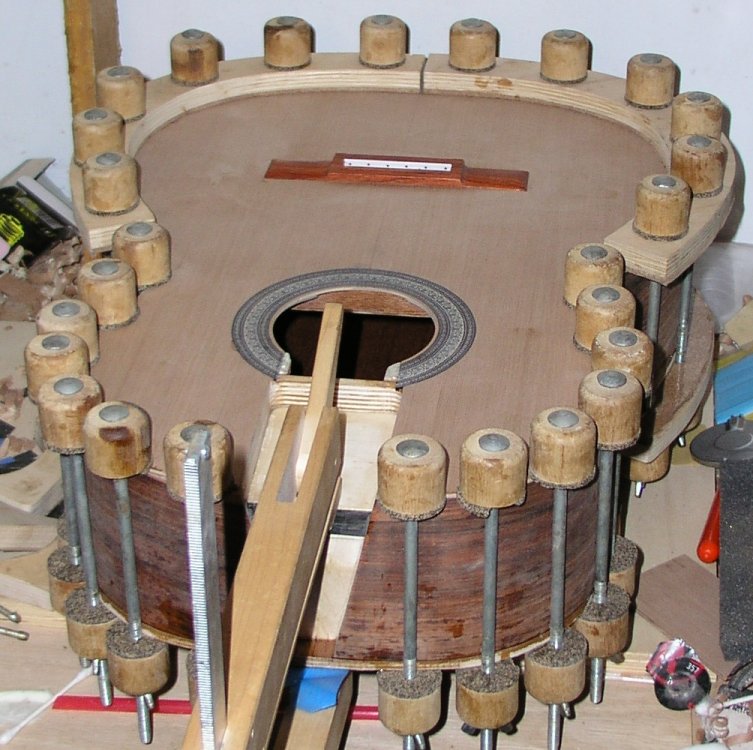

Back being epoxied onto the sides. |
|
|
Body complete ready for final voicing and sanding. Neck about to be fretted and finish carved. |
|
|

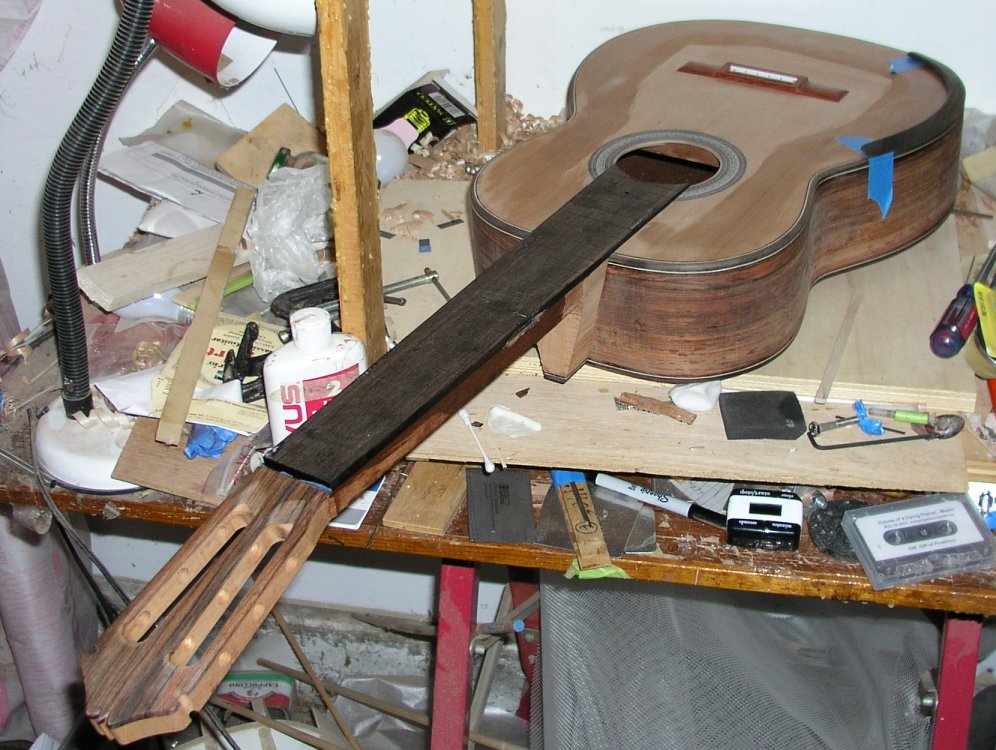

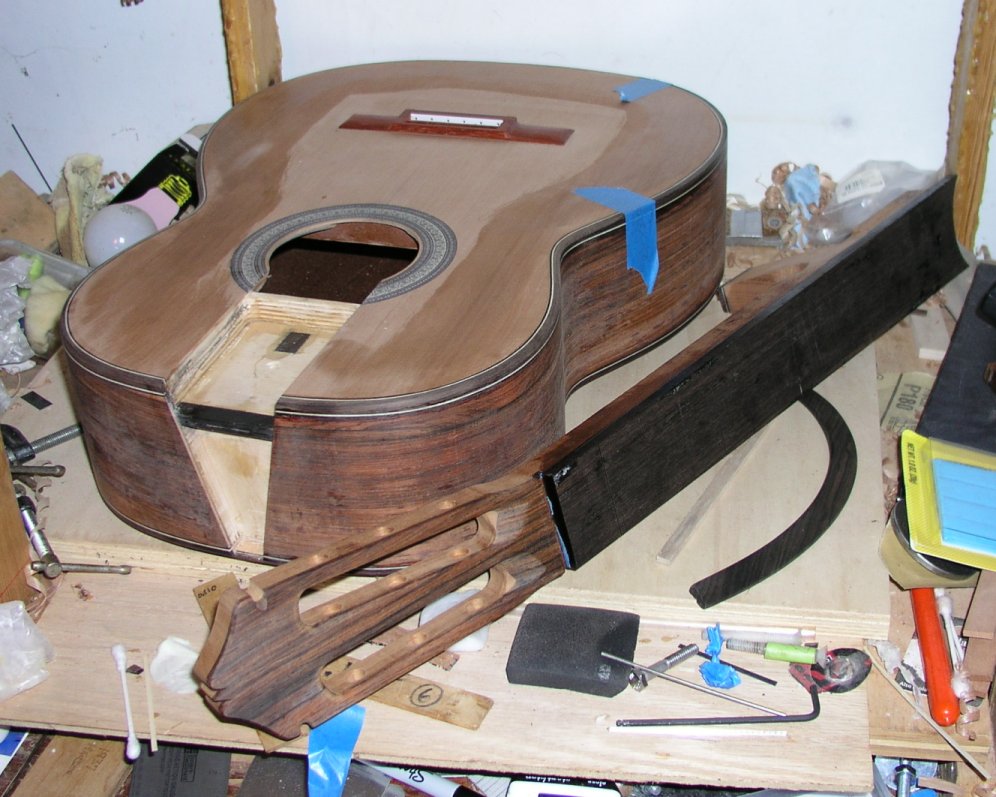

Fitting the neck. |
|
|

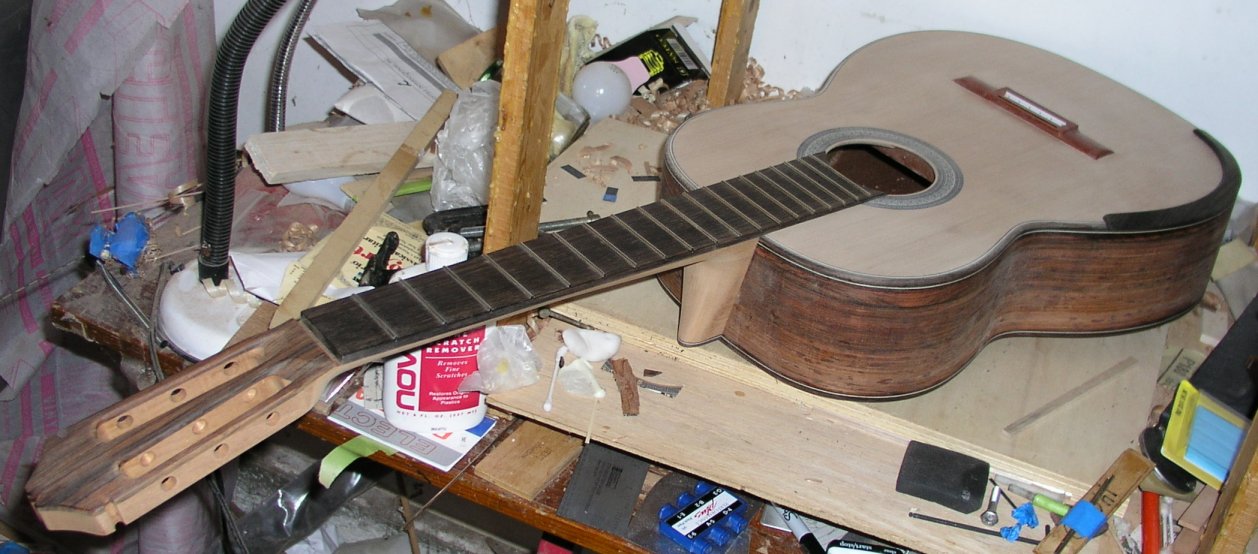

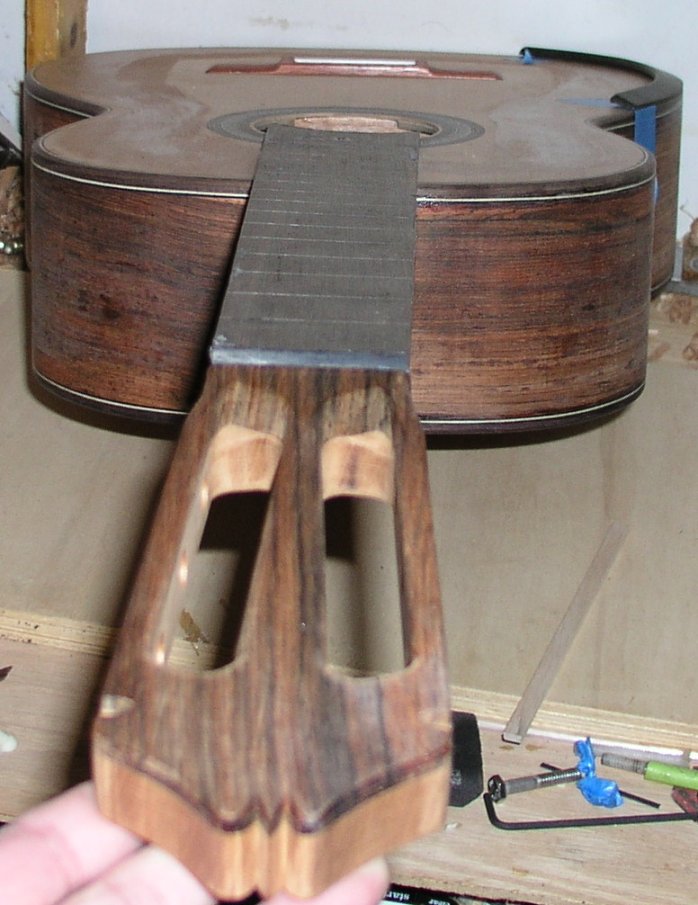

Checking the fit and the neck angle prior to fretting. |
|
|
Fingerboard fretted. Ready for finish prep stage. |
|
|
Applying the finish. |
|
|

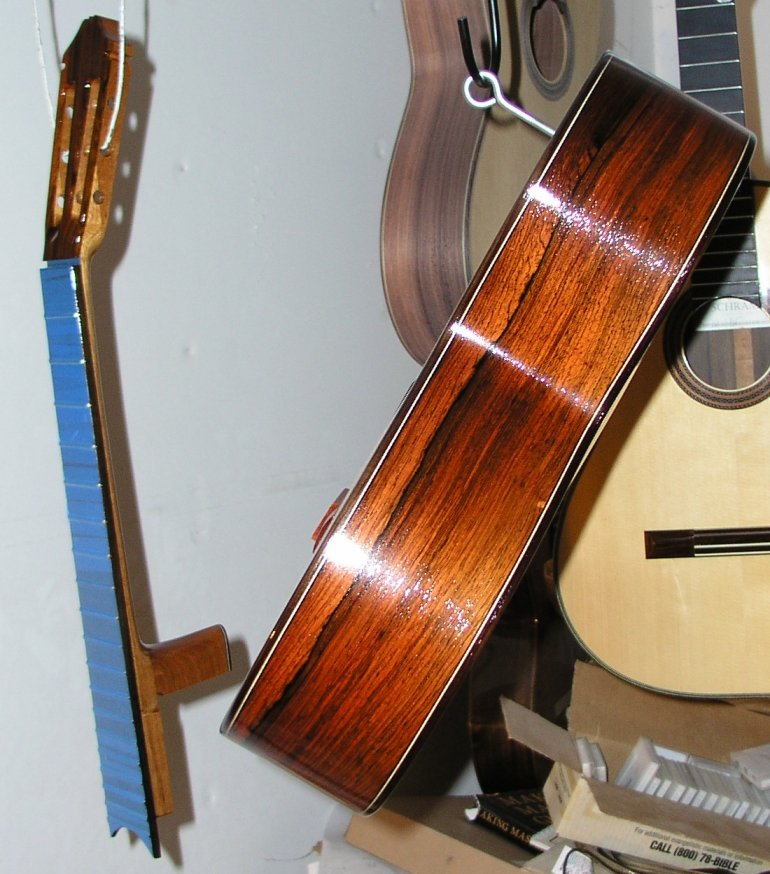

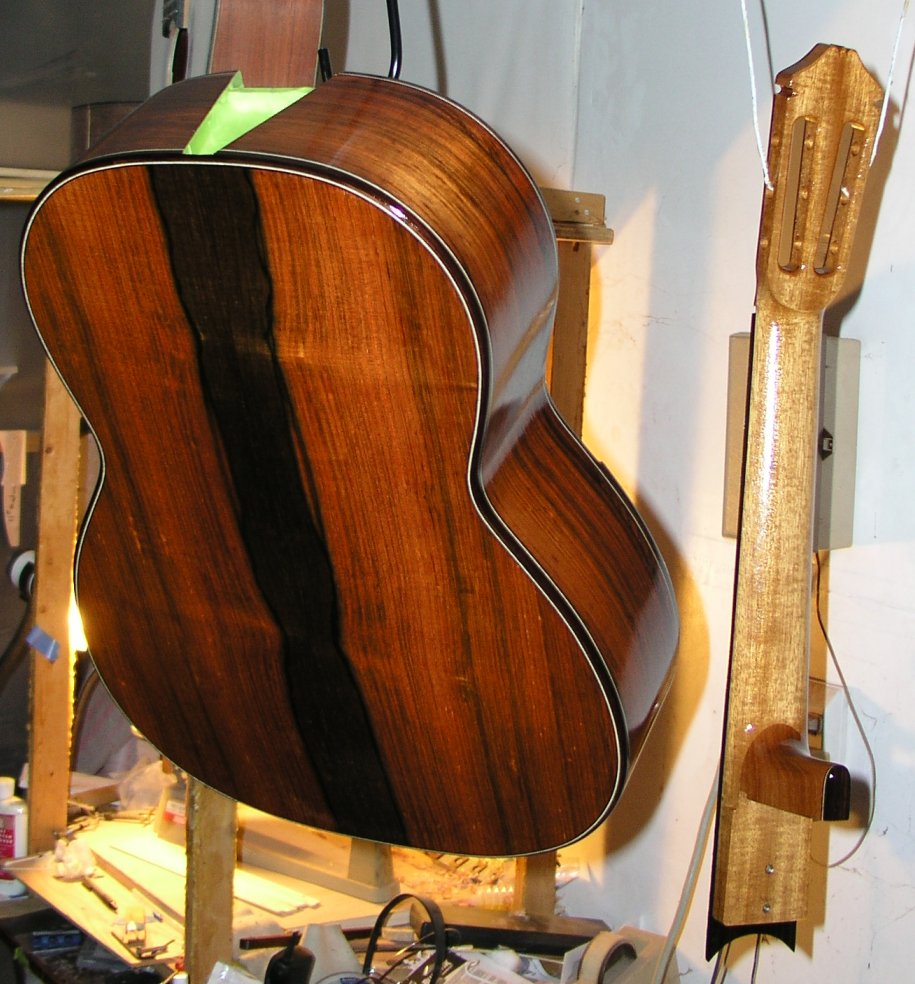

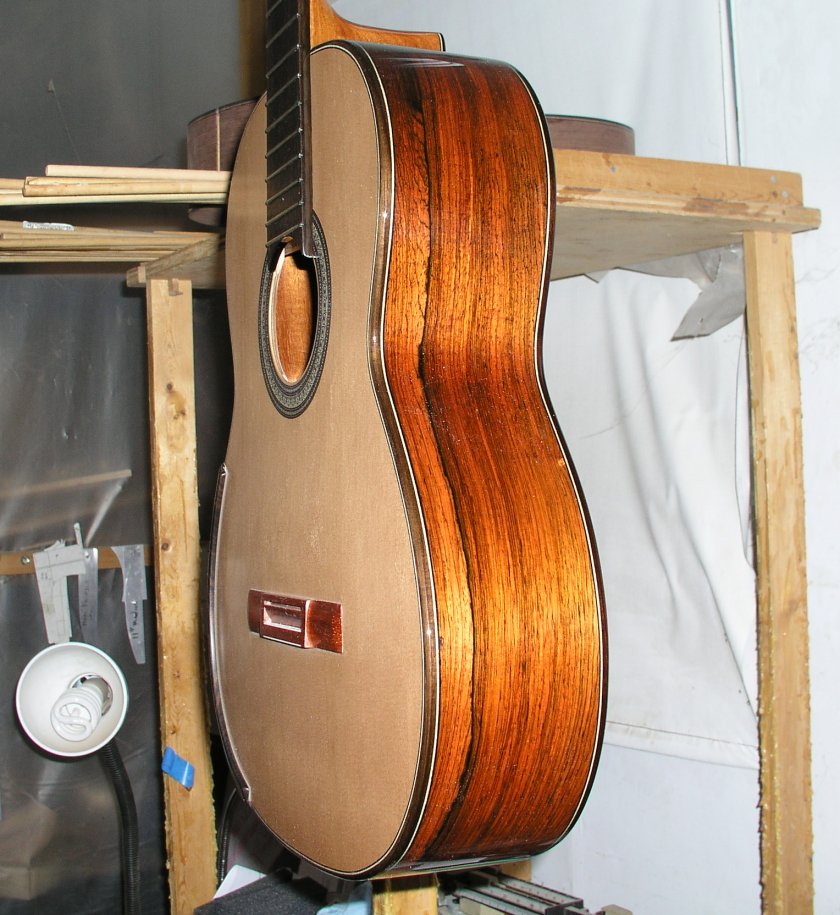

Finishing stage. |
|
|

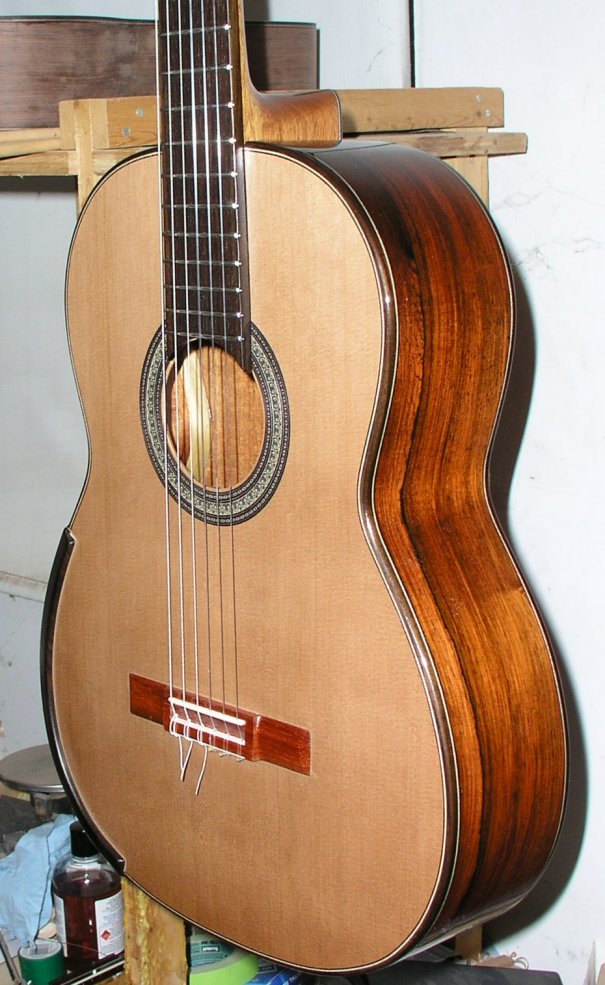

Ready for strings |
|
|
Strung up! Final action set-up time. |
|
|
|
|
|
|
|
|
|
|
|
