Last Update: 01/03/11

Guitar for Wu Yin-Jang


  • Model = Standard Adjustable Neck Lattice Guitar
  • Back and Sides = Cocobolo Rosewood
  • Soundboard = Cedar
  • Rosette = Rodriguez
  • Neck = Mahogany w/CF reinforcement.
  • Neck Width @ Nut = 52mm
  • Saddle string spacing = 59mm
  • Neck Width @ 12th fret = 63.5mm
  • Fingerboard = Ebony
  • Scale = 650mm
  • Bridge = Padauk
  • Tuning Machines = Sloane, Black rollers and Ebony knobs
  • Finish = Lacquer
  • Case = Standard single arch

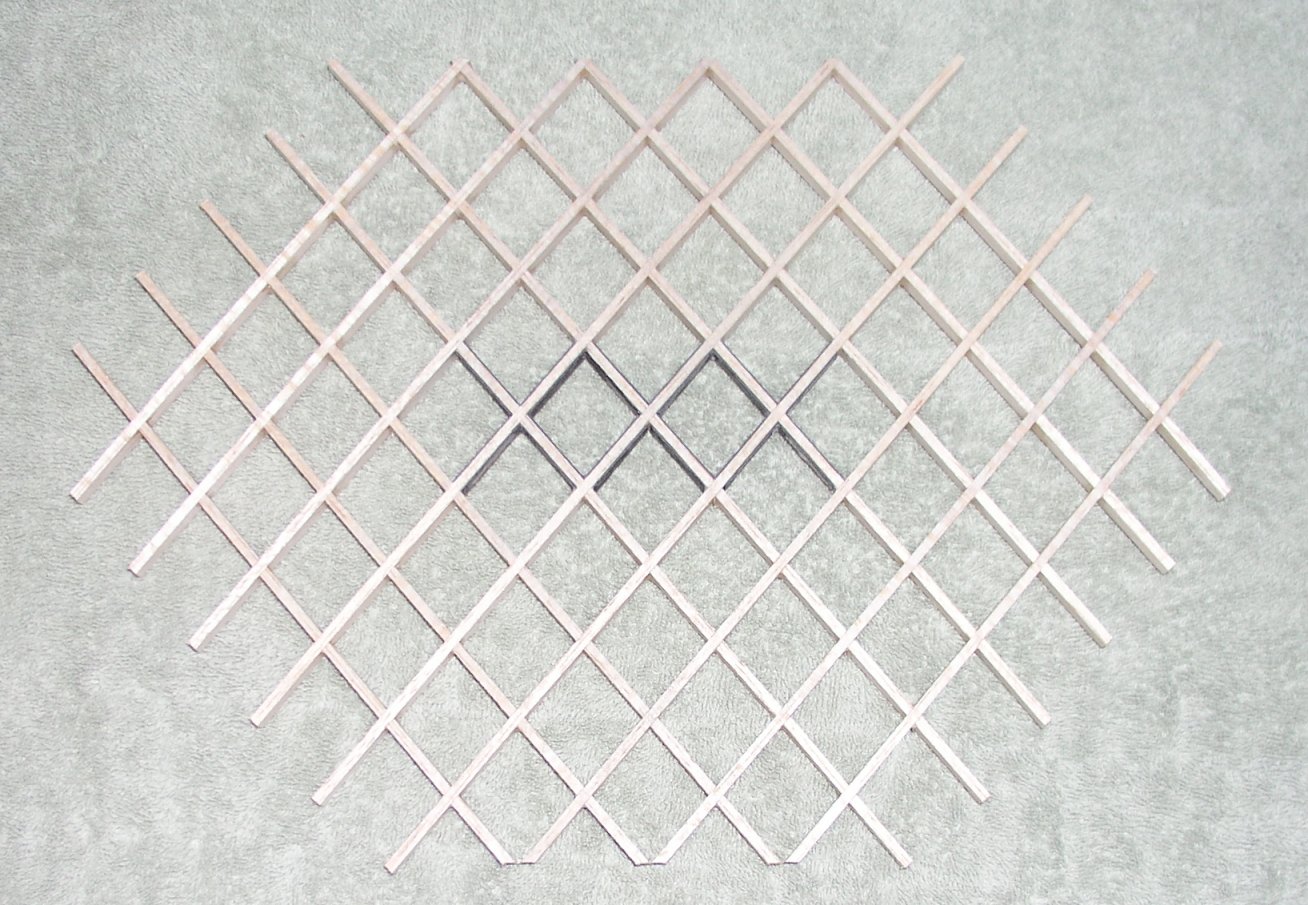

    Lattice bracing with carbon fiber.

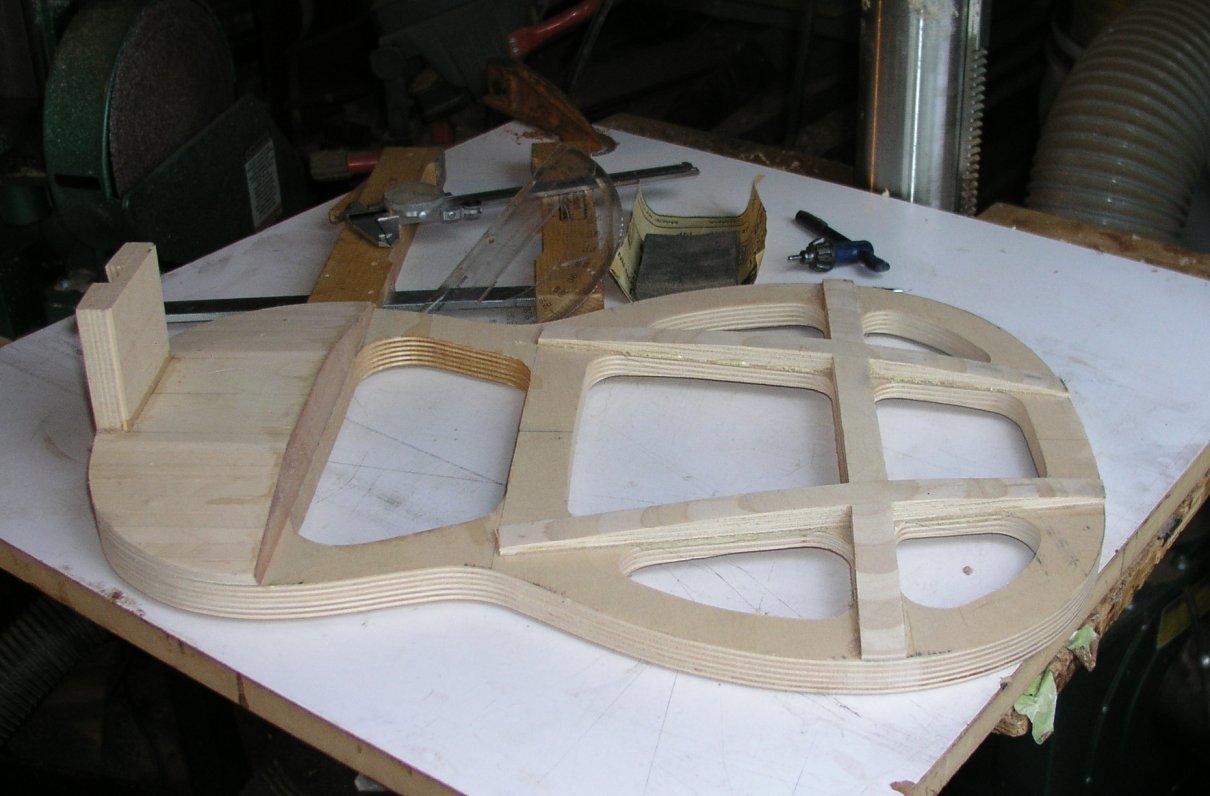

    The chassis.

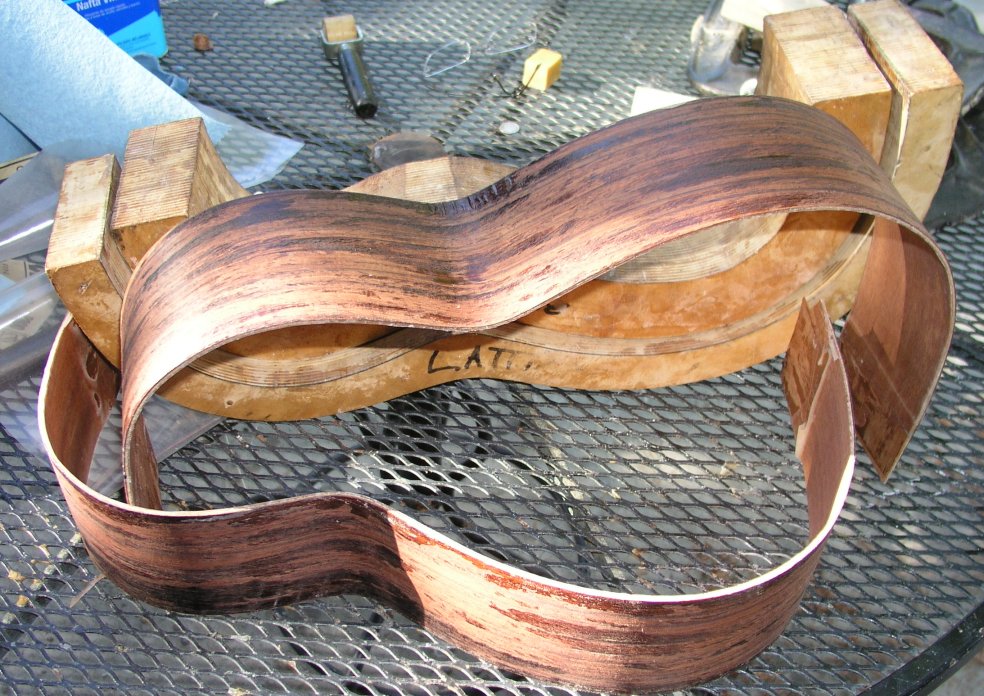

    Sides laminated.

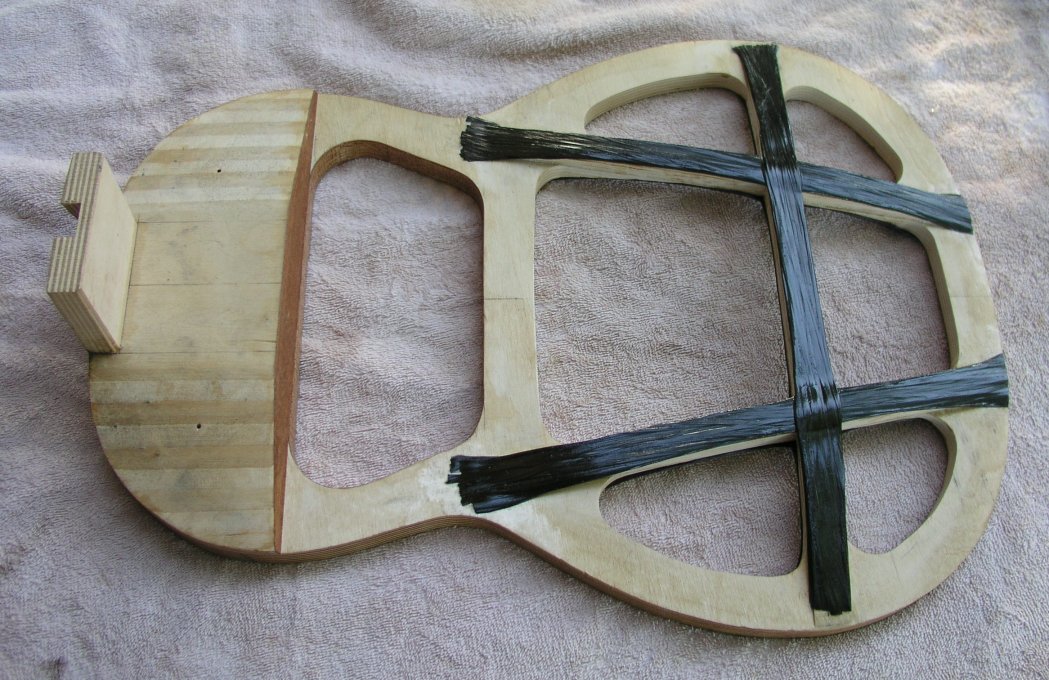

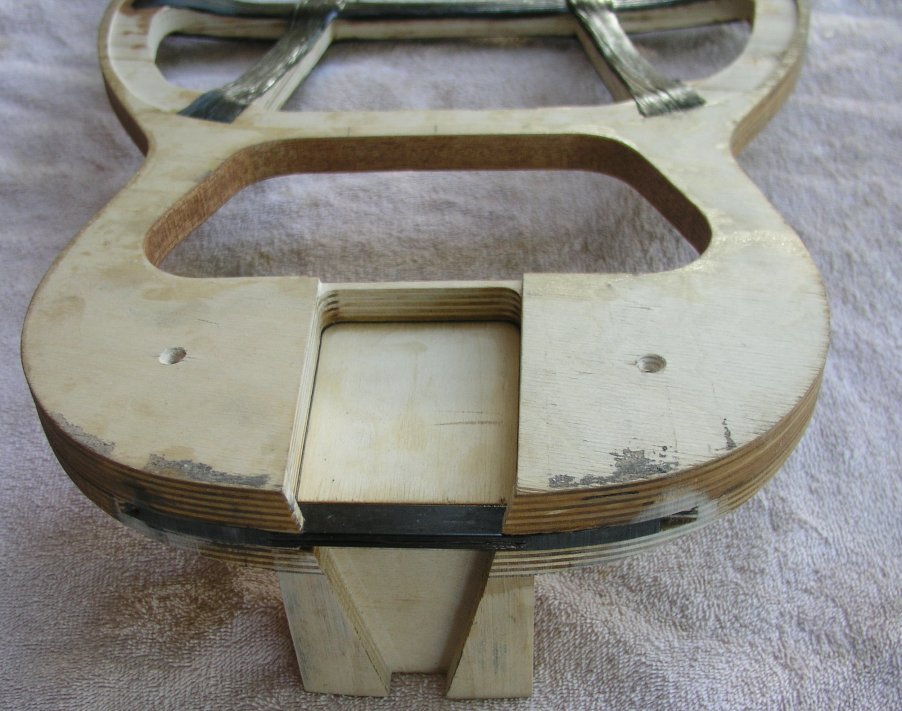

    "A" frame gets carbon fiber reinforcment.

    Adjustable neck joint with carbon fiber hinge.

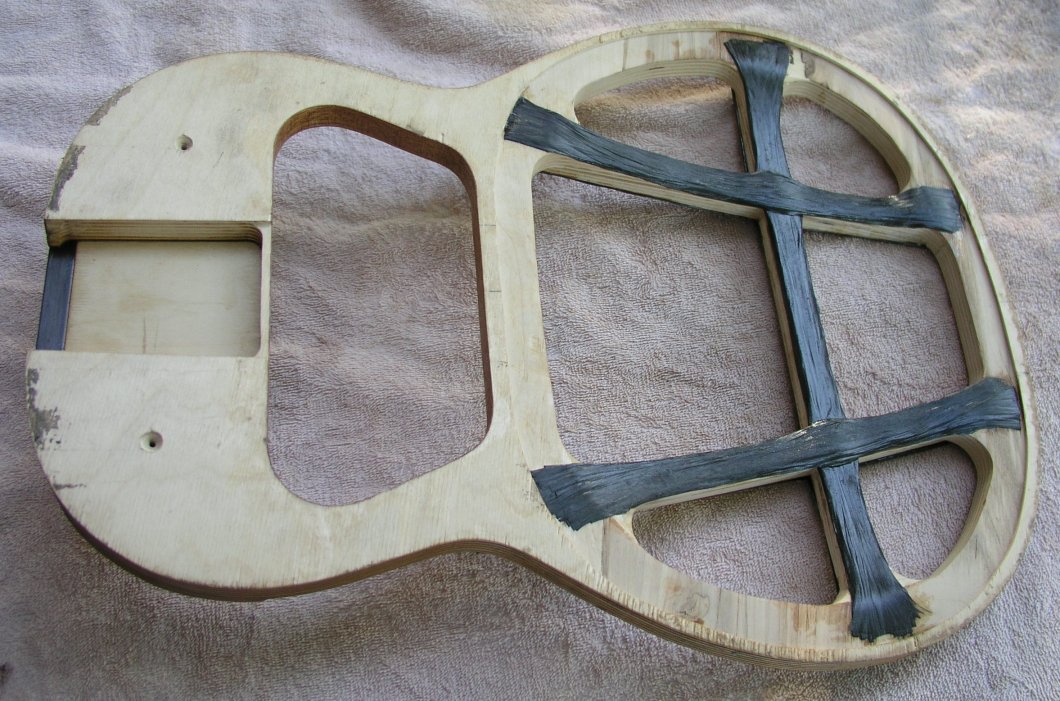

    More carbon fiber on the "A" frame.

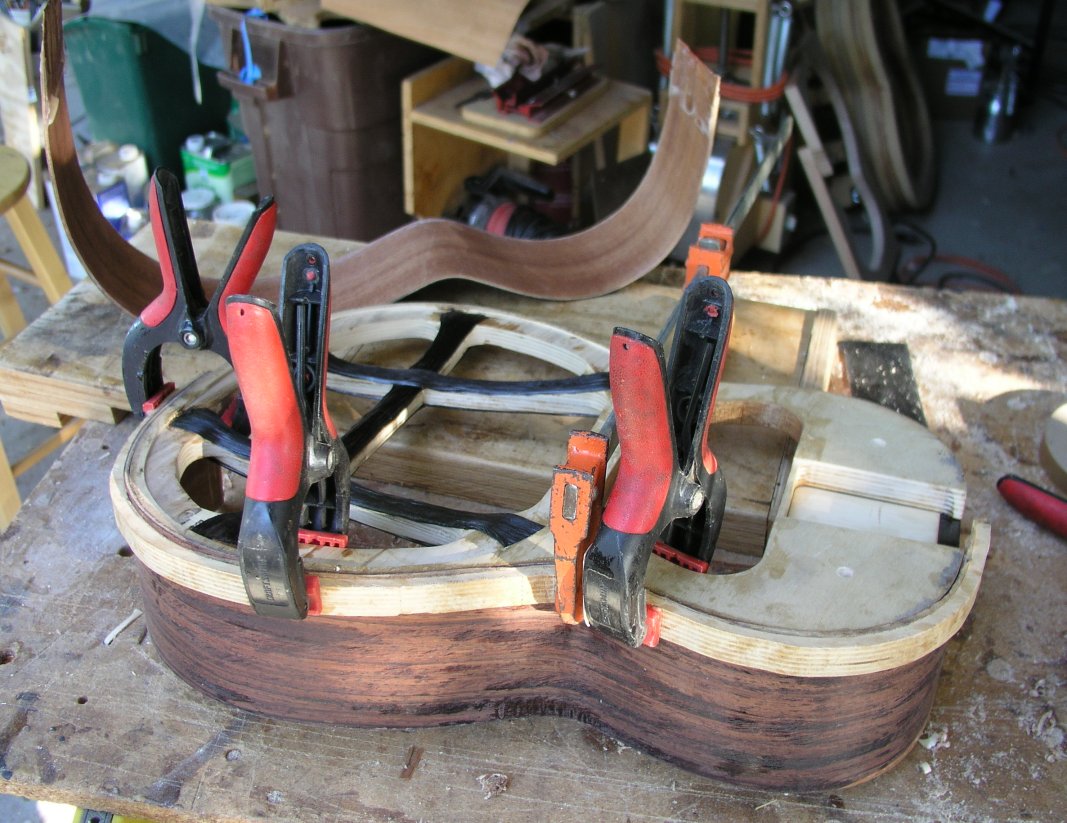

    Fitting the sides.

    Soundboard lattice construction.Video 1

    Soundboard lattice construction.Video 2

    Soundboard lattice construction.Video 3

    Soundboard lattice construction.Video 4

    Soundboard lattice construction.Video 5

    Soundboard lattice construction.Video 6

    Soundboard lattice construction.Video 7. Pinning the bridge.

    Lattice Guitar Construction. The Back Video 1.

    Lattice Guitar Construction. The Back Video 2.

    Lattice Guitar Construction. The Neck Video 1.

    Lattice Guitar Construction. The Neck Video 2.

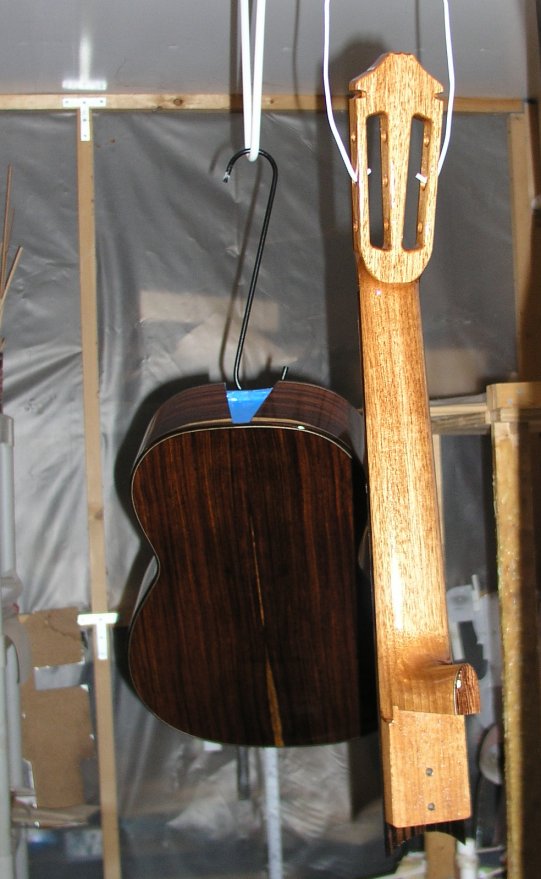

    Neck and body after final coat of finish.

    Sides after final coat of finish.

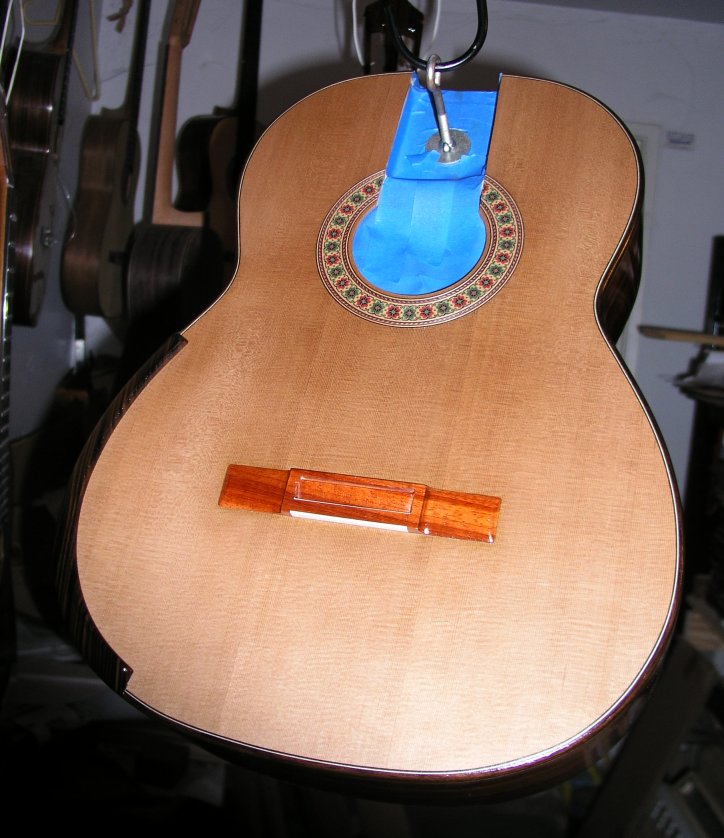

    Front view after applying the finish.

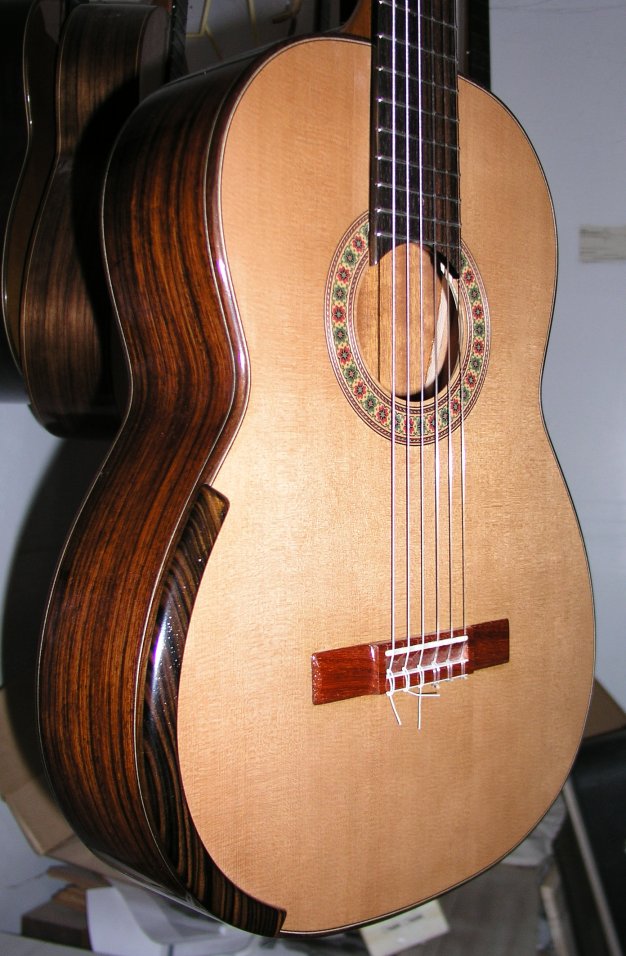

    Guitar complete!

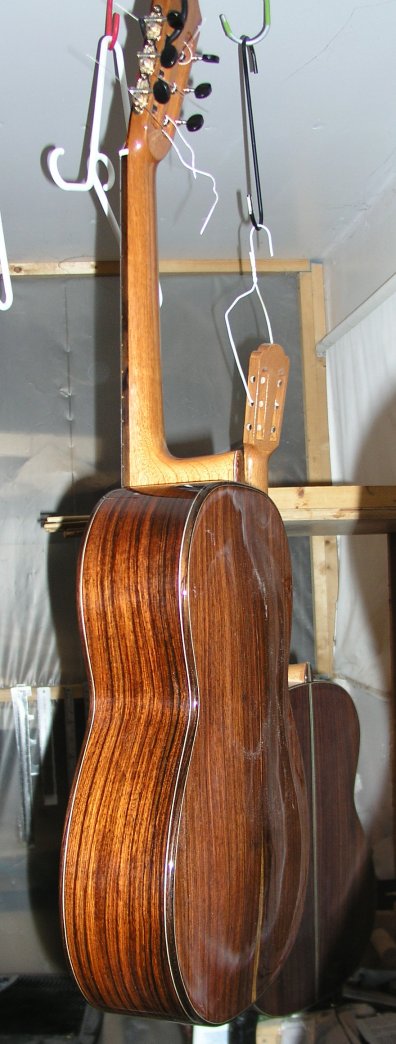

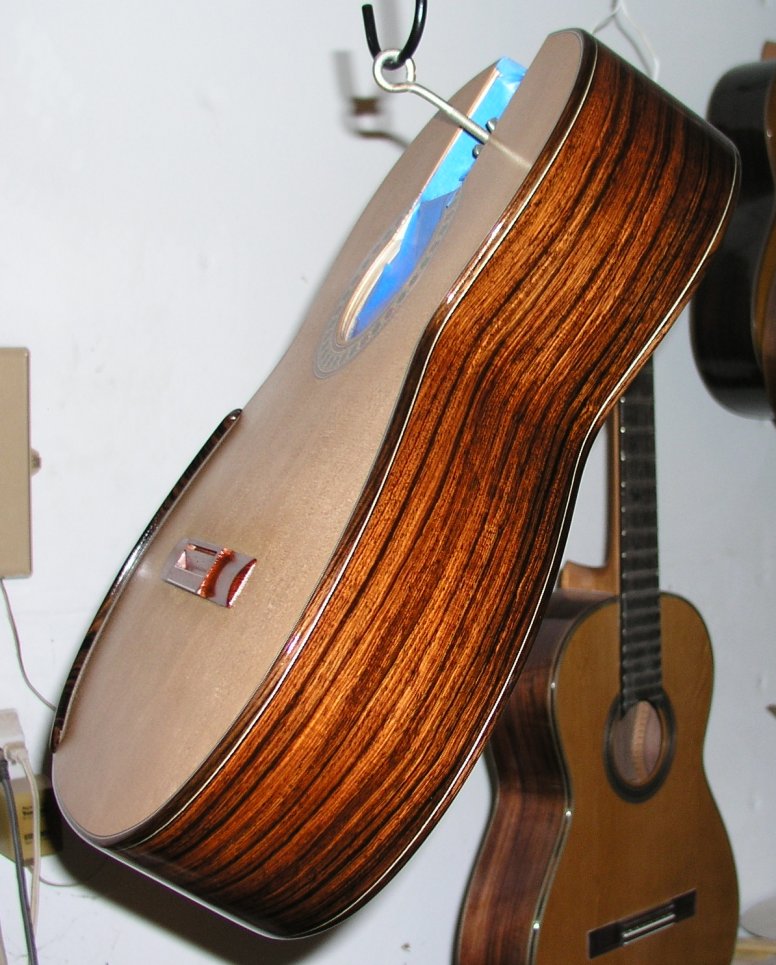

    Back and side view.

    Comparing a 2001 Greg Smallman and a 2010 David Schramm lattice guitar. Part 1

    Comparing a 2001 Greg Smallman and a 2010 David Schramm lattice guitar. Part 2
