AUDIO SAMPLE: Serenata Espanol by J.Malats 1.19MB MP3, 39 secs.
Great sound. Deep and rich basses with warm and clear trebles. Great concert guitar.
Last Update: 4/03/05
Guitar for Bob Wysong
Date Started: June 23, 2004
Date Completed: March 20, 2005
Model: Professional
Specifications:
|
|

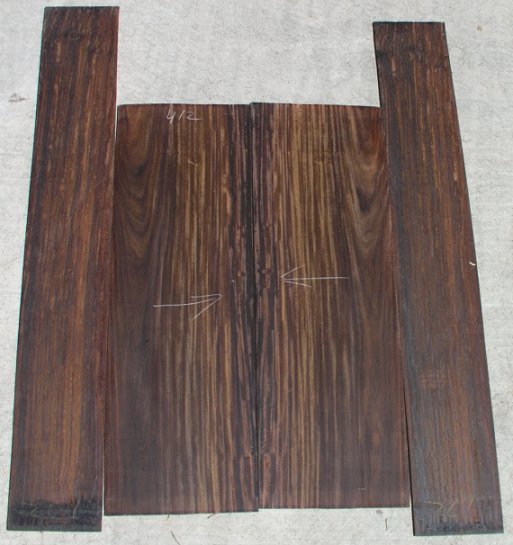

Back and Sides prior to thinning and joining. |
|
|

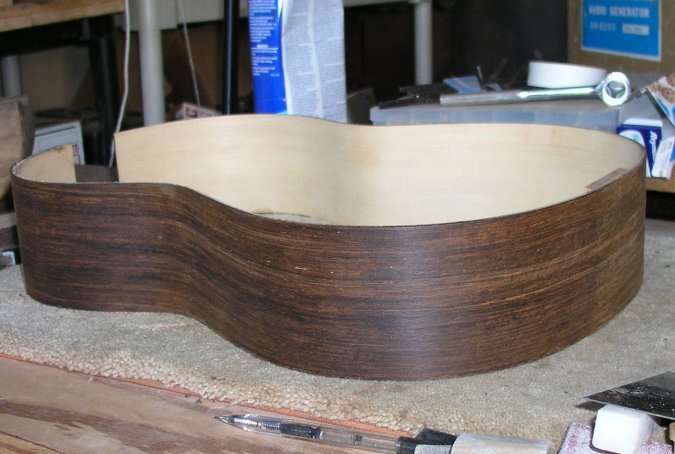

Laminated sides. |
|
|

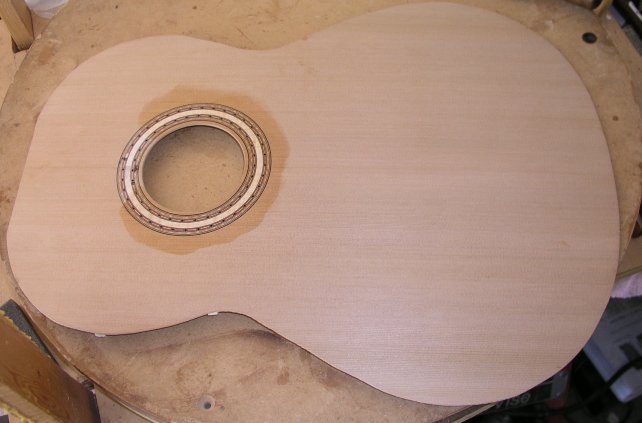

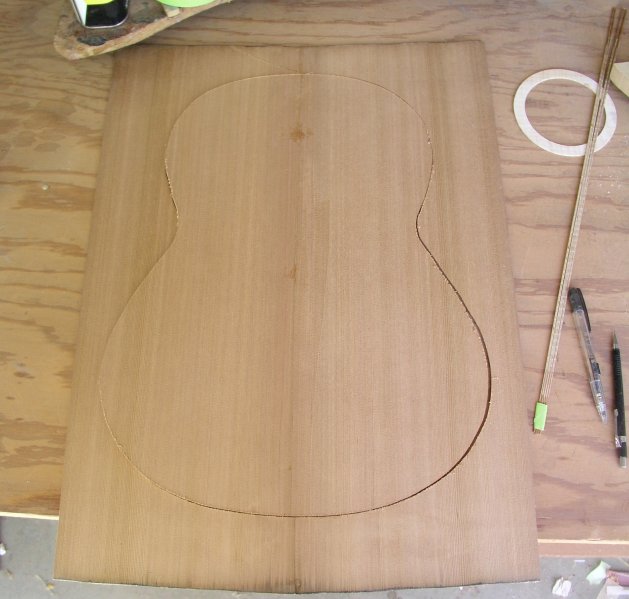

Soundboard. |
|
|

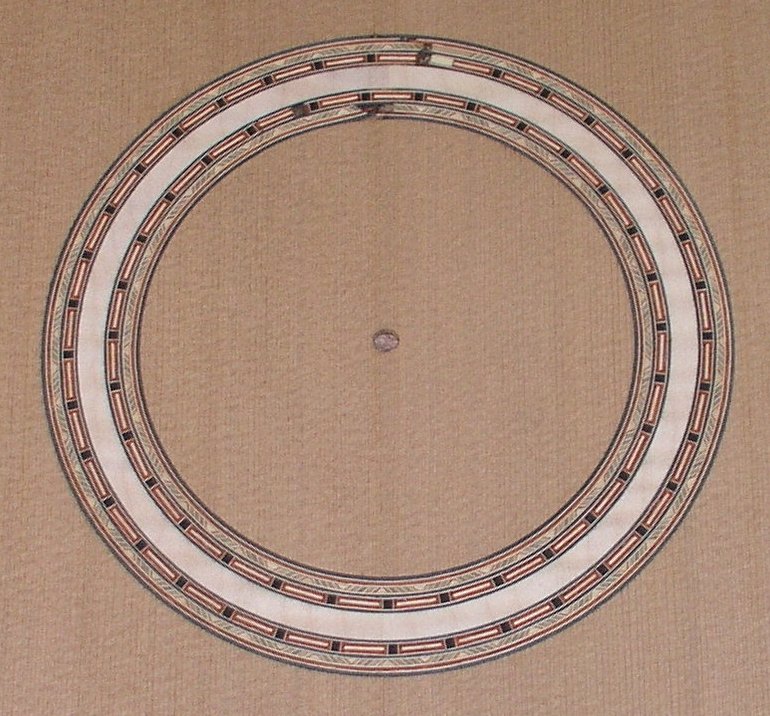

Hand-made Pacific-Northwest style rosette by David Schramm. |
|
|

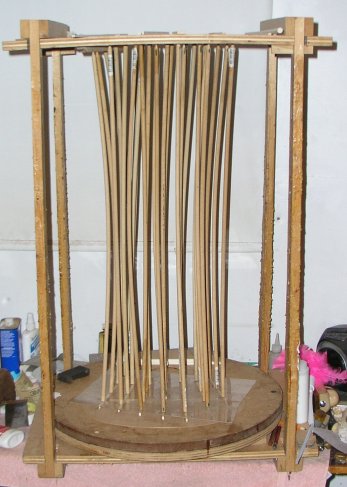

Fan braces being glued on in the go-bar deck. |
|
|

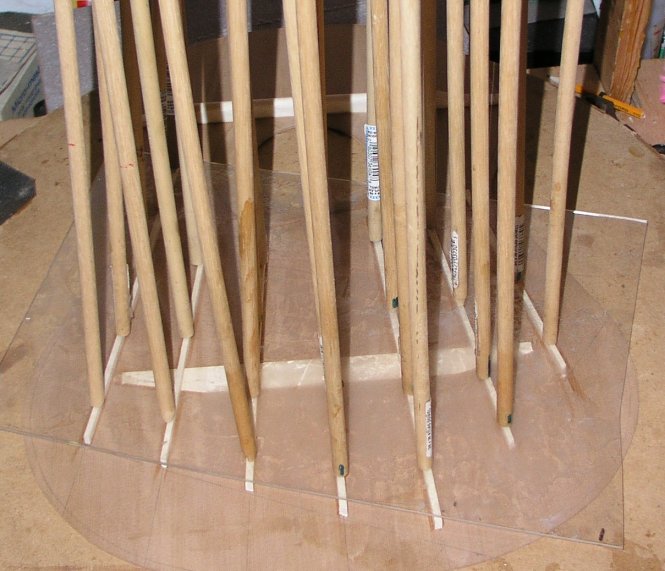

Close-up. |
|
|

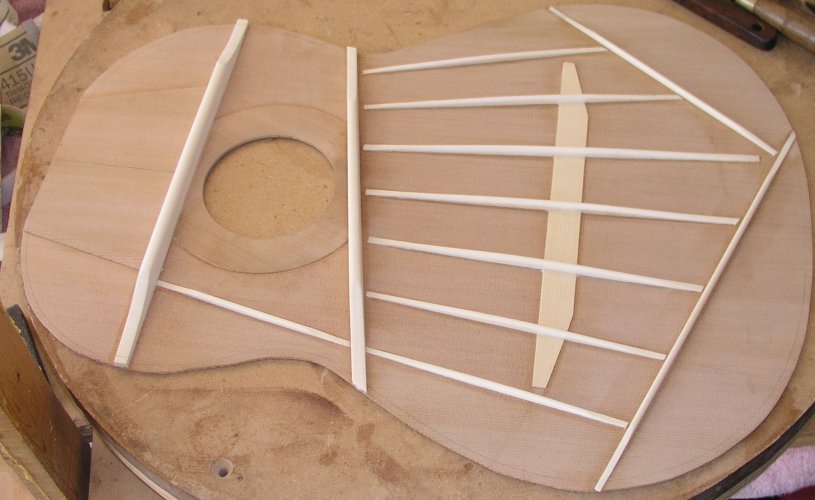

Soundboard bracing. |
|
|
Soundboard. |
|
|

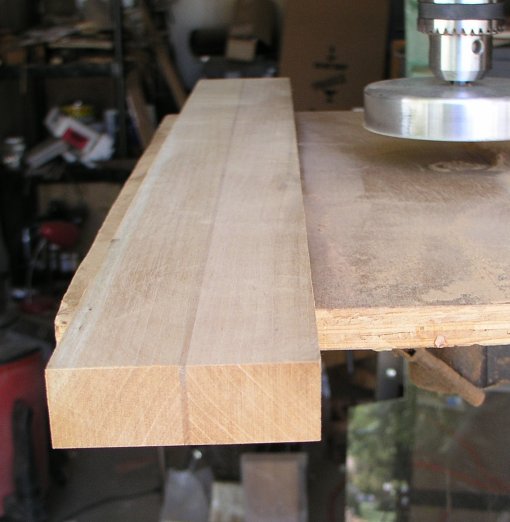

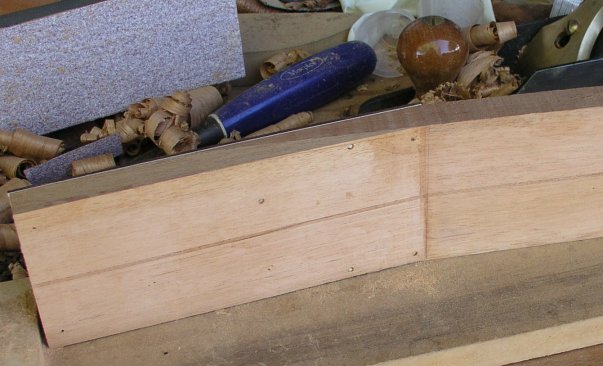

Three piece neck cut from the same board. The board is split down the middle and the two pieces are flipped and rotated. This is a technique I learned from John Gilbert for building very stable necks. |
|
|

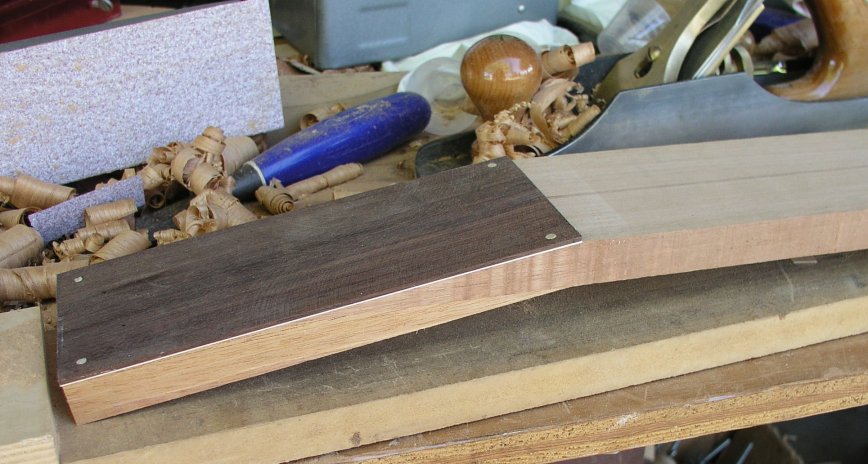

Brazilian rosewood Headplate and maple veneer glued onto the head. |
|
|

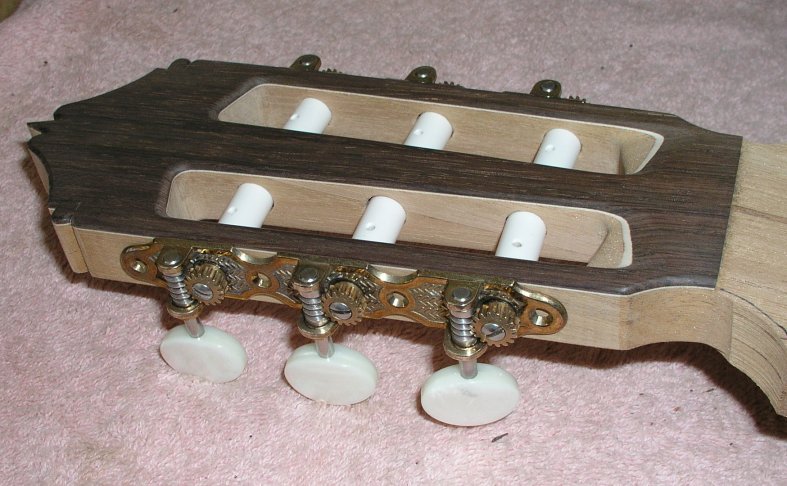

Back view of the head. |
|
|
Basic parts, neck, top, sides. |
|
|
Head after detailing. |
|
|

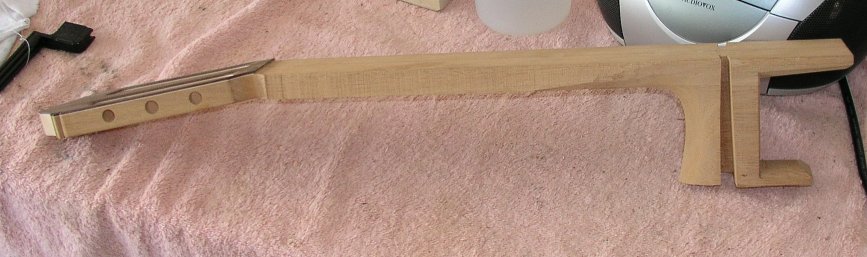

Neck ready to be attached to the soundboard. |
|
|
Neck and soundboard being glued together. |
|
|

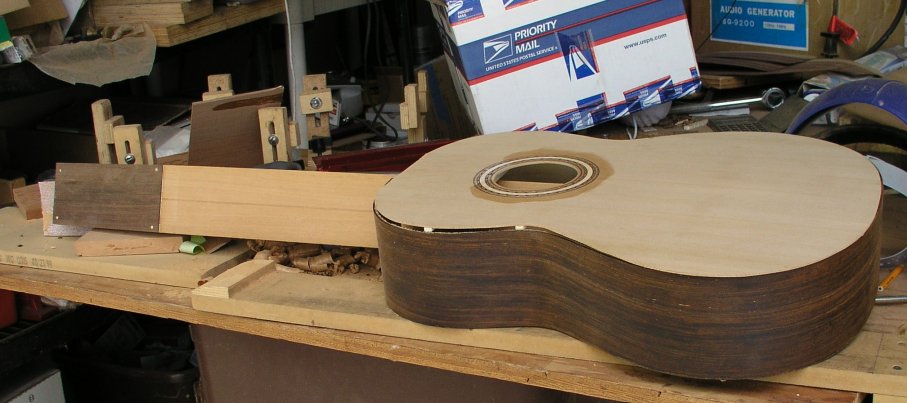

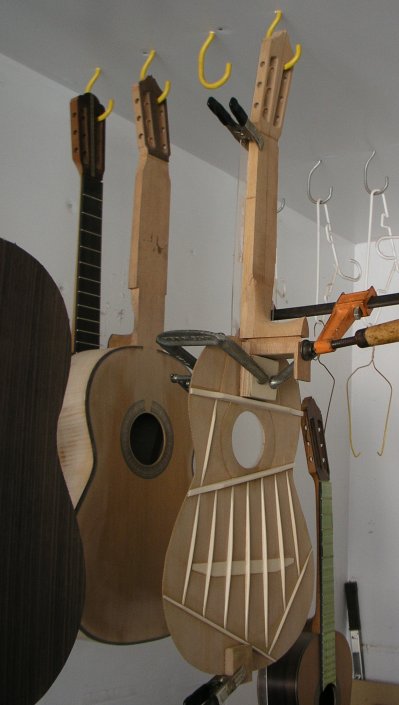

Sides being glued to the top. |
|
|

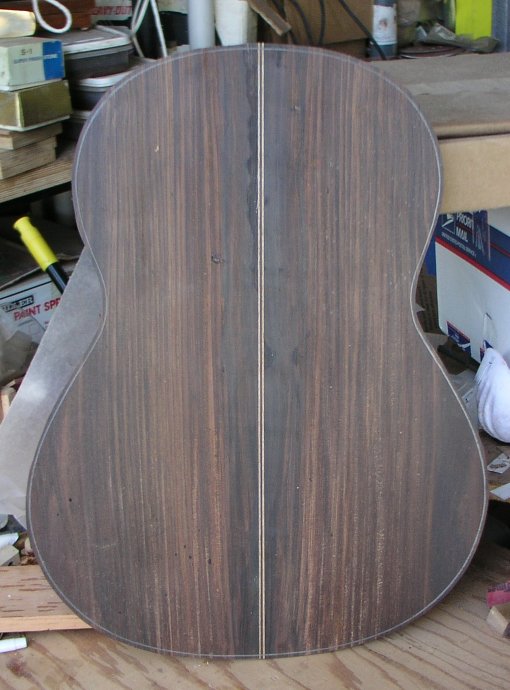

Back ready to be thinned. |
|
|

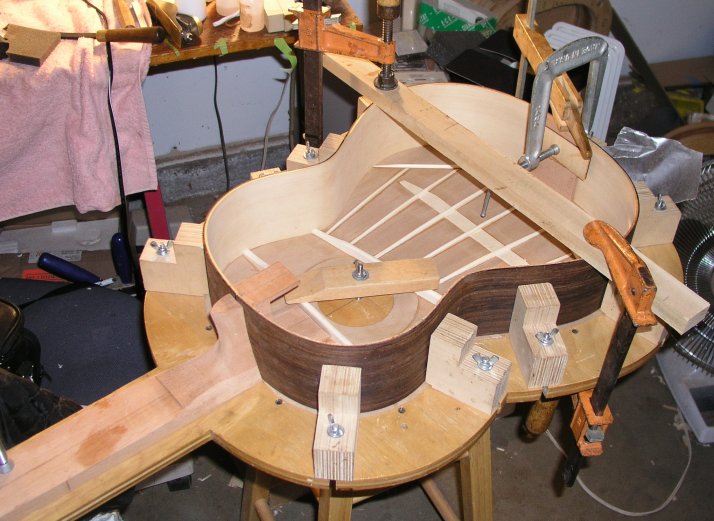

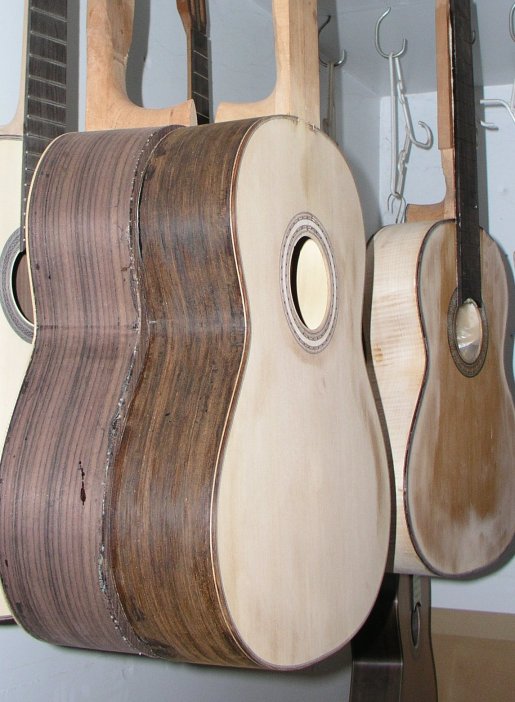

Back glued to the body. |
|
|
Top binding and purfling. |
|
|

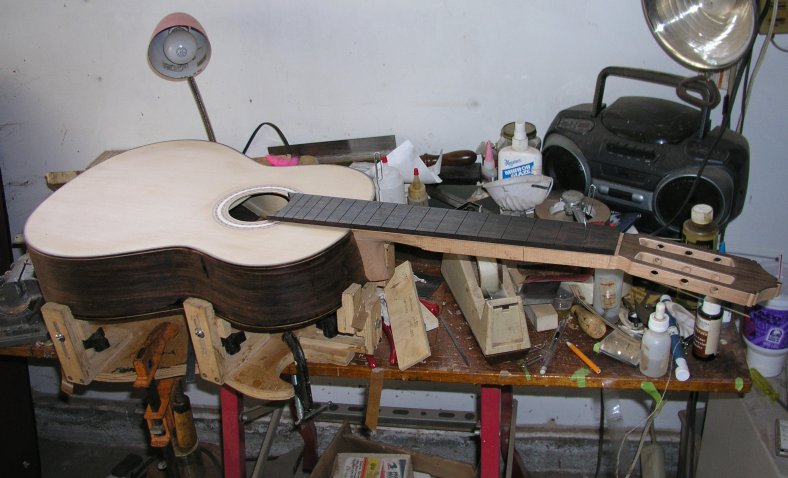

Fingerboard ready for gluing. |
|
|
Ready for finish prep. |
|
|

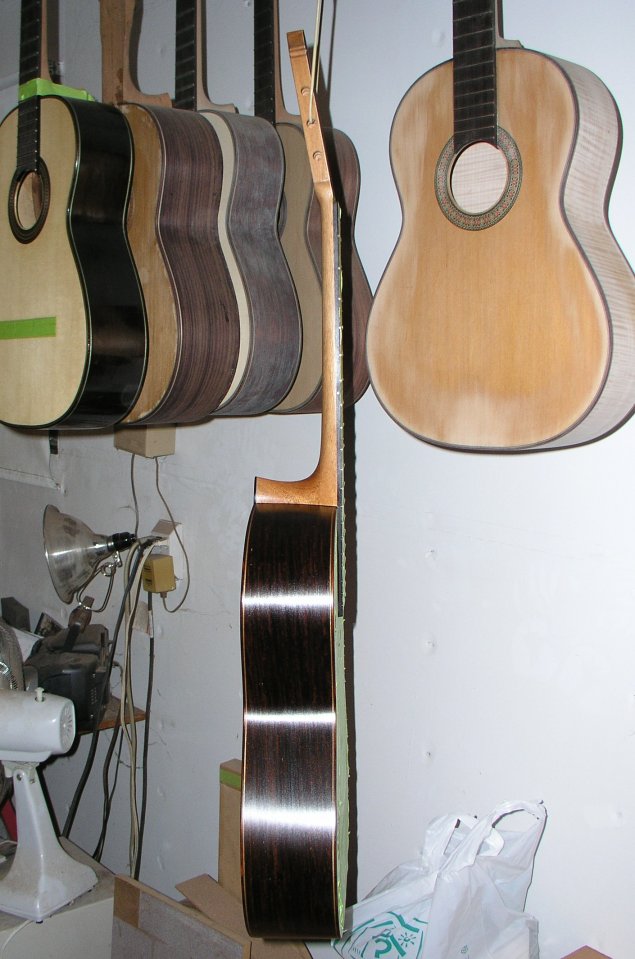

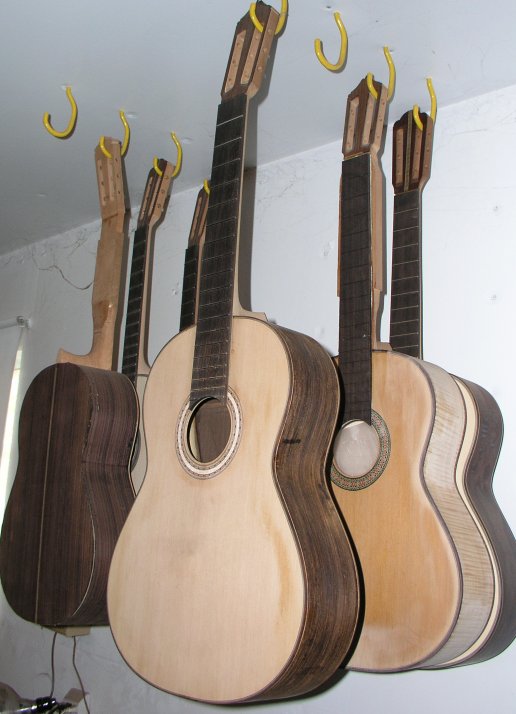

Lacquer application on back, sides and neck. |
|
|

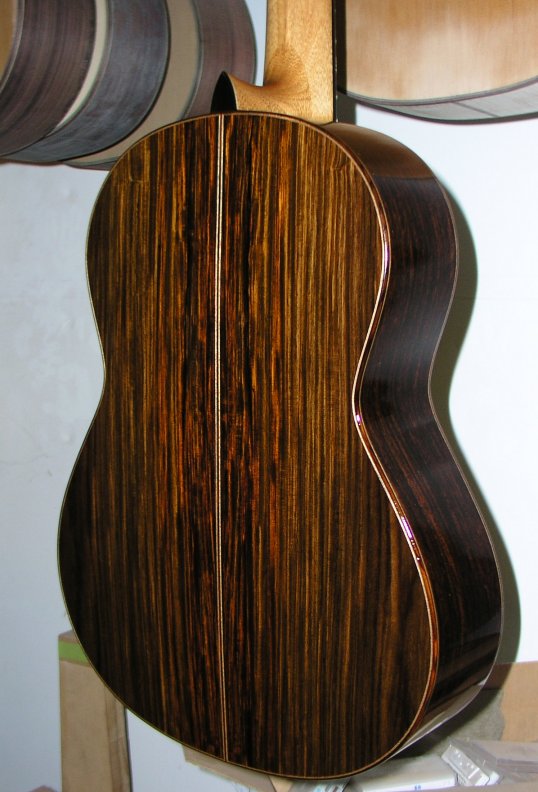

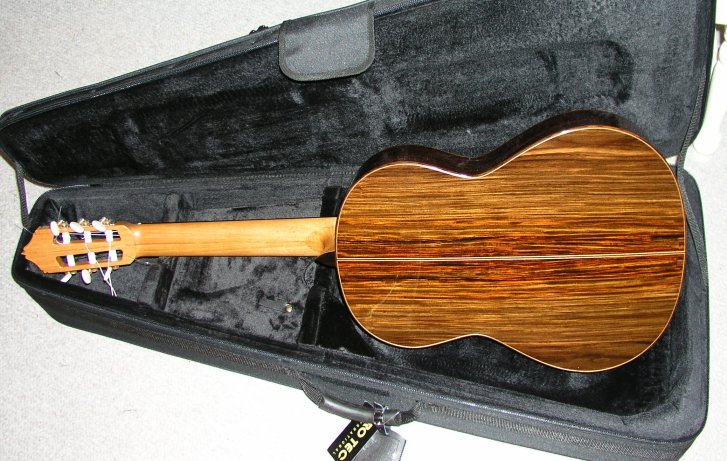

Back view. |
|
|

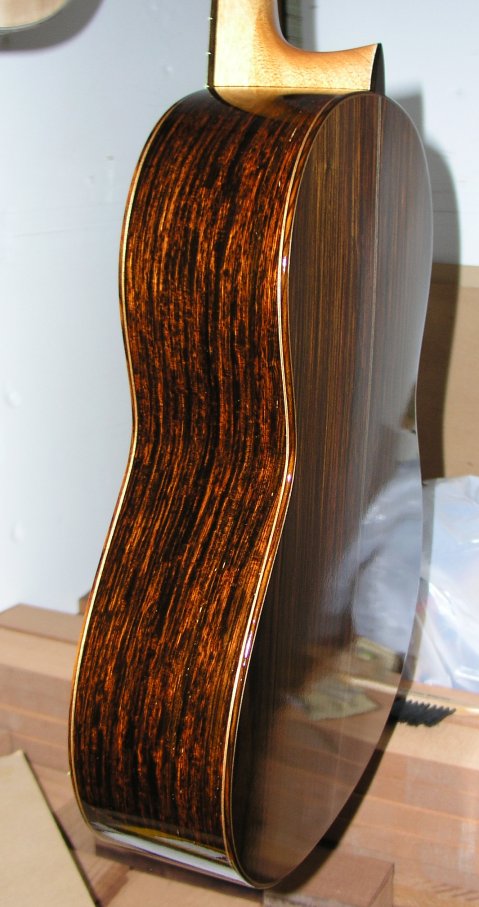

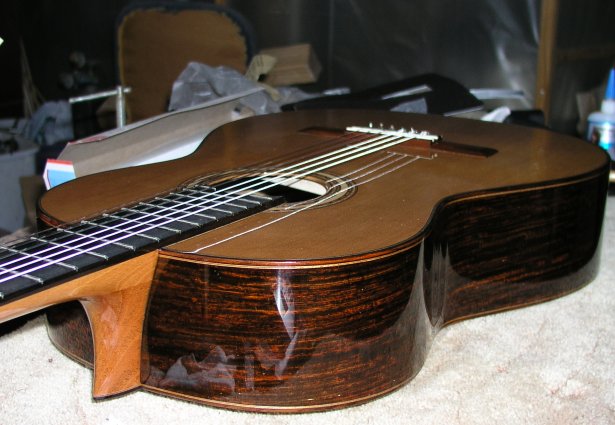

Final coats of lacquer. Notice the Bee's Wing figure! |
|
|

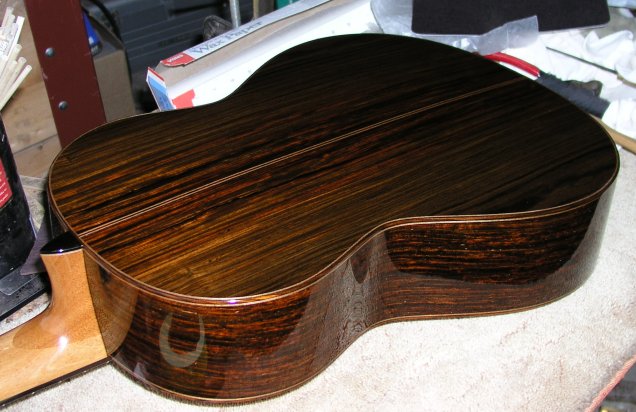

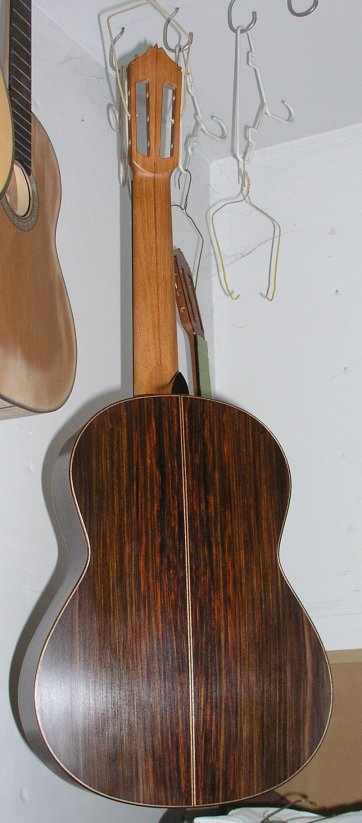

Final coats of lacquer on the back. |
|
|

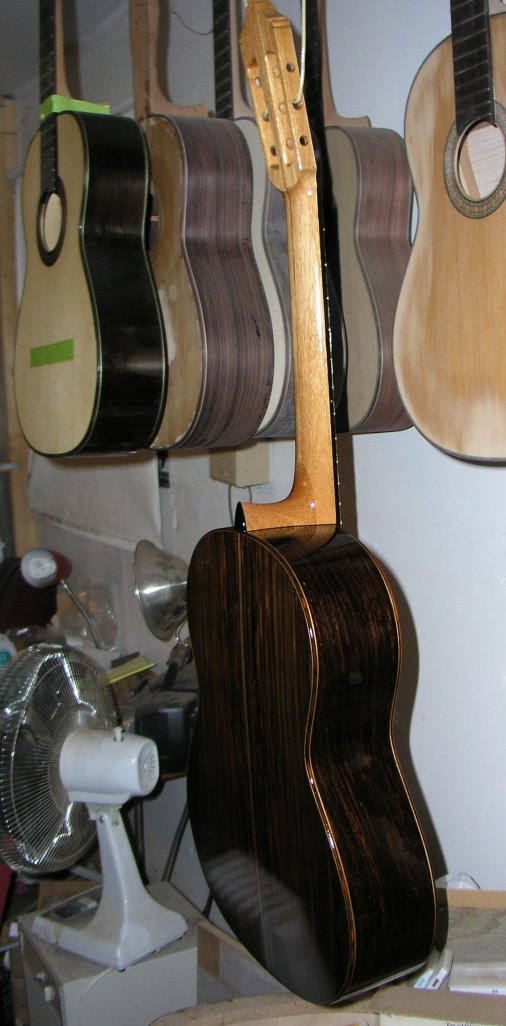

Complete guitar curing in prep for final sanding and buffing. |
|
|

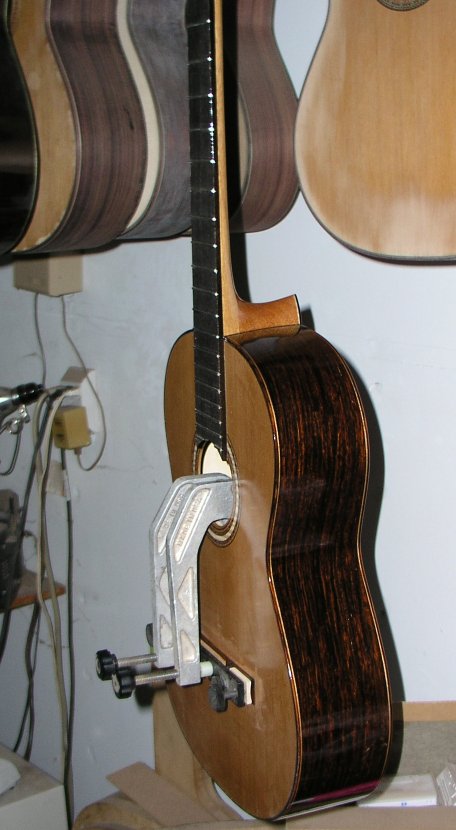

Bridge being glued on. Ready for final buffing and set up. |
|
|

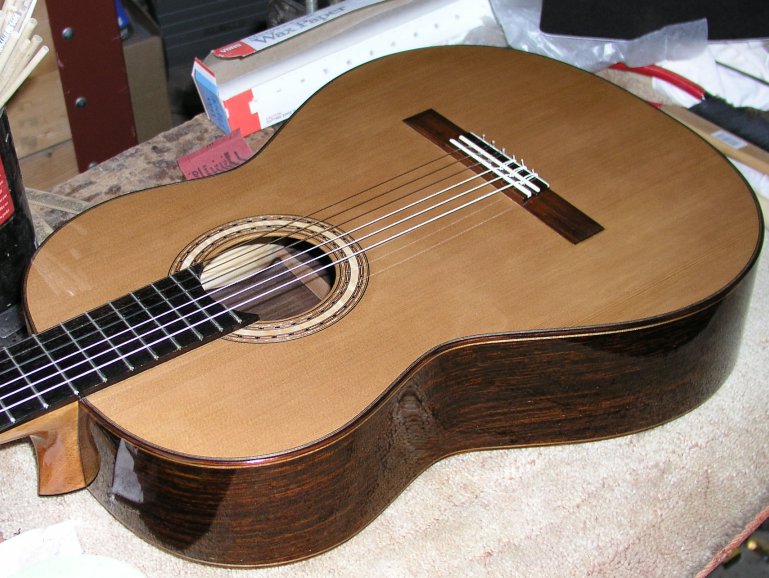

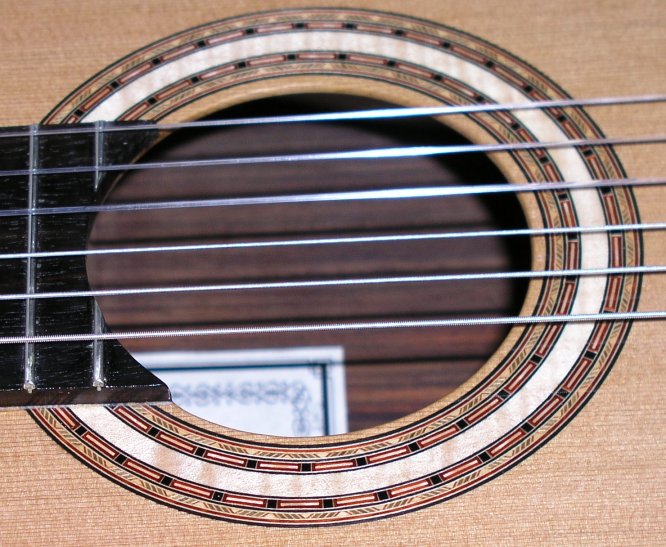

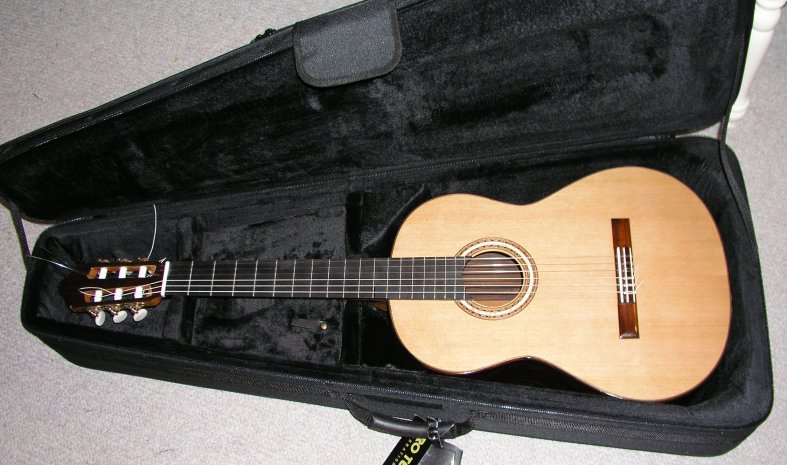

The finished guitar. AUDIO SAMPLE: Serenata Espanol by J.Malats 1.19MB MP3, 39 secs. |
|
|
Beautiful Cocobolo!!!
Great sound. Deep and rich basses with warm and clear trebles. Great concert guitar. |
|
|
|
|
|
|
|
|
|
|
|
