Last Update: 03/02/12
Guitar for Nemanja Ostoich
Model: Lattice Guitar
Specifications:
|
|
Sides and back laminated with Frame under construction. |
|
|

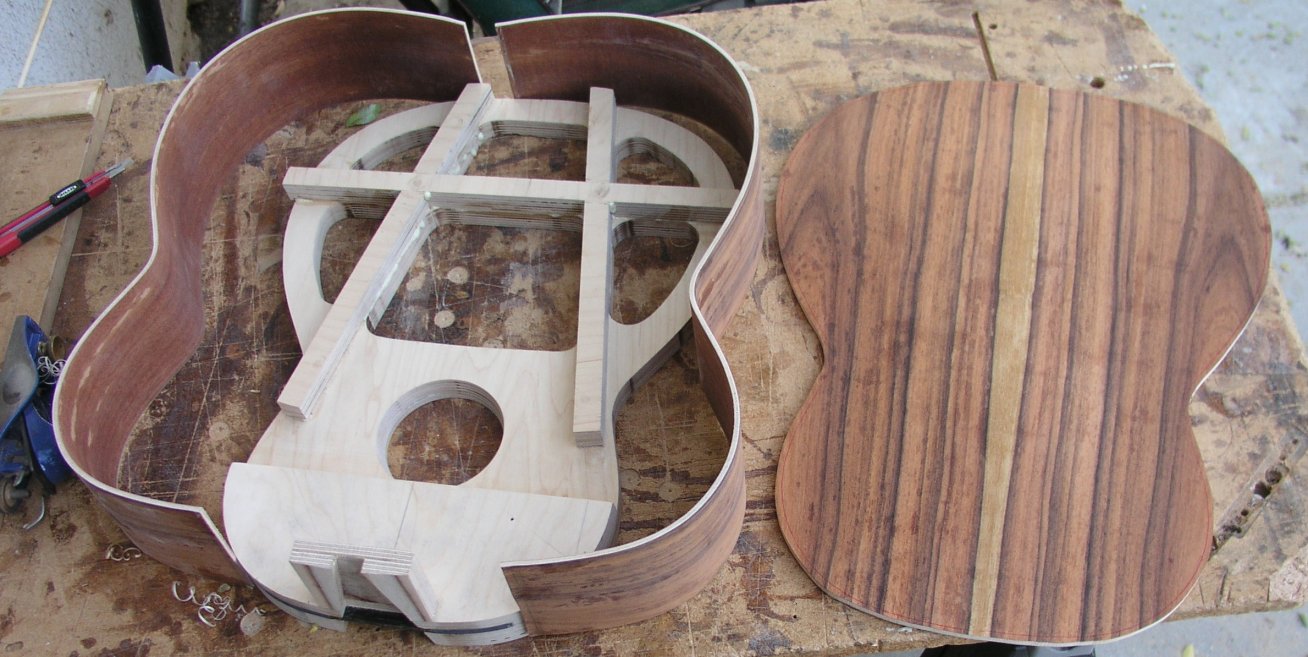

Sides, molded back and frame. |
|
|

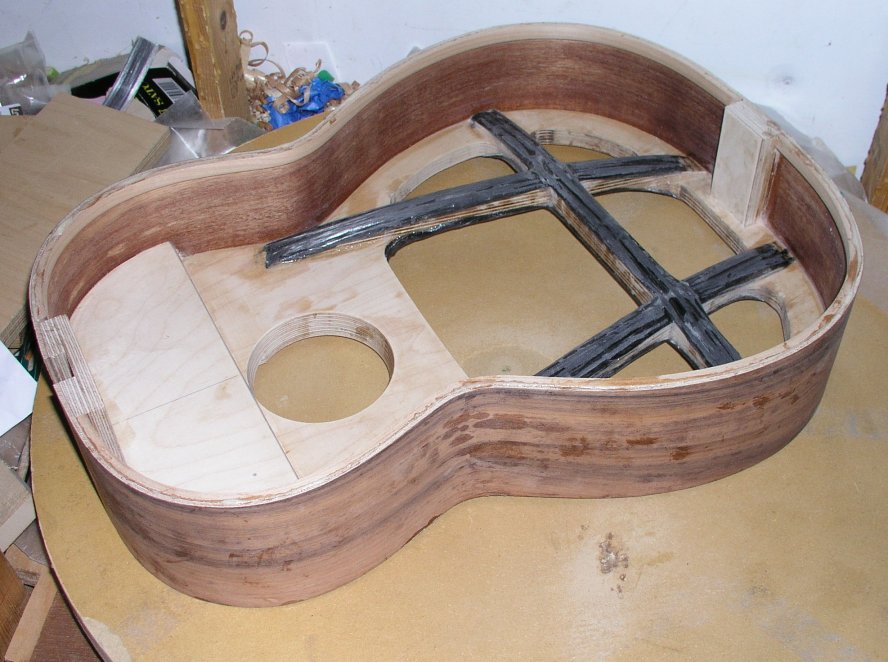

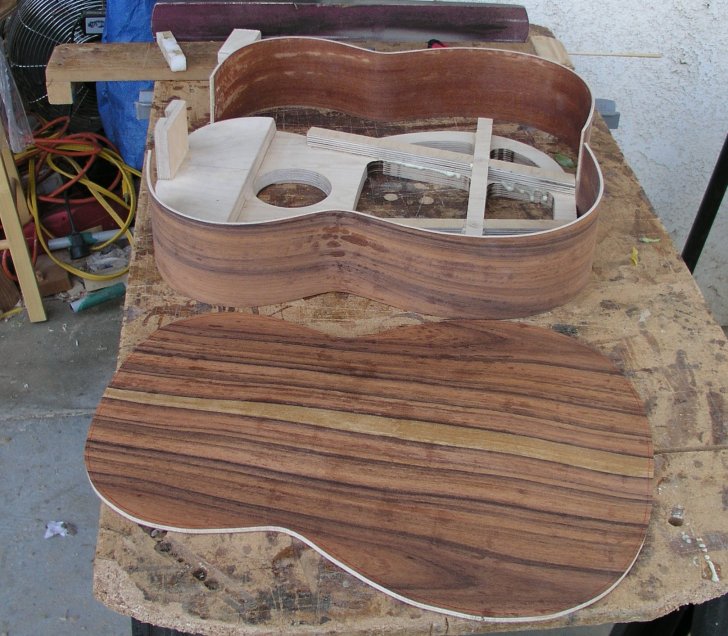

Body ready for back and soundboard to be attached. |
|
|

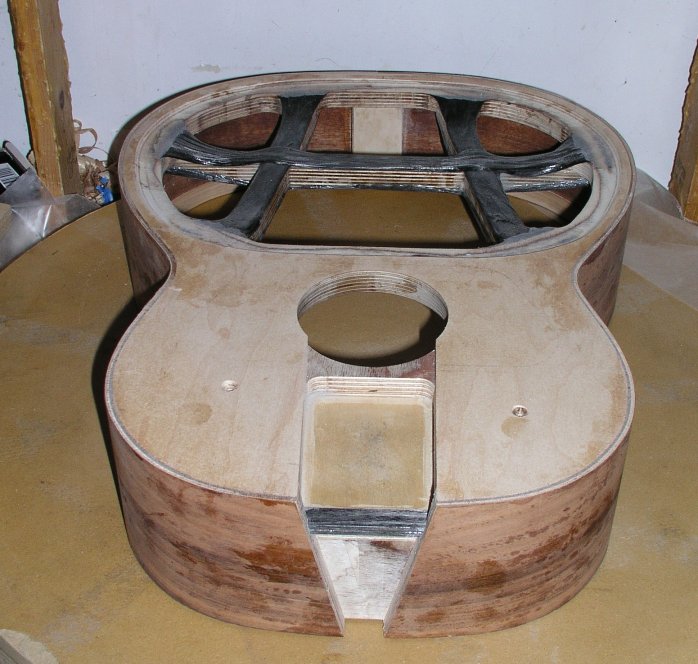

Body ready for soundboard. |
|
|

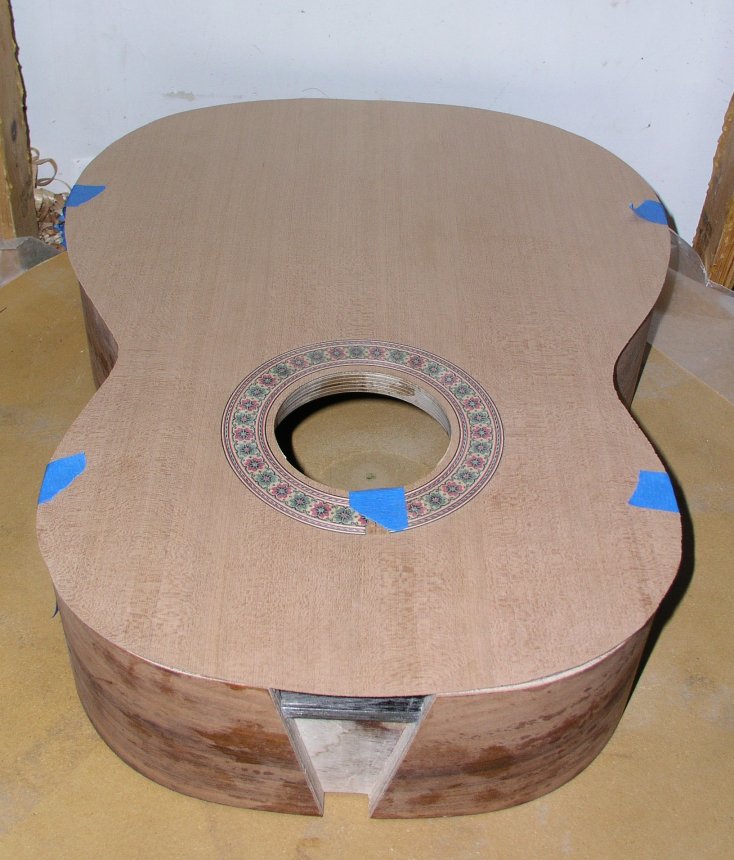

Test fitting soundboard. |
|
|

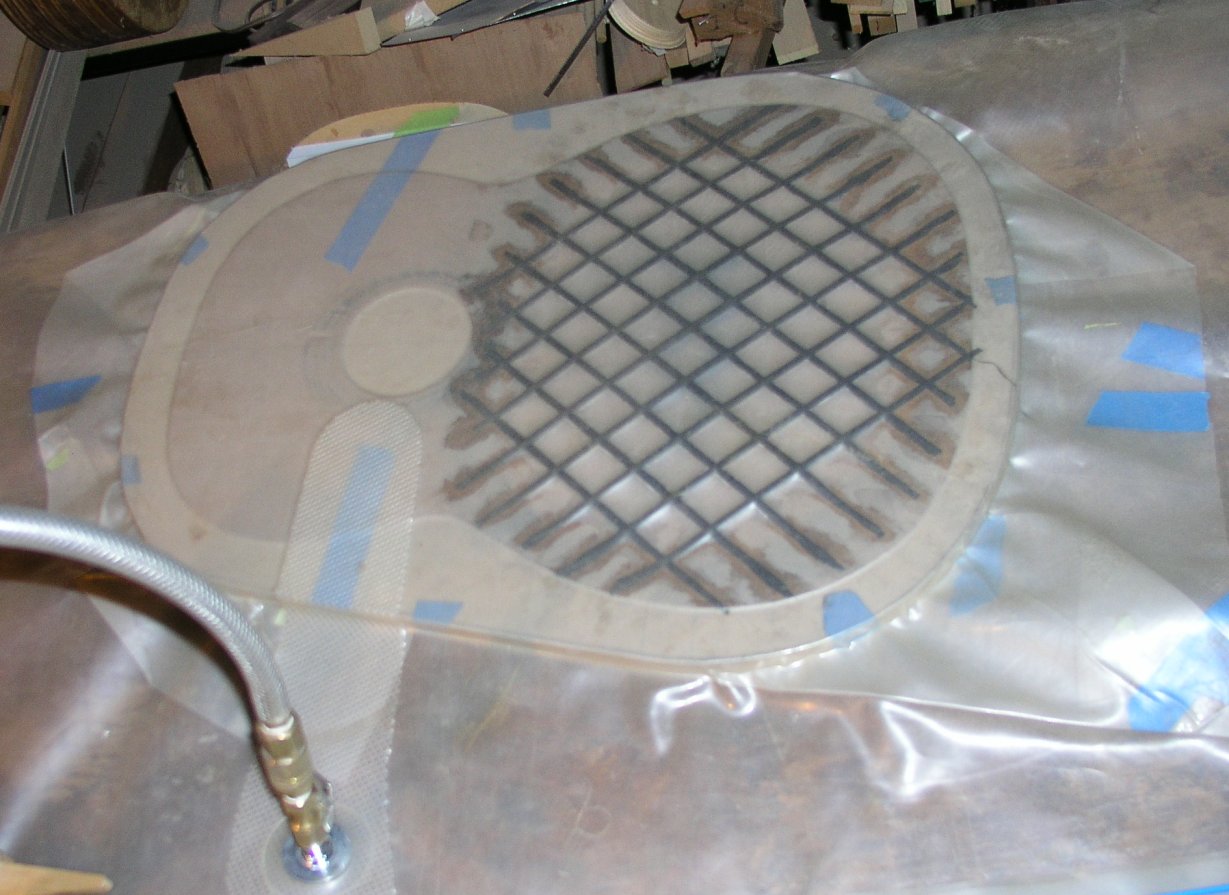

Using as vacuum bag to cap the lattice with two layers of 6k carbon fiber tow (ribbon). |
|
|

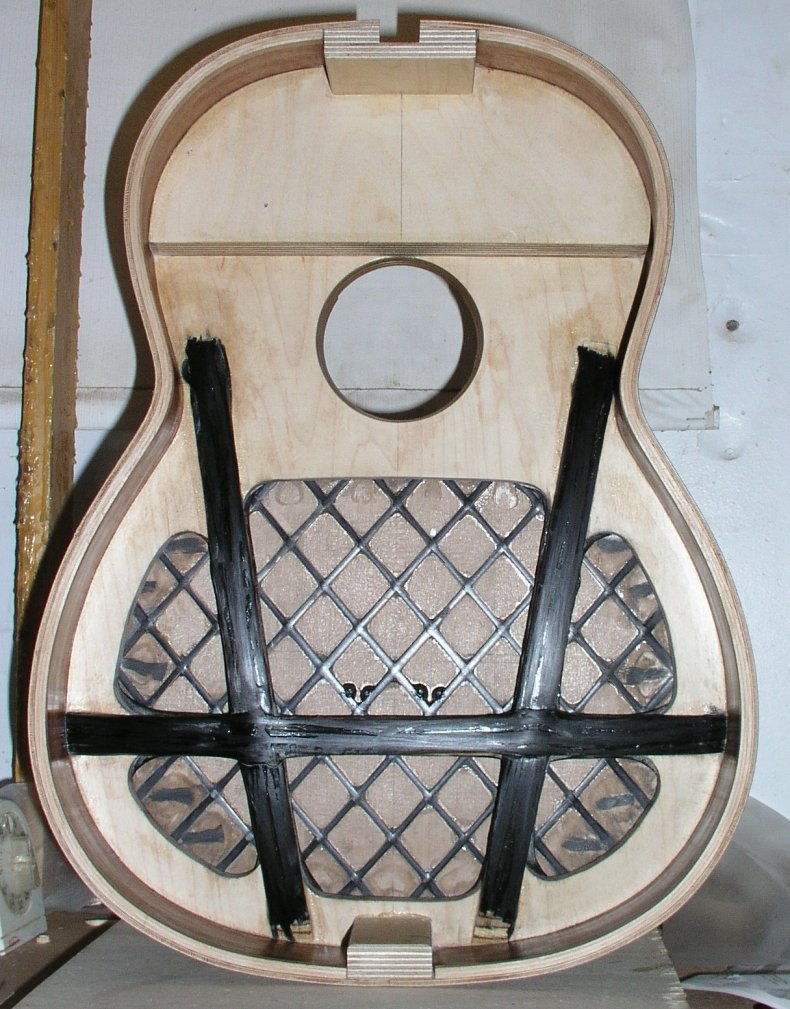

Top attached to frame. Bridge pinned to lattice with carbon fiber rods. |
|
|

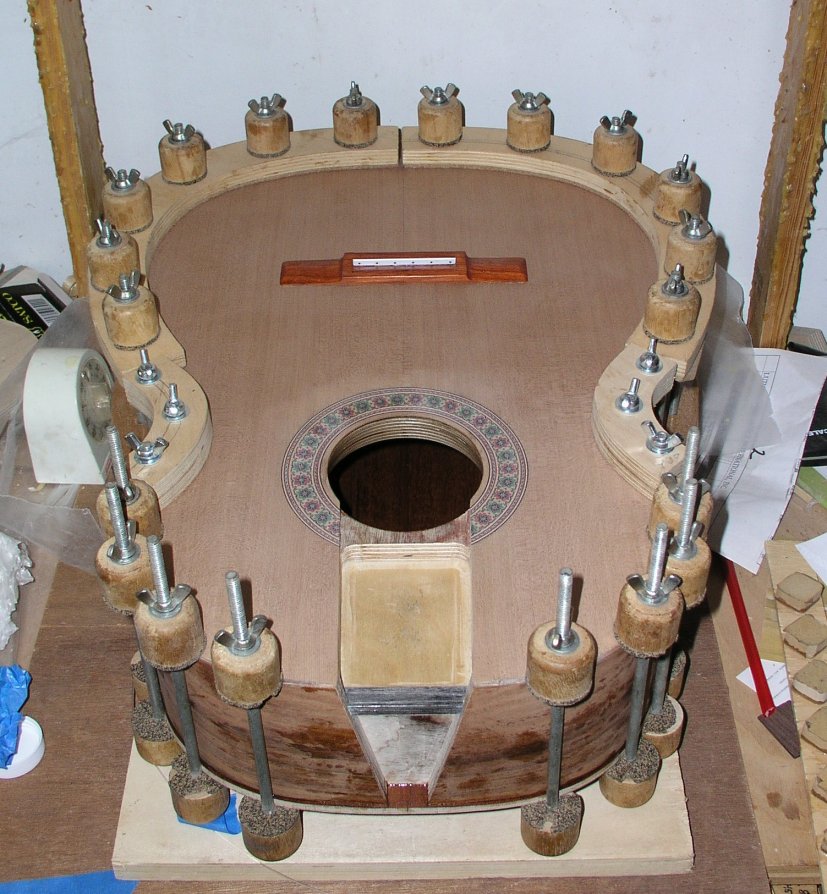

Top attached to body. |
|
|
Gluing the back to the body. |
|
|

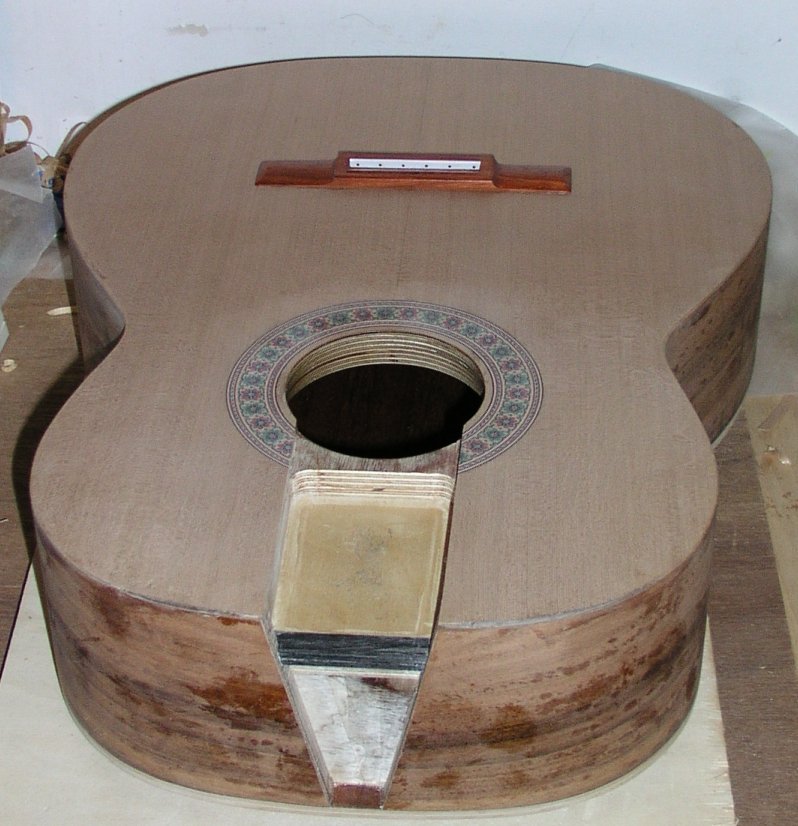

Box ready for binding. |
|
|

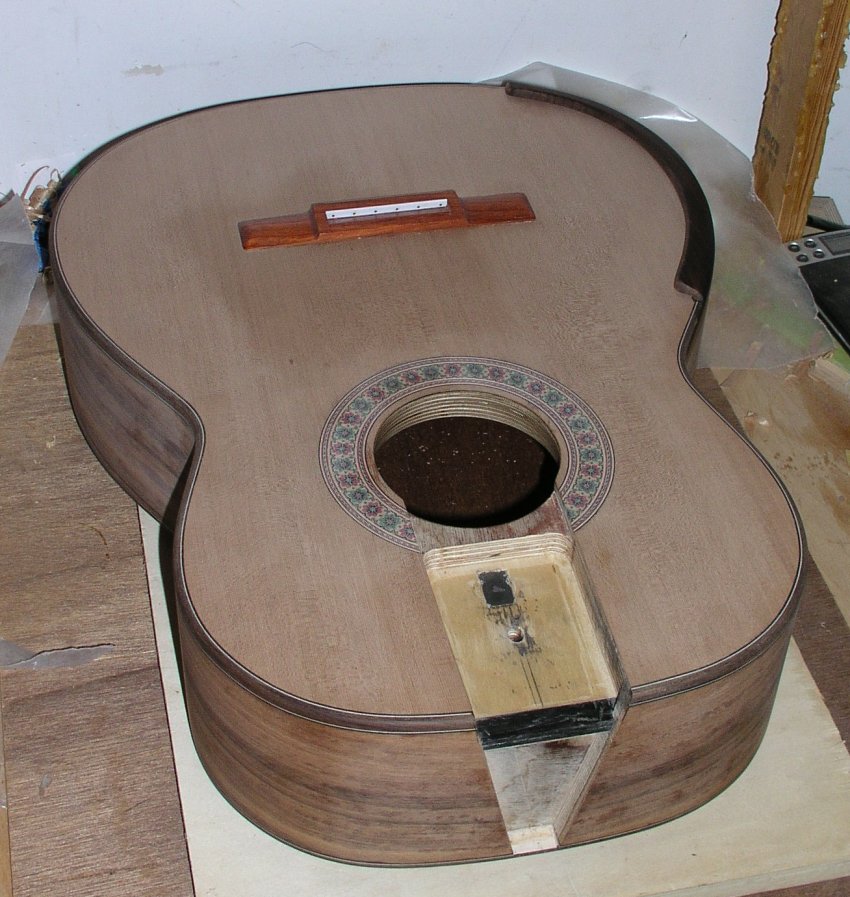

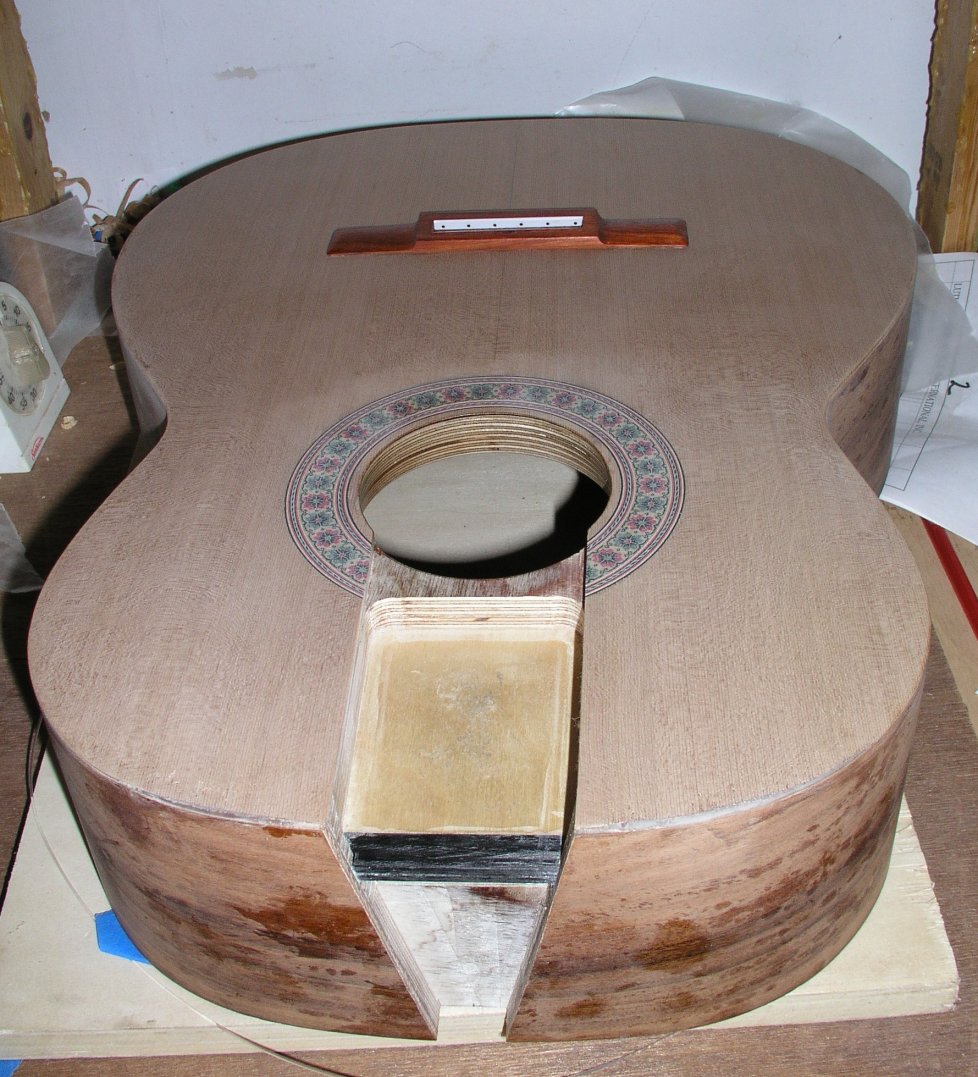

Tops and back glued to body ready for binding. |
|
|

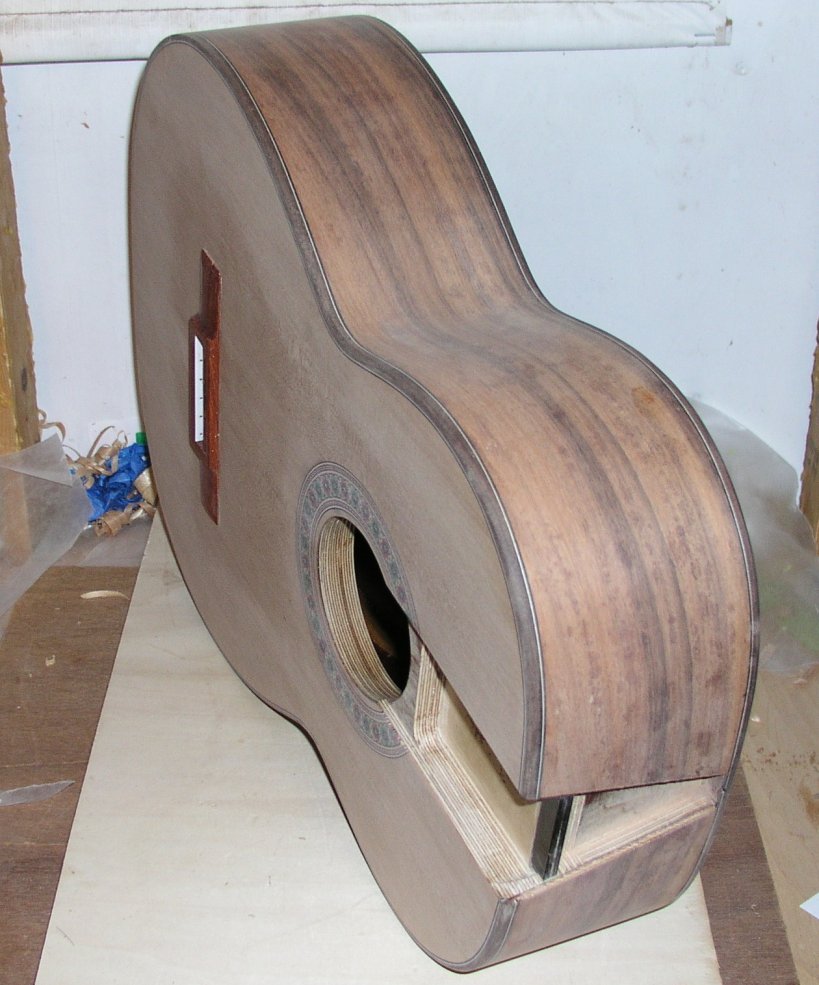

Body bound and purfled. Ready for arm rest and finish. |
|
|

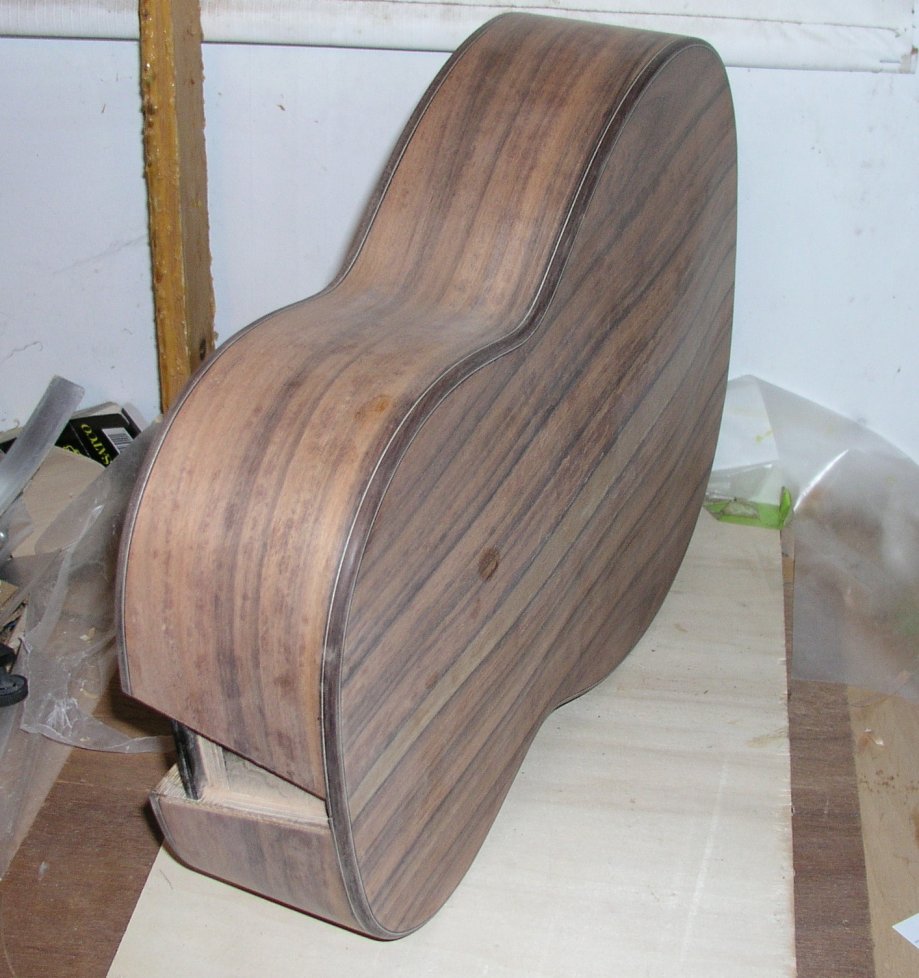

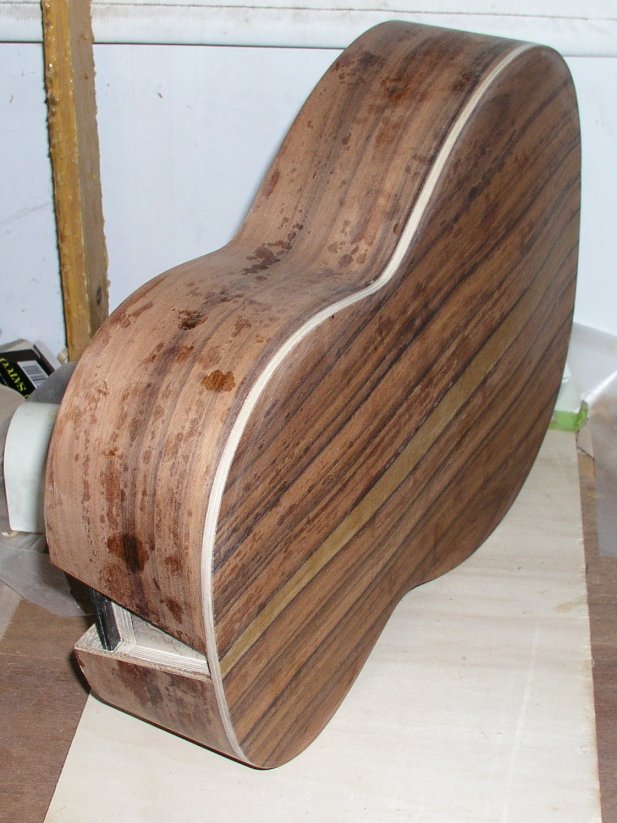

Back view of body. Ready for finishing. |
|
|
Armrest fitted and attached. Ready for finishing. |
|
|

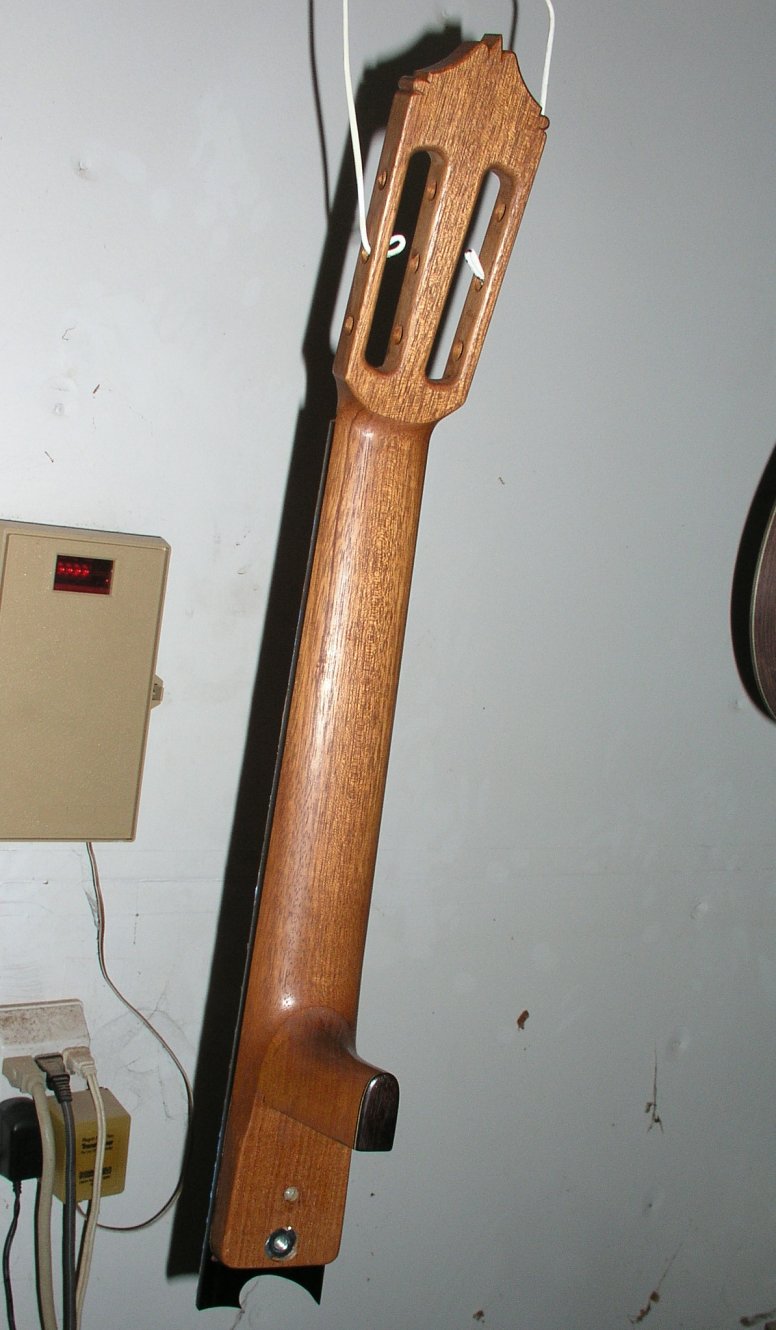

Neck in the finishing stage. |
|
|

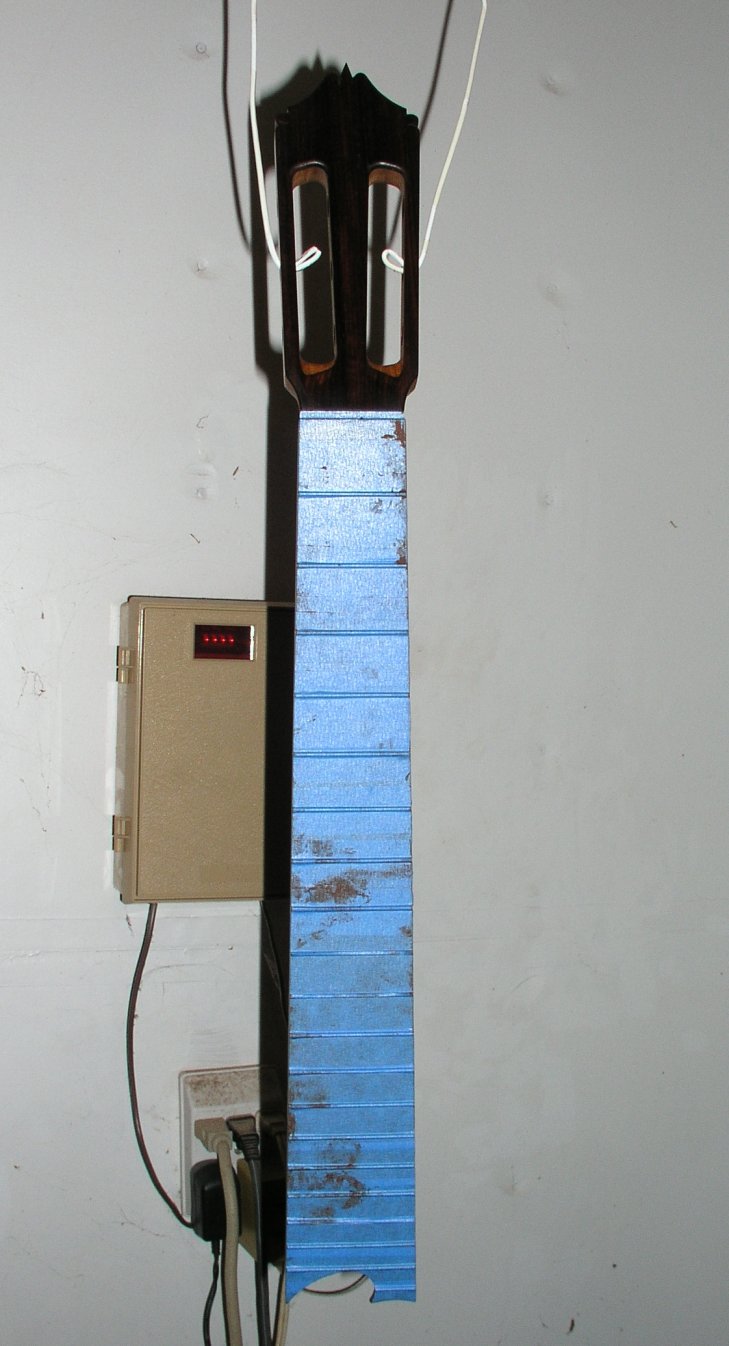

Front view of neck during finishing. |
|
|

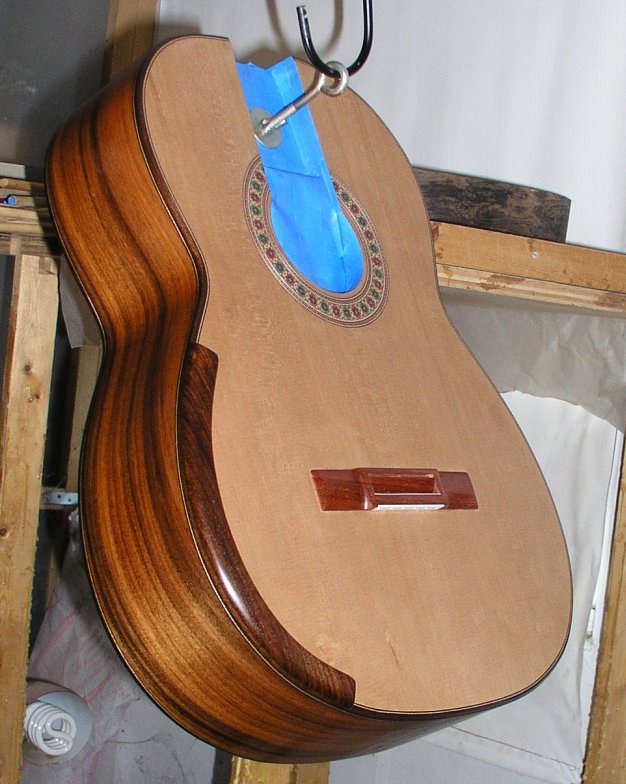

Finish application of the soundbox. |
|
|
Back view of finish stage. |
|
|

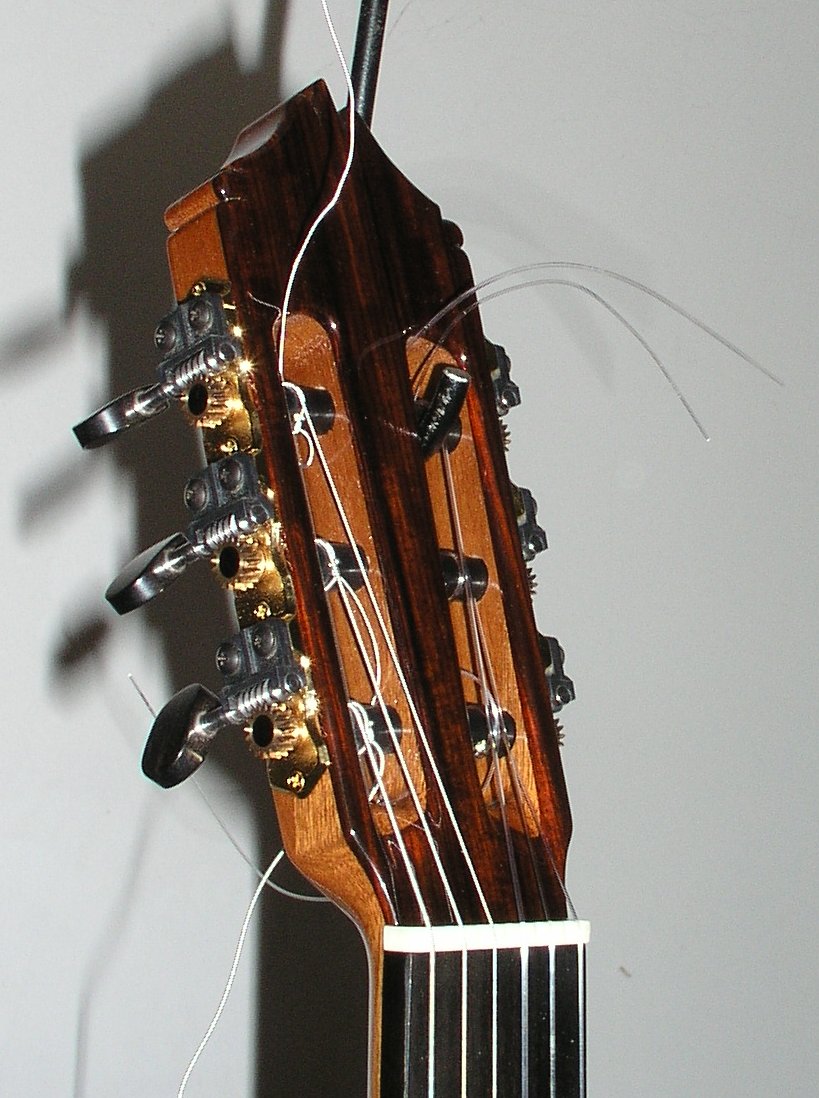

Guitar construction complete! Head view with Gilbert tuners. |
|
|

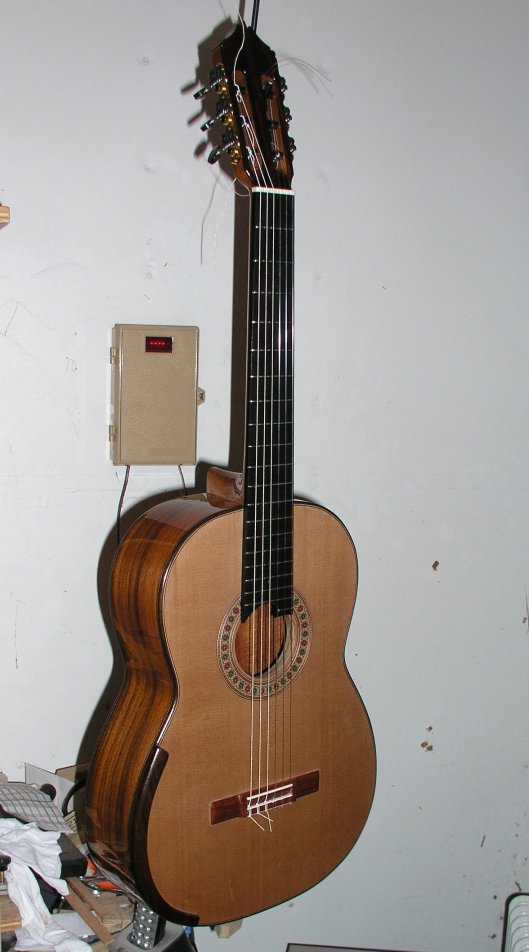

Front view. |
|
|

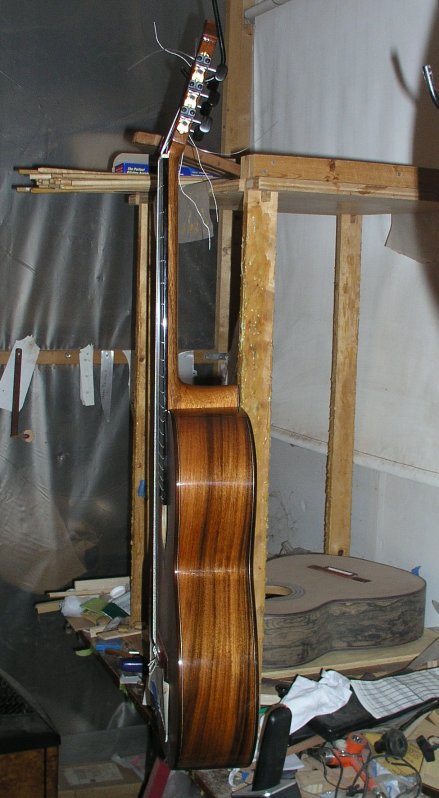

Side view. |
|
|

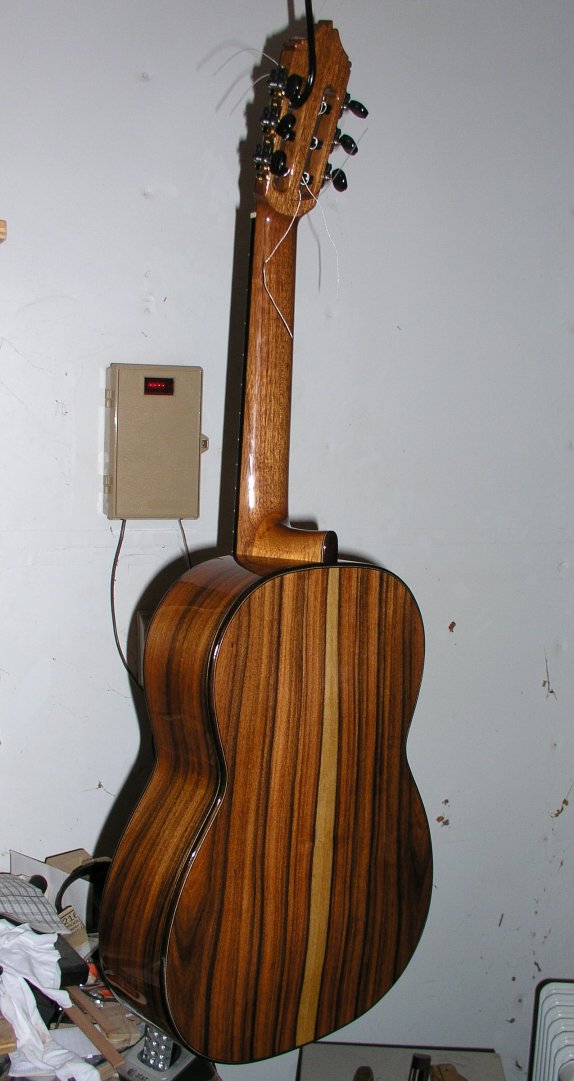

Back view. |
